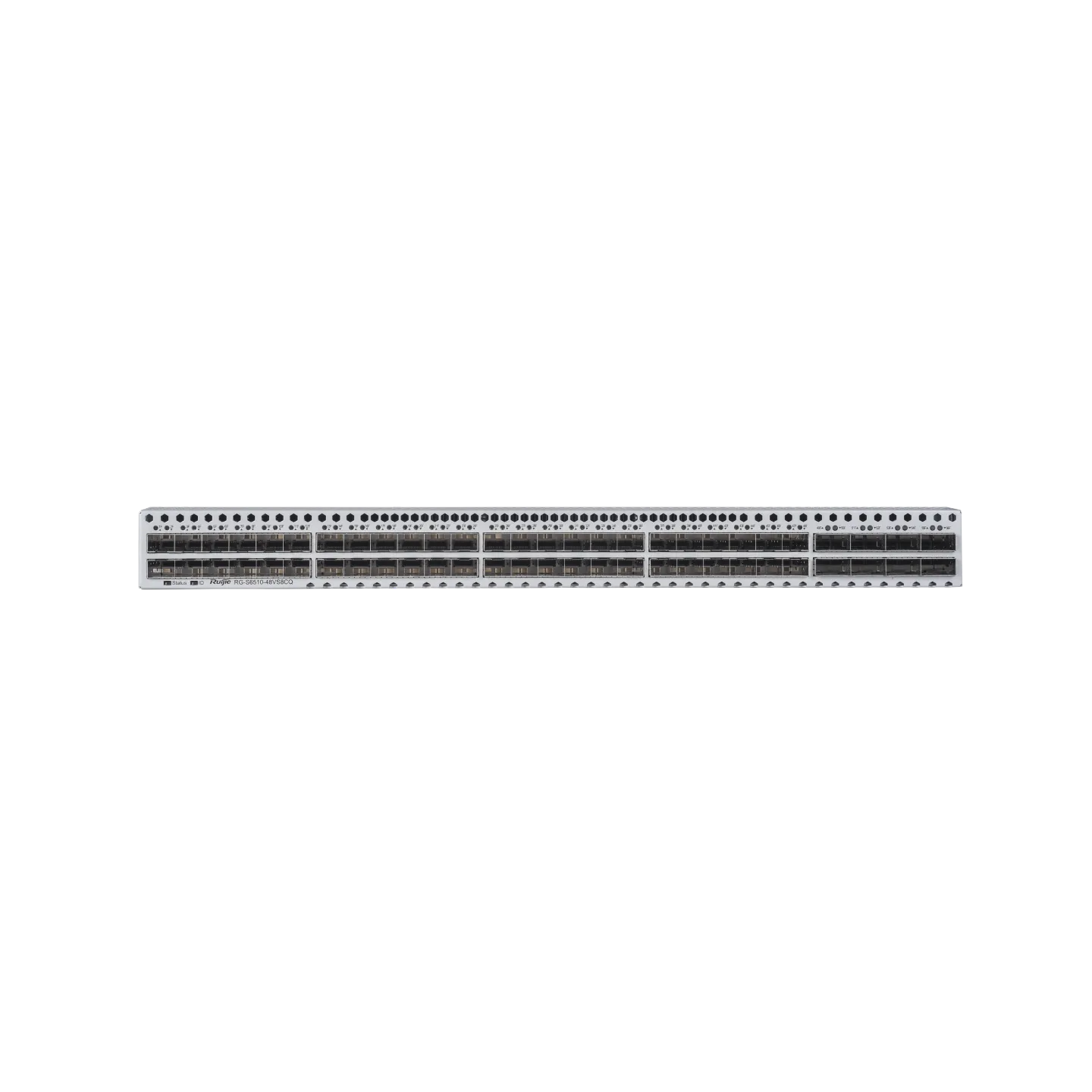

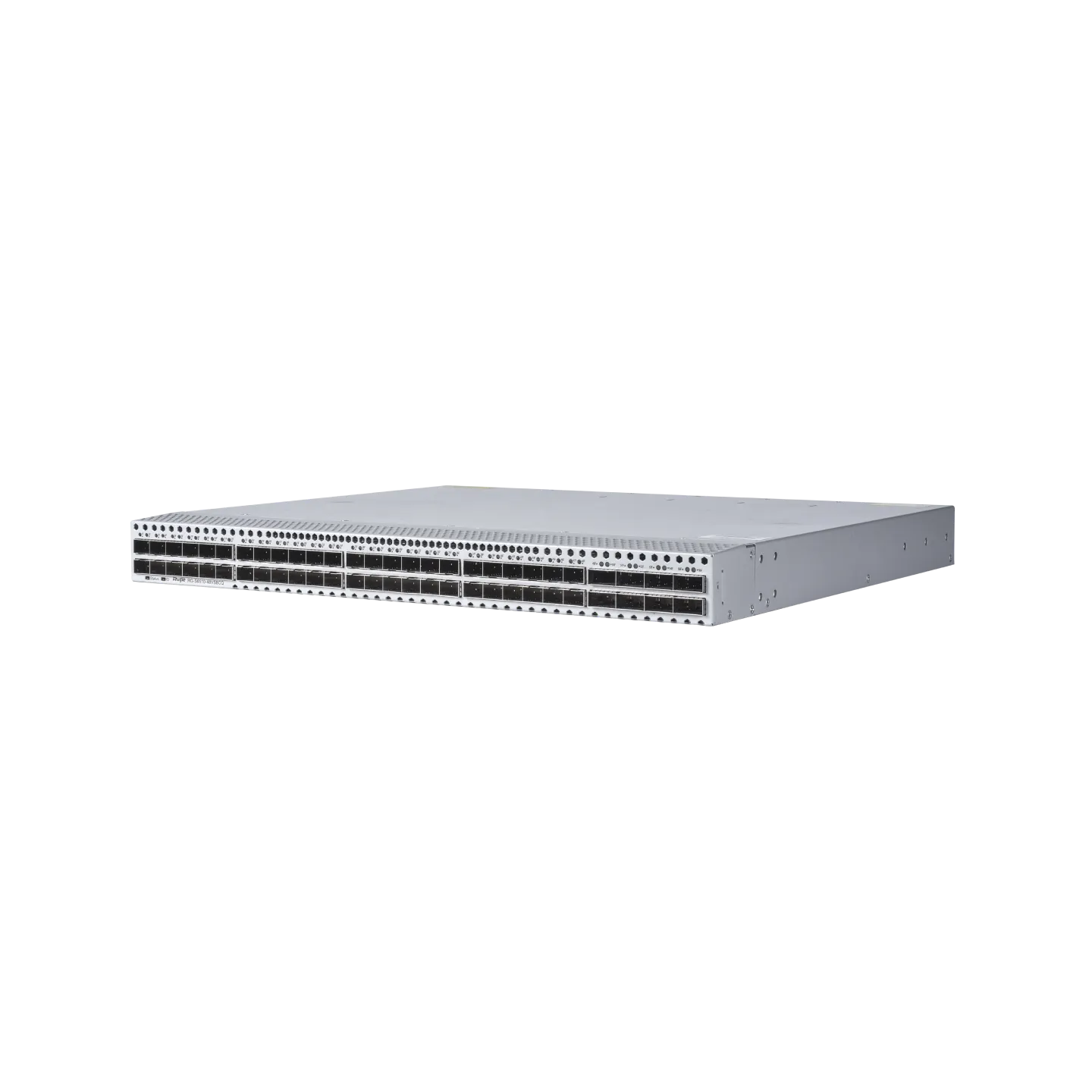

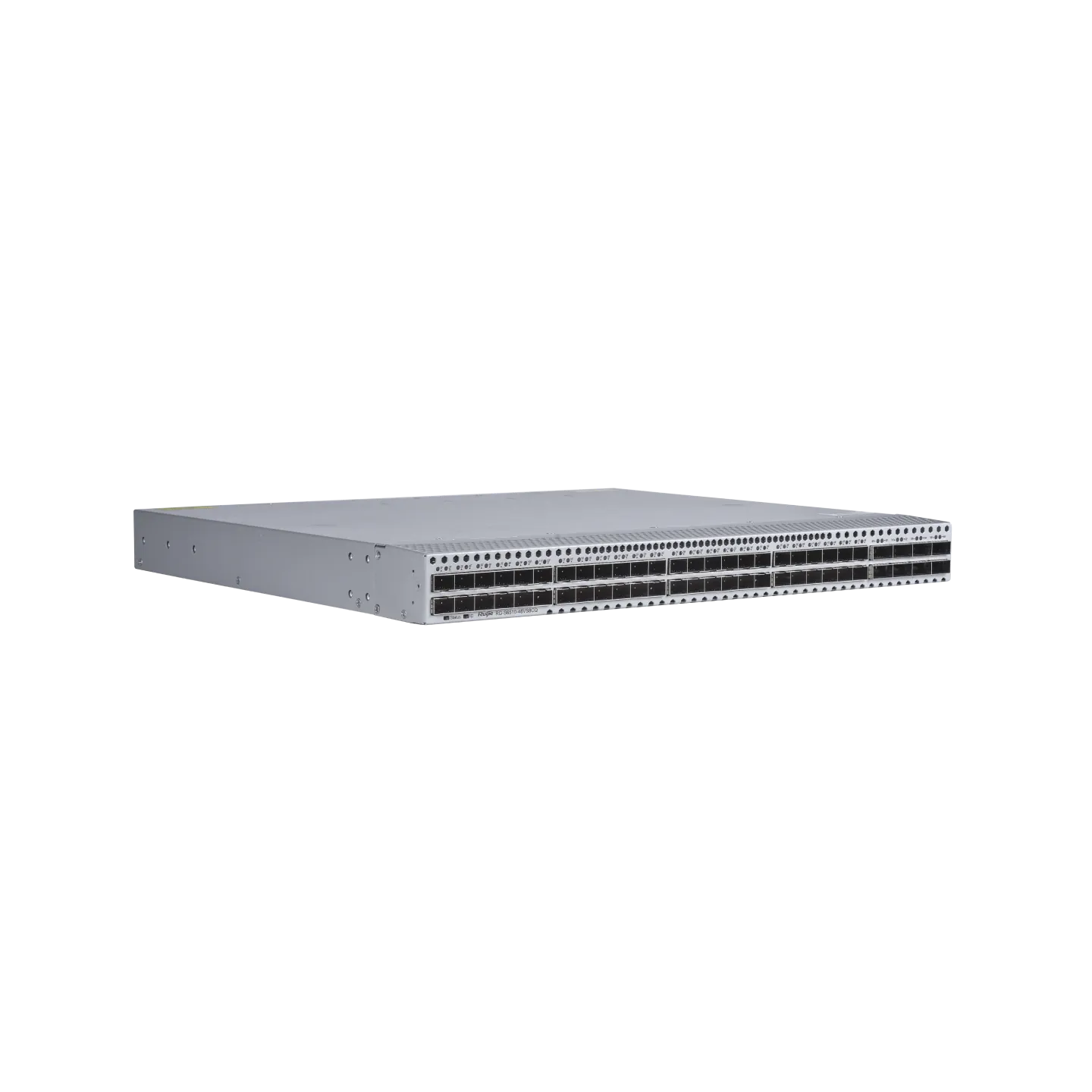

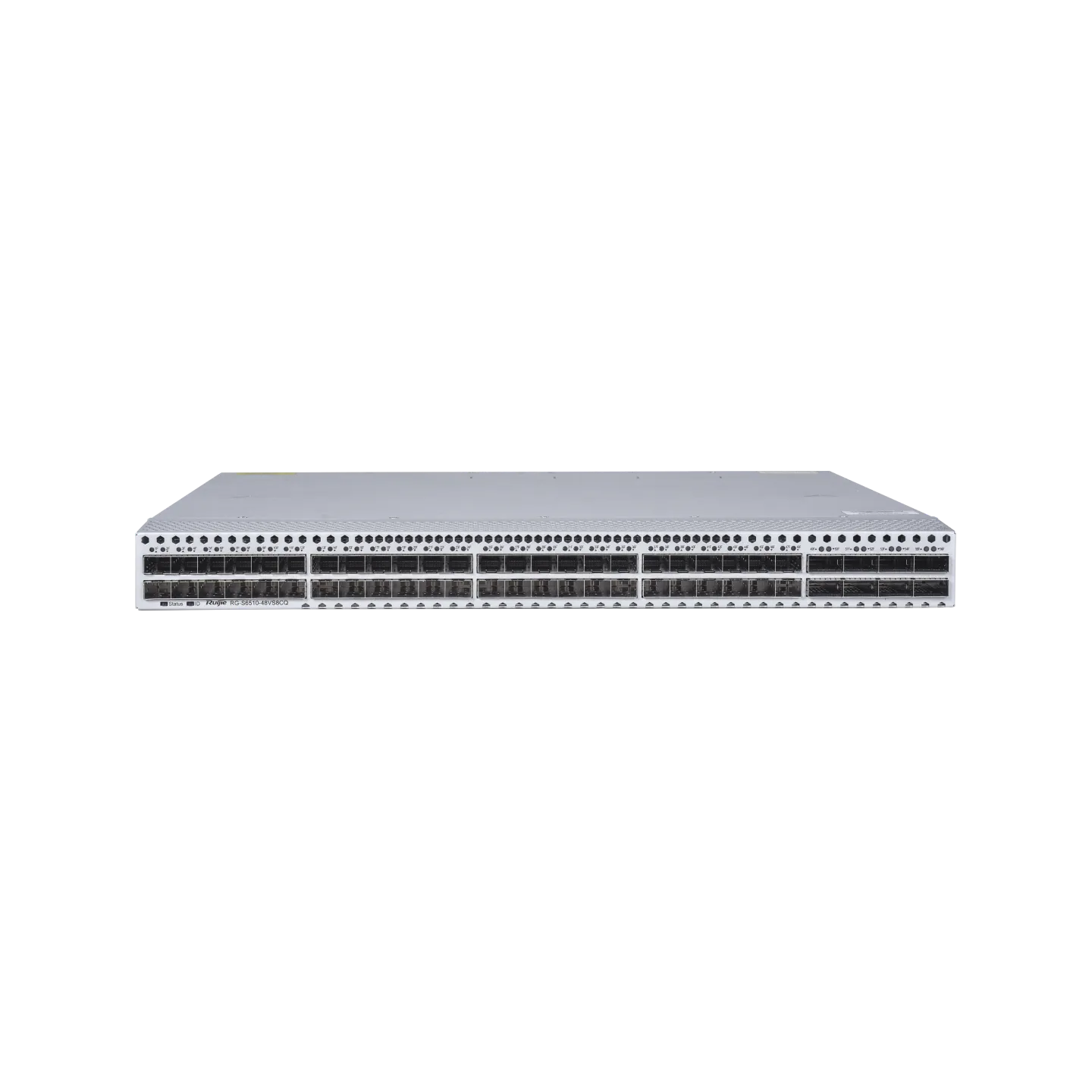

RG-S6510-48VS8CQ 25GE Data Center Access Switch

RDMA-capable high-density 25GE/100GE access switch for data center networks with low latency and no packet drop

Models

RG-S6510-4C

four service slots, 25GE/100GE line cards

RG-S6510-48VS8CQ

Number of IPv4/IPv6 host routing entries: 128K/64K

RG-S6510-32CQ

32×100G ports

Series

RG-S6510 Series

Datasheet Sales Enquiry

Highlight Features

48 x 25GE SFP28 ports + 8 x 100GE QSFP28 ports, and 32 MB buffer, easily coping with burst traffic
Cross-device link aggregation (De-stacking/M-LAG/VSU), device-level redundancy, flexible networking, and high reliability
Multiple hardware-level protection, ensuring service consistency and network stability
VXLAN tunneling technology, achieving unlimited data transmission and flexible resource allocation and scheduling
Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
Telemetry/gRPC/sFlow/SPAN-based network monitoring and automated O&M, making management simple and efficient

Key Specification
Features
Specifications
Resources
Order Information
FAQ

Sales Enquiry

Key Specification

Features

25GE Data Center Access Switch RG-S6510-48VS8CQ

8 x 25GE SFP28 ports and 8 x 100GE QSFP28 ports, delivering line-rate forwarding capacity
32 MB buffer and advanced buffer scheduling mechanism, providing fast data processing and easily coping with burst traffic

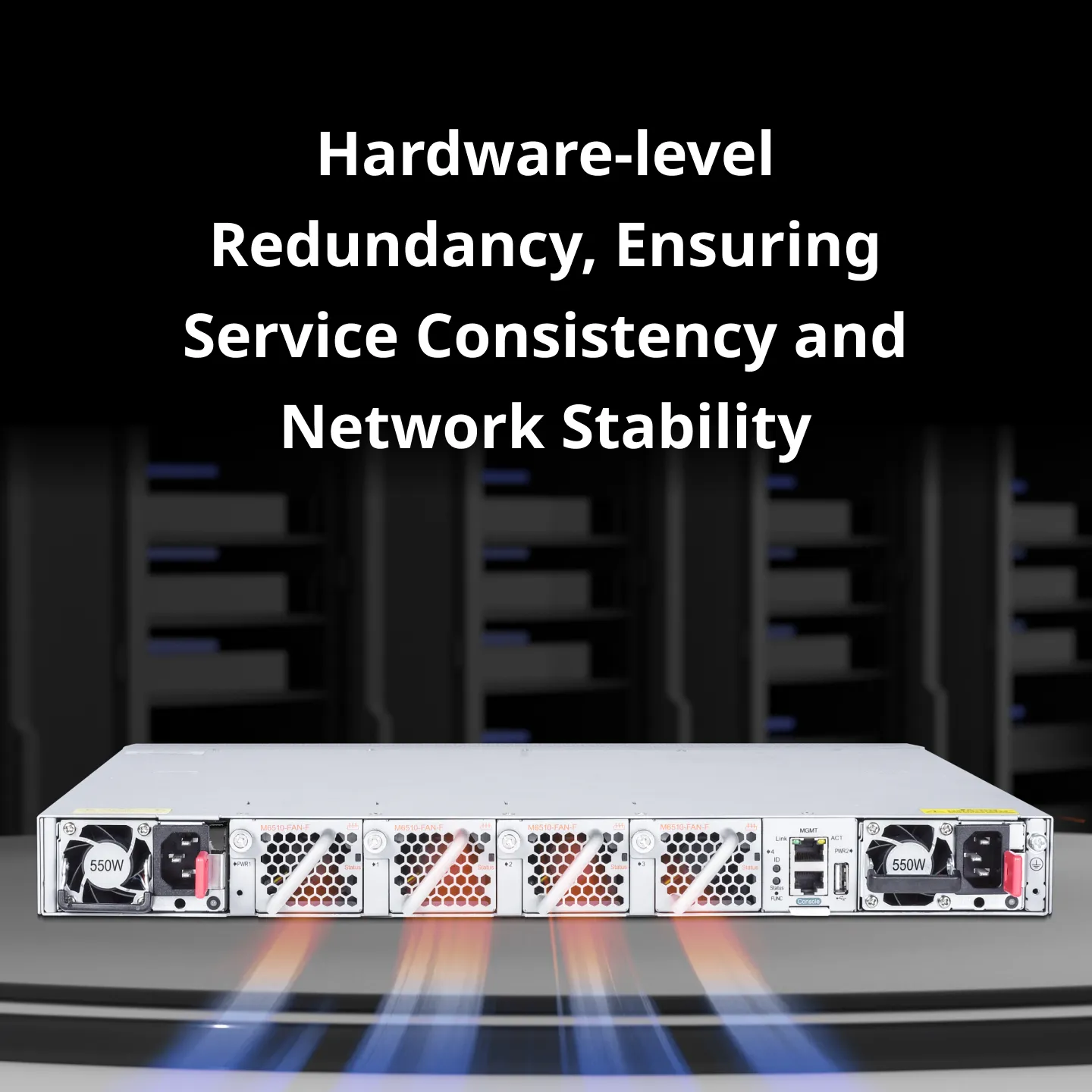

Hardware-level Redundancy, Ensuring Service Continuity

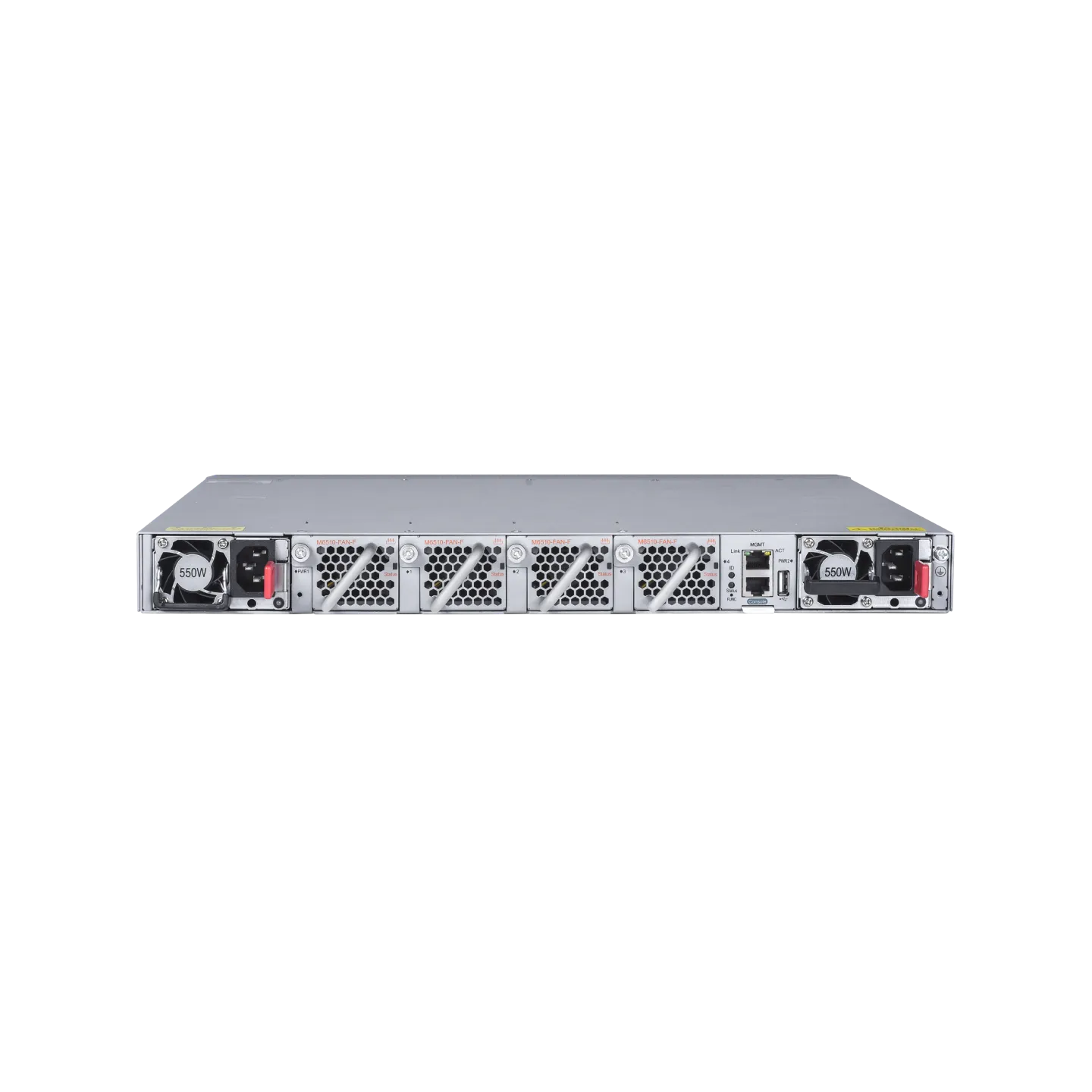

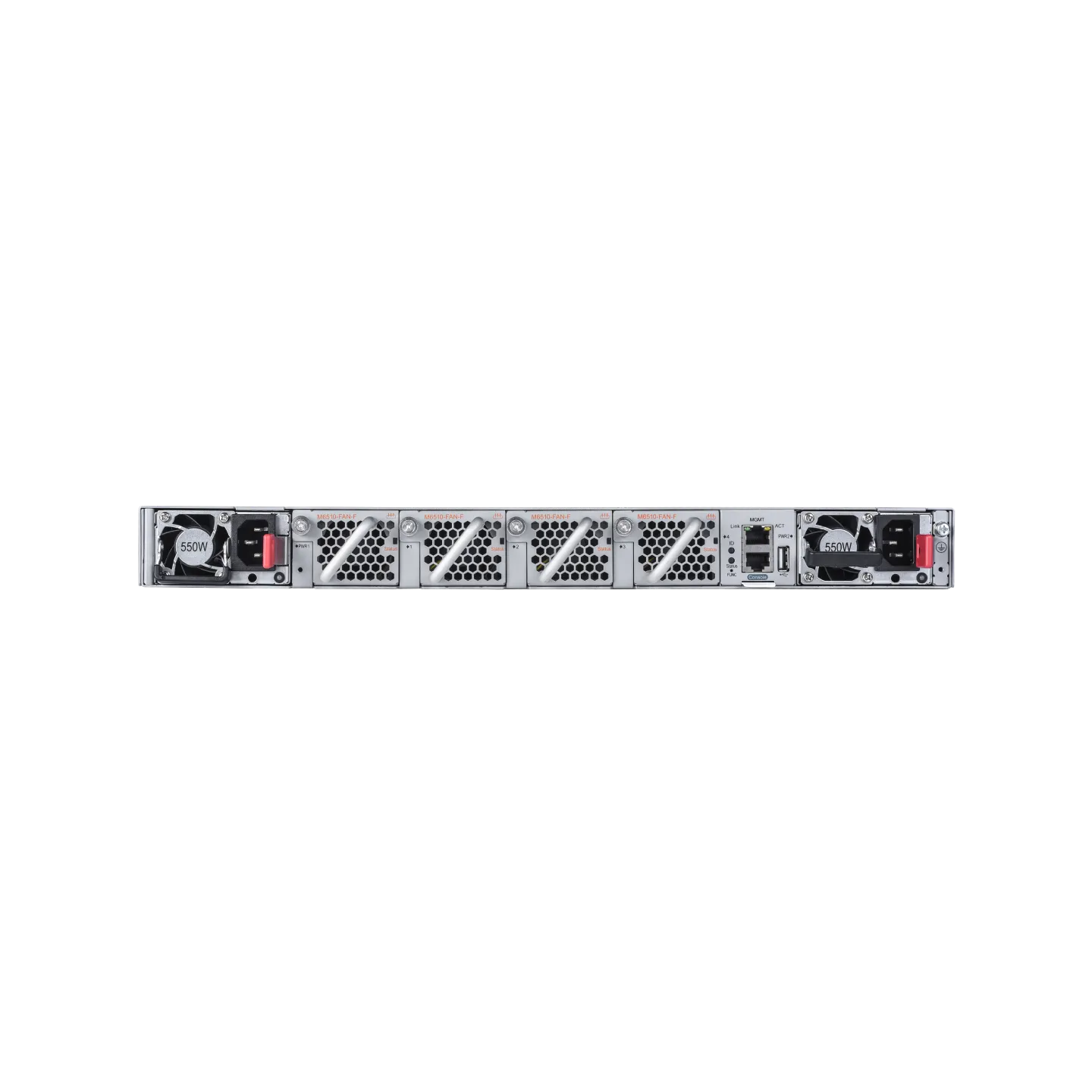

Hot-swappable redundant power modules

Hot-swappable redundant fan modules

Power modules in 1+1 redundancy mode, and failover in seconds, providing nonstop services

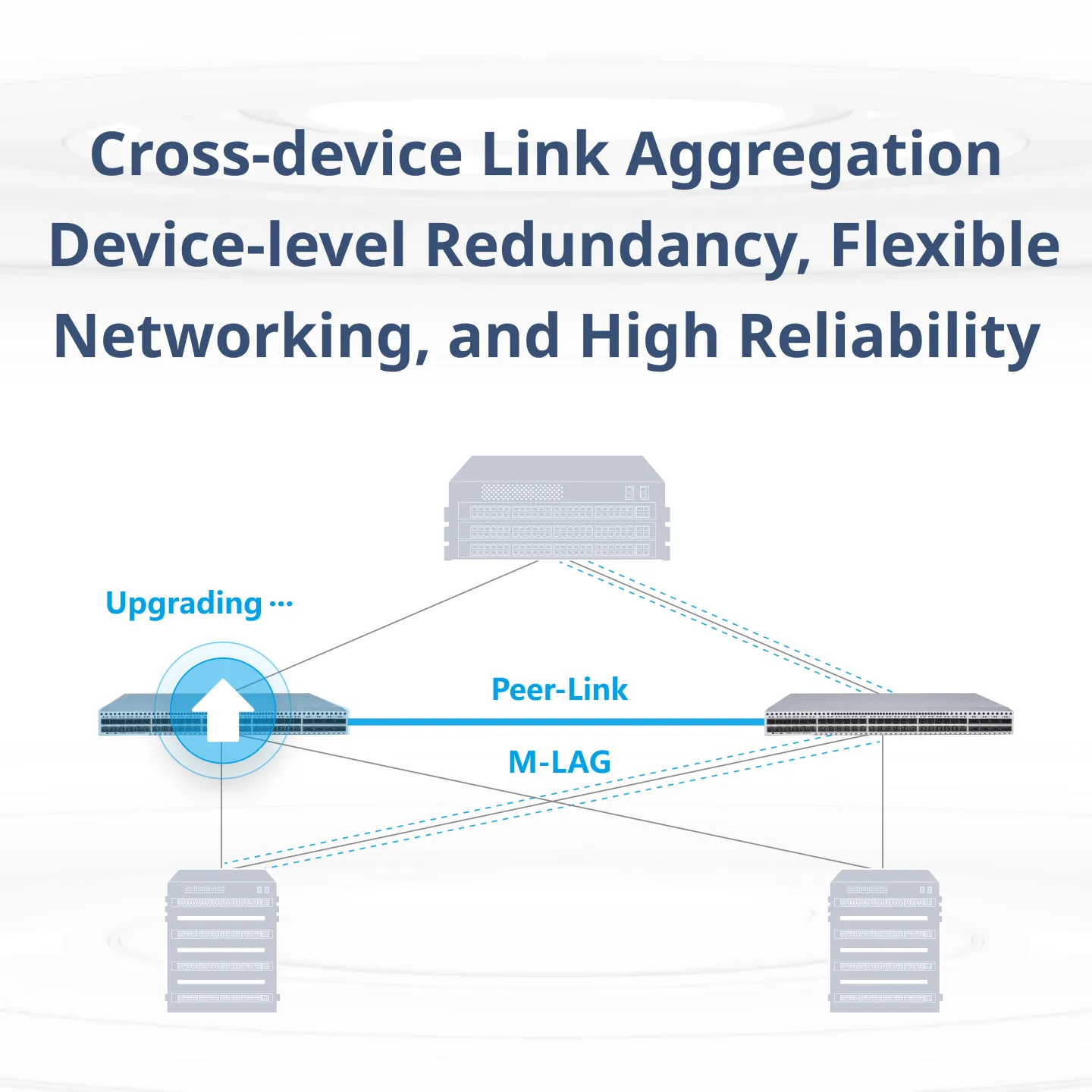

Cross-device Link Aggregation, Implementing Device-level Redundancy, Flexible Networking, and High Reliability

De-stacking

M-LAG

VSU

De-stacking technology logically aggregates multiple switches through LACP to allow servers on the same network segment or on different network segments to communicate. This eliminates the need to synchronize data between switches, without affecting service transmission.

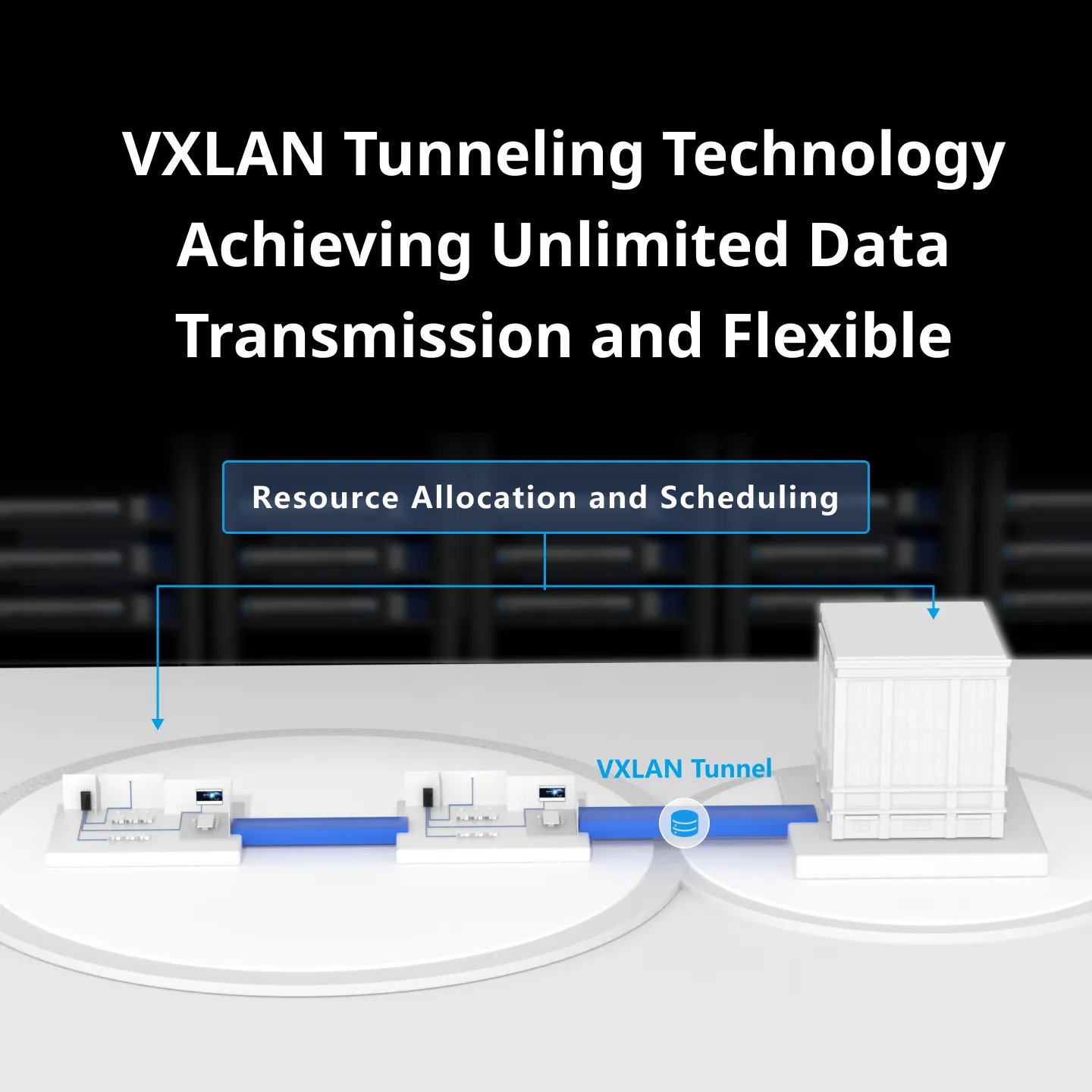

VXLAN Tunneling Technology, Achieving Unlimited Data Transmission and Flexible Resource Allocation and Scheduling

VXLAN technology creates virtual tunnels on an IP network by building a virtual Layer 2 network, implementing cross-region and cross-DC data migration, and flexible resource allocation and scheduling. The switch supports EVPN VXLAN to enhance the number of tenants, meeting requirements of identification and isolation between different networks on a large scale.

PFC- and ECN-based Lossless Ethernet with High Throughput and Low Latency in RDMA Scenarios

With RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU burden and effectively solves the network latency problem.
PFC+ECN, intelligent data exchange, and packet loss prevention, ensuring lossless data transmission

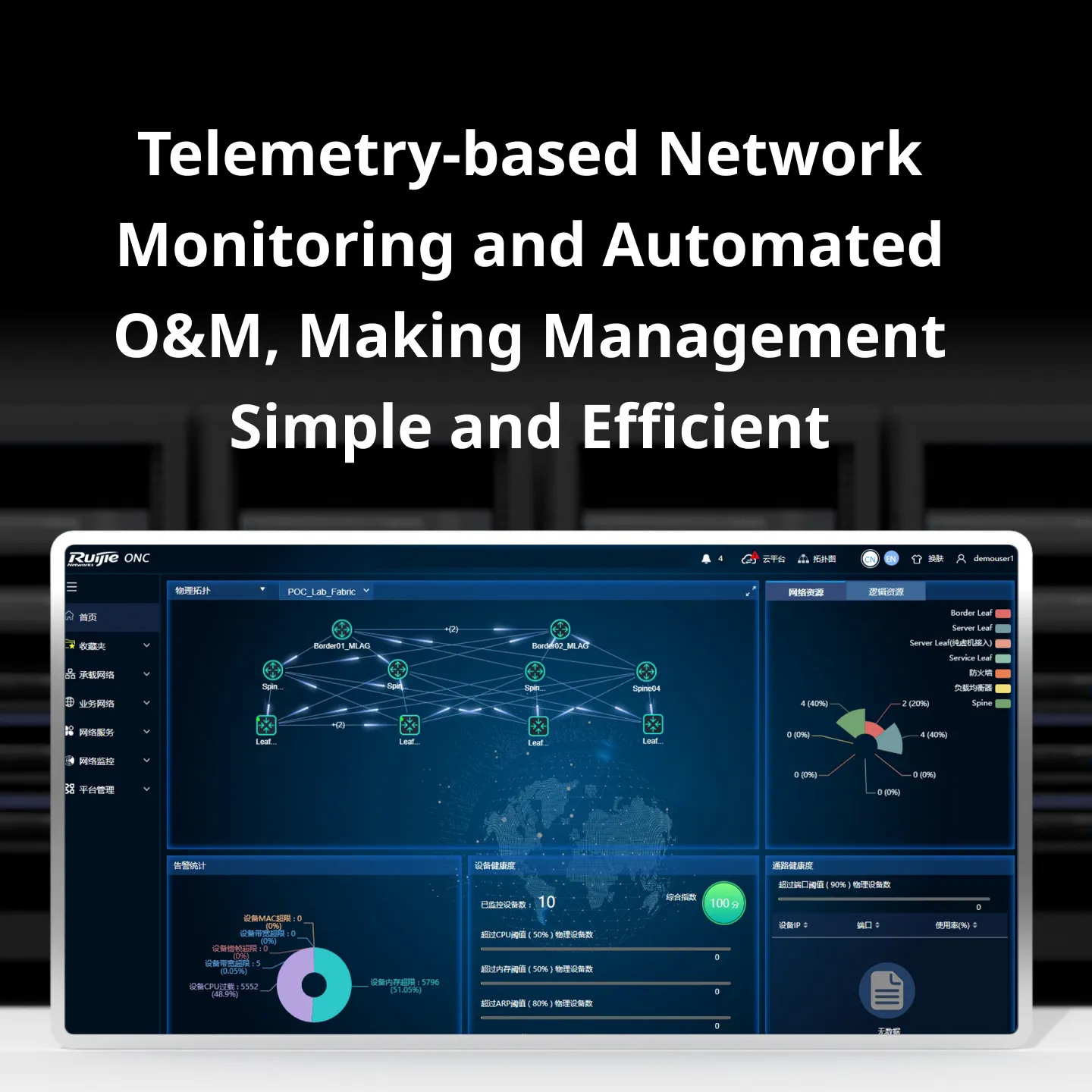

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient

The switch enabled with Telemetry/gRPC/sFlow/SPAN provides clear data status and hierarchy.
The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.

Specifications

Hardware Specifications

Item	RG-S6510-48VS8CQ	RG-S6510-32CQ
Dimensions (W x D x H)	442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.)	442 mm x 560 mm x 44 mm (17.40 in. x 22.05 in. x 1.73 in.)
Rack height	1 RU	1 RU
Unit weight	5.6 kg (12.35 lbs., empty chassis) 8.2 kg (18.08 lbs., a chassis with two power modules and four fan modules)	8.4 kg (18.52 lbs., empty chassis) 11.4 kg (25.13 lbs., a chassis with two power modules and five fan modules)
Switching capacity	4.0 Tbps	6.4 Tbps
Packet forwarding rate	2000 Mpps	2030 Mpps
Service port	48 x 10G/25G SFP28 ports 8 x 40G/100G QSFP28 ports	32 x 100G QSFP28 ports
Management port	1 x RJ45 console port 1 x RJ45 MGMT port	1 x RJ45 console port 1 x RJ45 MGMT port
USB port	1 x USB 2.0 port (Type A connector)	1 x USB 2.0 port (Type A connector)
Module slot	2 x power module slots 4 x fan module slots	2 x power module slots 5 x fan module slots
Power consumption	Maximum power consumption: 300 W Typical power consumption: 172 W Static power consumption: 98 W	Maximum power consumption: 450 W Typical power consumption: 270 W Static power consumption: 150 W
Power input	RG-PA550I-F (AC input): Rated input voltage: 100V AC to 240V AC, 50 Hz/60Hz Maximum input voltage: 90 V AC to140 V AC, 180 V to 264 V AC, 47 Hz to 63 Hz Rated input current: 7.2 A to3.5 A(100 V AC to 240 V AC) Power port type: C14 RG-PA550I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 310 V DC Rated current: 3.6 A Power port type: C14 RG-PA550I-R (AC input): Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 7.2 A to 3.5 A(100 V AC to 240 V AC) Power port type: C14 RG-PA550I-R (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 310 V DC Rated current: 3.6 A Power port type: C14 RG-PHD550I-F (AC input): Rated input voltage: 100 V AC to240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 10 A Power port type: C14 RG-PHD550I-F (HVDC input): Rated input voltage: 336 V DC Maximum input voltage: 160 V DC to 400 V DC Rated input current: 10 A Power port type: C14 RG-PD800I-F (DC input): Rated input voltage: –48 V DC Maximum input voltage: –36 V DC to –72 V DC Rated input current: 23 A Power port: three-pin power connector	RG-PA550I-F (AC input): Rated input voltage: 100 V AC to 240 V AC, 50 Hz/60 Hz Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz Rated input current: 7.2 A to 3.5 A (100 V AC to 240 V AC) Power port type: C14 RG-PA550I-F (HVDC input): Rated input voltage: 240 V DC Maximum input voltage: 180 V DC to 310 V DC Rated current: 3.6 A Power port type: C14 RG-PD800I-F (DC input): Rated input voltage: –48 V DC Maximum input voltage: –36 V DC to –72 V DC Rated input current: 23 A Power port: three-pin power connector
Temperature	Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 1800 m (5905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.	Operating temperature: 0°C to 40°C (32°F to 104°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At altitudes ranging from 3000 m (9842.52 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.
Humidity	Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing)	Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing)
Altitude	Operating altitude: ≤ 5,000 m (16,404.20 ft.) Storage altitude: ≤ 5000 m (16,404.20 ft.)	Operating altitude: ≤ 5,000 m (16,404.20 ft.) Storage altitude: ≤ 5000 m (16,404.20 ft.)
Cooling	Air cooling, front-to-rear airflow (port-side intake): used with the RG-PA550I-F, RG-PD800I-F, and RG-PHD550I-F power modules Air cooling, rear-to-front airflow (port-side exhaust): used with the RG-PA550I-R power module	Air cooling, front-to-rear airflow (port-side intake)

Software Specifications

Item	RG-S6510-48VS8CQ	RG-S6510-32CQ
Layer 2 Protocols	IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (QinQ and Selective QinQ), GVRP
Layer 3 Protocols (IPv4)	BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing (PBR), Route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP
IPv6 Basic Protocols	Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS
IPv6 Features	Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel
Data Center Features	VXLAN routing and VXLAN bridging IPv6 VXLAN over IPv4 and EVPN VXLAN PFC, ECN, and RDMA M-LAG OpenFlow 1.3
Visualization	gRPC sFLOW sampling INT
QoS	Mapping of IEEE 802.1p, DSCP, and ToS priorities ACL-based traffic classification Priority marking/remarking Multiple queue scheduling mechanisms, including SP, WRR, DRR, SP+WRR, and SP+DRR Congestion avoidance mechanisms such as WRED and tail discarding
Virtualization	Virtual Switching Unit
Buffer Management	Buffer status monitoring and management, and identification of burst traffic
HA Design	GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules
Security Features	Network Foundation Protection Policy (NFPP), CPP, DDoS attack defense, illegitimate data packet detection, data encryption, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, uRPF, broadcast packet suppression, DHCP Snooping, ARP spoofing prevention, ARP check, and hierarchical user management
Management Mode	SNMP v1/v2c/v3, Netconf, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, Telemetry, ZTP, Python, fan and power alarm, and temperature alarm
Other Protocols	DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP relay, ARP Proxy, and Syslog

Resources

All Resources

Learn about Products or Solutions

Installation

Installation Guide

Software and Configuration

Order Information

Chassis

Product Model	Description
RG-S6510-48VS8CQ	48 × 25GE ports and 8 × 100GE ports. Two power supply module slots and four fan module slots. The power module model is RG-PA550I-F, and the fan model is M6510-FAN-F.
RG-S6510-32CQ	Provides 32 × 100G ports. Two power supply module slots and five fan module slots. The power module model is RG-PA550I-F, and the fan model is M1HFAN I-F.

Fan and Power Supply Modules

Product Model	Description
RG-PA550I-F	550 W power supply module (AC and 240 V HVDC)
RG-PA550I-R	550 W power supply module (port-side exhaust, supporting AC and 240 V HVDC), applicable only to RG-S6510-48VS8CQ
RG-PHD550I-F	550 W power supply module (336 V HVDC), applicable only to RG-S6510-48VS8CQ
RG-PD800I-F	800 W AC power module (48 V LVDC)
M6510-FAN-F	Fan module of RG-S6510-48VS8CQ, supporting 3+1 redundancy, hot swapping, and front-to-rear ventilation design.
M1HFAN I-F	Fan module of RG-S6510-32CQ, supporting 4+1 redundancy, hot swapping, and front-to-rear ventilation design.

25GE Optical Transceivers

Model	Description
VG-SFP-AOC5M	25G AOC, SFP28 form factor, 5 m (16.40 ft.)
VG-SFP-LR-SM1310	25G LR optical transceiver, SFP28 form factor, LC, 1310 nm, 10 km (32,808.40 ft.) over single-mode fiber (SMF)
VG-SFP-SR-MM850	25G SR optical transceiver, SFP28 form factor, LC, 850 nm, 100 m (328.08 ft.) over multimode fiber (MMF)

40G Optical Transceivers

Model	Description
40G-QSFP-SR-MM850	40G SR optical transceiver, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF
40G-QSFP-LR4-SM1310	40G LR4 optical transceiver, QSFP+, Duplex LC, 10 km (32,808.40 ft.) over SMF
40G-QSFP-LSR-MM850	40G SR optical transceiver, QSFP+ form factor, MPO, 400 m (1312.34 ft.) over MMF
40G-QSFP-iLR4-SM1310	40G iLR4 optical transceiver, QSFP+, Duplex LC, 2 km (6,561.68 ft.) over SMF
40G-QSFP-LX4-SM1310	40G LX4 optical transceiver, QSFP+, Duplex LC, 150 m (492.13 ft.) over OM3/OM4 MMF, 2 km (6,561.68 ft.) over SMF
40G-AOC-30M	40G QSFP+ AOC, 30 m (98.43 ft.)
40G-AOC-5M	40G QSFP+ AOC, 5 m (16.40 ft.)

100G Optical Transceivers

Model	Description
100G-QSFP-SR-MM850	100G SR optical transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF
100G-QSFP-LR4-SM1310	100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF
100G-QSFP-iLR4-SM1310	100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF
100G-QSFP-ER4-SM1310	100GE ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.60 ft.) over SMF
100G-AOC-10M	100G AOC, QSFP28 form factor, 10 m (32.81 ft.)
100G-AOC-5M	100G AOC, QSFP28 form factor, 5 m (16.40 ft.)

GE Optical Transceivers

Model	Description
GE-SFP-LH40-SM1310-BIDI	1G LH optical transceiver, SFP form factor, BIDI LC, 40 km (131,233.60 ft.) over SMF
GE-SFP-LX20-SM1310-BIDI	1G LX optical transceiver, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF
GE-SFP-LX20-SM1550-BIDI	1G LX optical transceiver, SFP form factor, BIDI LC, 20 km (65,616.80 ft.) over SMF
MINI-GBIC-LH40-SM1310	1G LH optical transceiver, SFP form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF
MINI-GBIC-LX-SM1310	1G LX optical transceiver, SFP form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF
MINI-GBIC-SX-MM850	1G SR optical transceiver, SFP form factor, Duplex LC, 550 m (1,804.46 ft.) over MMF
MINI-GBIC-ZX80-SM1550	1G ZX optical transceiver, SFP form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF

GE Copper Transceivers

Model	Description
Mini-GBIC-GT(F)	1G copper transceiver, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a. For RG-S6510 series products, the Mini-GBIC-GT(F) transceiver is applicable only to RG-S6510-48VS8CQ.
Mini-GBIC-GT	1G copper transceiver, SFP form factor, RJ45, 100 m (328.08 ft.) over Cat 5e/6/6a

10GE Optical Transceivers

Model	Description
XG-LR-SM1310	10G LR optical transceiver, SFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF
XG-SR-MM850	10G SR optical transceiver, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF
XG-SFP-AOC1M	10G AOC, SFP+ form factor, 1 m (3.28 ft.)
XG-SFP-AOC3M	10G AOC, SFP+ form factor, 3 m (9.84 ft.)
XG-SFP-AOC5M	10G AOC, SFP+ form factor, 5 m (16.40 ft.)
XG-SFP-SR-MM850	10G SR optical transceiver, SFP+ form factor, Duplex LC, 300 m (984.25 ft.) over MMF
XG-SFP-LR-SM1310	10G LR optical transceiver, SFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF
XG-SFP-ER-SM1550	10G ER optical transceiver, SFP+ form factor, Duplex LC, 40 km (131,233.60 ft.) over SMF
XG-SFP-ZR-SM1550	10G ZR optical transceiver, SFP+ form factor, Duplex LC, 80 km (262,467.19 ft.) over SMF
