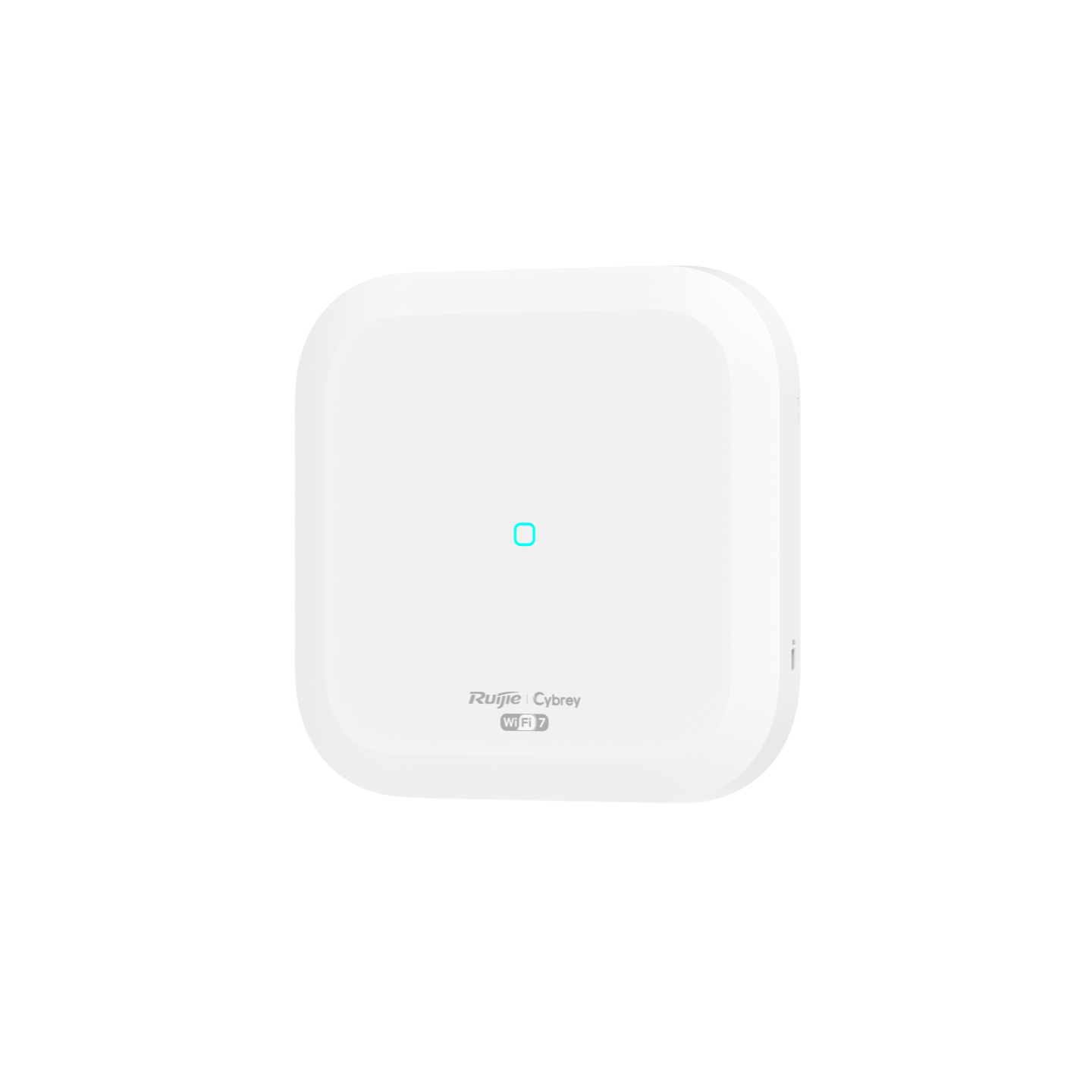

RG-CAP73-I, Wi-Fi 7 BE9300 Ceiling Mount Access Point

Offices, hotels, warehouses, hospitals, and schools.

Models

RG-CAP62-I

Wi-Fi 6, AX3000

RG-CAP72-I

Wi-Fi 7, BE3600

RG-CAP72Pro-IE

Wi-Fi 7, BE6500

RG-CAP73-I

Wi-Fi 7, BE9300

RG-CAP62-O

Wi-Fi 6, AX3000

RG-CAP72-O

Wi-Fi 7, BE3600

RG-CAP73-O

Wi-Fi 7, BE9300

RG-CAP62-WP

Wi-Fi 6, AX3000

RG-CAP72-WP

Wi-Fi 7, BE3600

RG-CNC105

5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output.

RG-CNC312

8 x 10/100/1000BASE-T ports, 2 x 1GE SFP/RJ45 combo ports, 2 x 10GE SFP+ ports

RG-ANT30-D2

2 x RP-SMA female antenna connectors

RG-ANT90-T2

2 x RP-SMA female antenna connectors

RG-ANT90-T6

6 x RP-SMA female antenna connectors

Series

Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs

Datasheet Sales Enquiry

Highlight Features

BE9300 tri-band Wi-Fi 7 speed for hotel lobbies, open work areas, and high-density venues.
4096-QAM for 20% higher peak data rates than Wi-Fi 6.
MRU for better channel utilization and lower latency in crowded environments.
10G Combo + 2.5G port for high-capacity backhaul and wired connectivity.
Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3, a Kensington lock slot, and a securing latch.
Full-time AI Radio mode with full-channel scanning for fast client steering.
Smart radio with 4 flexible modes (5 GHz, 6 GHz, high-density, AI Radio).
Load balancing across APs and between 2.4 GHz and 5 GHz radios.

Key Specifications
Features
Specifications
Resources
Videos

Sales Enquiry

Key Specifications

Features

RG-CAP73-I Ruijie Cybrey Wi-Fi 7 BE9300 Ceiling Mount Access Point

1

BE9300 Tri-Band Wi-Fi 7 Speed

BE9300 Tri-Band Wi-Fi 7 Speed

1

BE9300 Tri-Band Wi-Fi 7 Speed
Provides high capacity for hotel lobbies, open work areas, and other high-density venues.
2

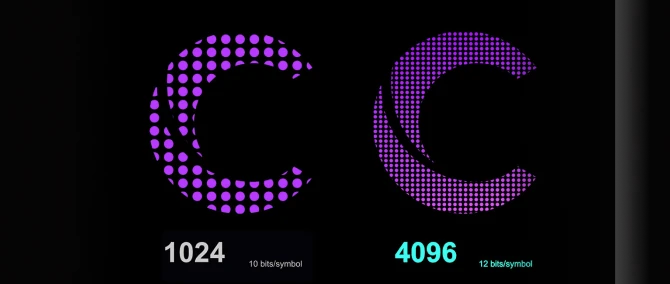

4096-QAM for Higher Peak Rates

4096-QAM for Higher Peak Rates

2

4096-QAM for Higher Peak Rates
Wi-Fi 7 with 4096‑QAM modulation delivers 20% higher peak data rates than Wi‑Fi 6.
3

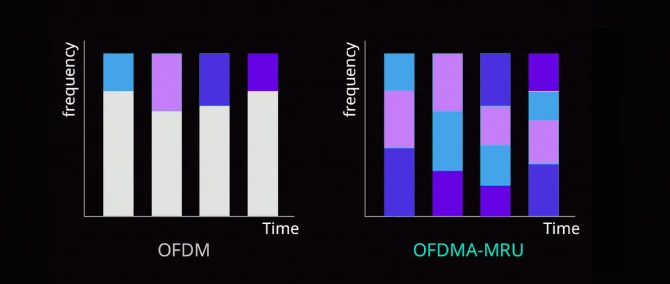

MRU for Multi-User Performance

MRU for Multi-User Performance

3

MRU for Multi-User Performance
Multi‑Resource Unit improves channel utilization in crowded environments and reduces latency when many clients are connected.

4

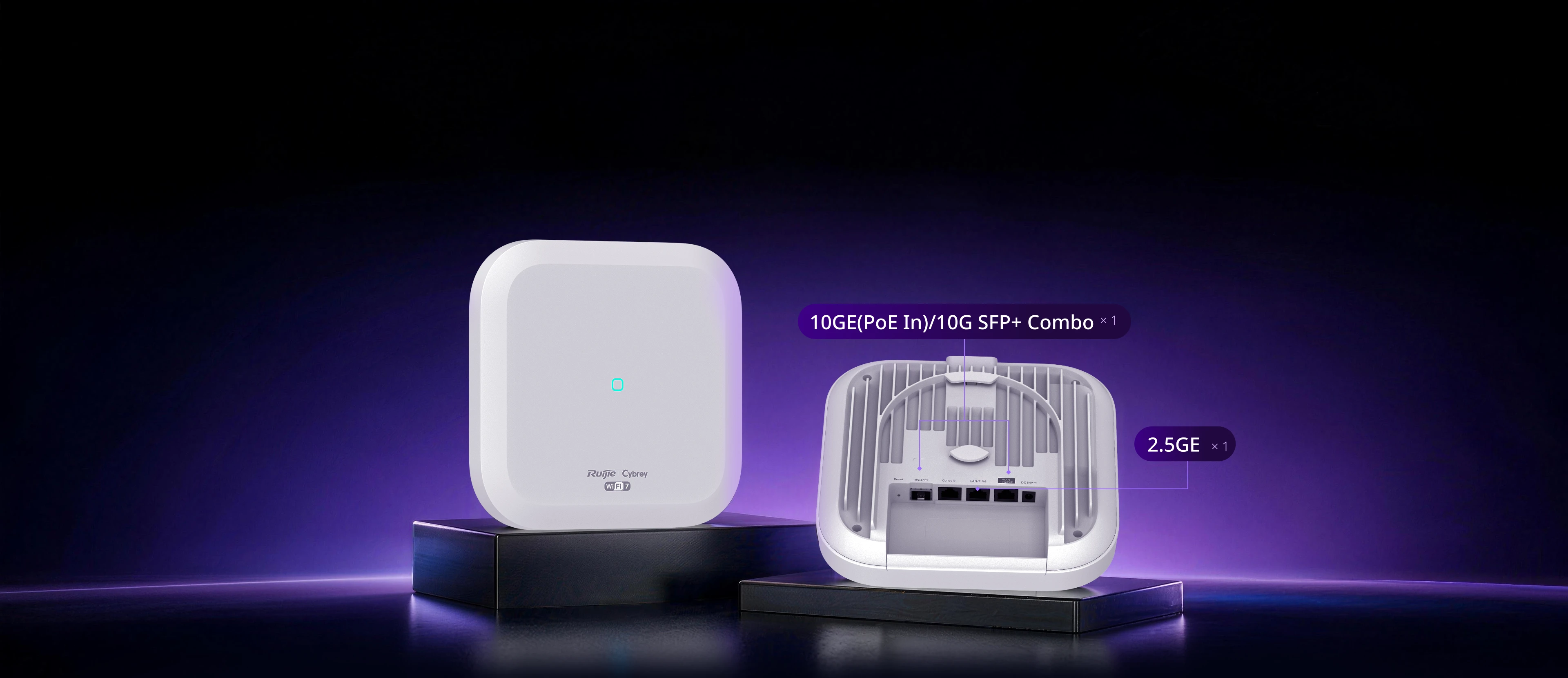

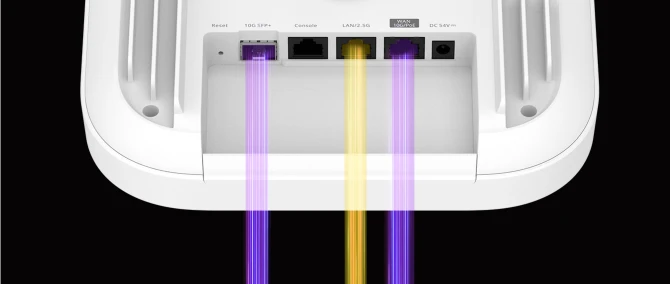

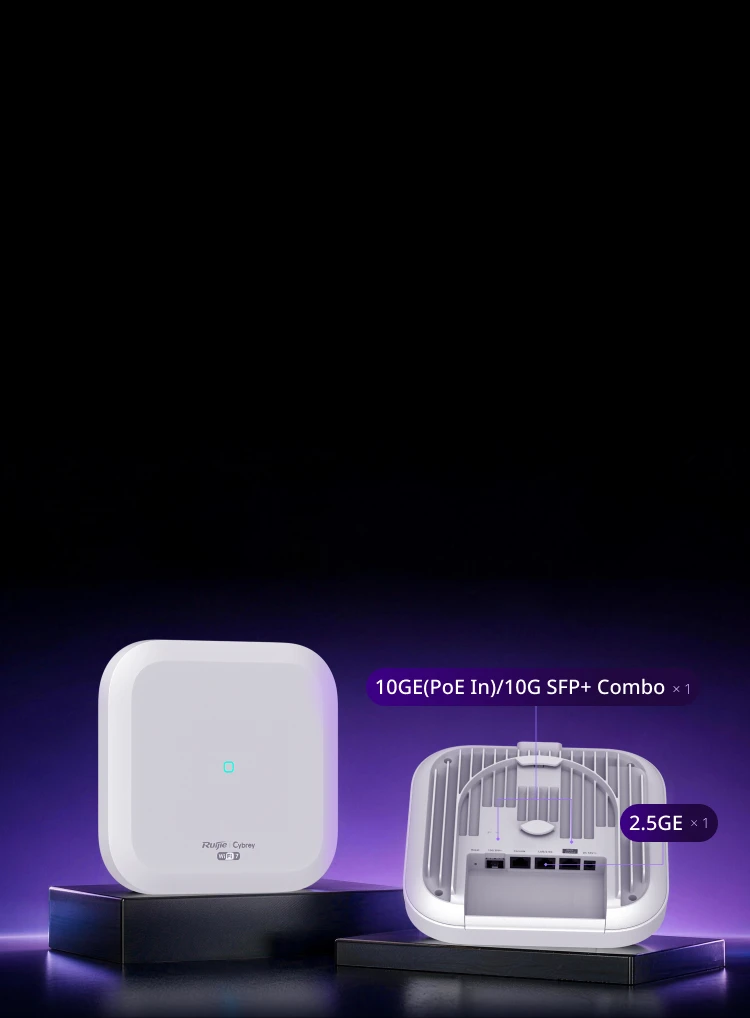

10G Combo + 2.5G Port

10G Combo + 2.5G Port

4

10G Combo + 2.5G Port
Features one 10G RJ45/SFP+ combo port and a dedicated 2.5G port, delivering high-capacity backhaul and wired connectivity.
5

Enterprise Security

Enterprise Security

5

Enterprise Security
Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a Kensington lock and securing latch.
6

Responsive Roaming Experience

Responsive Roaming Experience

6

Responsive Roaming Experience
The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.

7

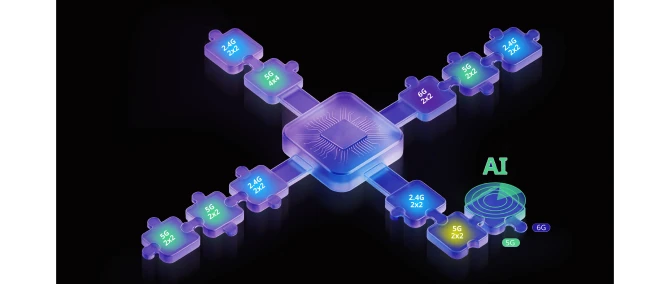

Smart Radio with 4 Flexible Modes

Smart Radio with 4 Flexible Modes

7

Smart Radio with 4 Flexible Modes
The smart radio supports 5 GHz, 6 GHz, high-density, and AI radio modes, flexibly adapting to different scenarios.
8

Load Balancing

Load Balancing

8

Load Balancing
Balances clients across APs and steers them between 2.4 GHz and 5 GHz radios, enabling consistent performance in high-density areas.
9

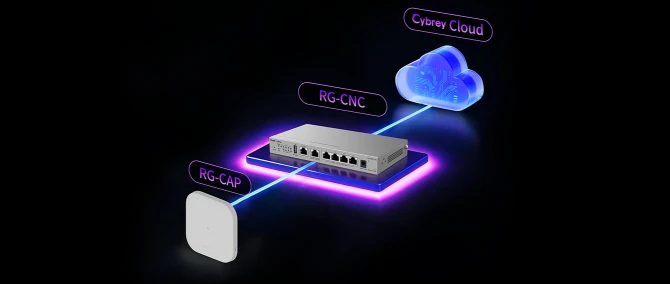

Cloud-Edge Collaborative Wireless Network

Cloud-Edge Collaborative Wireless Network

9

Cloud-Edge Collaborative Wireless Network
Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

Full-Time AI Radio for Responsive Roaming

AI Radio mode continuously monitors client status and intelligently steers clients to the suitable AP, enabling fast, low-latency roaming with smooth connectivity.

Smart Radio with 4 Flexible Modes

In the Box

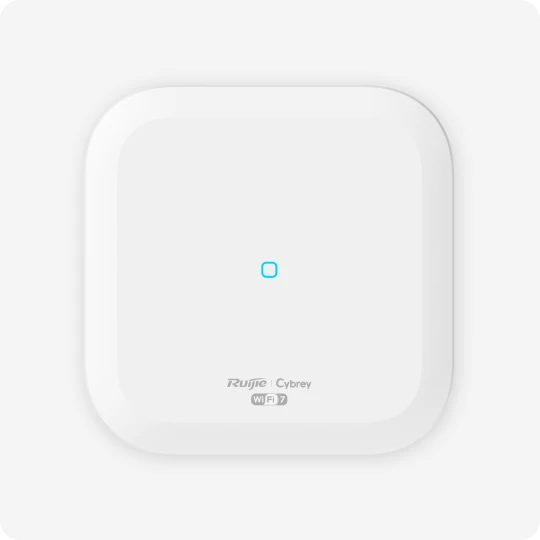

RG-CAP73-I
× 1

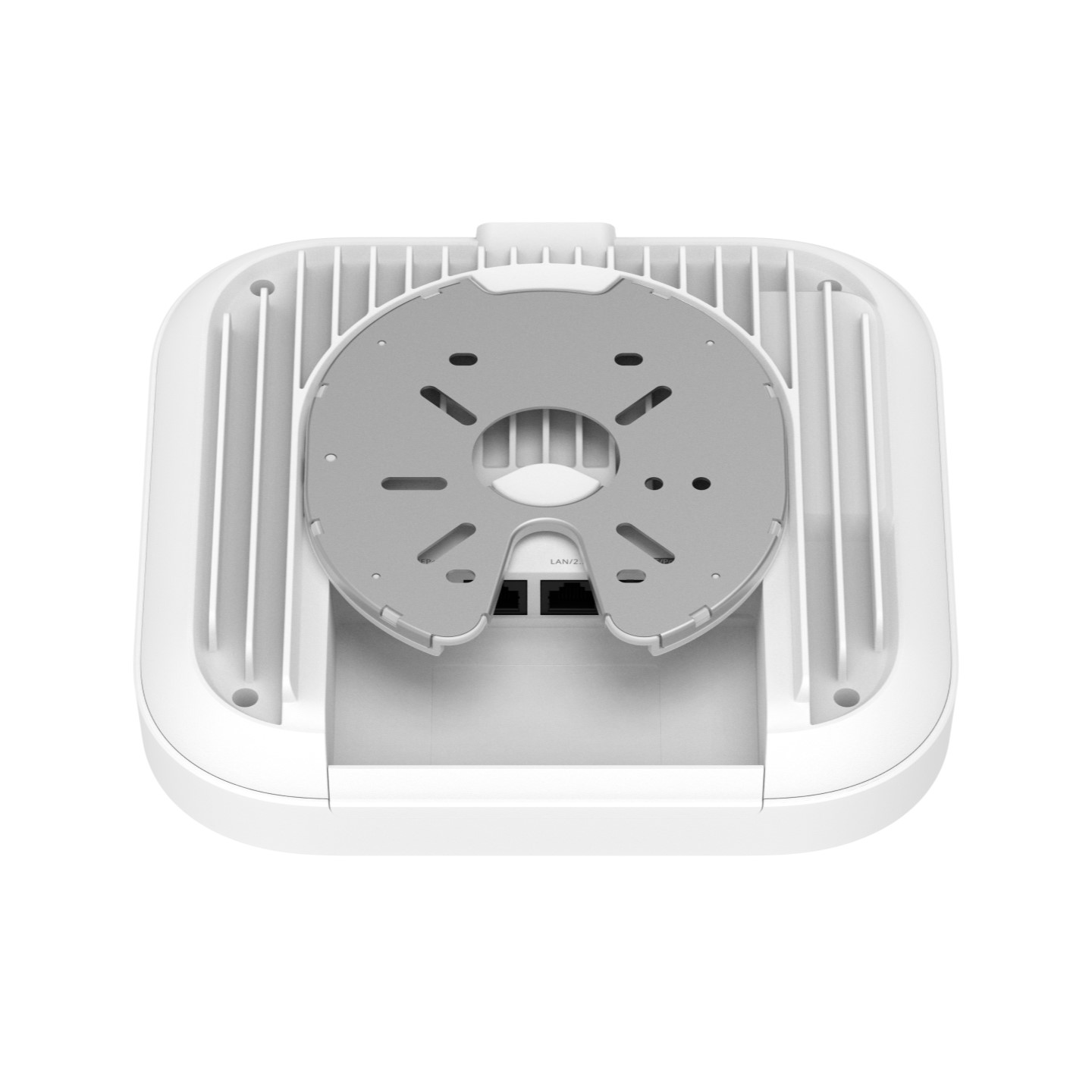

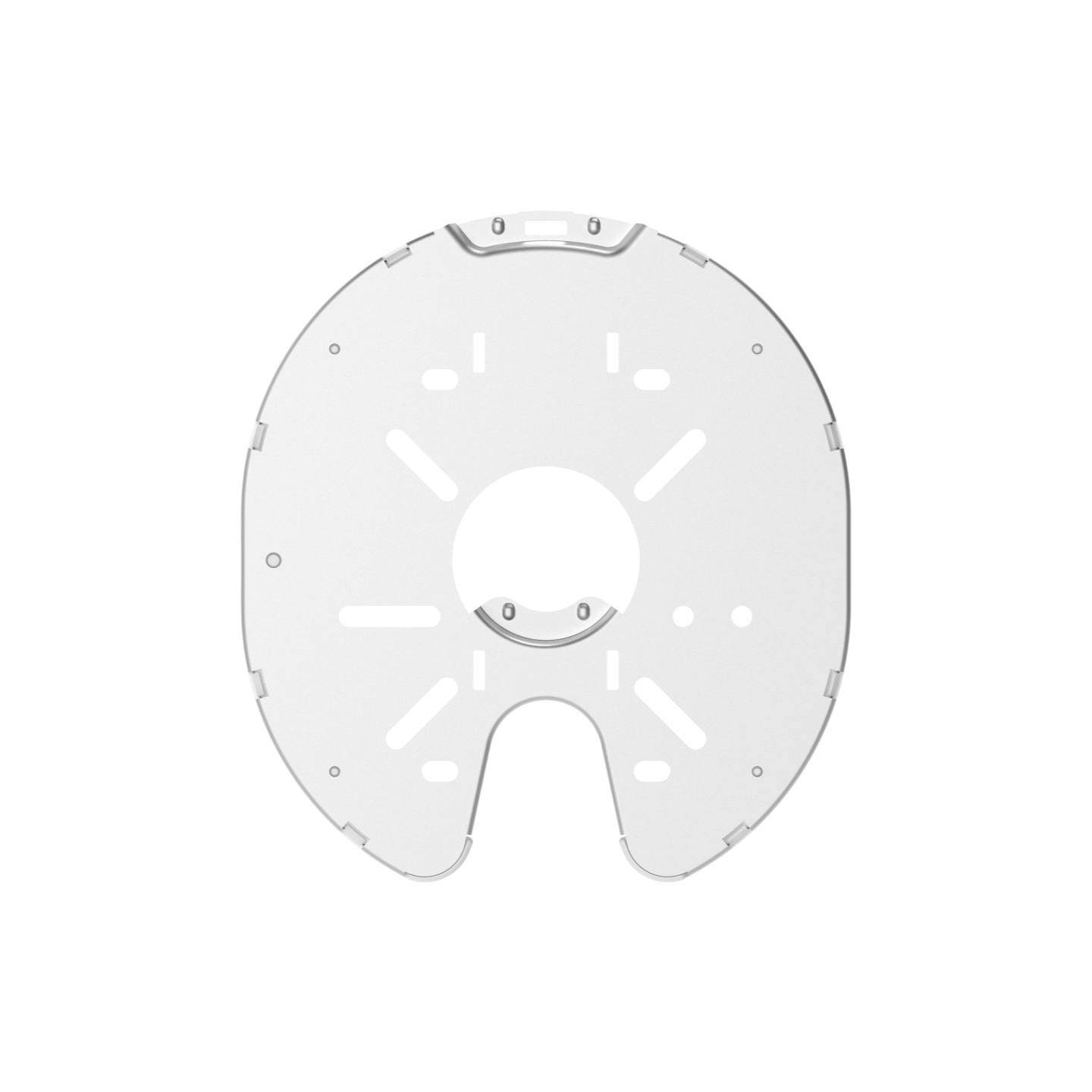

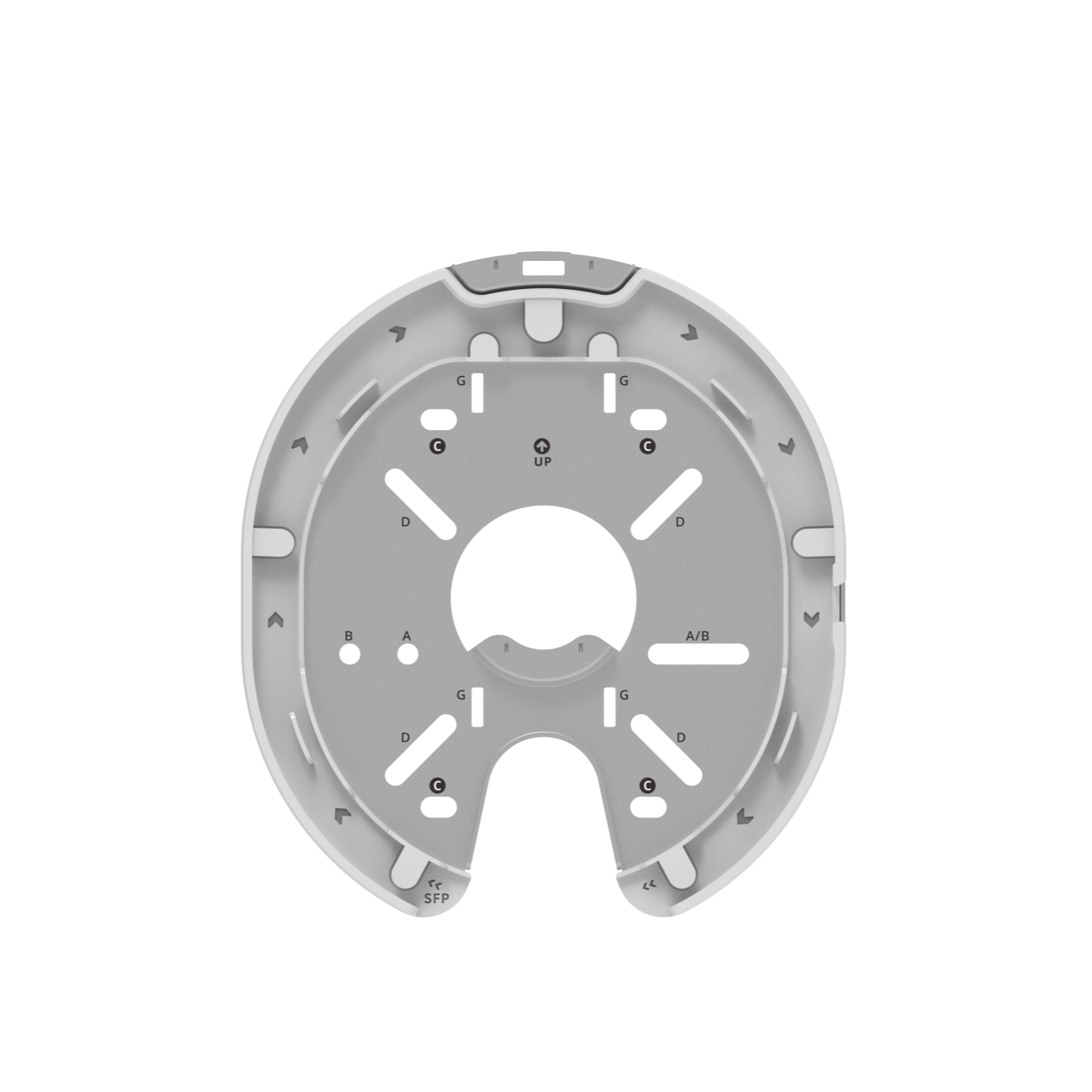

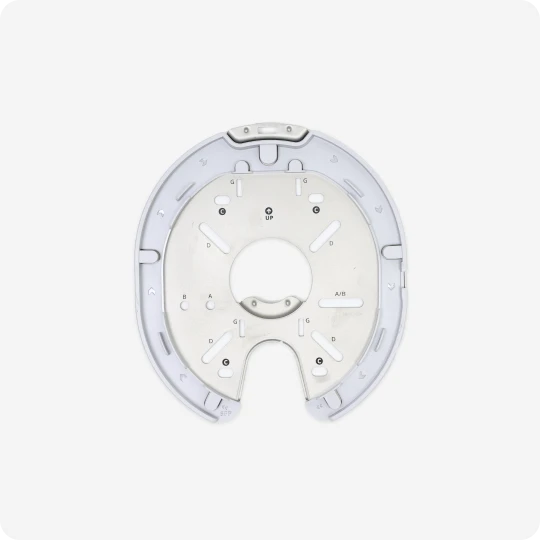

Mounting bracket
× 1

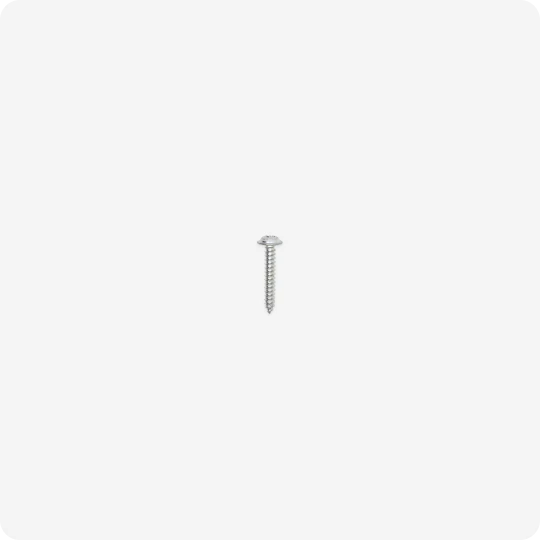

ST4.2 x 25 mm Phillips tapping screws
× 4

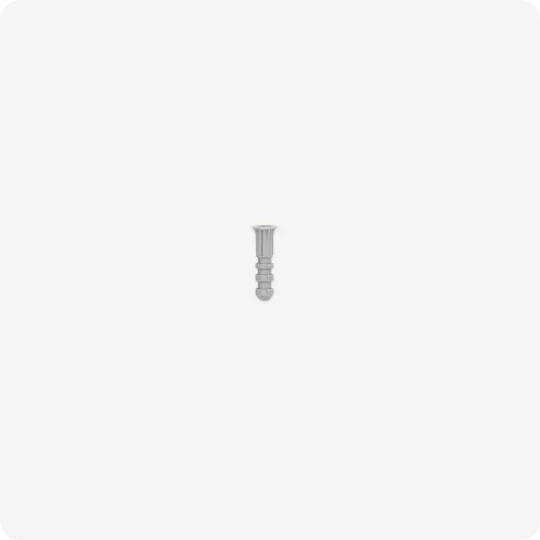

φ6.3 x 25 mm plastic expansion anchors
× 4

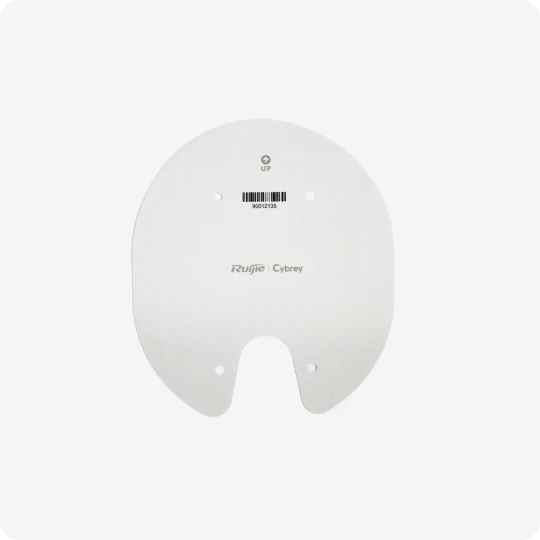

Alignment sticker
× 1
Key to security lock slot
× 1

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Mount It Steady. Keep It Clean. — Suspended Ceiling Mounting Accessories

Ceiling Tile Mounting
T-bar/Grid Mounting

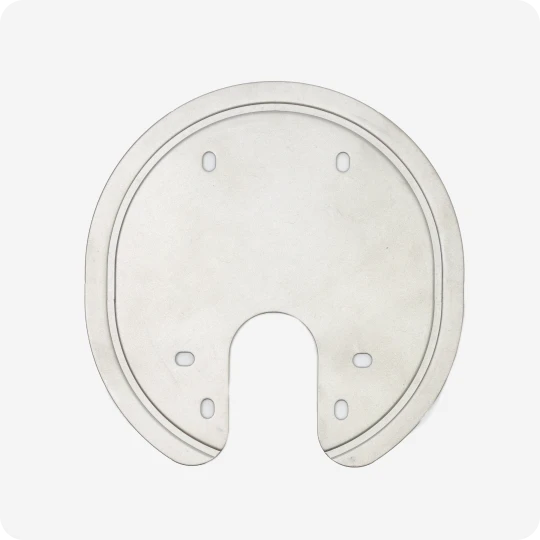

Ceiling Backing Plate
Standard mounting has its limits — APs can loosen and become unstable over time.
With a Ceiling Backing Plate, you can deploy heavy APs with rock-solid stability — built to last.
Ceiling Backing Plate sold separately — not included with the product.

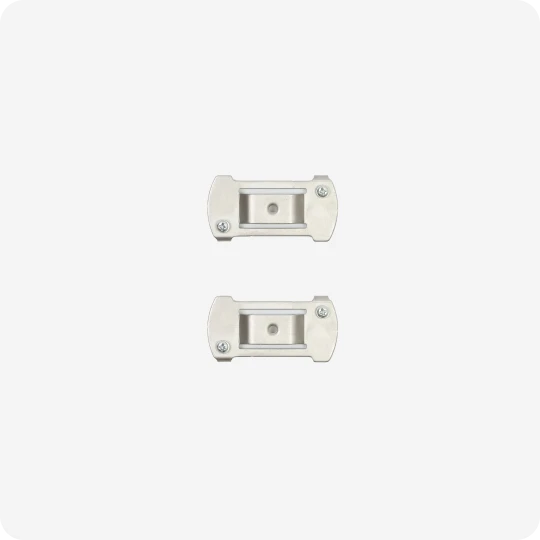

T-bar Clip
Wall mounting spoils a clean ceiling. Grid mounting looks better.
With a T-bar Clip, the AP mounts directly onto the ceiling grid for a secure, stable installation — while keeping the ceiling clean and tidy.
T-bar Clip sold separately — not included with the product.

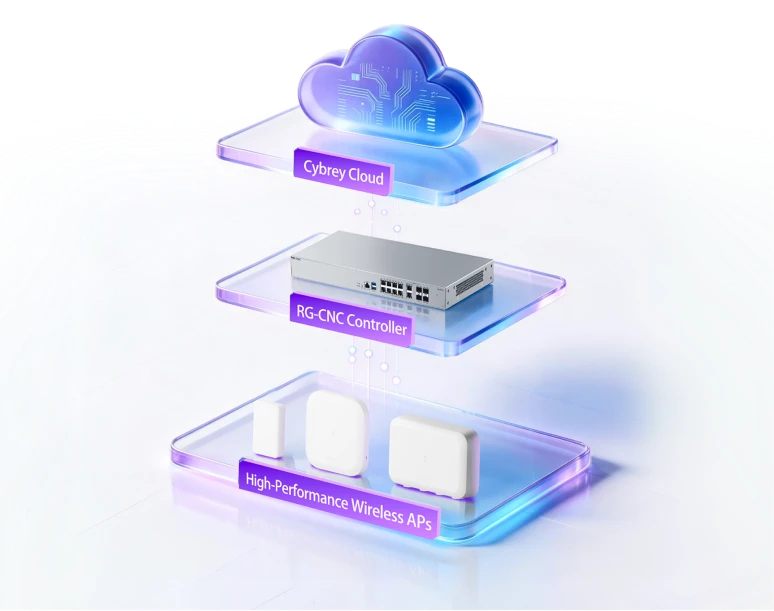

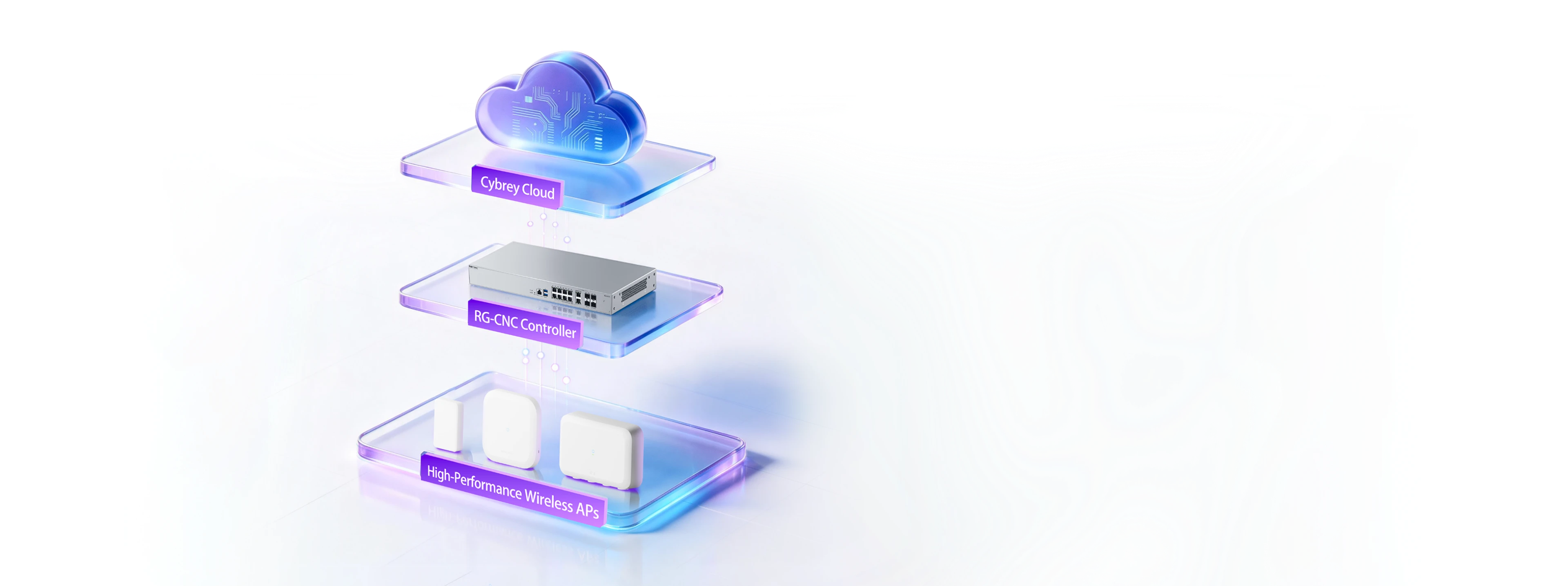

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

1
Cybrey Cloud

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis
2
RG-CNC Controller

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.
3
High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Specifications

Hardware Specifications

Wi-Fi Radio

Wi-Fi standards

IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax

Wi-Fi standards (2.4 GHz)

IEEE 802.11b (Wi-Fi 1)
IEEE 802.11g (Wi-Fi 3)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Wi-Fi standards (5 GHz)

IEEE 802.11a (Wi-Fi 2)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ac (Wi-Fi 5)
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Wi-Fi standards (6 GHz)

IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Radio design

Mode 1: Tri-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 2x2, MU-MIMO
● Radio 3: 6 GHz, 2x2, MU-MIMO

Mode 2: Tri-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz (high band), 2x2, MU-MIMO
● Radio 3: 5 GHz (low band), 2x2, MU-MIMO

Mode 3: Dual-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 4x4, MU-MIMO

Mode 4: Tri-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 2x2, MU-MIMO
● Radio 3 (AI radio): 5 GHz, 2x2, MU-MIMO

Data rates

Combined peak data rate: 9335 Mbps
Mode 1:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 2882 Mbps
● Radio 3: 6 GHz, 5765 Mbps

Mode 2:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz (high band), 2882 Mbps
● Radio 3: 5 GHz (low band), 2882 Mbps

Mode 3:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 5765 Mbps

Mode 4:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 2882 Mbps
● Radio 3: 5 GHz, AI radio

Flexible radio

Mode 1: 2.4 GHz, 2x2 + 5 GHz, 2x2 + 6 GHz, 2x2
Mode 2: 2.4 GHz, 2x2 + 5 GHz (high band), 2x2 + 5 GHz (low band), 2x2
Mode 3: 2.4 GHz, 2x2 + 5 GHz, 4x4
Mode 4: 2.4 GHz, 2x2 + 5 GHz, 2x2 + 5 GHz (AI radio), 2x2

Maximum transmit power

Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):
Note: The transmit power is limited by local regulatory requirements.

European Union & United Kingdom:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5945–6425 MHz, EIRP ≤ 23 dBm
Thailand:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5825 MHz, EIRP ≤ 30 dBm
5945–6425 MHz, EIRP≤ 23 dBm
Vietnam:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5150–5350 MHZ, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5850 MHz, EIRP ≤ 30 dBm

Maximum transmit power (2.4 GHz)

Combined power: 26 dBm (single-stream power: 23 dBm)
Note: The transmit power is limited by local regulatory requirements.

Maximum transmit power (5 GHz)

Combined power: 26 dBm (single-stream power: 23 dBm)
Note: The transmit power is limited by local regulatory requirements.

Maximum transmit power (6 GHz)

Combined power: 24.5 dBm (single-stream power: 21.5 dBm)
Note: The transmit power is limited by local regulatory requirements.

Modulation types

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM

Operating frequency bands

Mode 1:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
● Radio 3: 802.11ax/be, 5.925 GHz to 7.125 GHz, EHT20/EHT40/EHT80/EHT160/EHT320

Mode 2:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
● Radio 3: 802.11a/n/ac/ax/be: 5.150 GHz to 5.350 GHz, EHT20/EHT40/EHT80/EHT160

Mode 3:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160

Mode 4:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
● Radio 3: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160

Note: Country-specific restrictions apply. To use the preceding frequency bands, ensure that they are supported in your country or region.

Receive sensitivity

802.11a: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –72 dBm (54 Mbps)
802.11b: –94 dBm (1 Mbps), –90 dBm (5.5 Mbps), –86 dBm (11 Mbps)
802.11g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps)
802.11n HT20: –88 dBm (MCS0), –70 dBm (MCS7)
802.11n HT40: –85 dBm (MCS0), –67 dBm (MCS7)
802.11ac VHT20: –88 dBm (MCS0), –65 dBm (MCS8)
802.11ac VHT40: –85 dBm (MCS0), –60 dBm (MCS9)
802.11ac VHT80: –82 dBm (MCS0), –57 dBm (MCS9)
802.11ac VHT160: –79 dBm (MCS0), –54 dBm (MCS9)
802.11ax HE20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11)
802.11ax HE40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11)
802.11ax HE80: –82 dBm (MCS0)，–57 dBm (MCS9), –52 dBm (MCS11)
802.11ax HE160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11)
802.11be EHT20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11), –52 dBm (MCS13)
802.11be EHT40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11), –49 dBm (MCS13)
802.11be EHT80: –82 dBm (MCS0), –57 dBm (MCS9), –52 dBm (MCS11), –46 dBm (MCS13)
802.11be EHT160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11), –43 dBm (MCS13)
802.11be EHT320: –76 dBm (MCS0), –51 dBm (MCS9), –46 dBm (MCS11), –40 dBm (MCS13)

Antenna

Antenna type

● 2.4 GHz: 2 x built-in omnidirectional antennas
● 5 GHz: 2 x built-in omnidirectional antennas
● 6 GHz: 2 x built-in omnidirectional antennas (supporting both 5 GHz and 6 GHz bands)
● Bluetooth: 1 x built-in omnidirectional antenna

Antenna gain

2.4 GHz: 5.2 dBi
5 GHz: 6.3 dBi
6 GHz: 5.8 dBi
Bluetooth: 3.7 dBi

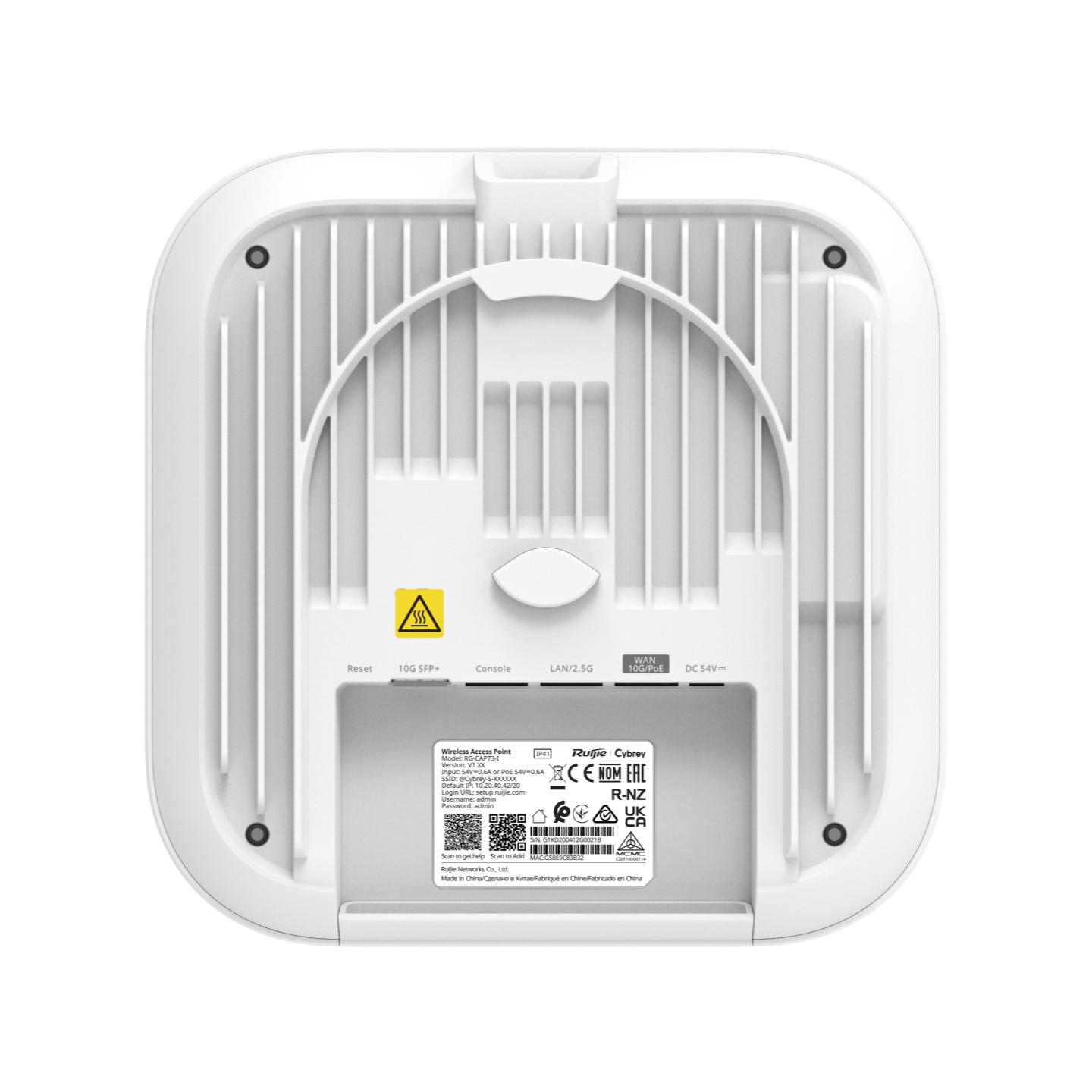

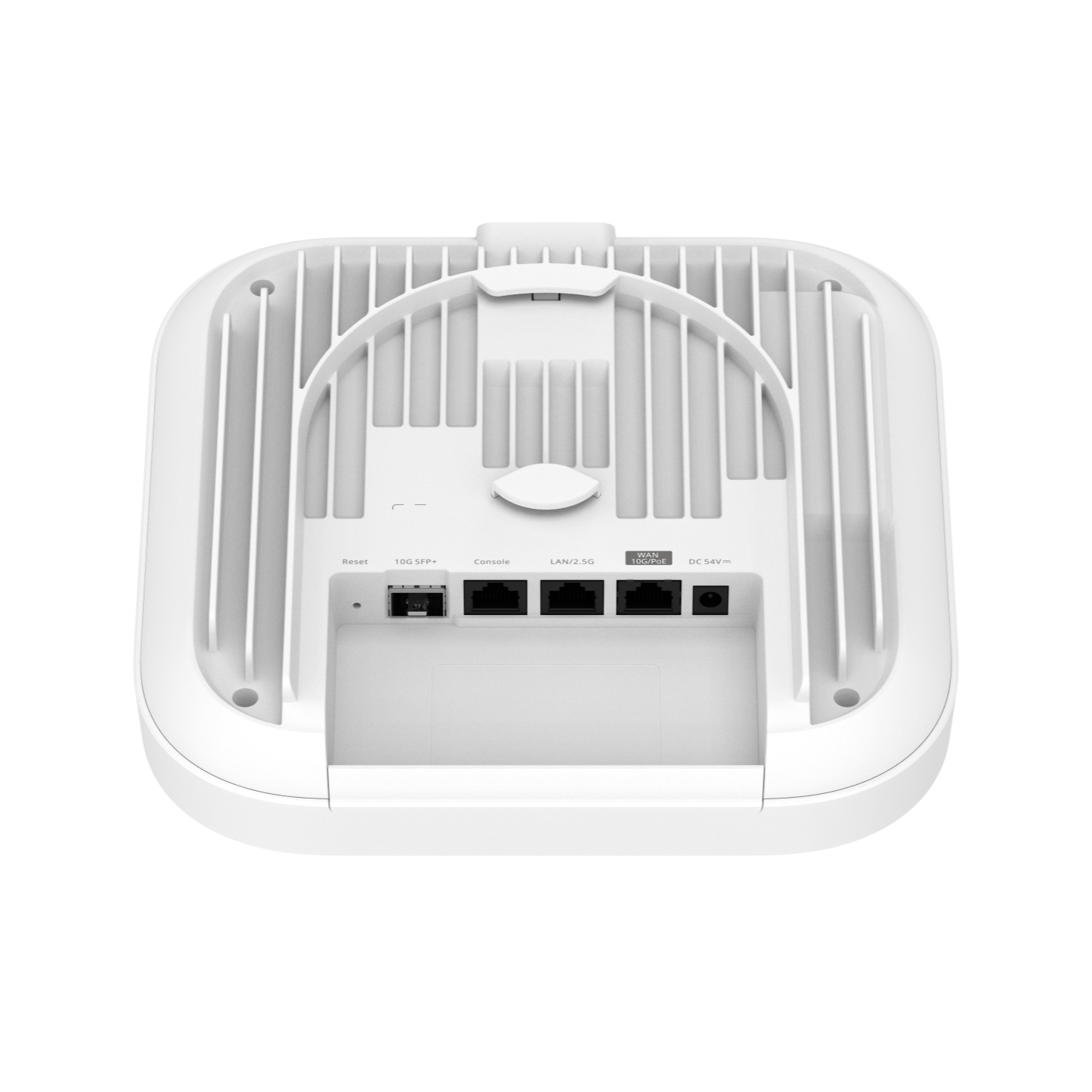

Port Specifications

Fixed service port

● 1 x 10/100/1000/2.5G/5G/10GBASE-T port, supporting 802.3af/at/bt-compliant PoE input. It is paired with one 10GE SFP+ port as a combo port.
● 1 x 10GE SFP+ port, compatible with 2.5GE and 1GE optical transceivers. It is paired with one 10GE RJ45 port as a combo port.
● 1 x 10/100/1000/2500BASE-T port

Fixed management port

1 x RJ45 console port

LED

1 x system LED

Reset button

Bluetooth Radio

Bluetooth

Bluetooth 5.3
● Remote maintenance through a Bluetooth serial port

Maximum Bluetooth transmit power

10 dBm

Power Supply and Consumption

DC power supply

● DC power adapter: 54 V, 0.7 A
● DC connector dimensions:
Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
Note: If both DC power and PoE are available, DC power is preferred.

DC power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

PoE power supply

● IEEE 802.3af (PoE)
● IEEE 802.3at (PoE+)
● IEEE 802.3bt (PoE++)
Note: If both DC power and PoE are available, DC power is preferred.

Maximum power consumption

24.7 W

IEEE 802.3af power input

Port restrictions: The downlink LAN port is unavailable.
Radio restrictions: Only the 2.4 GHz and 5 GHz radios are available, with both radios limited to 1T1R and their transmit power limited to 50%.
Other feature restrictions: N/A

IEEE 802.3at power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

IEEE 802.3bt power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

Environment and Reliability

Operating temperature

–10°C to +50°C (14°F to 122°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Operating humidity

5% RH to 95% RH (non-condensing)

Storage humidity

0% RH to 95% RH (non-condensing)

Storage temperature

–40°C to +70°C (–40°F to +158°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

IP rating

IP41

Lock option

Kensington lock slot and securing latch

MTBF

400,000 hours

Mounting options

Ceiling-mount, wall-mount, and junction box-mount

Dimensions and Weight

Unit dimensions (W x D x H)

220 mm x 220 mm x 46.3 mm (8.66 in. x 8.66 in. x 1.82 in., without the mounting bracket)

Packaging dimensions (W x D x H)

247.5 mm x 242 mm x 78 mm (9.74 in. x 9.53 in. x 3.07 in.)

Unit weight

Main unit: 1.20 kg (2.65 lbs)
Mounting bracket: 0.12 kg (0.26 lbs)

Packaging weight

1.53 kg (3.37 lbs)

Color

White

System Specifications

Flash memory

256 MB SPI NAND Flash

RAM

1 GB DDR4

Certification and Regulatory Compliance

Certification

CE, CB, Wi-Fi Alliance

EMC compliance

EN 55032
EN 61000-3-3
EN IEC 61000-3-2
EN 55035
EN 301 489-1
EN 301 489-3
EN 301 489-17

Radio

EN 300 328
EN 301 893
EN 300 440
EN 303 687

RF exposure

EN IEC 62311

Safety compliance

IEC 62368-1

Software Specifications

Bandwidth Features

Bandwidth control

AP-based bandwidth control
Client-based bandwidth control
Intelligent dynamic bandwidth control based on channel utilization
Intelligent dynamic bandwidth control based on critical services
SSID-based bandwidth control

Client Management

Client limit

Radio-based client limit
SSID-based client limit

Dynamic blocklist/allowlist

Dynamic blocklist

Smart steering

AP load balancing
Configuring load balancing based on client count
Configuring load balancing based on client traffic

Static blocklist/allowlist

Static allowlist
Static blocklist

Radio Management

SSID management basics

SSID hiding

Roaming Features

Layer 2 roaming

Layer 2 roaming

Layer 3 roaming

Layer 3 roaming

Security Features

Client security

Hotspot2.0 authentication
WPA-802.1X authentication
WPA-PSK authentication
WPA-WPA2 authentication
WPA2-802.1X authentication
WPA2-PSK authentication
WPA2-WPA3 authentication
WPA3-Enterprise
WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256)
WPA3-Enterprise with AES-CCMP-128
WPA3-OWE authentication
WPA3-Personal
WEP authentication

802.1X

Dynamic ACL assignment

Client identification

AI-based identification of client types, operating systems, operating system versions, vendors, and models
Client identification

CPP

MAB

NFPP

NFPP

RADIUS

RADIUS

Web authentication

Web authentication

Layer 3 Features

IPv6

ICMPv6
IPv6 basic features
Neighbor discovery
Ping over IPv6

NAT

NAT
PPTP, SIP, FTP, DNS, and TFTP

Management Features

SNMP

SNMPv1/v2c/v3
SNMP

Alerts

Alerts

Cloud-based management

Cloud-based management

SON

SSH

Syslog

Syslog

Telnet

Telnet

Web-based management

Web-based management

IP Services

DHCP

DHCPv4 client
DHCPv6 client

NTP

NTP client
NTP server

Networking Features

RIPT

RIPT

Routing Features

IPv4 routing basics

Static routing

IPv6 routing basics

Static IPv6 routing

Device Management

AP mode management

Mode switching

Device IP management

Obtaining an IP address through DHCP

Device IP Management

Static IPv4 address

Multicast Features

IGMP snooping

Multicast-to-unicast conversion

Capacity Specifications

Client Management

Maximum number of associated clients per AP

768
Note: The number of associated clients varies according to the environment.

Recommended number of associated clients per AP

Radio Management

Maximum number of BSSIDs per AP

IP Services

Number of DHCP address pools

2000

Package Contents

Device

Main unit

Accessories

Alignment sticker

Key to security lock

Mounting bracket

1 x mounting bracket (W x D x H: 130 mm x 143.5 mm x 6.5 mm / 5.12 in. x 5.65 in. x 0.26 in.)

Screw

4 x ST4.2 x 25 mm Phillips tapping screws
4 x φ6.3 x 25 mm plastic expansion anchors

Manual

User Manual

Warranty Card

Resources

All Resources

Learn about Products or Solutions

Installation

Installation Guide

Software and Configuration

Videos

How to Configure VAC on Ruijie Cybrey Devices?

Nov. 12, 2026

How to Maintain network connectivity for Ruijie Cybrey RG-CAP When AC Unreachable (V1.0)

Nov. 12, 2026

How to Configure Wired and Wireless Networks on the Cybrey Platform？

Oct. 29, 2026

How to Onboard Cybrey Devices through Cloud, eWeb, and App？

Oct. 29, 2026

How to Manage Third Party Devices on Cybrey Cloud？

Oct. 29, 2026

How to Integrate Microsoft Entra ID with SSE for Portal and 802.1X Authentication?

Oct. 29, 2026

Higher Education

5-Star Hotel Solution

RG-CAP73-I, Wi-Fi 7 BE9300 Ceiling Mount Access Point

Key Specifications

Features

RG-CAP73-I Ruijie Cybrey Wi-Fi 7 BE9300 Ceiling Mount Access Point

Full-Time AI Radio for Responsive Roaming

Smart Radio with 4 Flexible Modes

In the Box

Mount It Steady. Keep It Clean. — Suspended Ceiling Mounting Accessories

Ceiling Backing Plate

T-bar Clip

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

Specifications

Resources

2026 Ruijie Networks Official Website User Experience Survey Questionnaire
