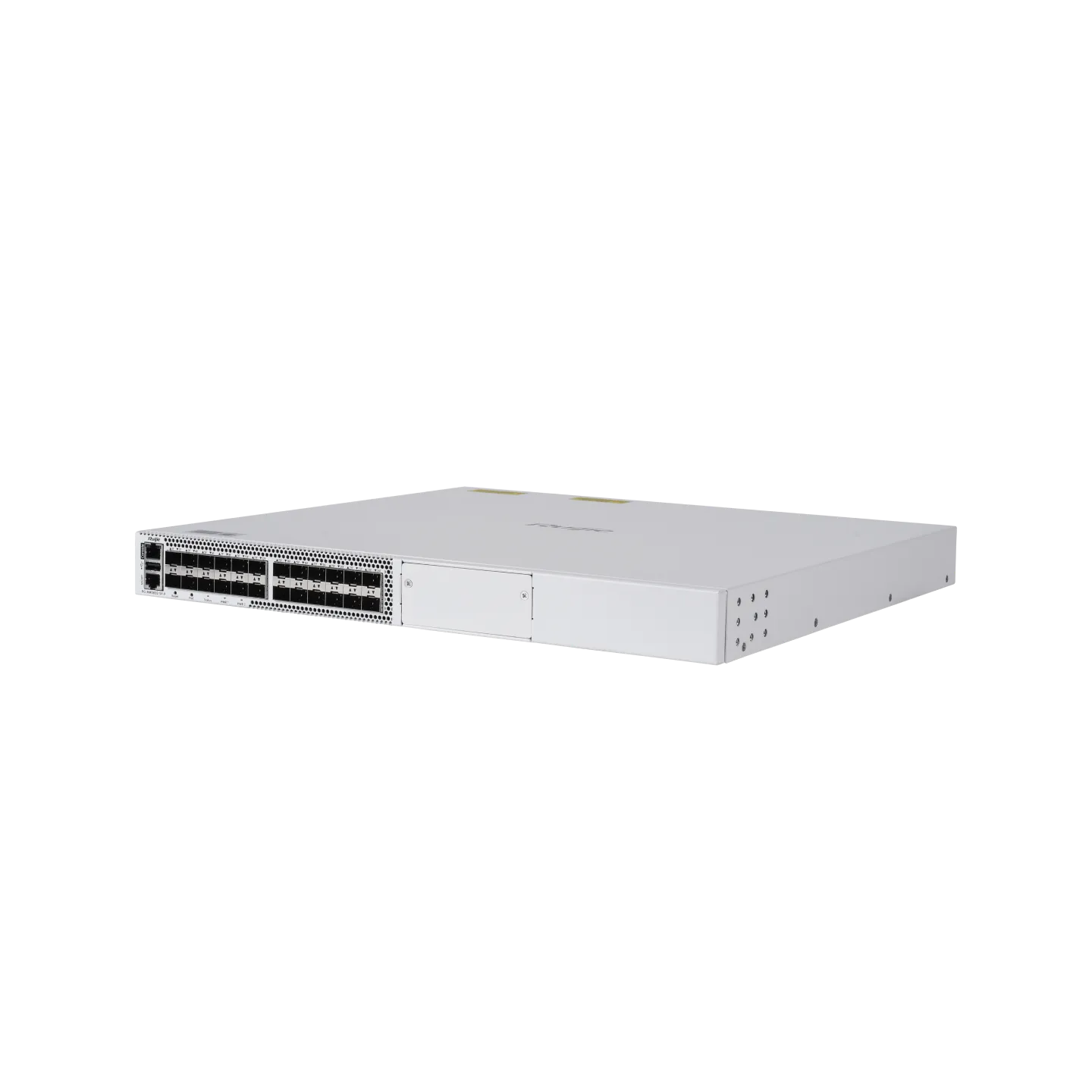

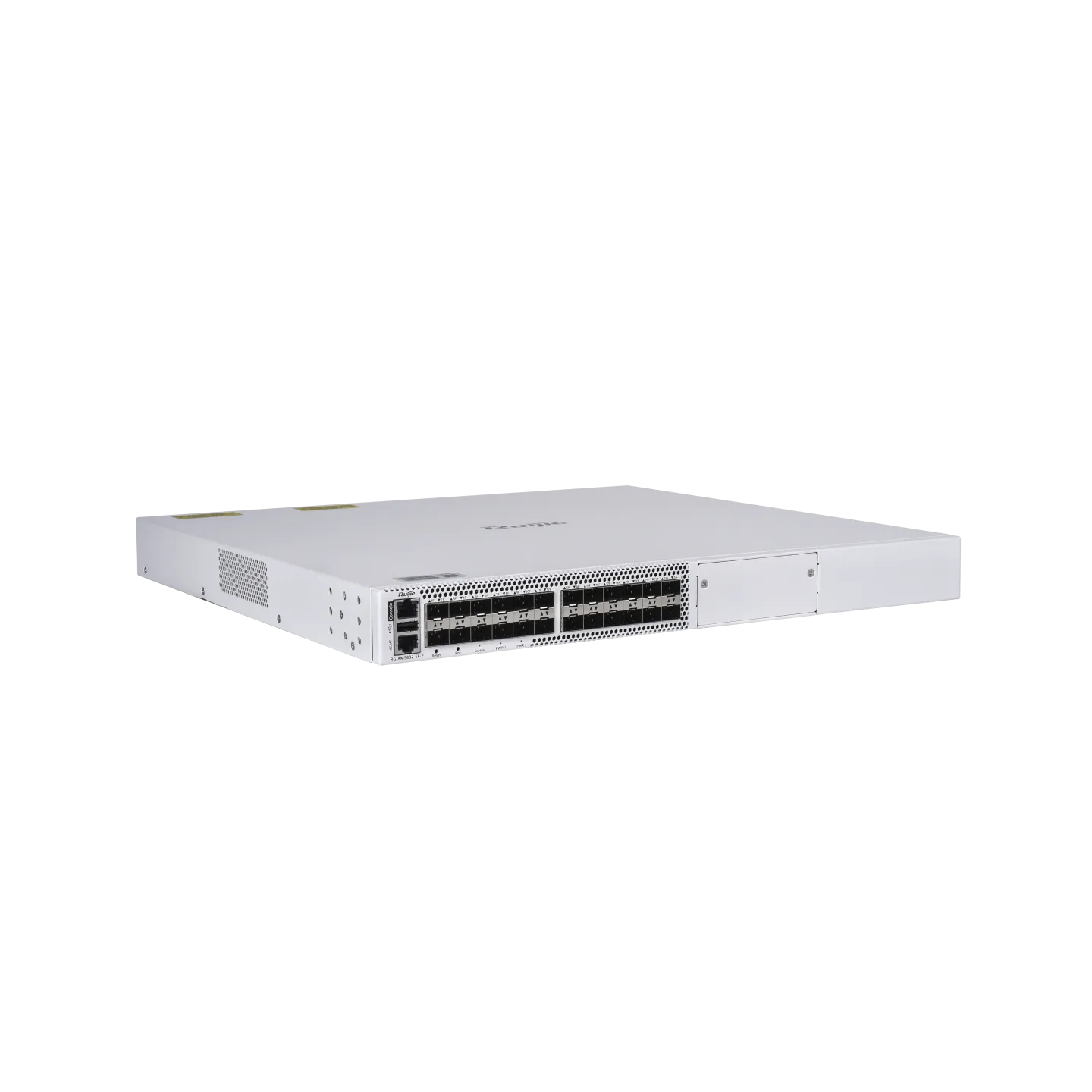

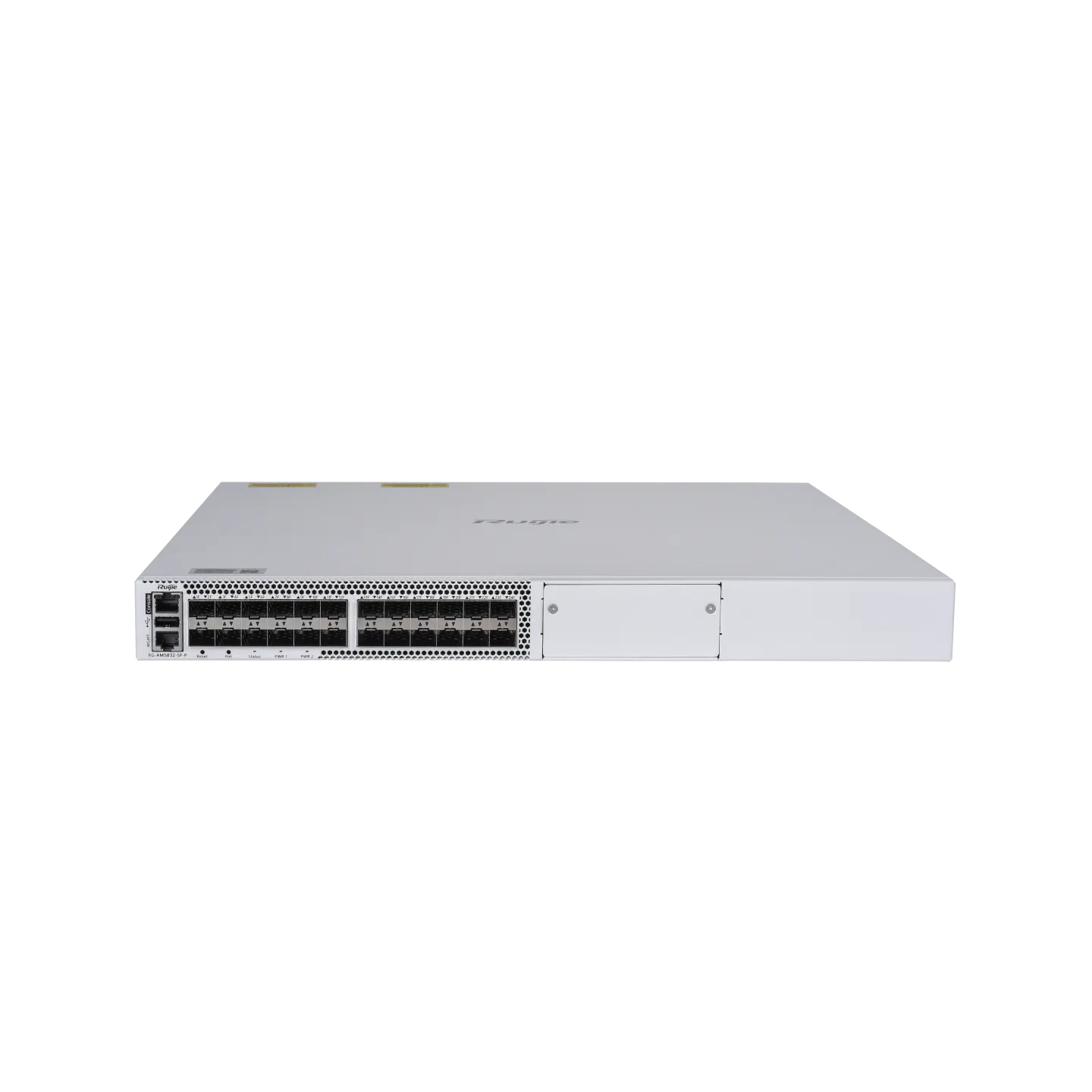

RG-AM5832-SF-P, Simplified Optical Ethernet (SOE) Master Access Point

Recommended for deployment in schools, hotels, medical care, office, production workshops, etc.

Models

RG-AM5528-SF

Master AP, 24 x 2.5G optical ports, 24 x power ports

RG-AM5832-SF-P

Master AP, 24 x 10GE SFP+ ports, 24 x PoE-out ports

RG-MAP920-SF-M(V3)

Micro AP, Wi-Fi 7, 3.570 Gbps, 4 x 1GE downlinks

Series

Simplified Optical Ethernet Series

Sales Enquiry

Highlight Features

Hybrid cables, simplifying optical network deployment
Rich port options to adapt to various APs and achieve flexible service expansion
No license required for identifying and connecting to SOE micro APs
WIS digital twin network for superior network O&M effictiency

Features
Specifications
Order Information

Sales Enquiry

Features

RG-AM5832-SF-P SOE Master AP

Uplink: 8 x 25GE SFP28 ports or 2 x 40GE QSFP+ ports, on-demand selection of cards to match the backbone network, offering flexible networking options. Downlink: All 10GE SFP+ ports, accommodating 24 APs, supporting hybrid cables, and enabling high-performance, easily scalable optical network access for all scenarios

Selection by Backbone Network

Uplink 40GE card

Uplink 25GE card

Hybrid Cables, Simplifying Optical Network Deployment

The optical-electrical parallel design allows the hybrid cable to be connected to APs, achieving data transmission over 1100 m (0.68 miles) with high bandwidth and PoE power supply delivered directly to the APs. This approach reduces the need for the ELV room on each floor, simplifies network cabling, and eliminates the requirement for local high-voltage reconstruction. Consequently, the deployment, construction, and maintenance of an all-optical network become significantly easier.

Multiple Ports, Easy Expansion with Various APs

Multi-Rate Ports

POE++ Ready

The RG-AM5832-SF-P offers 24 x 1GE/2.5GE/10GE SFP+ downlink ports, enabling an upgrade to Wi-Fi 7 networks without the need to replace the SOE master AP. This allows for seamless integration of 10GE APs and smooth bandwidth upgrades.

No License Required for Identifying and Connecting to SOE Micro APs

The RG-AM5832-SF-P can connect to SOE micro APs and regular APs. No license is required for identifying and connecting to micro APs. This reduces management costs compared to the previous generation of master APs.

WIS Digital Twin Network for Superior Network O&M Efficiency

WIS integrates intelligent O&M functions, including visualized fault locating, along with local, service, and key area network optimization. These capabilities aim to improve operational efficiency and enhance the user experience for wireless networks.

Go to WIS Digital Twin Network >

Specifications

Hardware Specifications

Dimensions and Weight

Dimensions and Weight	RG-AM5832-SF-P
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Shipping dimensions (W x D x H)	570 mm x 565 mm x 172 mm (22.44 in. x 22.24 in. x 6.77 in.)
Rack size	1 RU
Unit weight	5.85 kg (12.90 lbs)
Shipping weight	7.95 kg (17.53 lbs)
Mounting	Rack-mount

Ports

Ports	RG-AM5832-SF-P

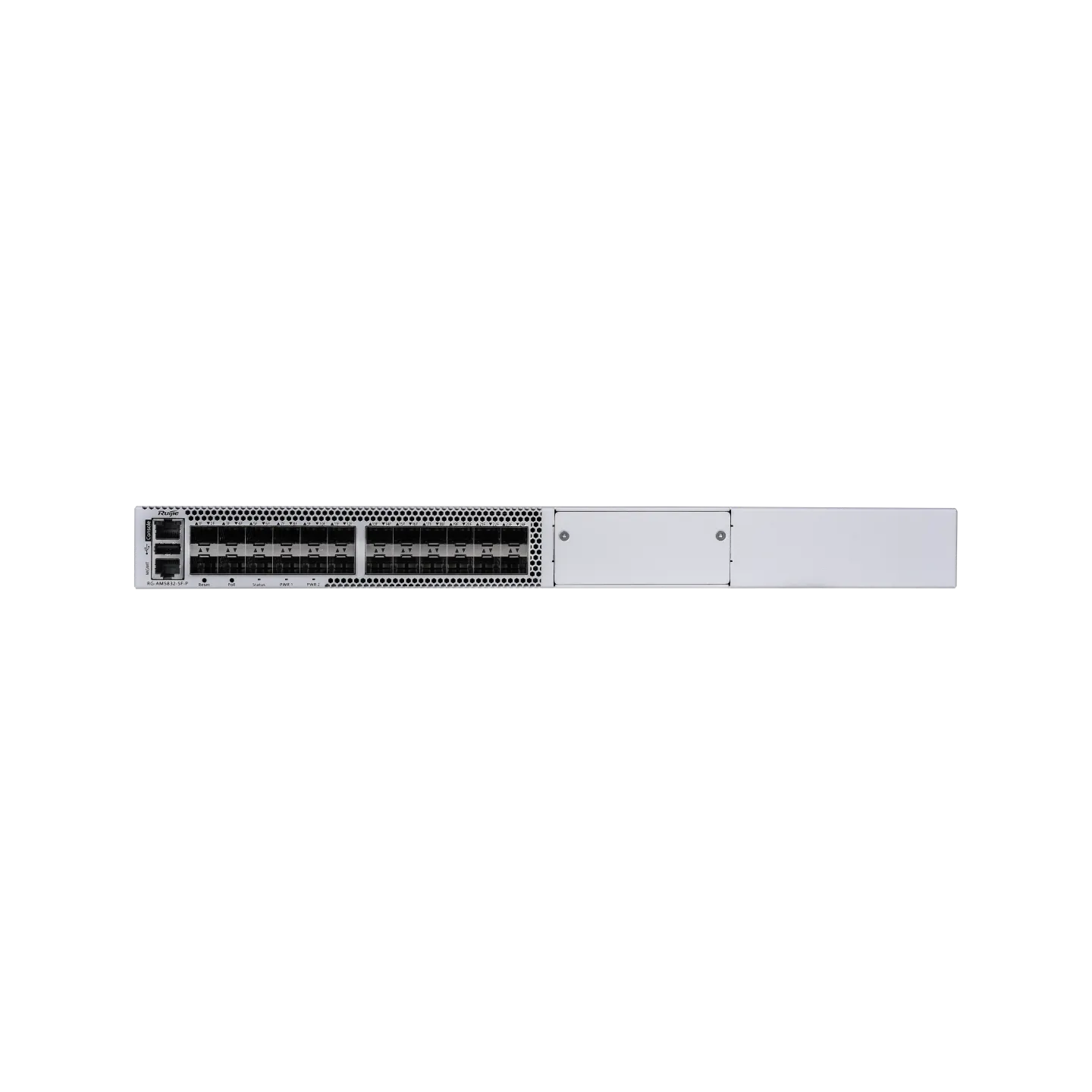

Fixed service port	Uplink: ● RG-M5800-2QXS subcard (optional): 2 x 40GE QSFP+ ports ● RG-M5800-8VS subcard (optional): 8 x 25GE SFP28 ports, compatibility with 10GE and 1GE modules. Downlink: ● 24 x 10GE SFP+ ports, compatibility with 2.5GE and 1GE modules. ● 24 x PoE-out ports, supporting PoE/PoE+/PoE++, with a maximum PoE output power of 90 W per port and a maximum PoE output power of 1,600 W.
Fixed management port	1 x RJ45 10/100/1000Base-T auto-negotiation management port 1 x RJ45 console port
USB port	1 x USB 2.0 port (Type A connector)
Status LED	24 x SFP+ port status LEDs, also indicating the PoE status RG-M5800-2QXS subcard (optional): 2 x QSFP+ port status LEDs RG-M5800-8VS subcard (optional): 8 x SFP28 port status LEDs 1 x system status LED 2 x power status LEDs 1 x management (MGMT) port status LED
Button	1 x Reset button ● Press and hold the button for less than 2 seconds to reset the device. ● Press and hold the button for more than 5 seconds to restore the device to factory settings. 1 x LED mode button ● Used to switch the status LED to indicate either PoE status or Link/Act status.

Power Supply and Consumption

Power Supply and Consumption	RG-AM5832-SF-P

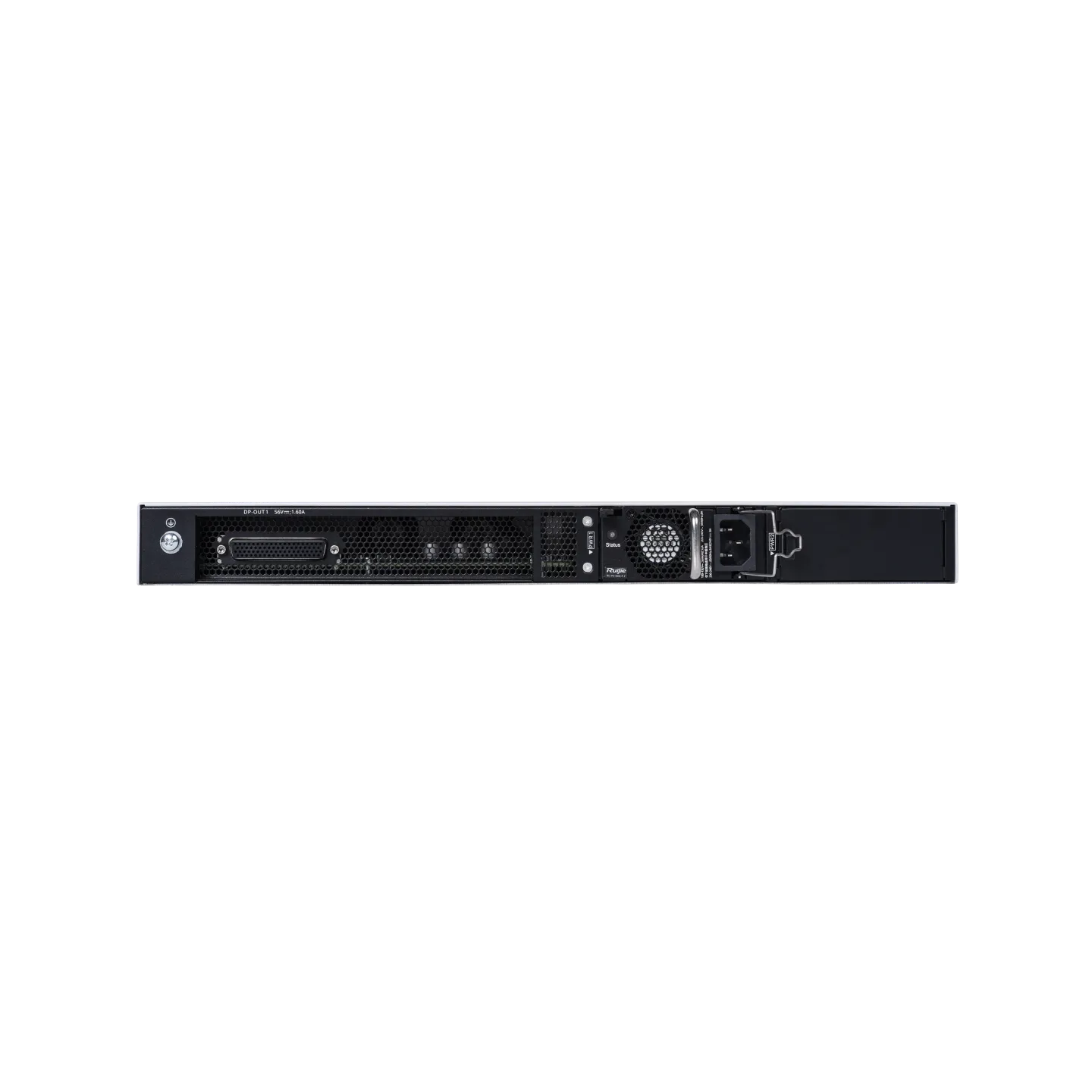

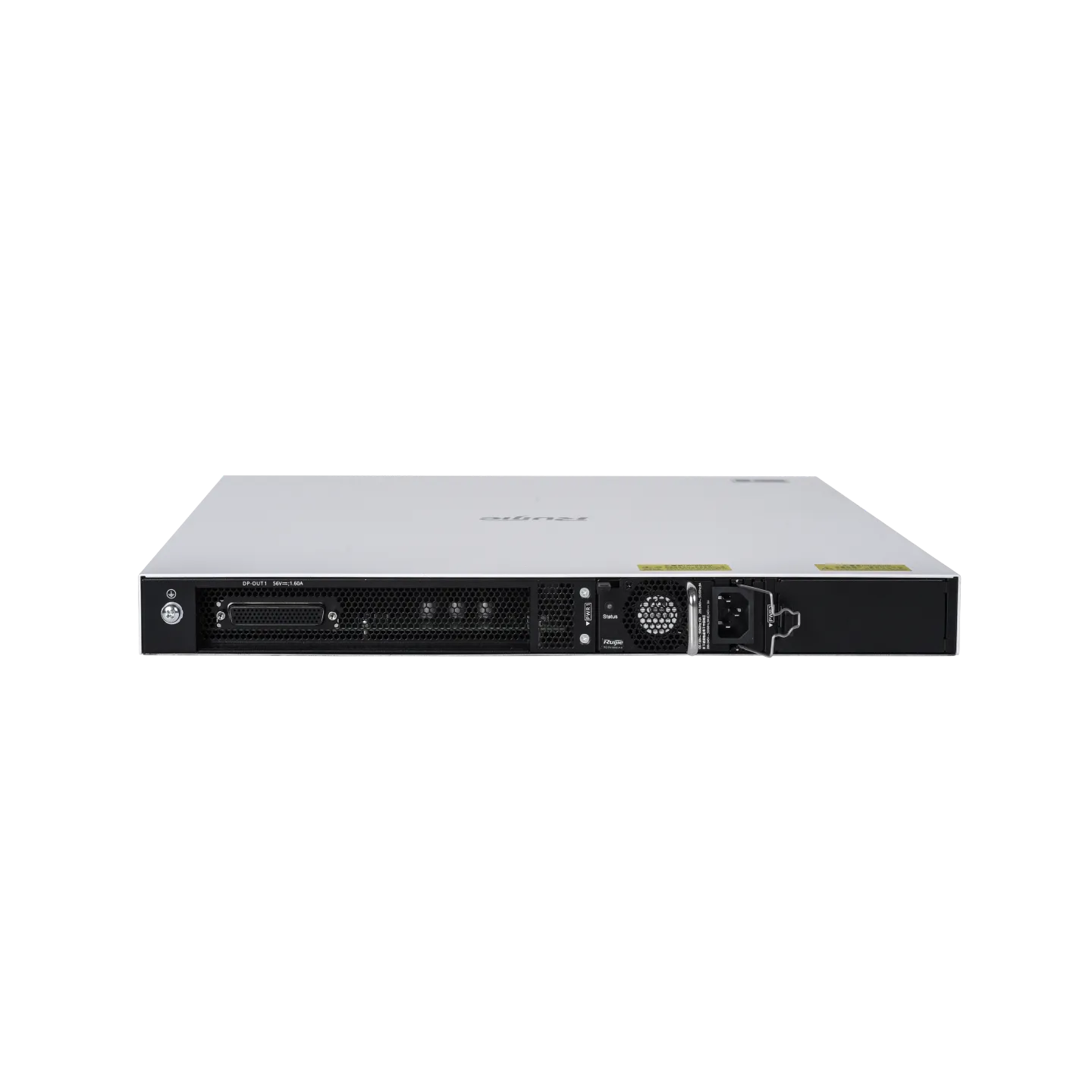

Input power supply	The RG-AM5832-SF-P supports two hot-swappable 1,000 W power modules, AC input, and DC output for system power supply. The RG-AM5832-SF-P is delivered with only one AC power module, and you can purchase an additional AC power module. Rated input voltage range: ● AC input: 100 V AC to 130 V AC, 50/60 Hz ● AC input: 200 V AC to 240 V AC, 50/60 Hz ● HVDC input: 240 V DC Maximum input current: ● 12 A (input voltage: 100 V AC to 130 V AC) ● 8 A (input voltage: 200 V AC to 240 V AC) ● 8A (input voltage: 240 V DC) Output voltage: 56 V DC for sourcing power to the RG-AM5832-SF-P and 56 V DC for external power supply
External power supply	24 x PoE-out ports, supporting PoE, PoE+, and PoE++ Output voltage: 56 V Max. output current per port: 1.6 A Max. PoE output power per port: 90 W Max. PoE output power: 1,600 W
Max. power consumption	< 200 W (without load) < 2,000 W (full load)

Environment and Reliability

Environment and Reliability	RG-AM5832-SF-P
Temperature	Operating temperature: 0°C to 45°C (32°F to 113°F) at an altitude in the range of 0 m to 1,800 m (5,905.51 ft.) Storage temperature: --40°C to +70°C (--40°F to +158°F) At an altitude in the range of 1,800 m to 5,000 m (5,905.51 ft. to 16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Altitude	Operating altitude: --500 m to 5,000 m (--1,640.42 ft. to 16,404.20 ft.) Storage altitude: --500 m to 5,000 m (--1,640.42 ft. to 16,404.20 ft.)
Humidity	Operating humidity: 10% RH to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing)
Lightning protection	AC power connector: differential mode ±6 kV, common mode ±6 kV PoE-out port: differential mode ±2 kV, common mode ±6 kV
Fan	Fault alarming and speed adjustment

Software Specifications

Software Specification	RG-AM5832-SF-P
Applicable software version	RGOS12.6(3)B0401 or later
WLAN
Max. number of associated STAs	1,536
Max. number of BSSIDs	64
STA management	SSID hiding Band steering (When used with an AC, the master AP enables STAs to preferentially access the 5 GHz band.)
Security
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS) PSK, Web-based authentication, and 802.1X authentication Data encryption: WPA (TKIP), WPA-PSK, WPA2 (AES), WEP (64/128-bit) QR code-based guest authentication, SMS-based authentication, and MAB authentication (The master AP needs to work with an RG-WS series AC.)
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
WIDS	Wireless Intrusion Detection System (WIDS) User isolation Rogue AP detection and containment
ACL	Dynamic ACL assignment based on 802.1X authentication (The master AP needs to work with an AC.)
CPU Protect Policy (CPP)	Supported
NFPP	Supported
Routing and Switching
MAC	MAC address auto-learning and MAC address entry aging Static and dynamic MAC address entries Source MAC address filtering MAC address limit learned on an interface
Ethernet	Jumbo frame length: 9,216 IEEE 802.1p and IEEE 802.1Q Optical module information displaying, fault alarming, and diagnostic parameter measurement (QSFP+/SFP28/SFP+/SFP)
VLAN	Port-based VLAN Max. number of SVIs: 1,000 Number of VLANs that can be created: 4,094 Available VLAN ID range: 1 to 4,094
ARP	ARP entry aging, gratuitous ARP learning, and ARP proxy ARP entries: 24,000 ARP check
IPv4 services	Static IPv4 address and DHCP-assigned IPv4 address DHCP server and DHCP client DHCP snooping DNS client and DNS proxy NTP server, NTP client, and SNTP client
IPv6 services	Manually configured and automatically created IPv6 addresses IPv6 CAPWAP tunnel IPv6 neighbor discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping DNSv6 client NTPv6 server and NTPv6 client
IP routing	IPv4/IPv6 static routing Static IPv4 routing table: 24,000 Static IPv6 routing table: 14,000 Static blackhole route
Multicast	Supported
Network Management and Monitoring
Network management	SNMP v1/v2c/v3 Fault detection and alarming
User access management	Console, Telnet, SSH, TFTP, and FTP

Regulatory Compliance

Regulatory Compliance	RG-AM5832-SF-P
Regulatory compliance	EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 300 386, IEC 62368-1, and EN 62368-1

* For more country-specific regulatory information and approvals, contact your local sales agency.

Order Information

Model	Description
RG-AM5832-SF-P	Optical i-Share master AP for Ruijie Simplified Optical Ethernet Solution Downlink: ● 24 x 10GE SFP+ ports, compatibility with 2.5GE and 1GE modules. ● 24 x PoE-out ports, supporting PoE/PoE+/PoE++ Uplink: ● RG-M5800-8VS subcard (optional): 8 x 25GE SFP28 ports ● RG-M5800-2QXS subcard (optional): 2 x 40GE QSFP+ ports Low noise 1 x power module Each master AP occupies eight AC licenses. One uplink subcard must be ordered upon delivery.
RG-M5800-8VS	Uplink subcard of the RG-AM5832-SF-P 8 x 25GE SFP28 ports, compatibility with 10GE and 1GE modules Eight 25GE SFP28 ports need to be switched simultaneously to support 10GE SFP+ and cannot be configured separately.
RG-M5800-2QXS	Uplink subcard of the RG-AM5832-SF-P 2 x 40GE QSFP+ ports
RG-MAP852-SF-S	Dual-radio Wi-Fi 6 wall-plate optical micro AP for Ruijie Simplified Optical Ethernet Solution 1 × SFP port 1 ×10/100/1000Base-T Ethernet port with auto-negotiation 2.4 GHz and 5 GHz frequency bands Combined peak data rate: 1.775 Gbps BOB structure 1 x 1GE optical module for the master AP
RG-MAP852-SF-M	Dual-radio Wi-Fi 6 wall-plate optical micro AP for Ruijie Simplified Optical Ethernet Solution 1 x 2.5GE SFP port 4 x 10/100/1000Base-T Ethernet ports with auto-negotiation 2.4 GHz and 5 GHz frequency bands Combined peak data rate: 2.976 Gbps Bluetooth Wall/Ceiling/Junction box-mount 1 x 2.5GE optical module for the optical micro AP 1 x 2.5GE optical module for the master AP
RG-MAP920-SF-M	Wi-Fi 7 dual-radio optical micro access point for Ruijie SOE Solution Combined peak data rate of 3.570 Gbps 2.4 GHz and 5 GHz frequency bands 1 x 2.5GE SFP port 4 x 10/100/1000Base-T Ethernet ports with auto-negotiation Wall/Ceiling/Junction box-mount 1 x 2.5GE optical module for the master AP
RG-24DUP1DB48LC	24-port hybrid cable termination box 1 x DB-78 power connector 48 x LC connectors for optical fibers
RG-OEHC-SM-1B6A2-2x0.5-I-305	Indoor single-core 2 x 0.5 mm² hybrid cable, single roll, 305 m (1,000.66 ft) in length
RG-OEHC-SM-2B6A2-2x1.0-I-305	Indoor dual-core 2 x 1.0 mm² hybrid cable, single roll, 305 m (1,000.66 ft) in length
RG-OEHC-SM-2B6A2-2x1.5-O-1000	Outdoor dual-core 2 x 1.5 mm² hybrid cable, 1,000 m (3,280.84 ft.) in length
