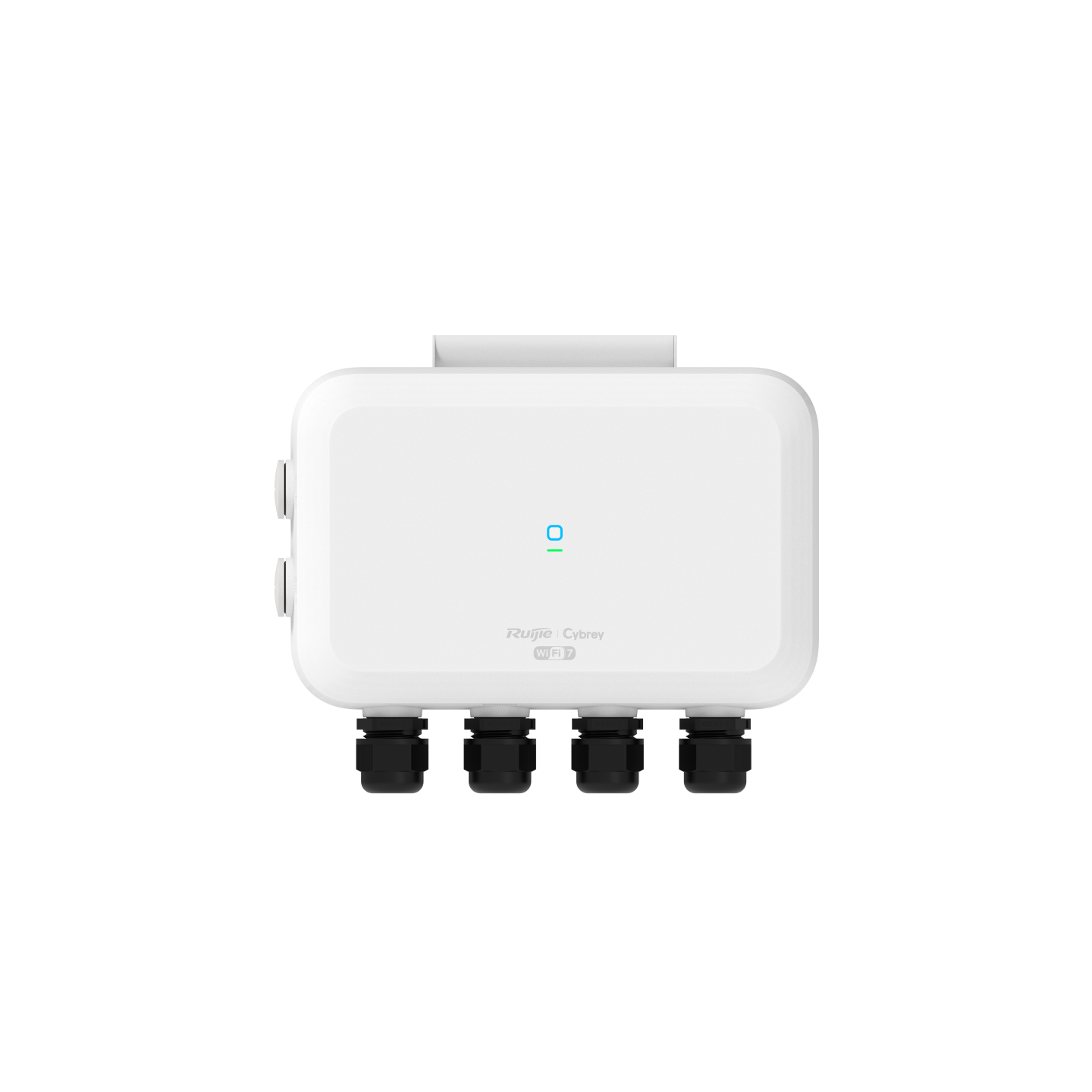

RG-CAP73-O, Wi-Fi 7 BE9300 Outdoor Access Point

Offices, hotels, warehouses, hospitals, and schools.

Models

RG-CAP62-O

Wi-Fi 6, AX3000

RG-CAP72-O

Wi-Fi 7, BE3600

RG-CAP73-O

Wi-Fi 7, BE9300

RG-CAP62-I

Wi-Fi 6, AX3000

RG-CAP72-I

Wi-Fi 7, BE3600

RG-CAP72Pro-IE

Wi-Fi 7, BE6500

RG-CAP73-I

Wi-Fi 7, BE9300

RG-CAP62-WP

Wi-Fi 6, AX3000

RG-CAP72-WP

Wi-Fi 7, BE3600

RG-CNC105

5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output.

RG-CNC312

8 x 10/100/1000BASE-T ports, 2 x 1GE SFP/RJ45 combo ports, 2 x 10GE SFP+ ports

RG-ANT30-D2

2 x RP-SMA female antenna connectors

RG-ANT90-T2

2 x RP-SMA female antenna connectors

RG-ANT90-T6

6 x RP-SMA female antenna connectors

Series

Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs

Datasheet Sales Enquiry

Highlight Features

BE9300 Wi-Fi 7 speed for hospital campuses, enterprise plazas, and beach resorts.
4096-QAM for 20% higher peak data rates than Wi-Fi 6.
MRU for better channel utilization and lower latency in crowded environments.
10G Combo + 2.5G port for high-capacity backhaul and wired connectivity.
Built-in antennas and support for external directional antennas to expand coverage.
Flexible power supply options: PoE, DC, and Power over Fiber (PoF).
IP68-rated dust and water protection with F2-grade UV-resistant materials.
Built-in 6 kV surge protection for reliable outdoor operation.
Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3 encryption, and a Kensington lock slot.
Full-time AI Radio mode with full-channel scanning for fast client steering.
Smart Radio with 4 flexible modes (5 GHz, 6 GHz, high-density, AI Radio).

Key Specifications
Features
Specifications
Resources
Videos

Sales Enquiry

Key Specifications

Features

RG-CAP73-O Ruijie Cybrey Wi-Fi 7 BE9300 Outdoor Access Point

1

BE9300 Tri-Band Wi-Fi 7 Speed

BE9300 Tri-Band Wi-Fi 7 Speed

1

BE9300 Tri-Band Wi-Fi 7 Speed
Provides high throughput for large hospital campuses, enterprise office plazas, and expansive beach resorts.
2

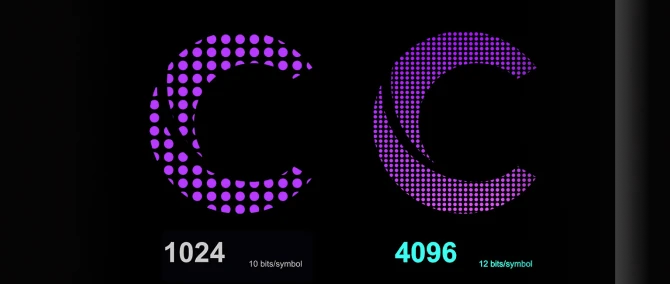

4096-QAM for Higher Peak Rates

4096-QAM for Higher Peak Rates

2

4096-QAM for Higher Peak Rates
Wi-Fi 7 with 4096‑QAM modulation delivers 20% higher peak data rates than Wi‑Fi 6 — faster downloads and smoother streaming.
3

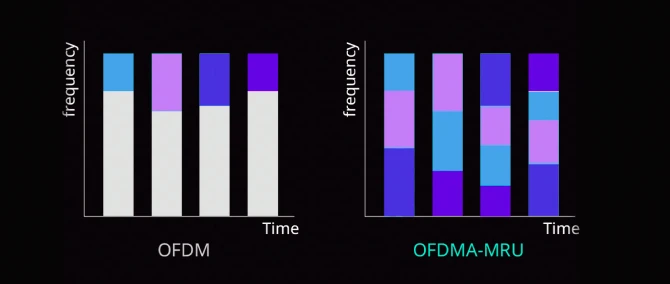

MRU for Multi-User Performance

MRU for Multi-User Performance

3

MRU for Multi-User Performance
Multi‑Resource Unit improves channel utilization in crowded environments and reduces latency when many clients are connected.
4

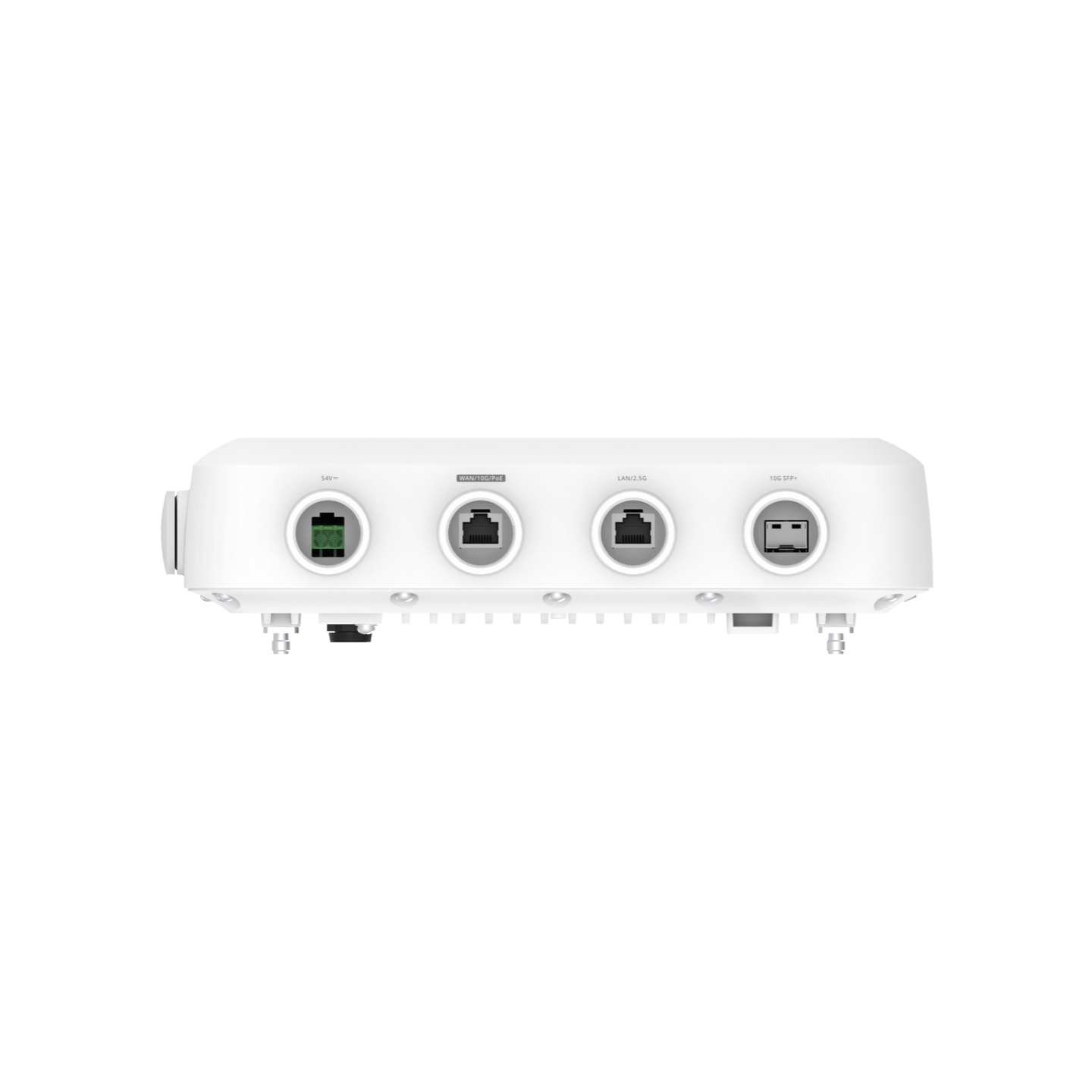

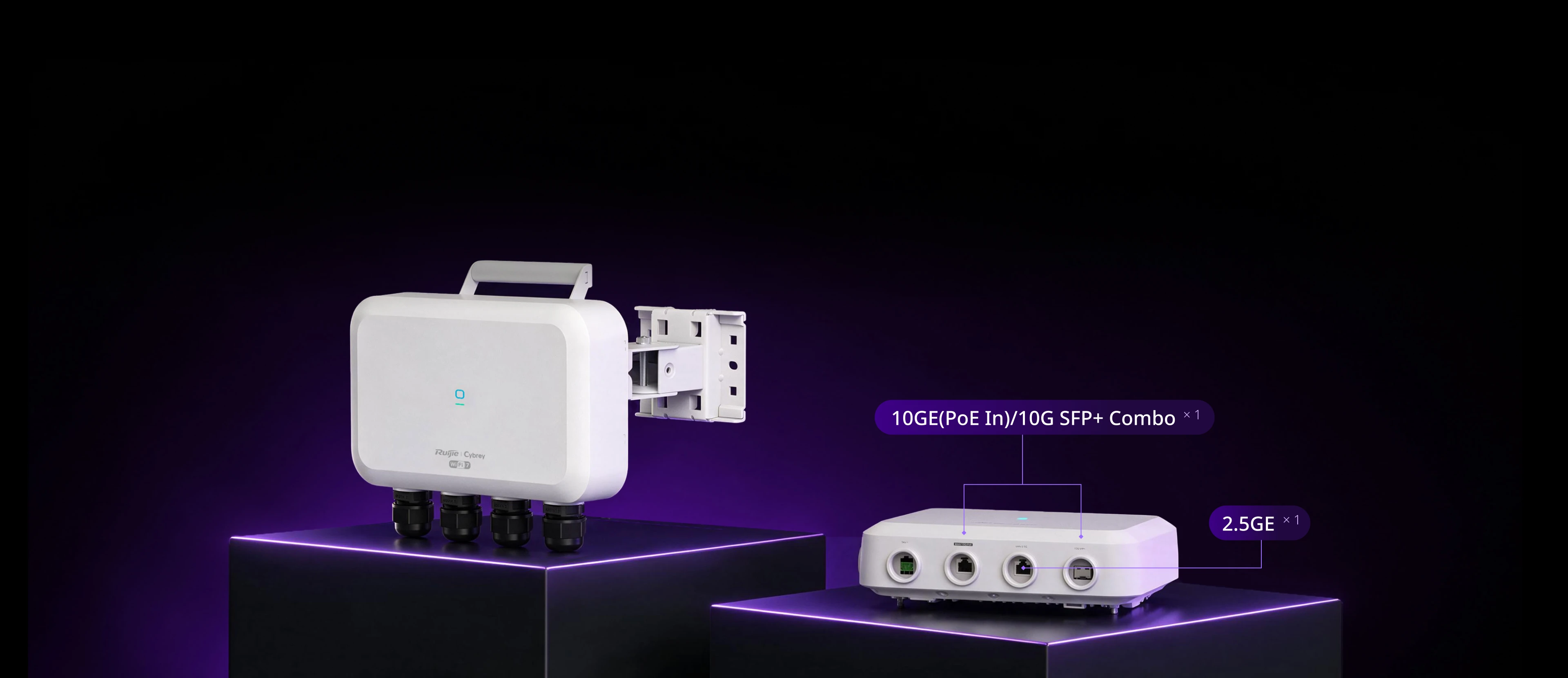

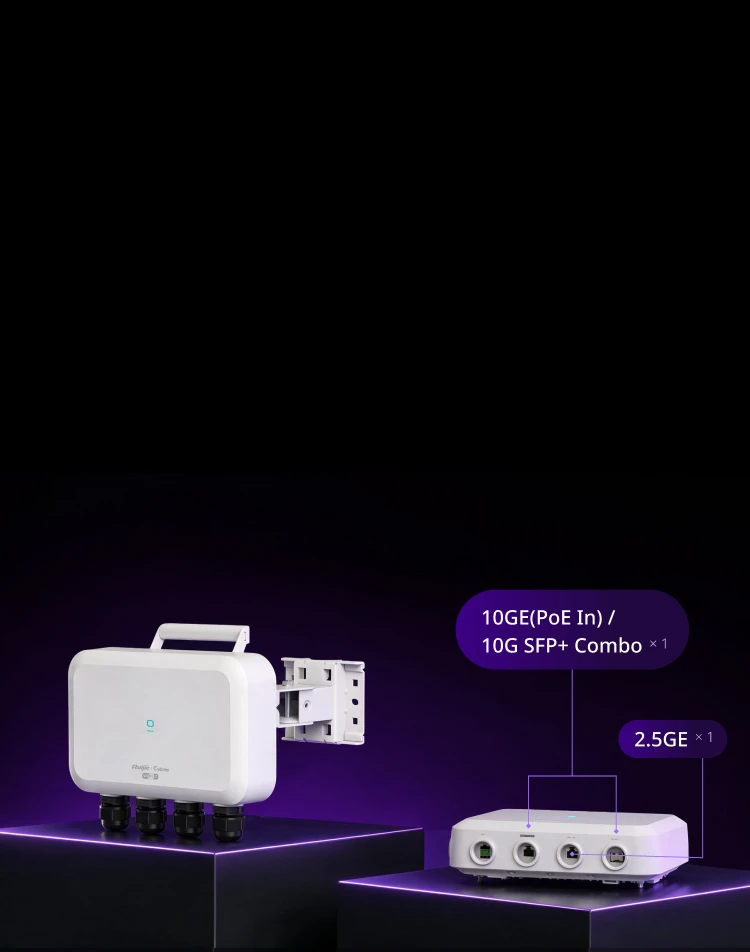

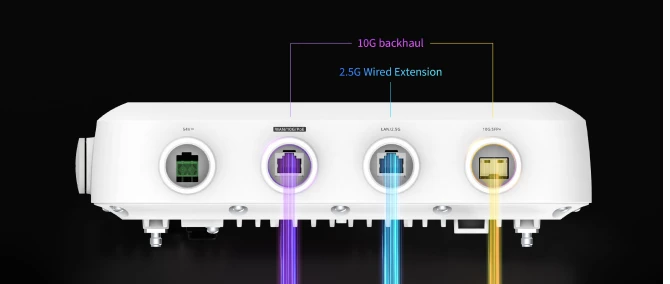

10G Combo + 2.5G Port

10G Combo + 2.5G Port

4

10G Combo + 2.5G Port
Features one 10G RJ45/SFP+ combo port and a dedicated 2.5G port, delivering high-capacity backhaul and wired connectivity for outdoor deployments.

5

Flexible Antenna Options

Flexible Antenna Options

5

Flexible Antenna Options
Features built-in antennas for standard coverage, with external antenna support for directional long-distance coverage. This expands coverage and reduces deployment costs.
6

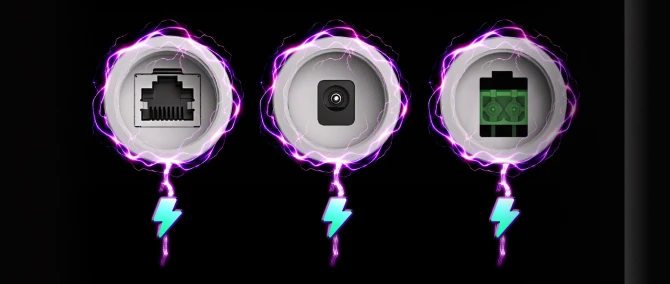

Flexible Power Supply Options

Flexible Power Supply Options

6

Flexible Power Supply Options
Supports PoE, DC, and Power over Fiber (PoF), enabling flexible device deployment.
7

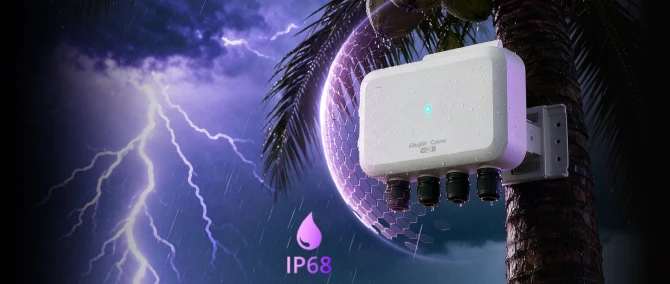

High Protection

High Protection

7

High Protection
IP68 dust‑tight and waterproof. F2 UV‑resistant materials and 6kV lightning protection for reliable operation in harsh outdoor conditions.
8

Cold Start Support

Cold Start Support

8

Cold Start Support
The built-in heating module helps maintain reliable AP reboot in freezing environments amid winter power cycles.

9

Enterprise Security

Enterprise Security

9

Enterprise Security
Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a Kensington lock.
10

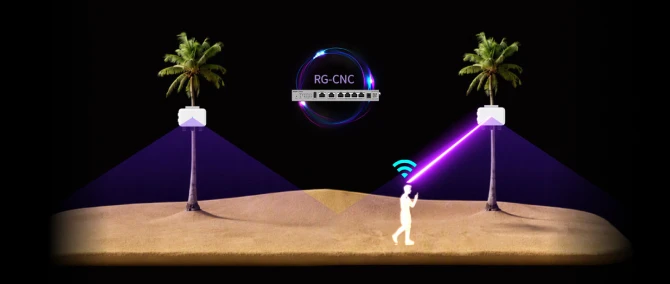

Responsive Roaming Experience

Responsive Roaming Experience

10

Responsive Roaming Experience
The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.
11

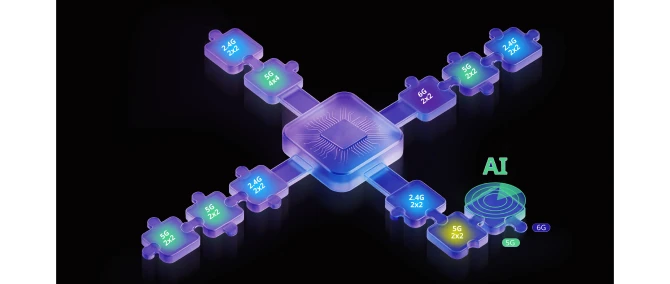

Smart Radio with 4 Flexible Modes

Smart Radio with 4 Flexible Modes

11

Smart Radio with 4 Flexible Modes
The smart radio supports 5 GHz, 6 GHz, high-density, and AI radio modes, flexibly adapting to different scenarios.
12

Cloud-Edge Collaborative Wireless Network

Cloud-Edge Collaborative Wireless Network

12

Cloud-Edge Collaborative Wireless Network
Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

Full-Time AI Radio for Responsive Roaming

AI Radio continuously monitors client status and intelligently steers client to the optimal AP, enabling fast, low-latency roaming with smooth connectivity.

In the Box

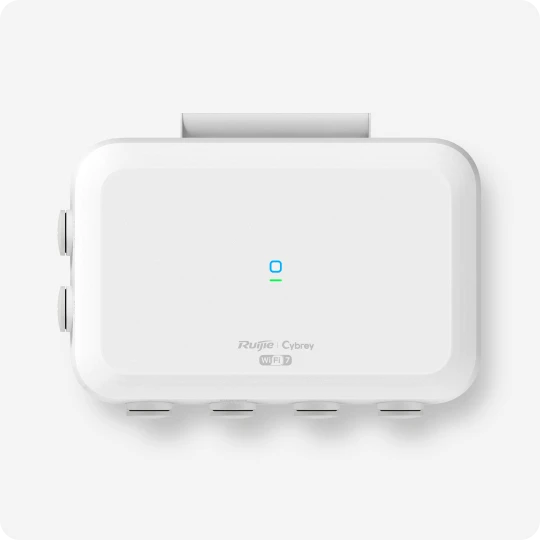

RG-CAP73-O
× 1

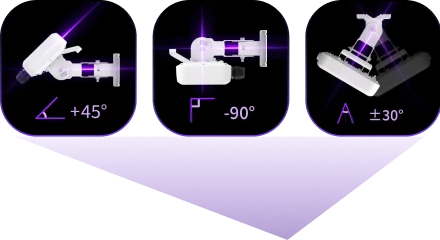

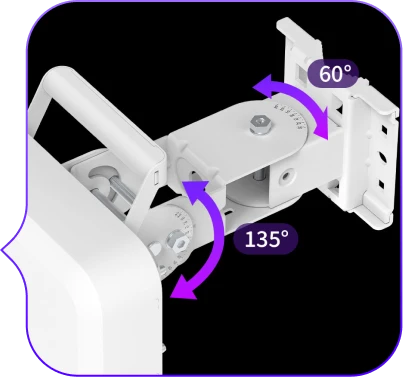

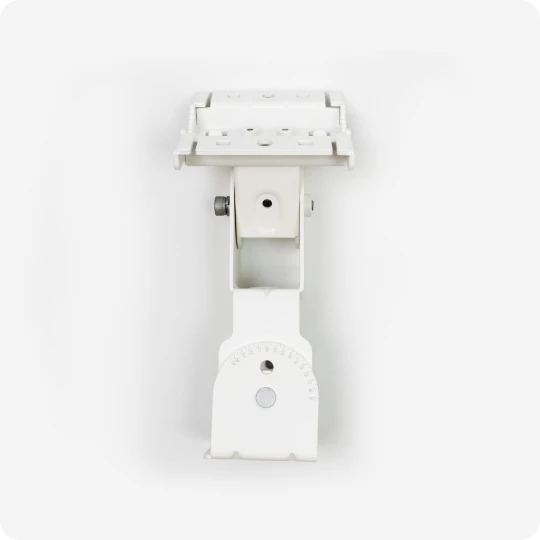

Adjustable mounting bracket
× 1

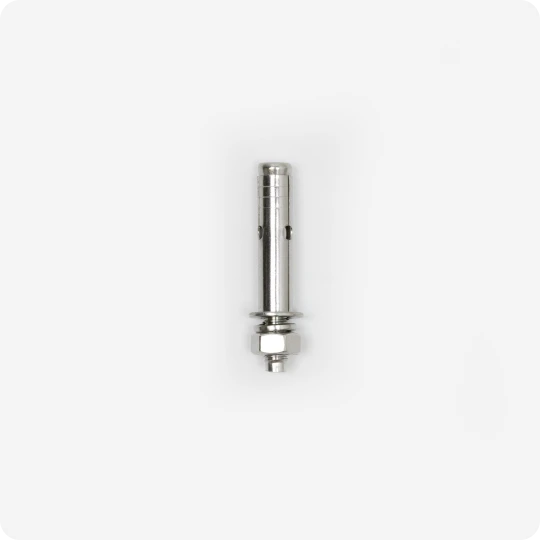

M8 x 60 mm Expansion anchors
× 2

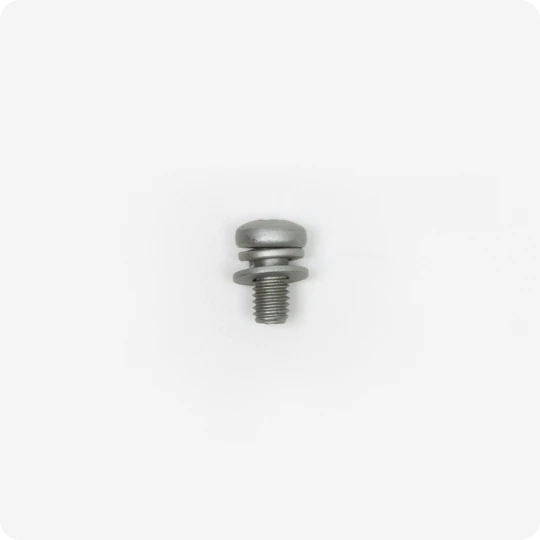

M5 x 10 mm Dacromet-coated screws
× 4

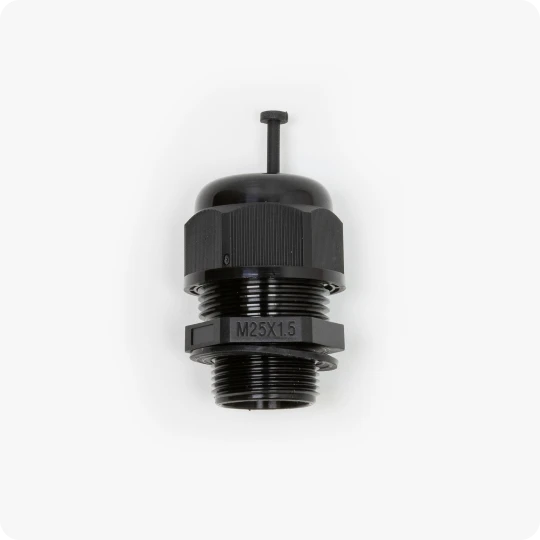

Cable gland assemblies for Ethernet cable and DC power cord
× 2
Cable gland assemblies for optical fiber and hybrid cable
× 2

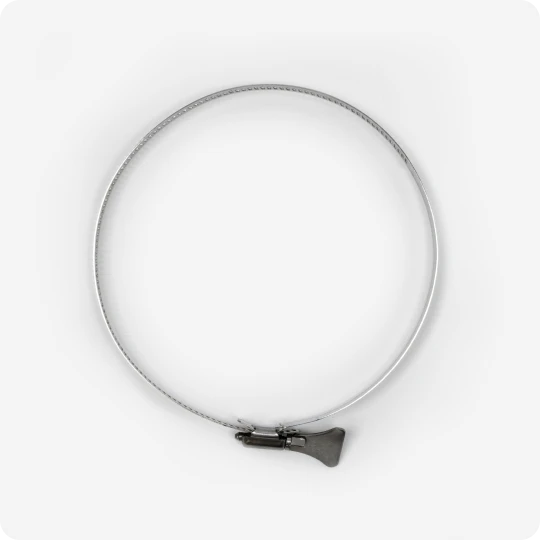

Hose clamp
× 2

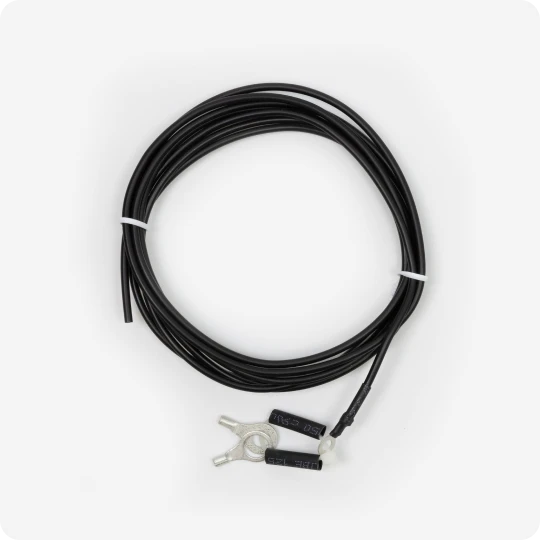

2 m (6.56 ft.) Grounding wire
× 1

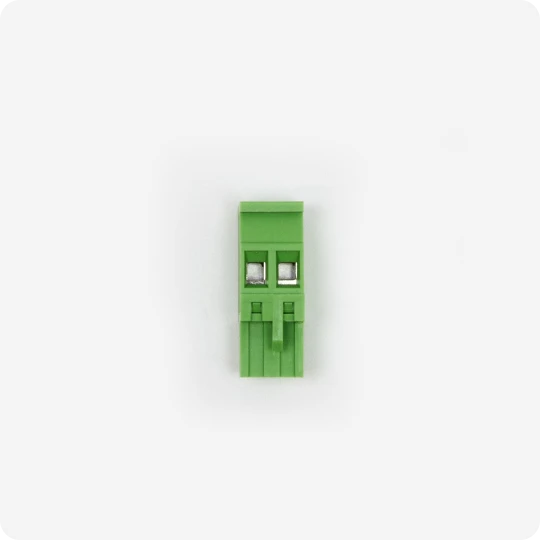

Terminal block/p> × 1

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

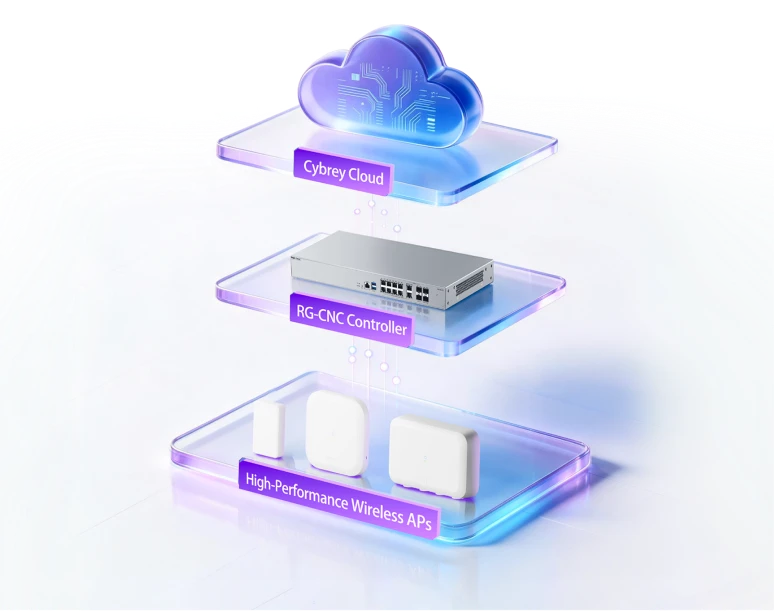

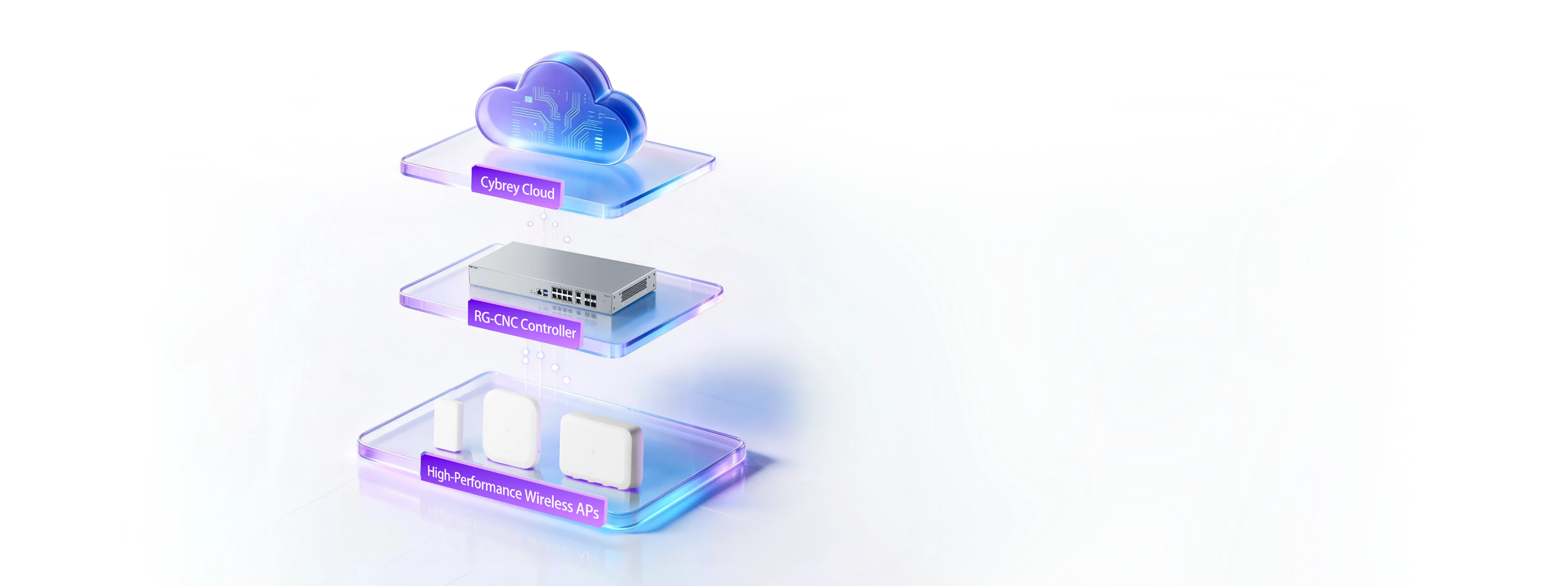

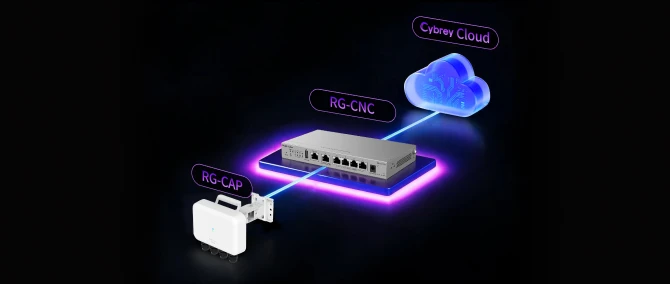

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

1
Cybrey Cloud

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis
2
RG-CNC Controller

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.
3
High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Specifications

Hardware Specifications

Wi-Fi Radio

Wi-Fi standards

IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax

Wi-Fi standards (2.4 GHz)

IEEE 802.11b (Wi-Fi 1)
IEEE 802.11g (Wi-Fi 3)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Wi-Fi standards (5 GHz)

IEEE 802.11a (Wi-Fi 2)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ac (Wi-Fi 5)
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Wi-Fi standards (6 GHz)

IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Radio design

Mode 1: Tri-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 2x2, MU-MIMO
● Radio 3: 6 GHz, 2x2, MU-MIMO

Mode 2: Tri-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz (high band), 2x2, MU-MIMO
● Radio 3: 5 GHz (low band), 2x2, MU-MIMO

Mode 3: Dual-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 4x4, MU-MIMO

Mode 4: Tri-radio
6 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 2x2, MU-MIMO
● Radio 3 (AI radio): 5 GHz, 2x2, MU-MIMO

Data rates

Combined peak data rate: 9335 Mbps
Mode 1:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 2882 Mbps
● Radio 3: 6 GHz, 5765 Mbps

Mode 2:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz (high band), 2882 Mbps
● Radio 3: 5 GHz (low band), 2882 Mbps

Mode 3:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 5765 Mbps

Mode 4:
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 2882 Mbps
● Radio 3: 5 GHz, AI radio

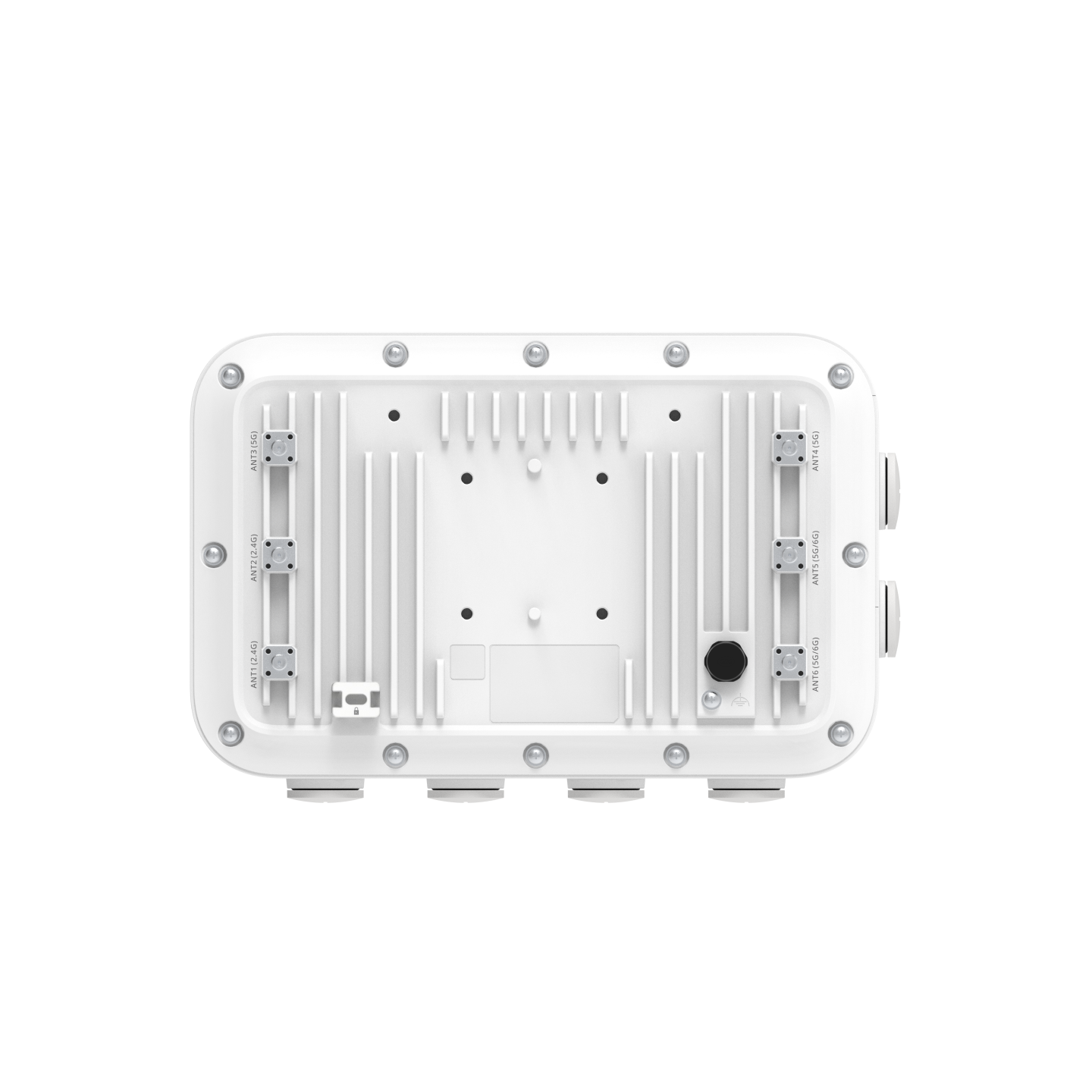

External antenna connectors

6 RP-SMA female antenna connectors
● ANT1(2.4G) and ANT2(2.4G) correspond to Radio 1, ANT3(5G) and ANT4(5G) to Radio 2, and ANT5(5G/6G) and ANT6(5G/6G) to Radio 3

Flexible radio

Mode 1: 2.4 GHz, 2x2 + 5 GHz, 2x2 + 6 GHz, 2x2
Mode 2: 2.4 GHz, 2x2 + 5 GHz (high band), 2x2 + 5 GHz (low band), 2x2
Mode 3: 2.4 GHz, 2x2 + 5 GHz, 4x4
Mode 4: 2.4 GHz, 2x2 + 5 GHz, 2x2 + 5 GHz (AI radio), 2x2

Maximum transmit power

Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):
Note: The transmit power is limited by local regulatory requirements.

European Union & United Kingdom:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
Myanmar:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5725–5825 MHz, EIRP ≤ 30 dBm
Thailand:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5825 MHz, EIRP ≤ 30 dBm
5945–6425 MHz, EIRP≤ 14 dBm
Indonesia:
2400–2483.5 MHz, EIRP ≤ 36 dBm
5725–5825 MHz, EIRP ≤ 36 dBm
Egypt:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
Vietnam:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5850 MHz, EIRP ≤ 30 dBm

Maximum transmit power (2.4 GHz)

Combined power: 26 dBm (single-stream power: 23 dBm)
Note: The transmit power is limited by local regulatory requirements.

Maximum transmit power (5 GHz)

Combined power: 25 dBm (single-stream power: 22 dBm)
Note: The transmit power is limited by local regulatory requirements.

Maximum transmit power (6 GHz)

Combined power: 24.5 dBm (single-stream power: 21.5 dBm)
Note: The transmit power is limited by local regulatory requirements.

Modulation types

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM

Operating frequency bands

Mode 1:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
● Radio 3: 802.11ax/be, 5.925 GHz to 7.125 GHz, EHT20/EHT40/EHT80/EHT160/EHT320

Mode 2:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
● Radio 3: 802.11a/n/ac/ax/be: 5.150 GHz to 5.350 GHz, EHT20/EHT40/EHT80/EHT160

Mode 3:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160

Mode 4:
● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
● Radio 3: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160

Note: Country-specific restrictions apply. To use the preceding frequency bands, ensure that they are supported in your country or region.

Receive sensitivity

802.11a: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –72 dBm (54 Mbps)
802.11b: –94 dBm (1 Mbps), –90 dBm (5.5 Mbps), –86 dBm (11 Mbps)
802.11g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps)
802.11n HT20: –88 dBm (MCS0), –70 dBm (MCS7)
802.11n HT40: –85 dBm (MCS0), –67 dBm (MCS7)
802.11ac VHT20: –88 dBm (MCS0), –65 dBm (MCS8)
802.11ac VHT40: –85 dBm (MCS0), –60 dBm (MCS9)
802.11ac VHT80: –82 dBm (MCS0), –57 dBm (MCS9)
802.11ac VHT160: –79 dBm (MCS0), –54 dBm (MCS9)
802.11ax HE20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11)
802.11ax HE40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11)
802.11ax HE80: –82 dBm (MCS0)，–57 dBm (MCS9), –52 dBm (MCS11)
802.11ax HE160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11)
802.11be EHT20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11), –52 dBm (MCS13)
802.11be EHT40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11), –49 dBm (MCS13)
802.11be EHT80: –82 dBm (MCS0), –57 dBm (MCS9), –52 dBm (MCS11), –46 dBm (MCS13)
802.11be EHT160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11), –43 dBm (MCS13)
802.11be EHT320: –76 dBm (MCS0), –51 dBm (MCS9), –46 dBm (MCS11), –40 dBm (MCS13)

Antenna

Antenna type

● 2.4 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas
● 5 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas
● 6 GHz: 2 x built-in omnidirectional antennas (supporting both the 5 GHz and 6 GHz bands), switching between built-in and external antennas
● Bluetooth: 1 x built-in omnidirectional antenna
● GPS: 1 x built-in omnidirectional antenna

Antenna gain

2.4 GHz: 4.20 dBi
5 GHz: 5.69 dBi
6 GHz: 4.93 dBi
Bluetooth: 4.02 dBi

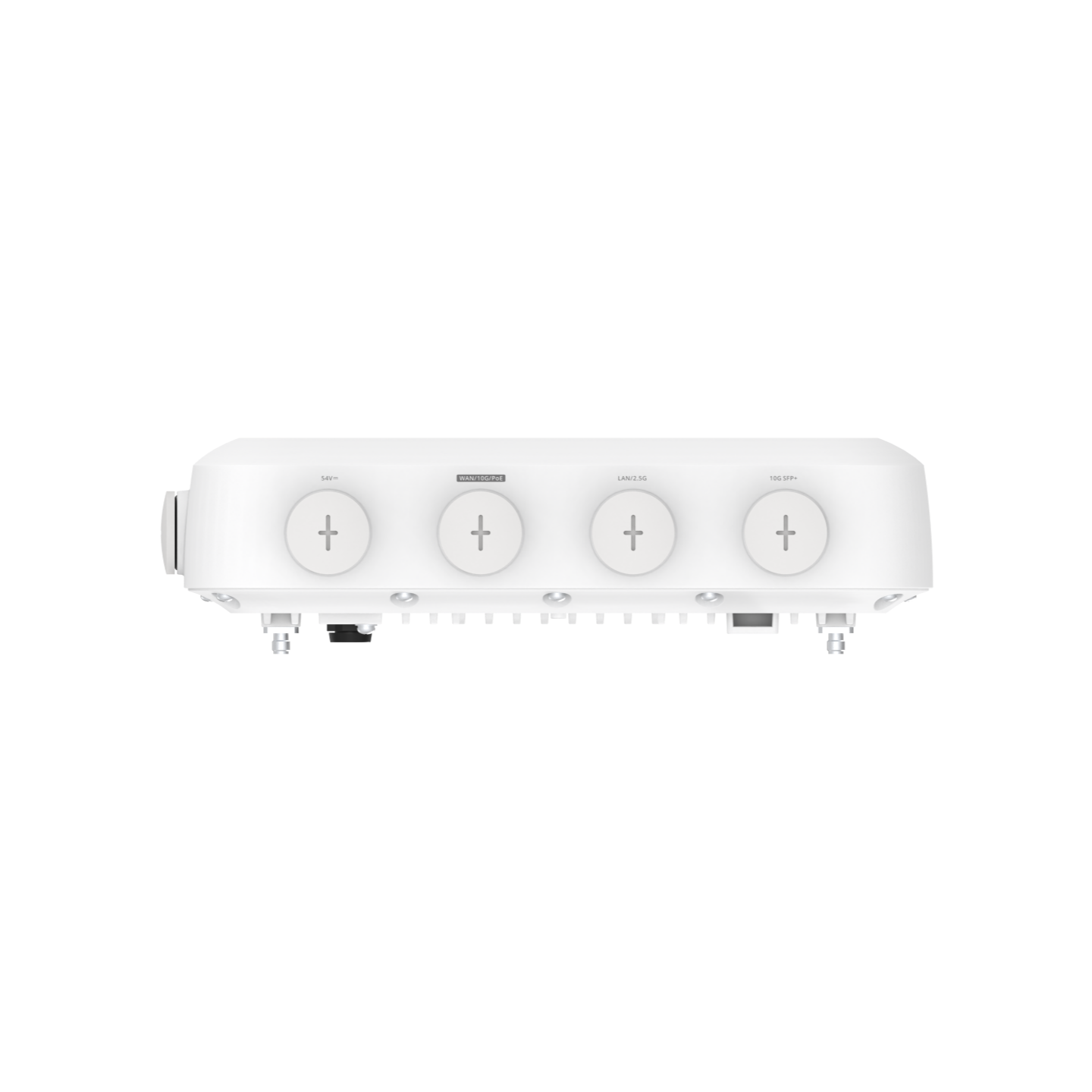

Port Specifications

Fixed service port

● 1 x 10/100/1000/2.5G/5G/10GBASE-T port, supporting 802.3af/at/bt-compliant PoE input. It is paired with one 10GE SFP+ port as a combo port.
● 1 x 10GE SFP+ port, compatible with 2.5GE and 1GE optical transceivers. It is paired with one 10GE RJ45 port as a combo port.
● 1 x 10/100/1000/2500BASE-T port

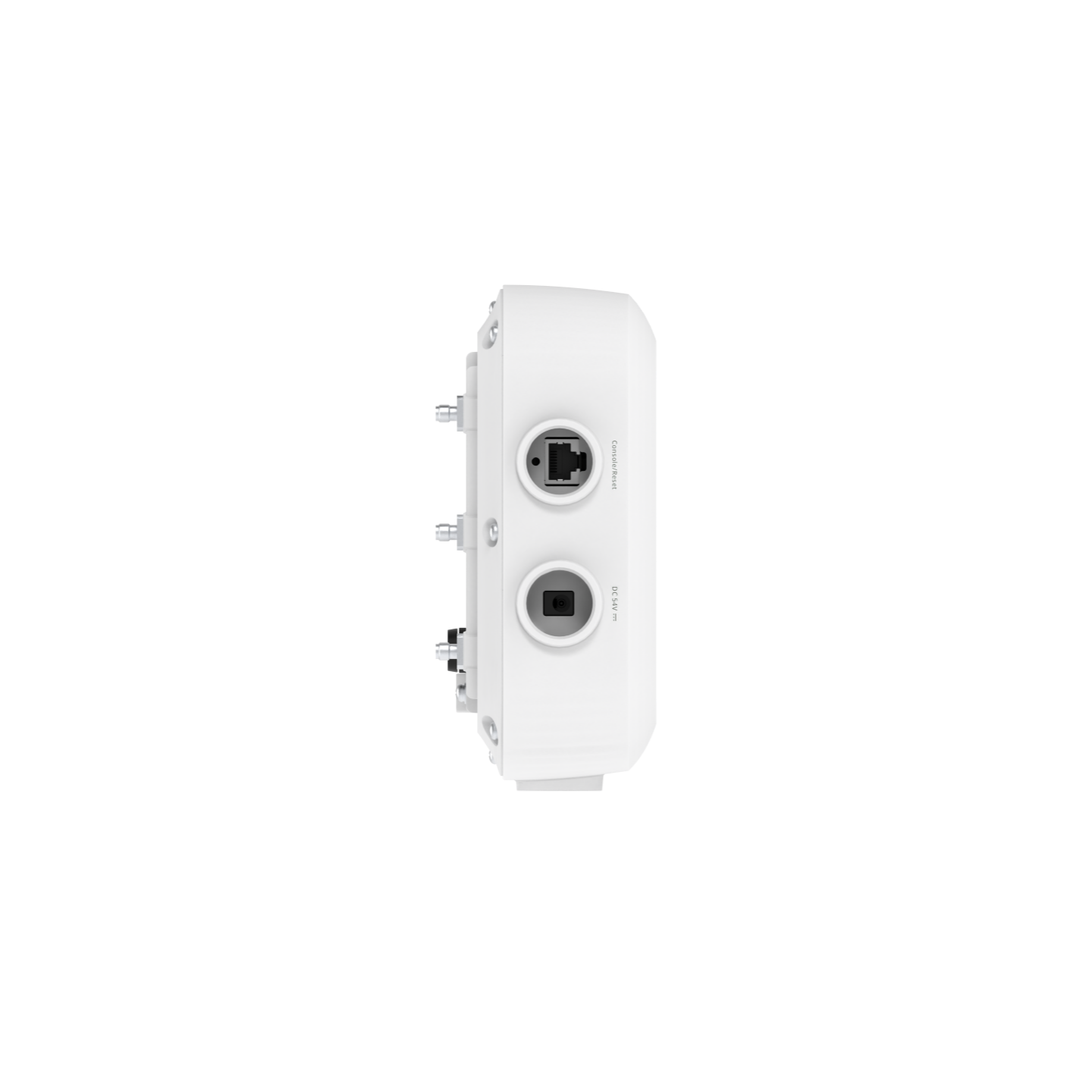

Fixed management port

1 x RJ45 console port

LED

1 x system LED
1 x RSSI LED

Reset button

Bluetooth Radio

Bluetooth

Bluetooth 5.3
● Remote maintenance through a Bluetooth serial port

Maximum Bluetooth transmit power

10 dBm

Power Supply and Consumption

DC power supply

● DC power adapter: 54 V, 0.8 A
● DC connector dimensions:
Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
Note: If both DC power and PoE are available, DC power is preferred.

DC power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

PoE power supply

● IEEE 802.3af (PoE)
● IEEE 802.3at (PoE+)
● IEEE 802.3bt (PoE++)
Note: If both DC power and PoE are available, DC power is preferred.

PoF power supply

● IEEE 802.3af (PoE)
● IEEE 802.3at (PoE+)
● IEEE 802.3bt (PoE++)
Note:
1. If both DC power and PoE are available, DC power is preferred.
2. If PoF input is adopted, the AP must be used with a dedicated PSE.

Maximum power consumption

25.96 W (excluding heating module)
43 W (including heating module)
Note: When PoE input is used, it is recommended to use an IEEE 802.3bt-compliant PSE to ensure optimal device performance.

IEEE 802.3af power input

Port restrictions: The downlink LAN port is unavailable.
Radio restrictions: Only the 2.4 GHz and 5 GHz radios are available, with both radios limited to 1T1R and their transmit power limited to 50%.
Other feature restrictions: The heating module is unavailable.

IEEE 802.3at power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: The heating module operates only before the main system starts up and cannot provide heating after the system starts up.

IEEE 802.3bt power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

Environment and Reliability

Operating temperature

–40°C to +65°C (–40°F to +149°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Operating humidity

0% RH to 100% RH (non-condensing)

Storage humidity

0% RH to 100% RH (non-condensing)

Storage temperature

–40°C to +85°C (–40°F to +185°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Corrosion resistance

IEC 62368-1
IEC 60950-22

IP rating

IP68

Lock option

Kensington lock slot

Low-temperature heating module

Supported

MTBF

400,000 hours

Mounting options

Wall-mount and pole-mount

Dimensions and Weight

Unit dimensions (W x D x H)

273 mm x 78 mm x 178 mm (10.75 in. x 3.07 in. x 7.01 in., without the mounting bracket)

Packaging dimensions (W x D x H)

359 mm x 311 mm x 143 mm (14.13 in. x 12.24 in. x 5.63 in.)

Unit weight

Main unit: 1.84 kg (4.06 lbs)
Mounting bracket: 1.35 kg (2.98 lbs)

Packaging weight

4.47 kg (9.85 lbs)

Color

White

System Specifications

Flash memory

256 MB SPI NAND Flash

RAM

1 GB DDR4

Certification and Regulatory Compliance

Certification

CE, CB, Wi-Fi Alliance

EMC compliance

EN 55032
EN 61000-3-3
EN IEC 61000-3-2
EN 55035
EN 301 489-1
EN 301 489-3
EN 301 489-17

Radio

EN 300 328
EN 301 893
EN 300 440
EN 303 687
EN 303 413

RF exposure

EN IEC 62311

Safety compliance

IEC 62368-1

Software Specifications

Bandwidth Features

Bandwidth control

AP-based bandwidth control
Client-based bandwidth control
Intelligent dynamic bandwidth control based on channel utilization
Intelligent dynamic bandwidth control based on critical services
SSID-based bandwidth control

Client Management

Client limit

Radio-based client limit
SSID-based client limit

Dynamic blocklist/allowlist

Dynamic blocklist

Smart steering

AP load balancing
Configuring load balancing based on client count
Configuring load balancing based on client traffic

Static blocklist/allowlist

Static allowlist
Static blocklist

Radio Management

SSID management basics

SSID hiding

Roaming Features

Layer 2 roaming

Layer 2 roaming

Layer 3 roaming

Layer 3 roaming

Security Features

Client security

Hotspot2.0 authentication
WPA-802.1X authentication
WPA-PSK authentication
WPA-WPA2 authentication
WPA2-802.1X authentication
WPA2-PSK authentication
WPA2-WPA3 authentication
WPA3-Enterprise
WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256)
WPA3-Enterprise with AES-CCMP-128
WPA3-OWE authentication
WPA3-Personal
WEP authentication

802.1X

Dynamic ACL assignment

Client identification

AI-based identification of client types, operating systems, operating system versions, vendors, and models
Client identification

CPP

MAB

NFPP

NFPP

RADIUS

RADIUS

Web authentication

Web authentication

Layer 3 Features

IPv6

ICMPv6
IPv6 basic features
Neighbor discovery
Ping over IPv6

NAT

NAT
PPTP, SIP, FTP, DNS, and TFTP

Management Features

SNMP

SNMPv1/v2c/v3
SNMP

Alerts

Alerts

Cloud-based management

Cloud-based management

SON

SSH

Syslog

Syslog

Telnet

Telnet

Web-based management

Web-based management

IP Services

DHCP

DHCPv4 client
DHCPv6 client

NTP

NTP client
NTP server

Networking Features

RIPT

RIPT

Routing Features

IPv4 routing basics

Static routing

IPv6 routing basics

Static IPv6 routing

Device Management

AP mode management

Mode switching

Device IP management

Obtaining an IP address through DHCP

Device IP Management

Static IPv4 address

Multicast Features

IGMP snooping

Multicast-to-unicast conversion

Capacity Specifications

Client Management

Maximum number of associated clients per AP

768
Note: The number of associated clients varies according to the environment.

Recommended number of associated clients per AP

Radio Management

Maximum number of BSSIDs per AP

IP Services

Number of DHCP address pools

2000

Package Contents

Device

Main unit

Accessories

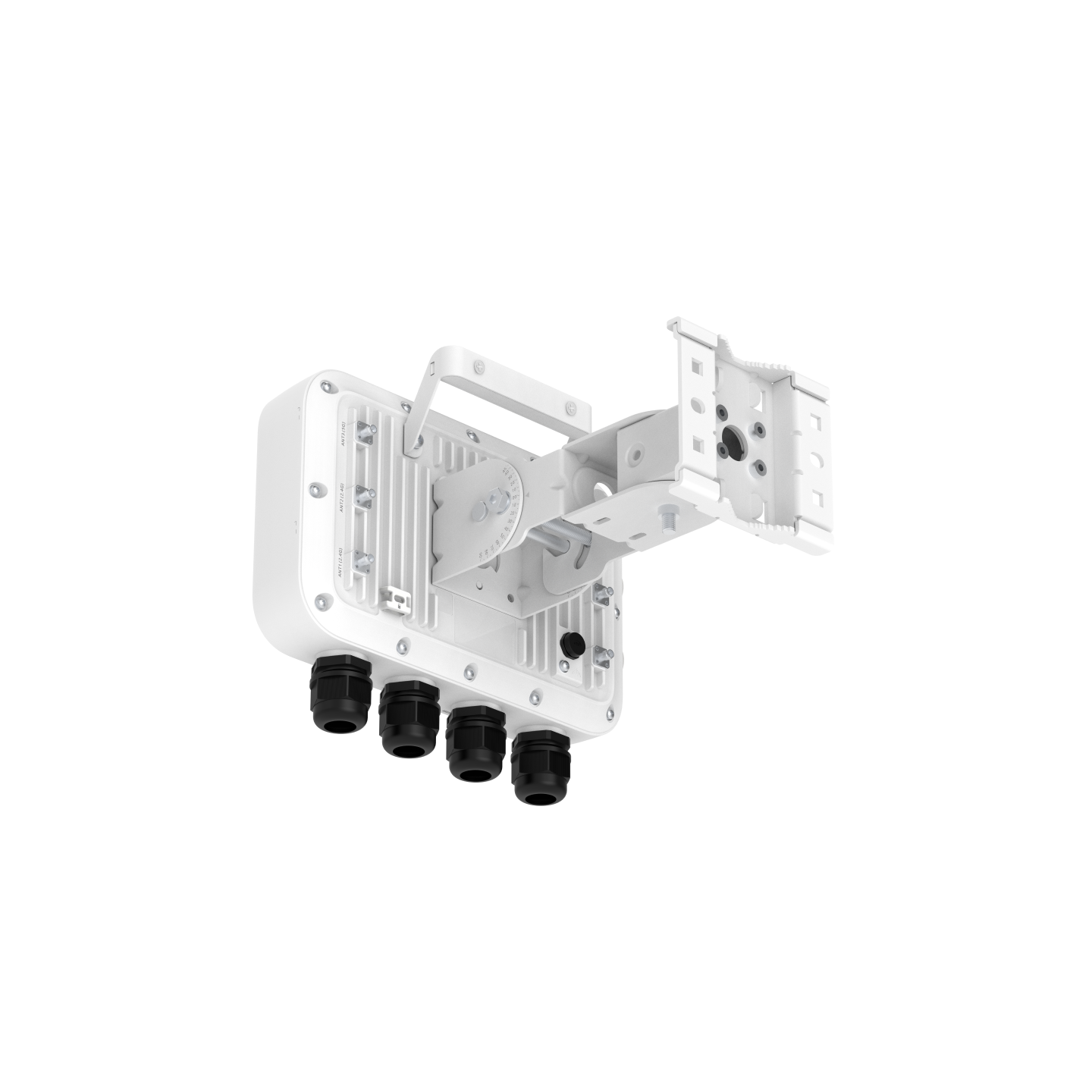

Cable gland assembly

3 x cable gland assemblies for Ethernet cable and DC power cord
2 x cable gland assemblies for optical fiber and hybrid cable

Grounding wire

1 x 2 m (6.56 ft.) grounding wire

Hose clamp

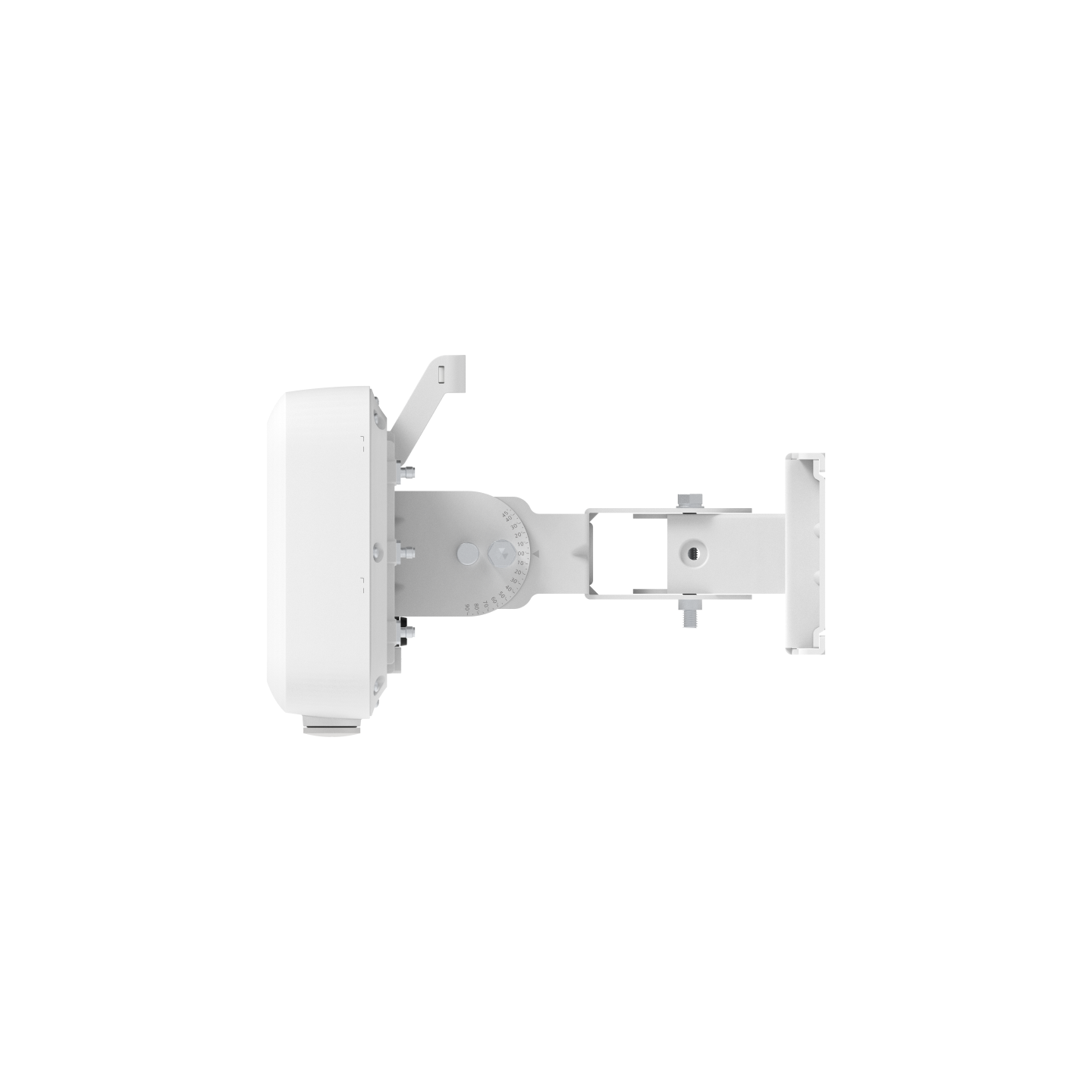

Mounting bracket

1 x adjustable mounting bracket (W x D x H: 126 mm x 106 mm x 215 mm / 4.96 in. x 4.17 in. x 8.46 in., delivered with two M8 expansion bolts)

Screw

4 x M5 x 10 mm Dacromet-coated screws
2 x M8 x 60 mm expansion anchors

Terminal block

Manual

User Manual

Warranty Card

Resources

All Resources

Learn about Products or Solutions

Installation

Installation Guide

Software and Configuration

Videos

Higher Education

5-Star Hotel Solution

RG-CAP73-O, Wi-Fi 7 BE9300 Outdoor Access Point

Key Specifications

Features

RG-CAP73-O Ruijie Cybrey Wi-Fi 7 BE9300 Outdoor Access Point

Full-Time AI Radio for Responsive Roaming

In the Box

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

Specifications

Resources

2026 Ruijie Networks Official Website User Experience Survey Questionnaire
