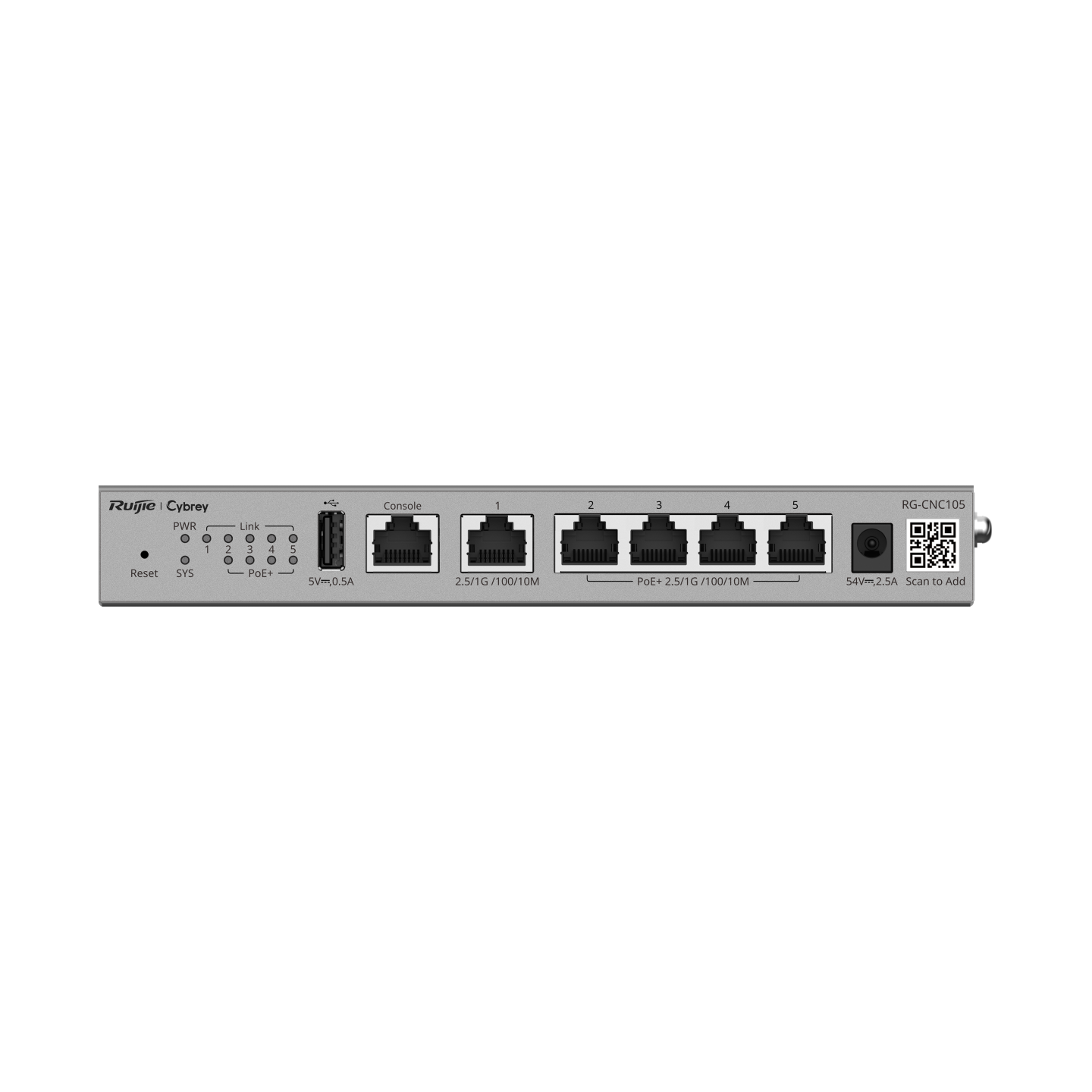

RG-CNC105 Small & Medium Enterprise Networking - 1

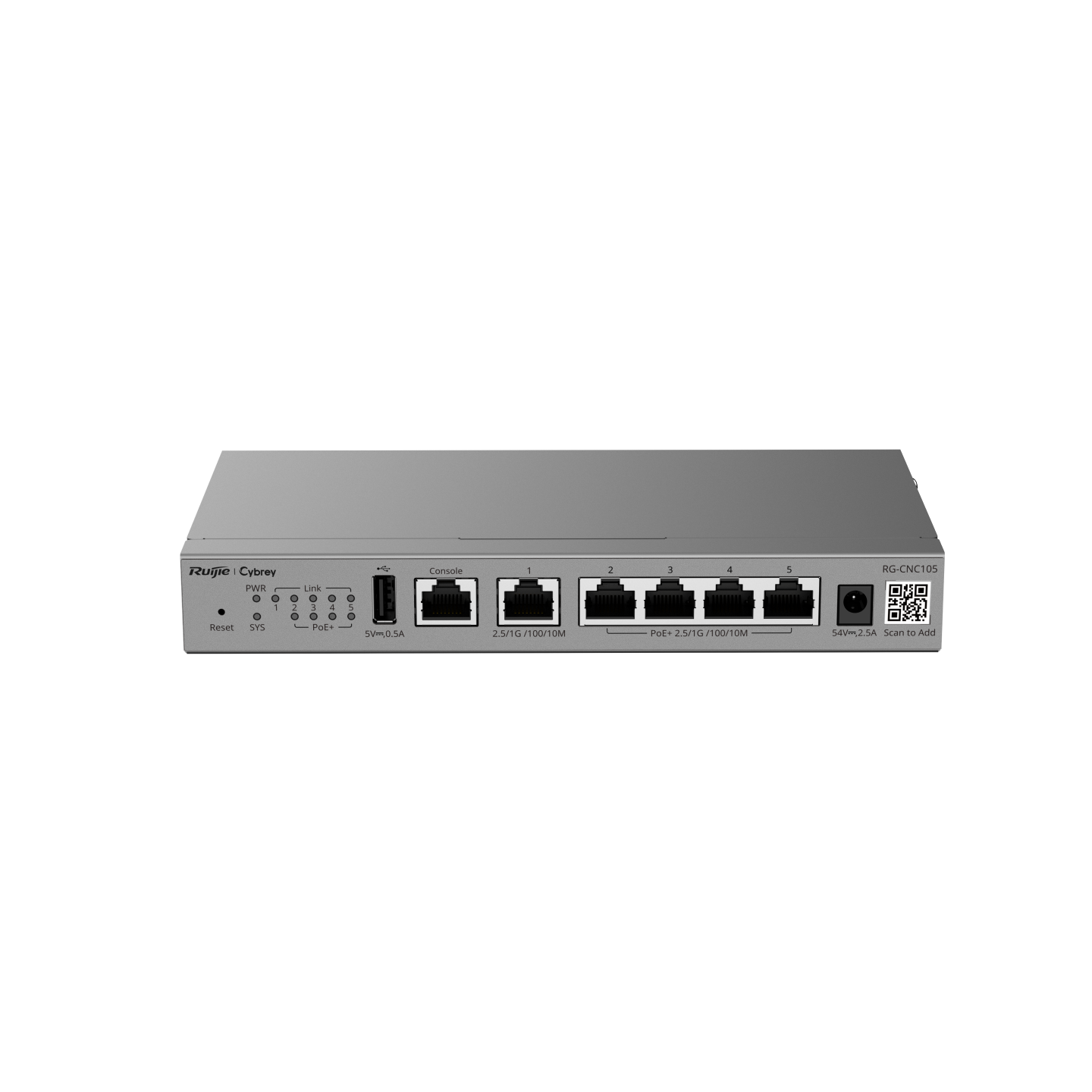

RG-CNC105 Small & Medium Enterprise Networking - 2

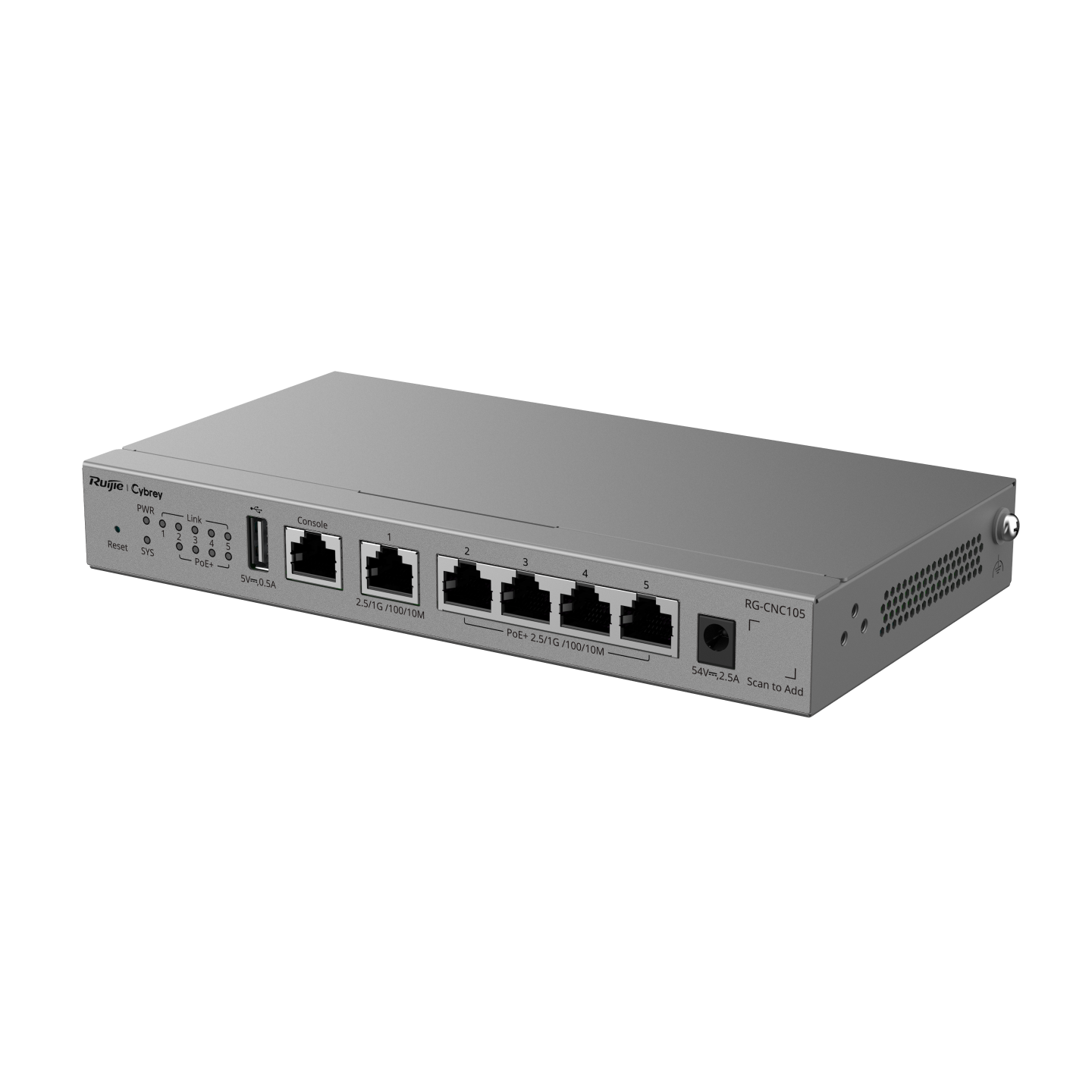

RG-CNC105 Small & Medium Enterprise Networking - 3

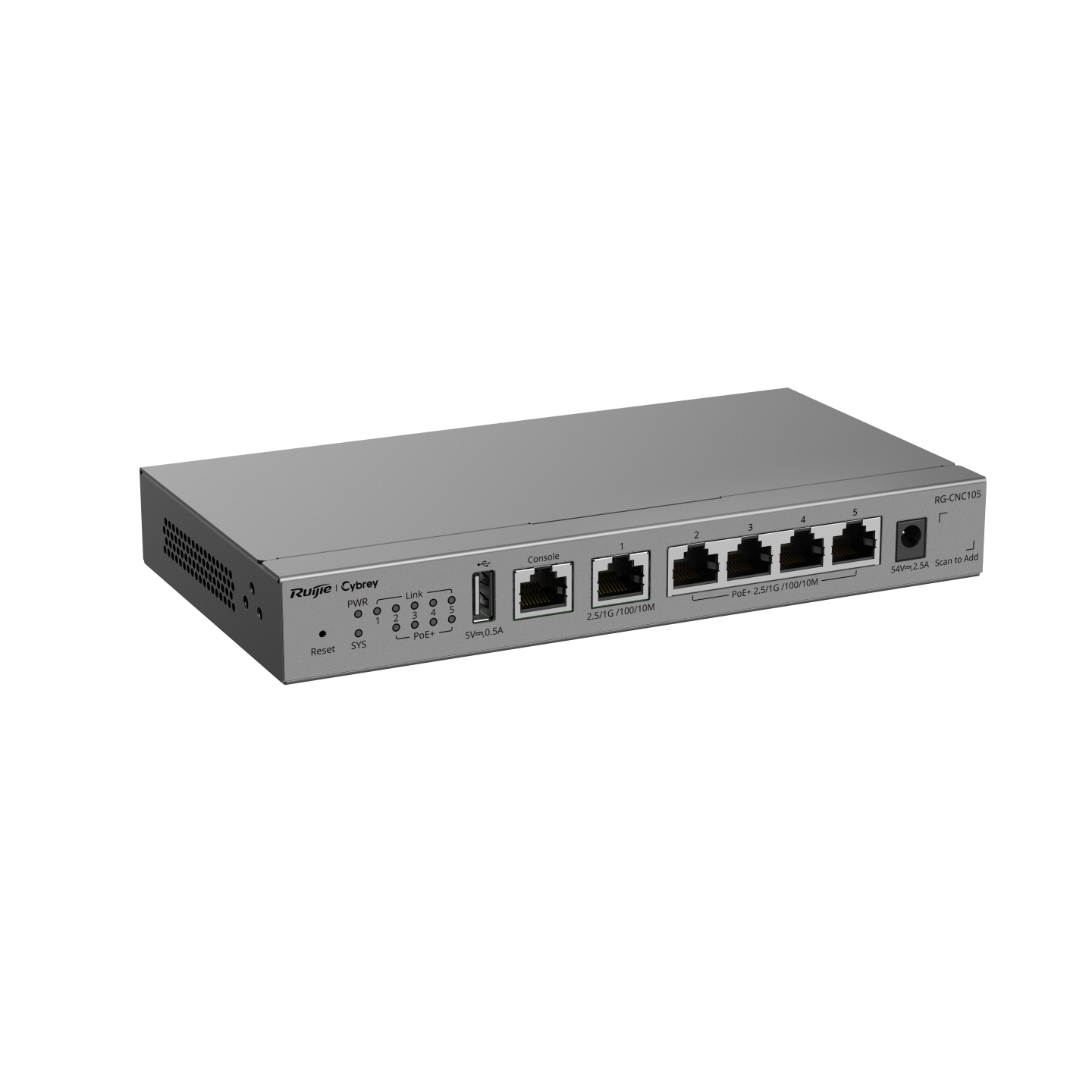

RG-CNC105 Small & Medium Enterprise Networking - 4

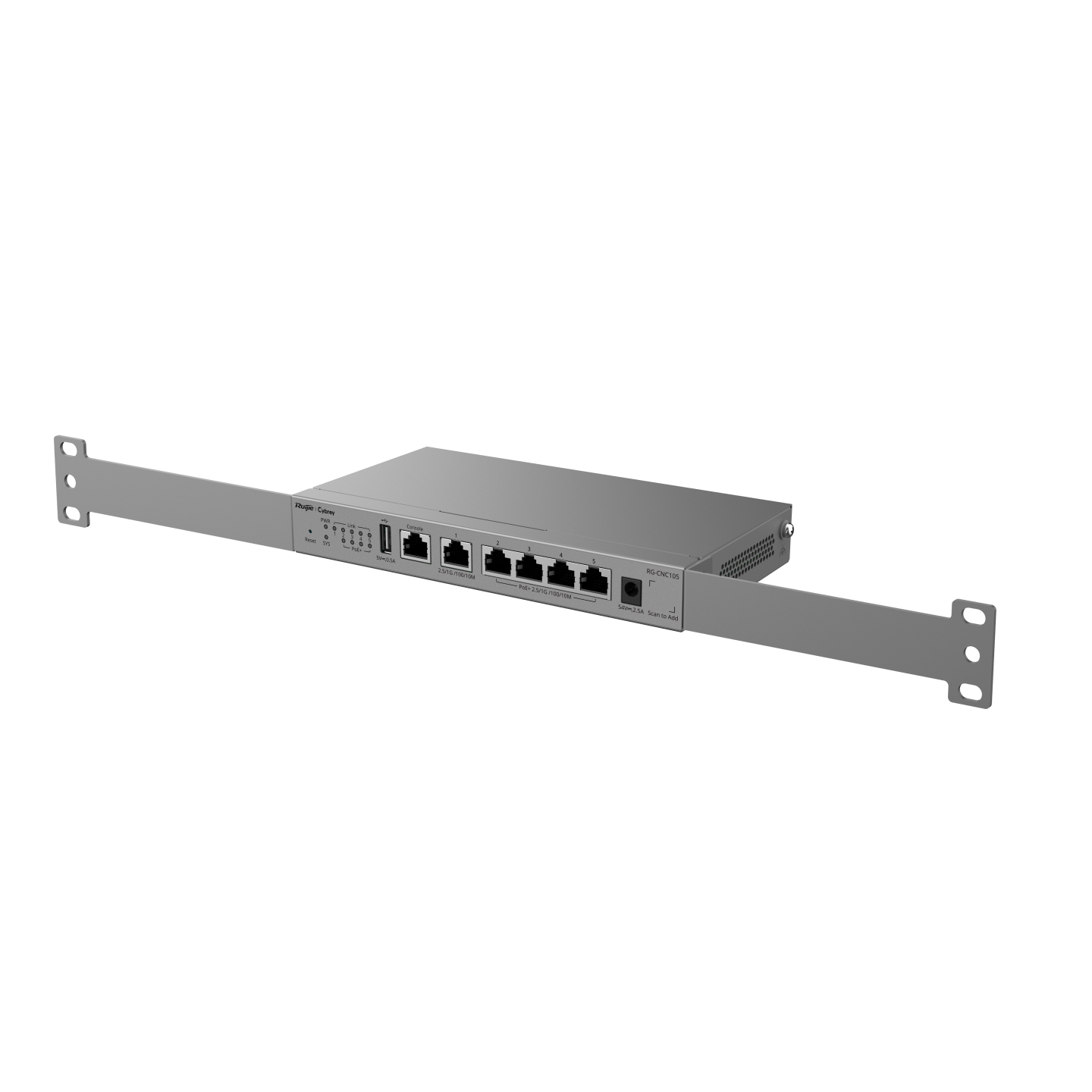

RG-CNC105 Small & Medium Enterprise Networking - 5

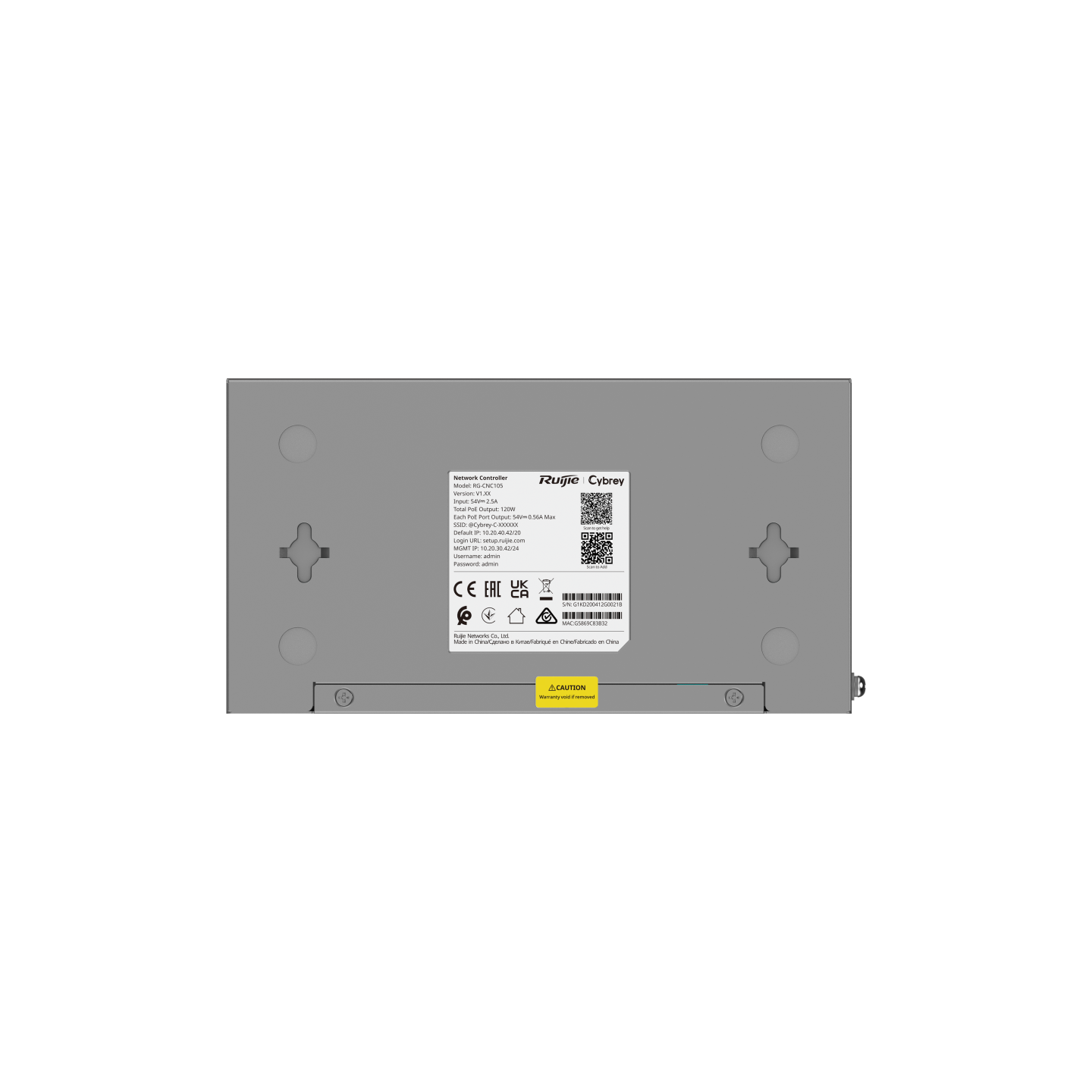

RG-CNC105 Small & Medium Enterprise Networking - 6

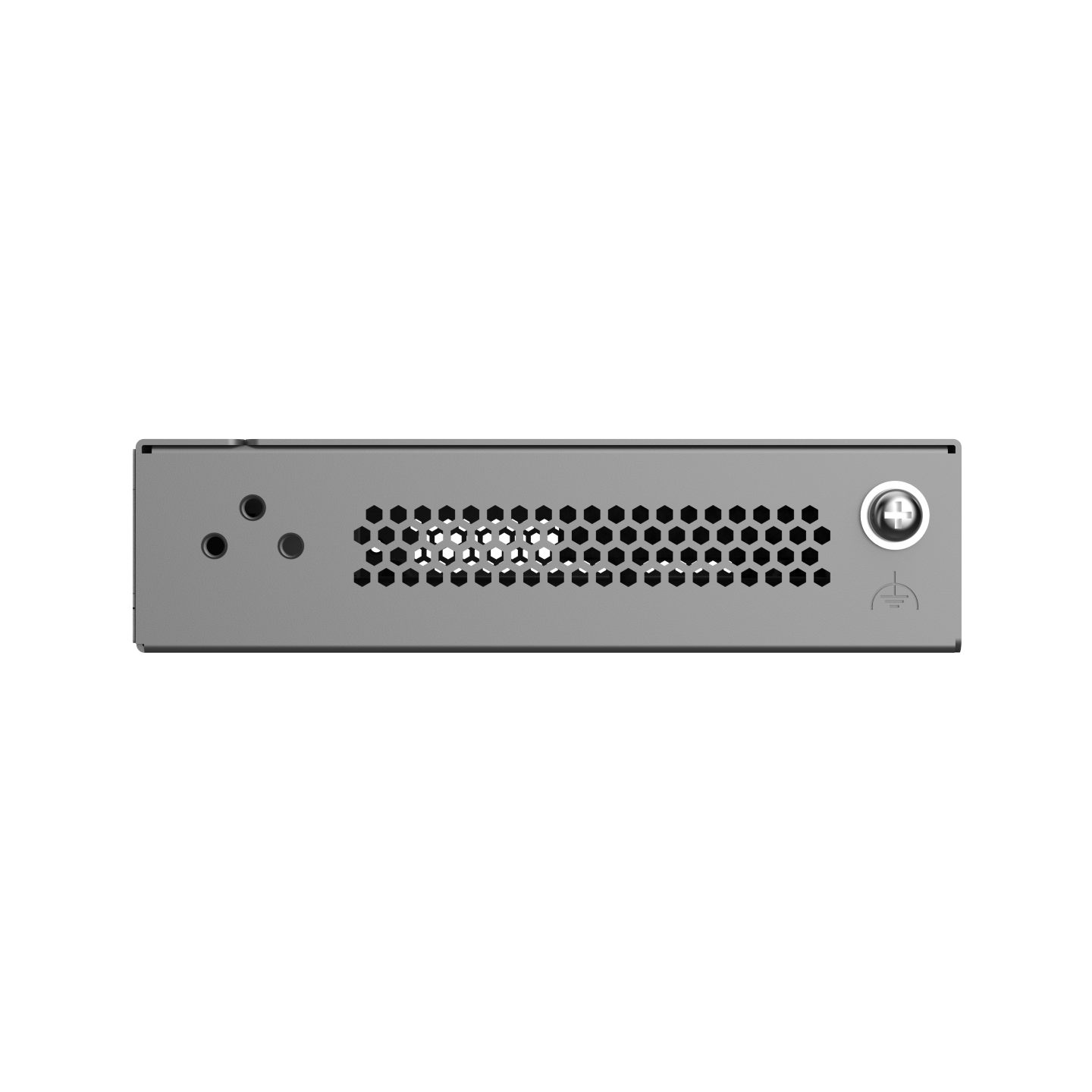

RG-CNC105 Small & Medium Enterprise Networking - 7

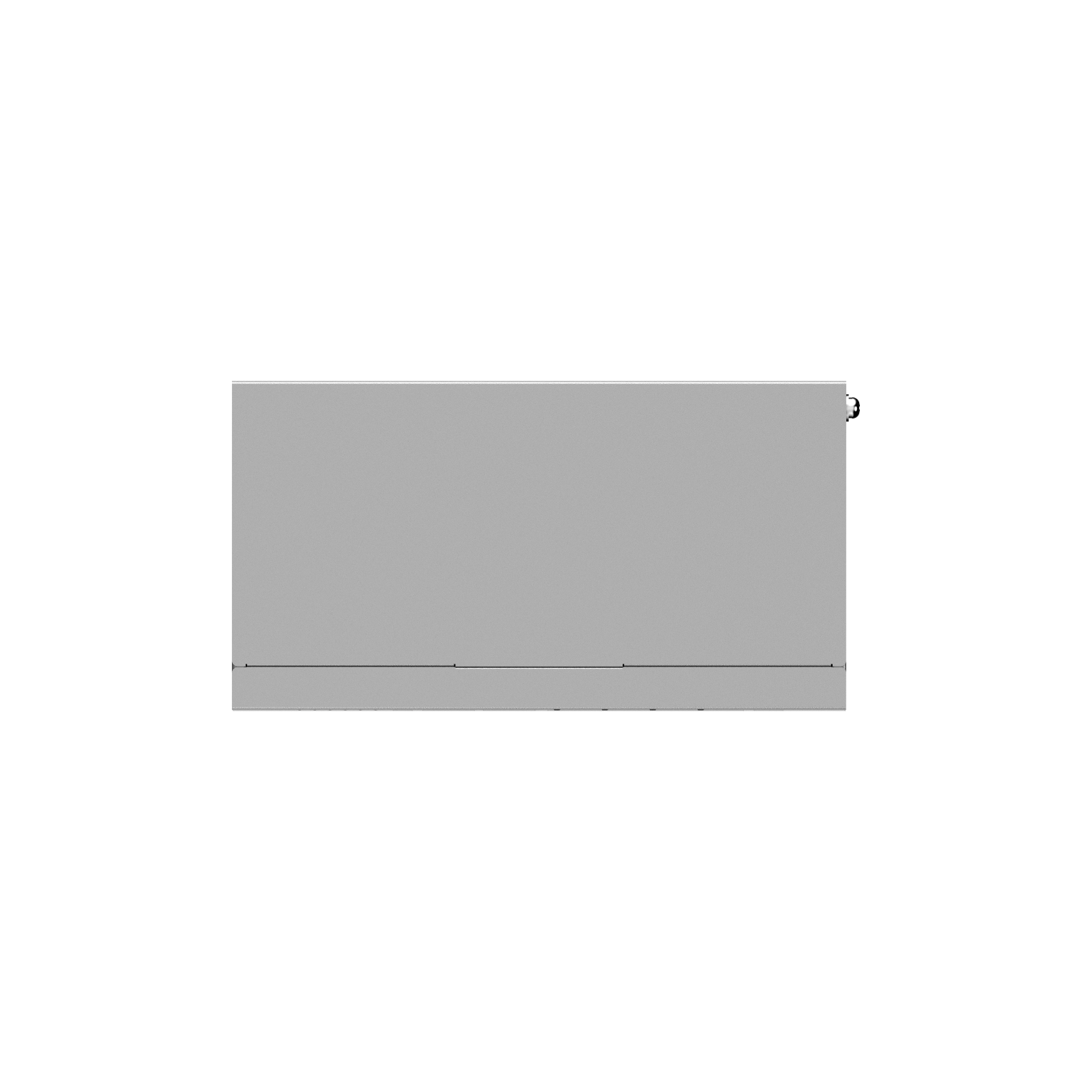

RG-CNC105 Small & Medium Enterprise Networking - 8

RG-CNC105 Small & Medium Enterprise Networking - 9


RG-CNC105, Routing · Wireless Control · PoE Switching · Authentication, 4-in-1 Edge Controller

Offices, hotels, warehouses, hospitals, and schools.

Models

RG-CNC105

5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output.

RG-CNC312

8 x 10/100/1000BASE-T ports, 2 x 1GE SFP/RJ45 combo ports, 2 x 10GE SFP+ ports

RG-CAP62-I

Wi-Fi 6, AX3000

RG-CAP72-I

Wi-Fi 7, BE3600

RG-CAP72Pro-IE

Wi-Fi 7, BE6500

RG-CAP73-I

Wi-Fi 7, BE9300

RG-CAP62-O

Wi-Fi 6, AX3000

RG-CAP72-O

Wi-Fi 7, BE3600

RG-CAP73-O

Wi-Fi 7, BE9300

RG-CAP62-WP

Wi-Fi 6, AX3000

RG-CAP72-WP

Wi-Fi 7, BE3600

RG-ANT30-D2

2 x RP-SMA female antenna connectors

RG-ANT90-T2

2 x RP-SMA female antenna connectors

RG-ANT90-T6

6 x RP-SMA female antenna connectors

Series

Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs

Datasheet Sales Enquiry

Highlight Features

4-in-1 edge controller integrating a router, a wireless controller, a 2.5G PoE switch, and an authentication server.
Four 2.5G PoE ports with up to 120 W output for direct AP powering.
Multi-vendor management for rapid fault localization in complex networks.
Built-in portal and 802.1X authentication using RADIUS, with support for TACACS+ and third-party integration.
AP load balancing to avoid overload and ensure steady performance in high-density areas.
Continued local authentication and roaming during WAN outages.

Key Specifications
Features
Specifications
Resources
Videos

Sales Enquiry

Key Specifications

Features

RG-CNC105 4-in-1 Edge Controller

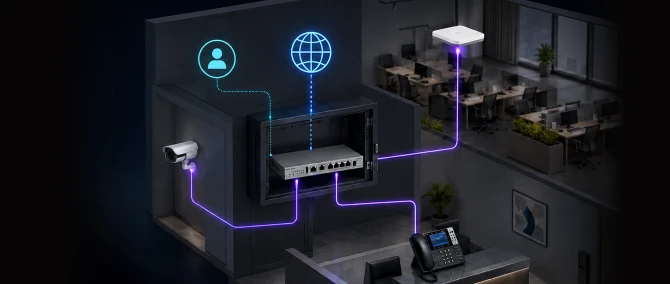

Branch Office Networking — Routing · Wireless Control · PoE Switching · Authentication, 4-in-1

1

4-in-1 Edge Controller

4-in-1 Edge Controller

1

4-in-1 Edge Controller
Integrates an edge router, wireless controller, 2.5G PoE switch, and authentication server.
2

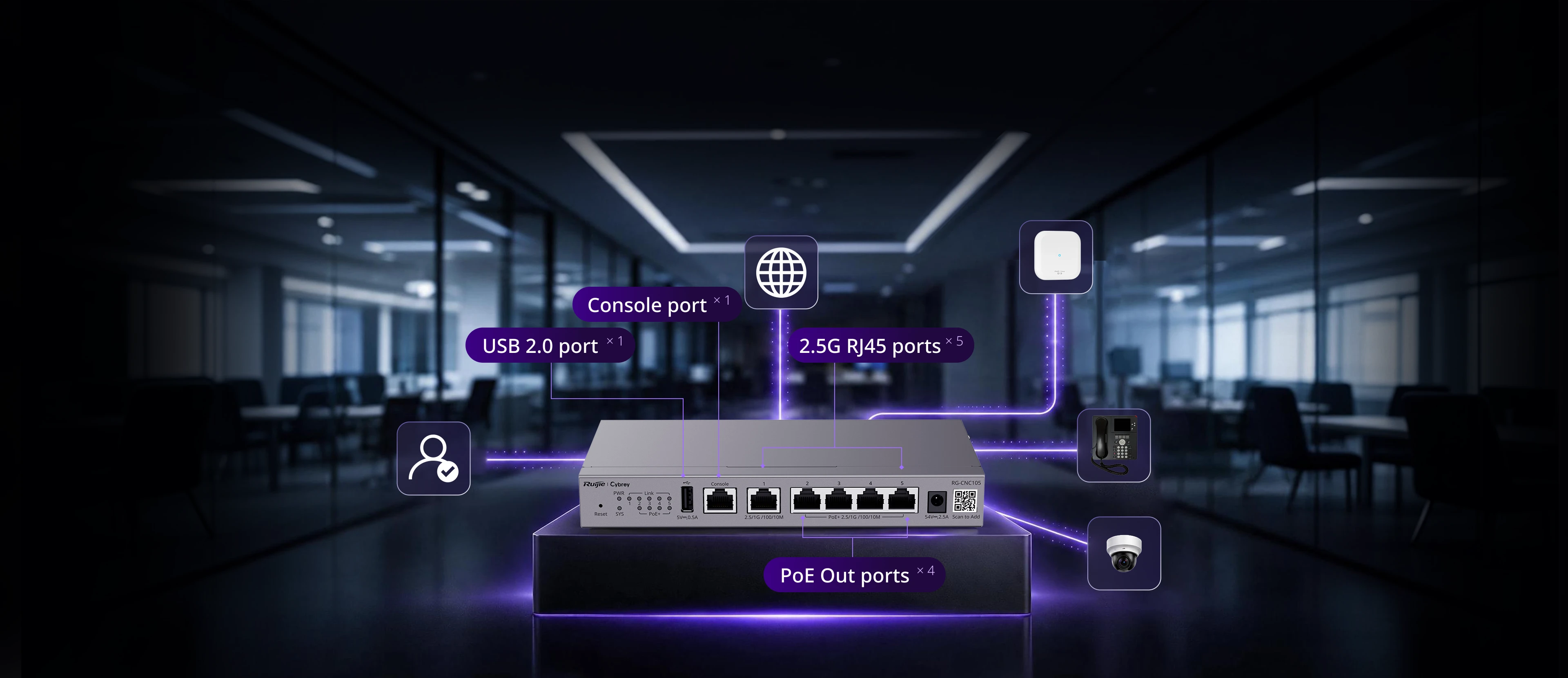

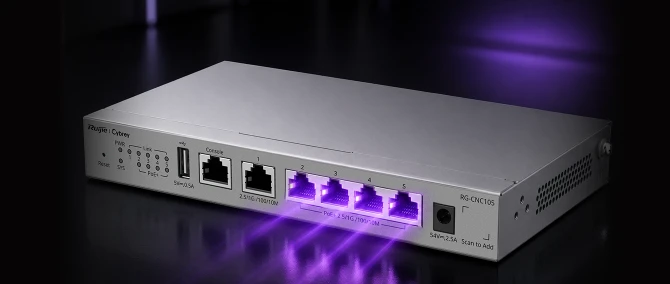

2.5G PoE Ports

2.5G PoE Ports

2

2.5G PoE Ports
Features four 2.5G PoE Out ports with up to 120 W output, powering APs directly without extra switches or adapters.
3

Multi‑Vendor Management

Multi‑Vendor Management

3

Multi‑Vendor Management
Collects and manages multi‑vendor device information, and serves as the central hub for rapid fault localization in complex networks.
4

Unified Authentication

Unified Authentication

4

Unified Authentication
Featuring a built‑in portal and 802.1X authentication server, the RG-CNC series supports RADIUS, TACACS+, and integration with Cisco ISE and Aruba ClearPass.

5

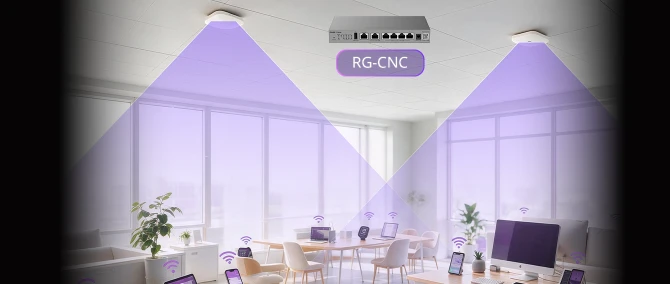

Load Balancing

Load Balancing

5

Load Balancing
The RG-CNC series monitors AP loads and distributes clients across neighboring APs. This helps avoid overload and enables steady performance in high-density areas.
6

Responsive Roaming Experience

Responsive Roaming Experience

6

Responsive Roaming Experience
The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.
7

WAN Outage Resilience

WAN Outage Resilience

7

WAN Outage Resilience
Supports continued local authentication and roaming when Internet connectivity fails.
8

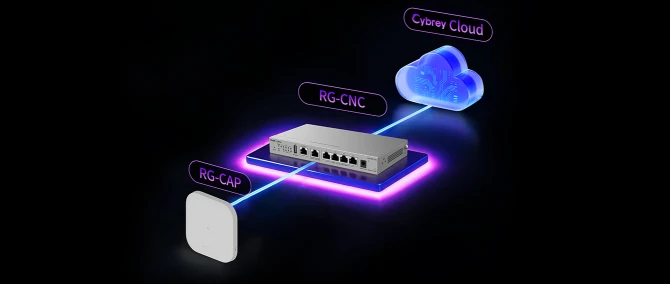

Cloud-Edge Collaborative Wireless Network

Cloud-Edge Collaborative Wireless Network

8

Cloud-Edge Collaborative Wireless Network
Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

In the Box

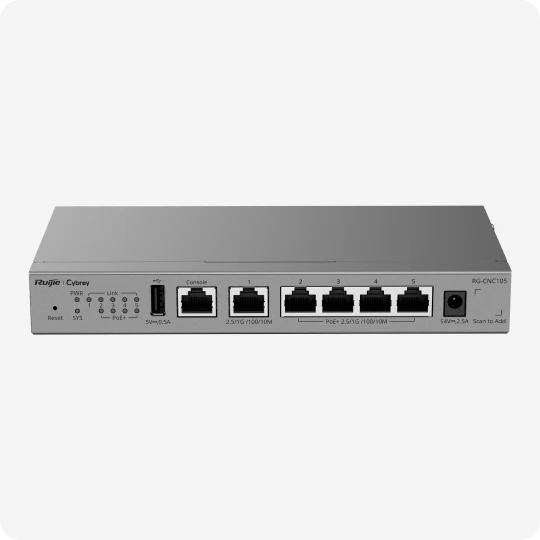

RG-CNC105
× 1

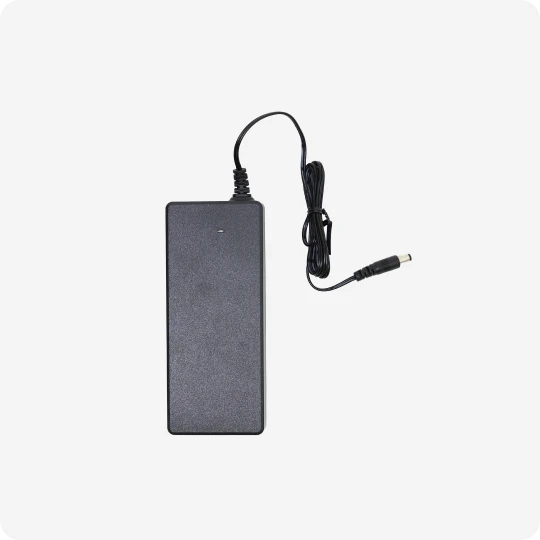

Power adapter
× 1

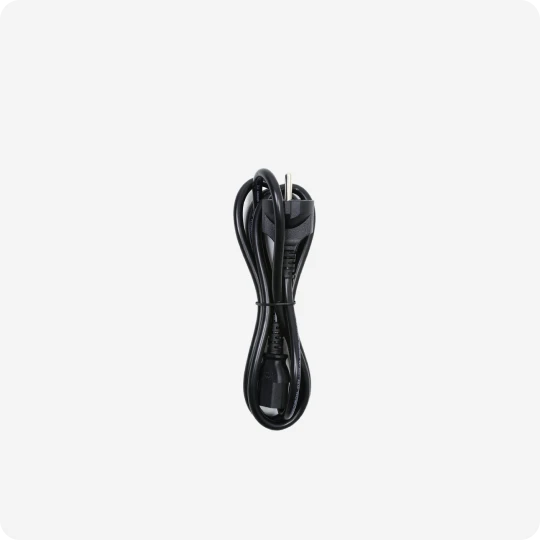

Power cord
× 1

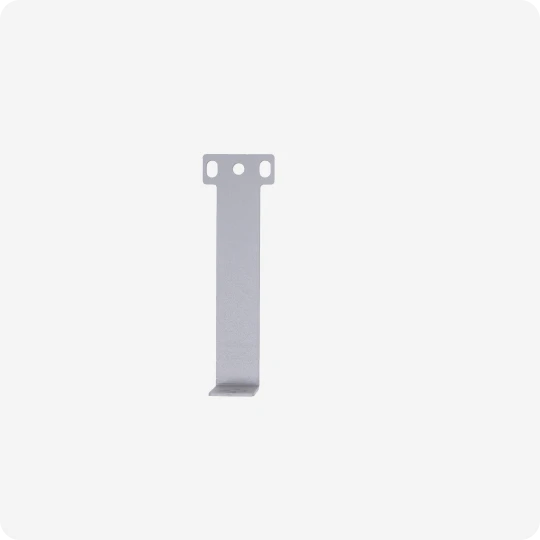

Rack-mount bracket
× 2

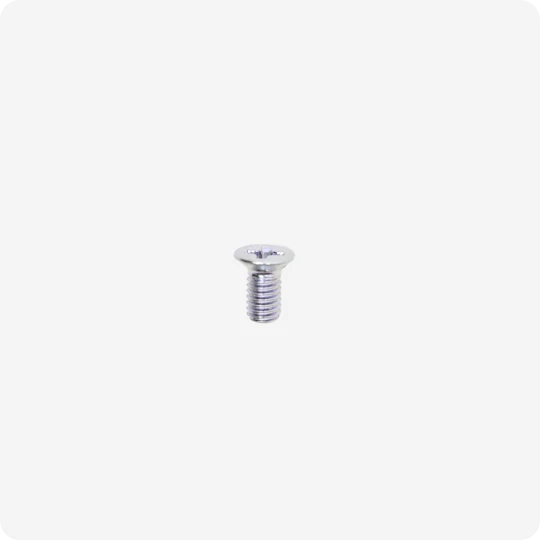

M3 x 6 mm Phillips countersunk head machine screws
× 6

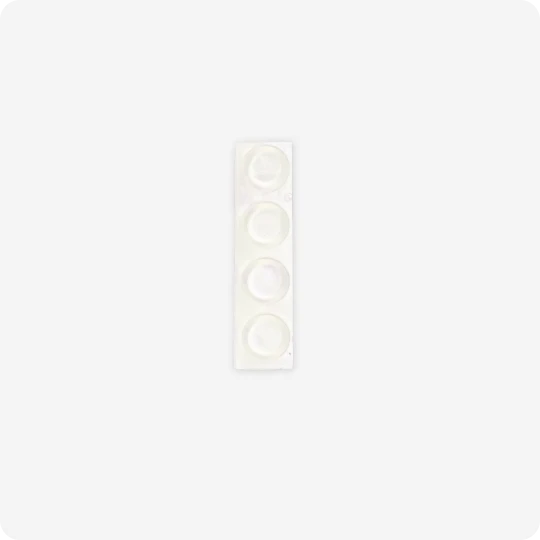

Rubber pad
× 1

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

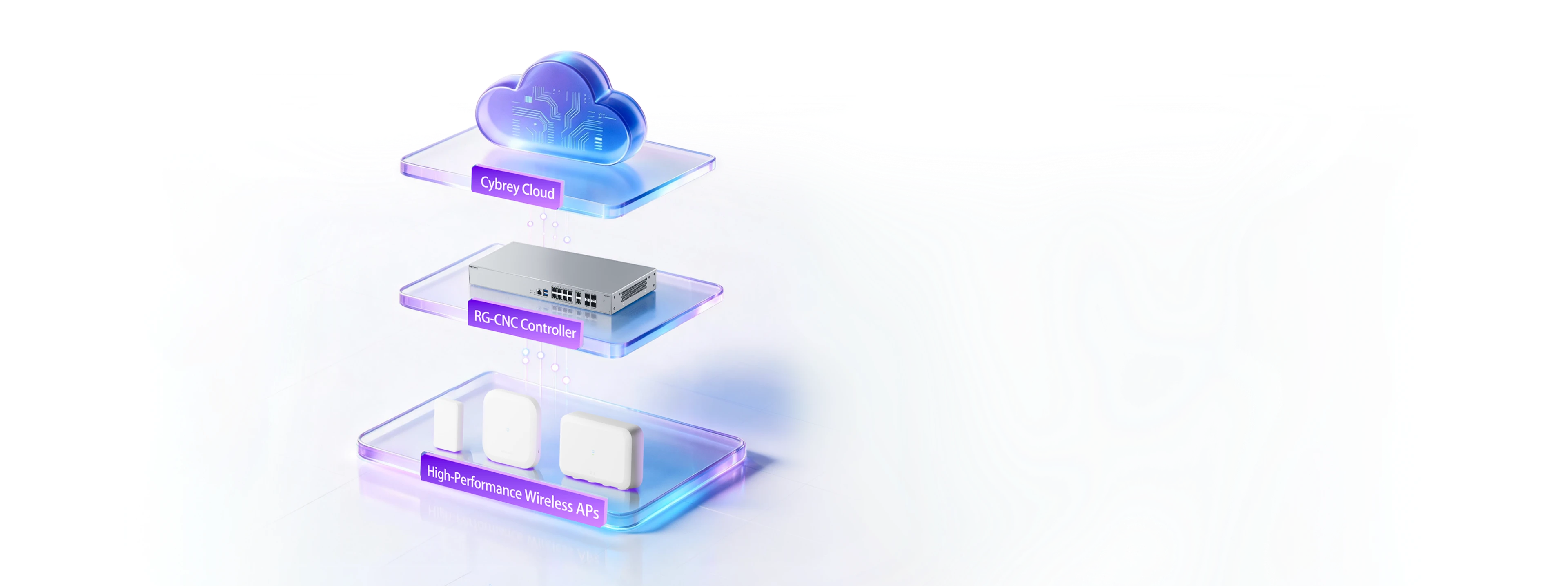

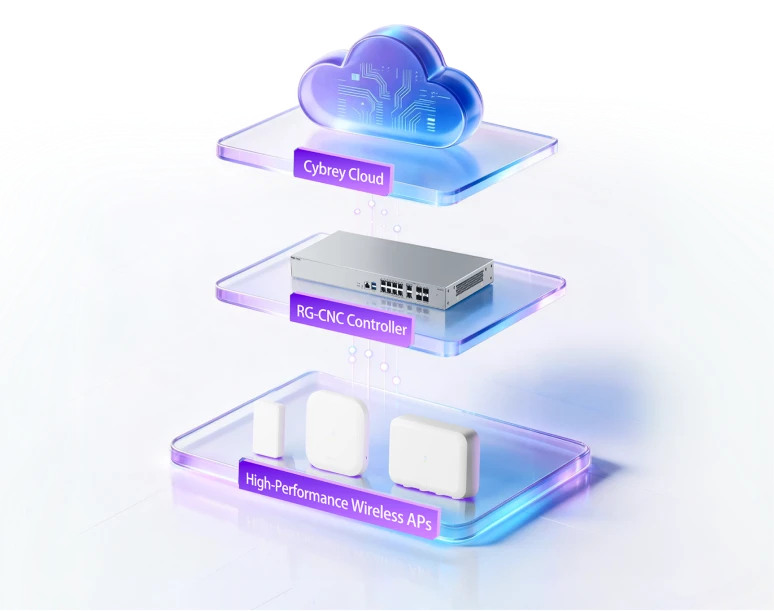

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

1
Cybrey Cloud

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis
2
RG-CNC Controller

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.
3
High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Specifications

Hardware Specifications

Port Specifications

Fixed service port

5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output.

Fixed management port

1 x RJ45 console port
1 x USB 2.0 port

LED

1 x system LED
5 x port LEDs
4 x PoE LEDs
1 x power LED

Reset button

Dimensions and Weight

Unit dimensions (W x D x H)

202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in., without rack-mount brackets)

Packaging dimensions (W x D x H)

214 mm x 197 mm x 67 mm (8.43 in. x 7.76 in. x 2.64 in.)

Rack height

1 RU

Unit weight

0.63 kg (1.39 lbs)

Packaging weight

1.49 kg (3.28 lbs)

Color

Gray

System Specifications

Flash memory

512 MB

RAM

1 GB DDR4

Power Supply and Consumption

Power input

DC adapter input:
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz or 60 Hz
● Rated input current: 2.0 A
DC adapter output:
● Rated output voltage: 54 V DC
● Maximum output current: 2.5 A

Power output

Supported
● The Ethernet port provides 54 V/30 W power output.
● The USB port provides 5 V/0.5 A power output.

DC power supply

DC power adapter

Maximum power consumption

132 W

Number of PoE Out ports

PoE budget

120 W

Environment and Reliability

Altitude

Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)
Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)

Mounting options

Desktop placement, rack-mount, and wall-mount

MTBF

400,000 hours

Operating humidity

10% RH to 90% RH (non-condensing)

Operating temperature

0°C to 45°C (32°F to 113°F)
Note: At altitudes ranging from 3,000 m (9,842.52 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Storage humidity

5% RH to 95% RH (non-condensing)

Storage temperature

–40°C to +70°C (–40°F to +158°F)
Note: At altitudes ranging from 3,000 m (9,842.52 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Certification and Regulatory Compliance

Certification

CE, CB

EMC compliance

EN 55032
EN 55035
EN 61000-3-3
EN 300386
EN IEC 61000-3-2

Safety compliance

IEC 62368-1

Software Specifications

Bandwidth Features

Bandwidth control

AP-based bandwidth control
Client-based bandwidth control
Intelligent dynamic bandwidth control based on channel utilization
Intelligent dynamic bandwidth control based on critical services
SSID-based bandwidth control

Client Management

Client limit

Radio-based client limit
SSID-based client limit

Dynamic blocklist/allowlist

Dynamic blocklist

Smart steering

AP load balancing
Configuring load balancing based on client count
Configuring load balancing based on client traffic

Static blocklist/allowlist

Static allowlist
Static blocklist

Radio Management

SSID management basics

SSID hiding

Roaming Features

Layer 2 roaming

Layer 2 roaming
Inter-AC Layer 2 roaming
Intra-AC Layer 2 roaming

Layer 3 roaming

Layer 3 roaming
Inter-AC Layer 3 roaming
Intra-AC Layer 3 roaming

Security Features

Client security

Hotspot2.0 authentication
WPA-802.1X authentication
WPA-PSK authentication
WPA-WPA2 authentication
WPA2-802.1X authentication
WPA2-PSK authentication
WPA2-WPA3 authentication
WPA3-Enterprise
WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256)
WPA3-Enterprise with AES-CCMP-128
WPA3-OWE authentication
WPA3-Personal
WEP authentication

802.1X

Dynamic ACL assignment

Client identification

Client identification

CPP

MAB

NFPP

NFPP

RADIUS

RADIUS

Web authentication

Web authentication
Captive portal

RF security

WIDS
AC-based client isolation
AP-based client isolation

Layer 3 Features

IPv6

ICMPv6
IPv6 basic features
Neighbor discovery
Ping over IPv6

NAT

Management Features

SNMP

SNMPv1/v2c/v3
SNMP

Alerts

Alerts

Cloud-based management

Cloud-based management

SON

SSH

Syslog

Syslog

Telnet

Telnet

Web-based management

Web-based management

IP Services

DHCP

DHCPv4 client

NTP

NTP client
NTP server

Routing Features

IPv4 routing basics

Static routing

IPv6 routing basics

Static IPv6 routing

VPN Features

IPsec VPN

IPsec VPN

PPPoE client

PPPoE client

Application Protocol Features

TFTP

TFTP

Device Management

Device IP management

Obtaining an IP address through DHCP

Device IP Management

Static IPv4 address

Multicast Features

IGMP snooping

Multicast-to-unicast conversion

Centralized Management

Forwarding mode

Local forwarding
Centralized forwarding

Capacity Specifications

VPN Features

Number of IPsec tunnels

Layer 2 Features

Maximum number of created VLANs

4094

Layer 3 Features

Maximum number of ARP entries

3000

ACL and QoS

Software ACE capacity

4096

Client Management

Maximum number of managed clients per AC

Centralized Management

Number of configurable APs

Number of pre-installed AP licenses per AC

Maximum number of connected APs

Maximum number of managed online APs

Number of managed CAPWAP tunnels

IP Services

Number of DHCP address pools

2000

Security Features

Number of 802.1X authenticated clients

Number of portal authenticated clients

Cloud-based Management of Third-Party Devices

Number of third-party devices

Package Contents

Device

Main unit

Accessories

Power adapter

Power cord

Rack-mount bracket

2 x rack-mount brackets (W x D x H: 140 mm x 30 mm x 43 mm / 5.51 in. x 1.18 in. x 1.69 in.)

Rubber pad

Screw

6 x M3 x 6 mm Phillips countersunk head machine screws

Manual

User Manual

Warranty Card
