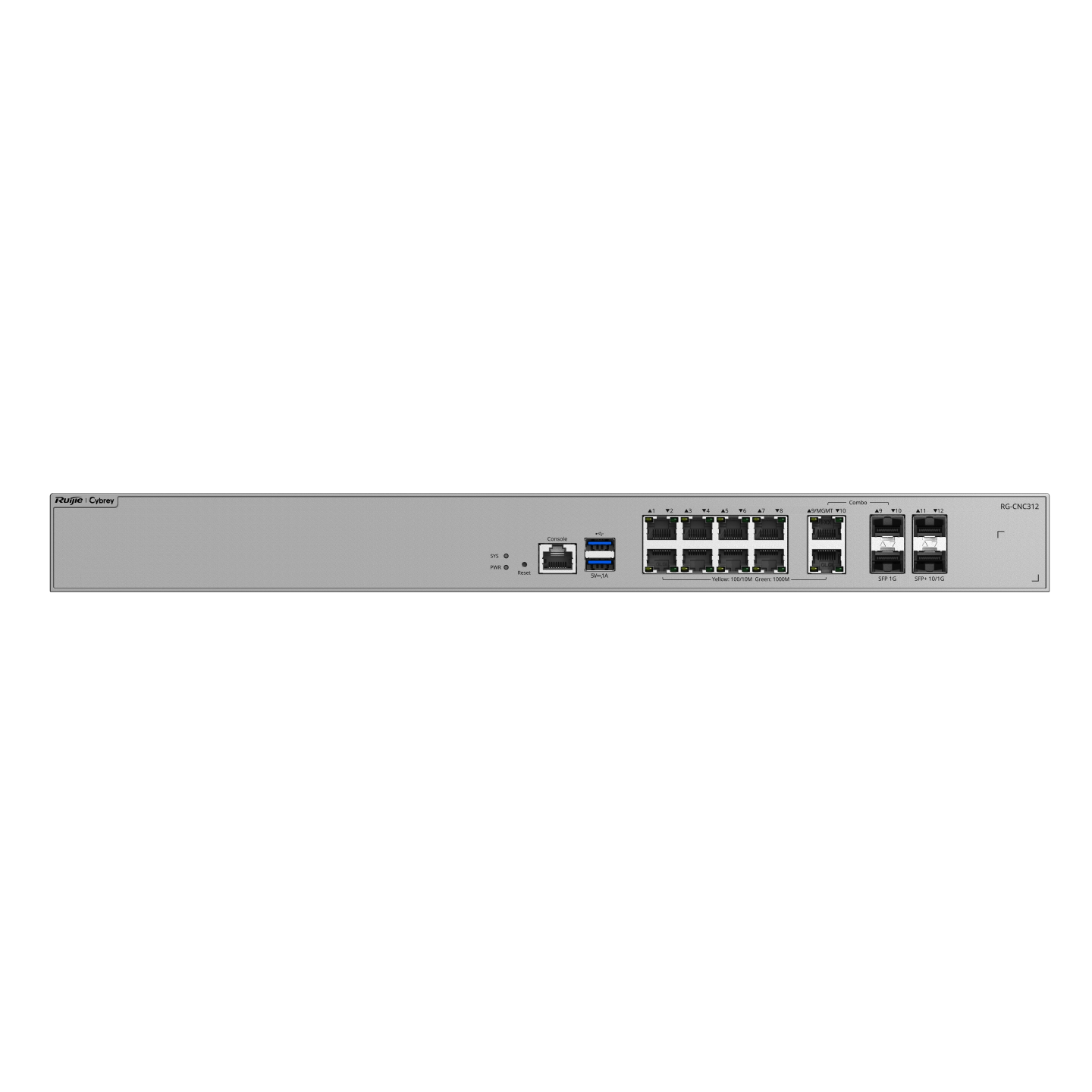

RG-CNC312 Small & Medium Enterprise Networking - 1

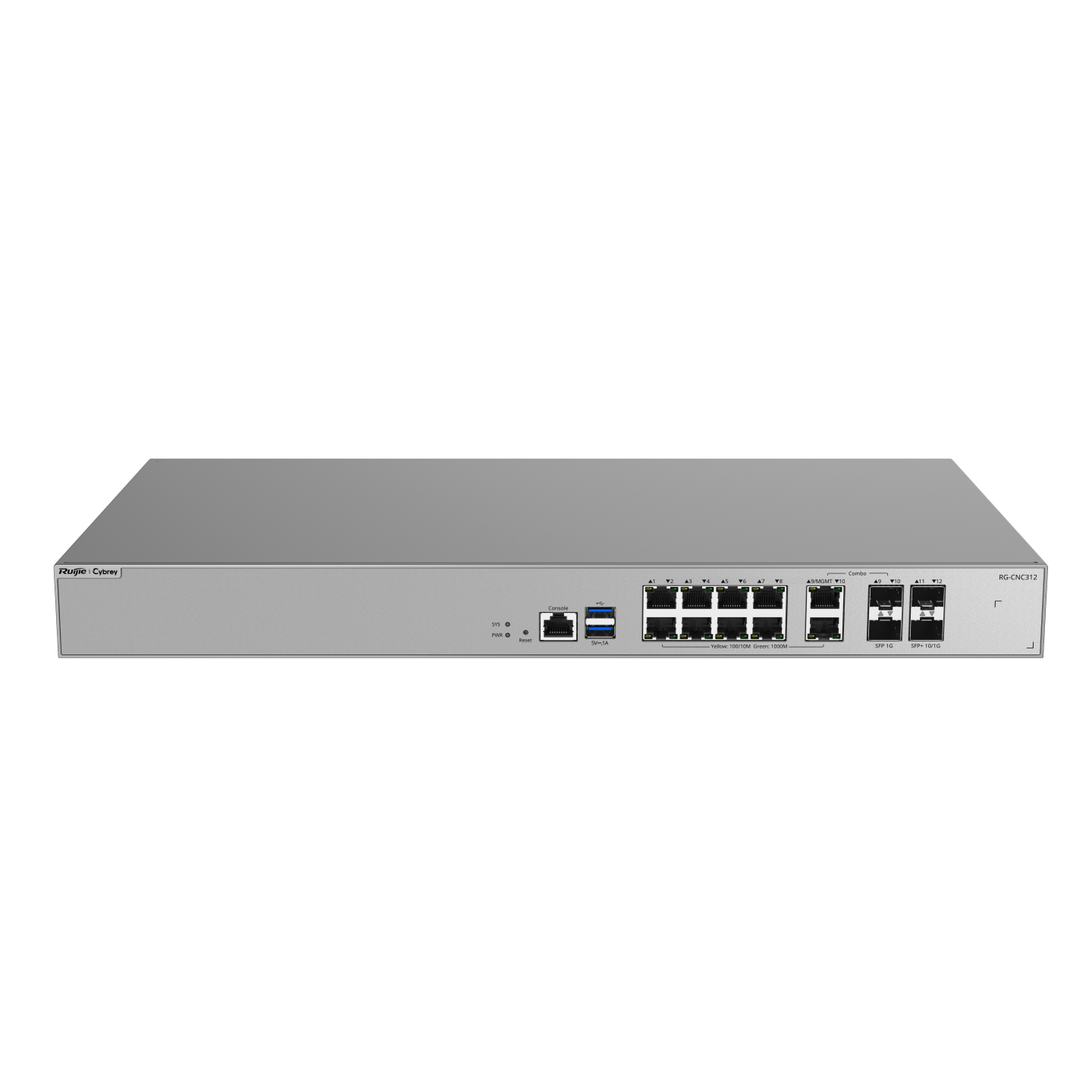

RG-CNC312 Small & Medium Enterprise Networking - 2

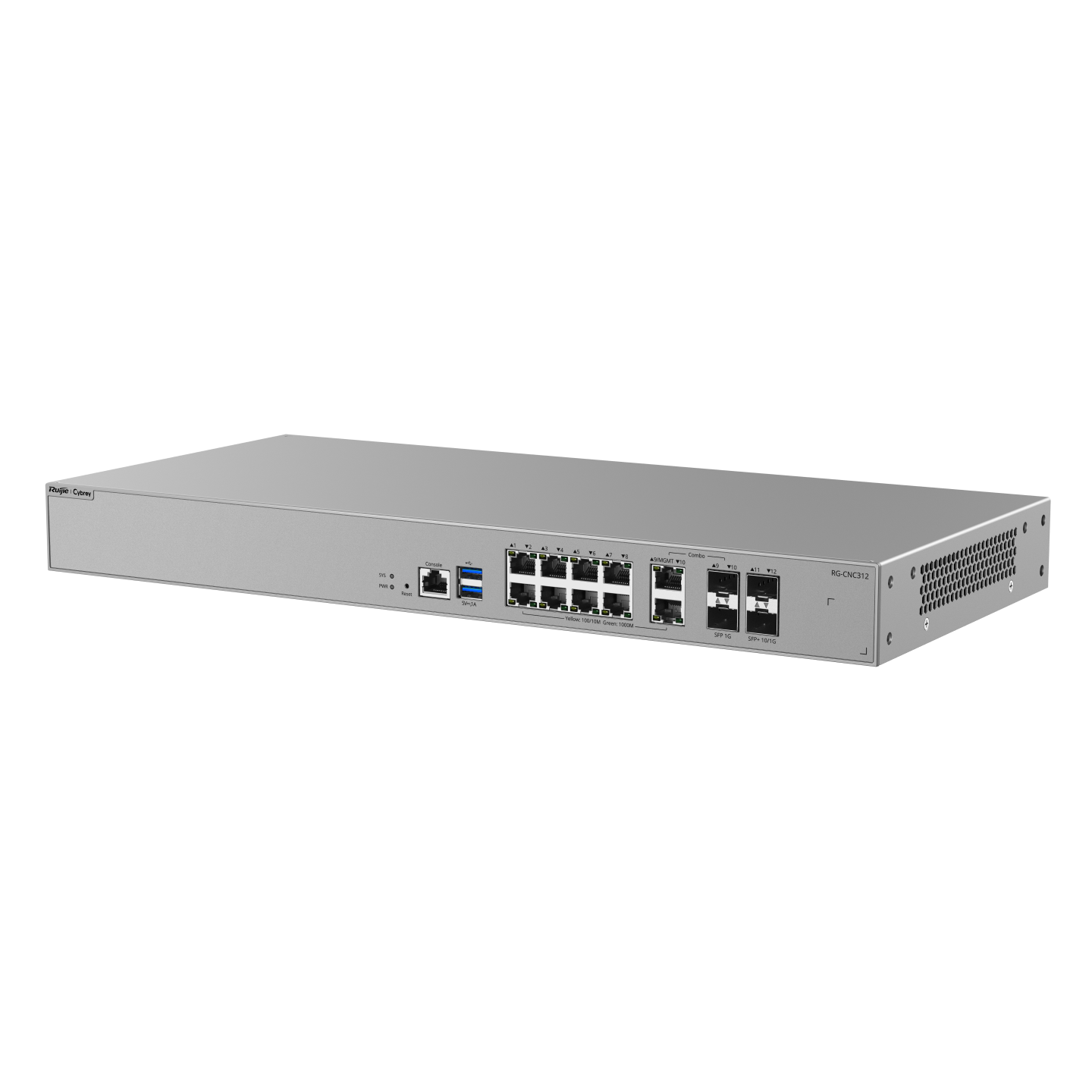

RG-CNC312 Small & Medium Enterprise Networking - 3

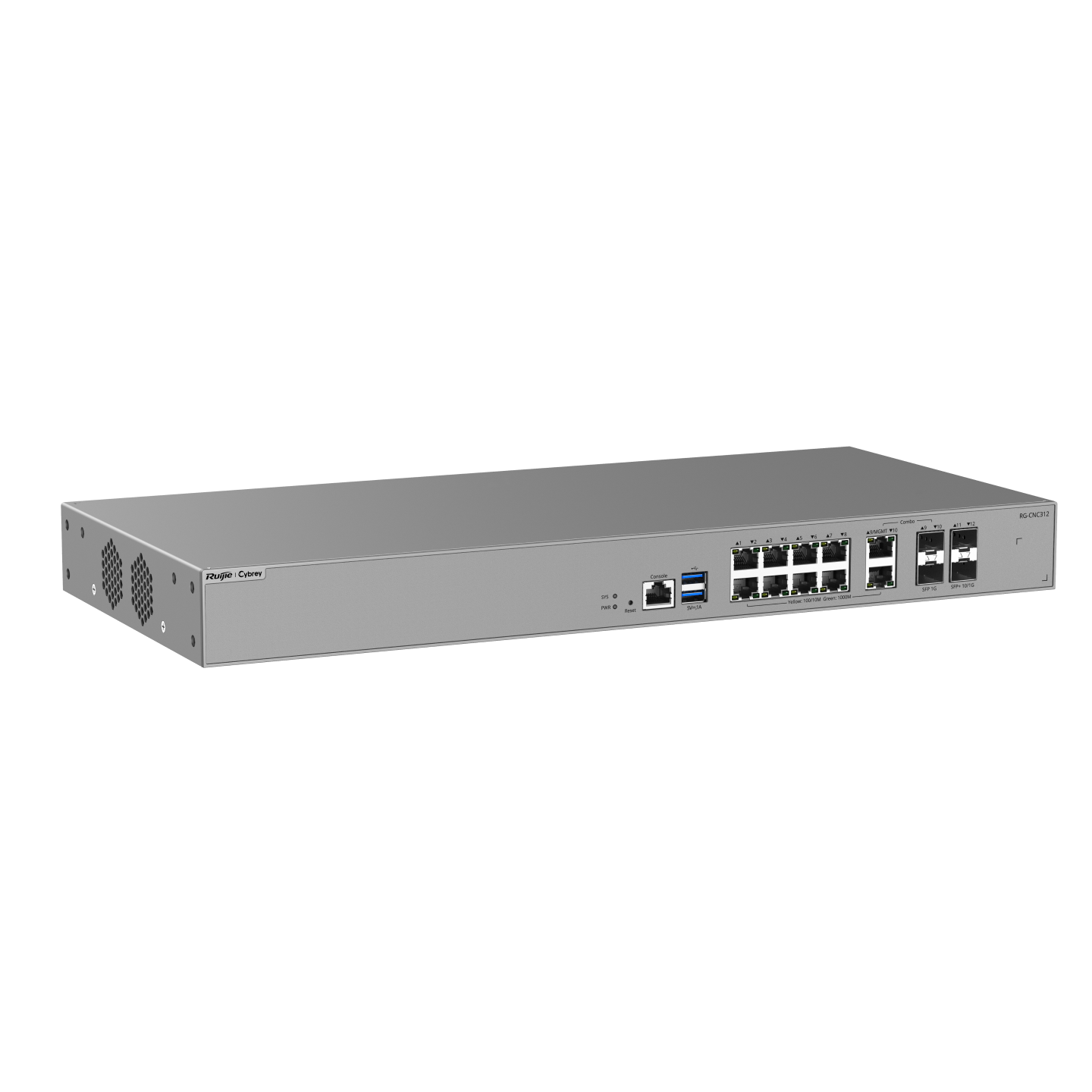

RG-CNC312 Small & Medium Enterprise Networking - 4

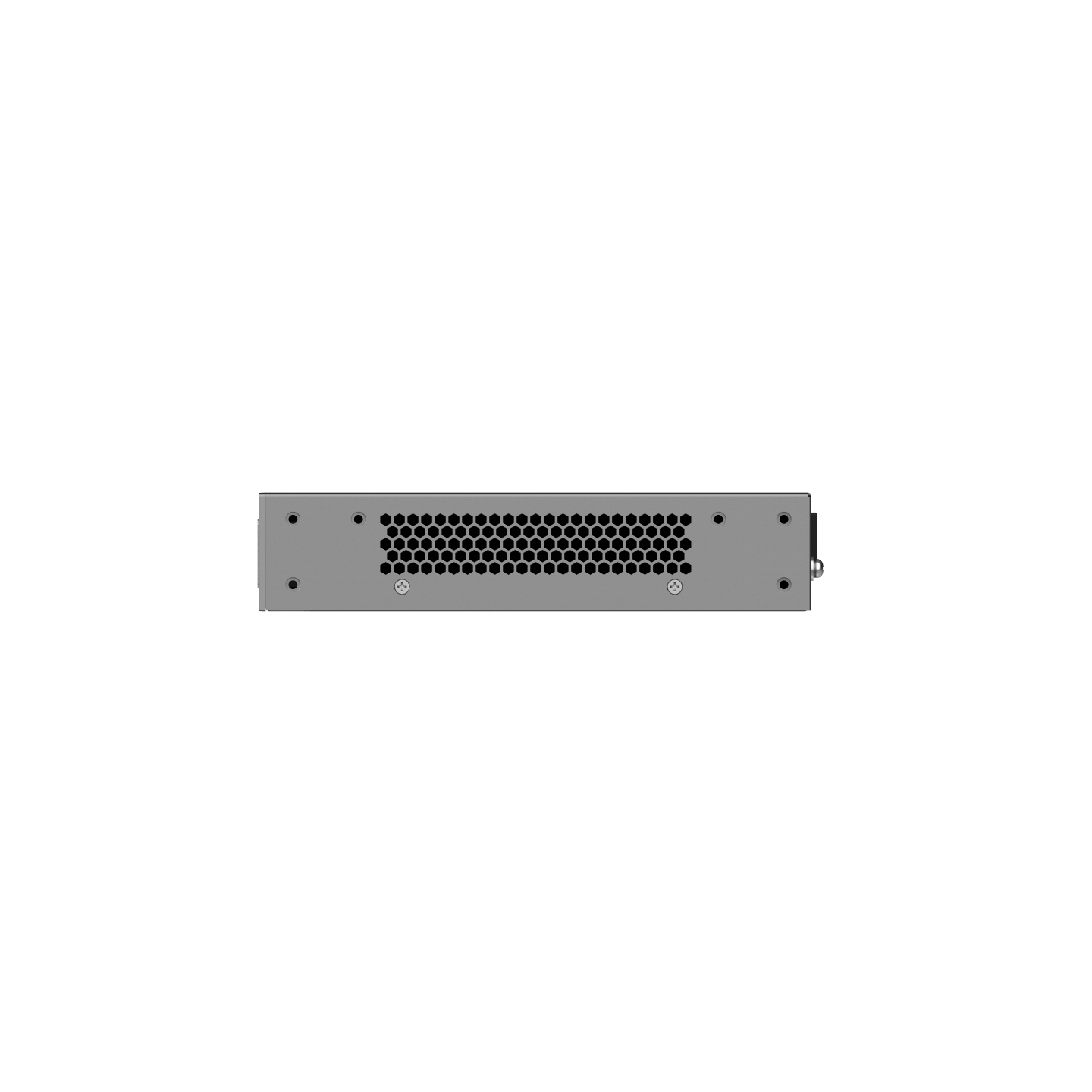

RG-CNC312 Small & Medium Enterprise Networking - 5

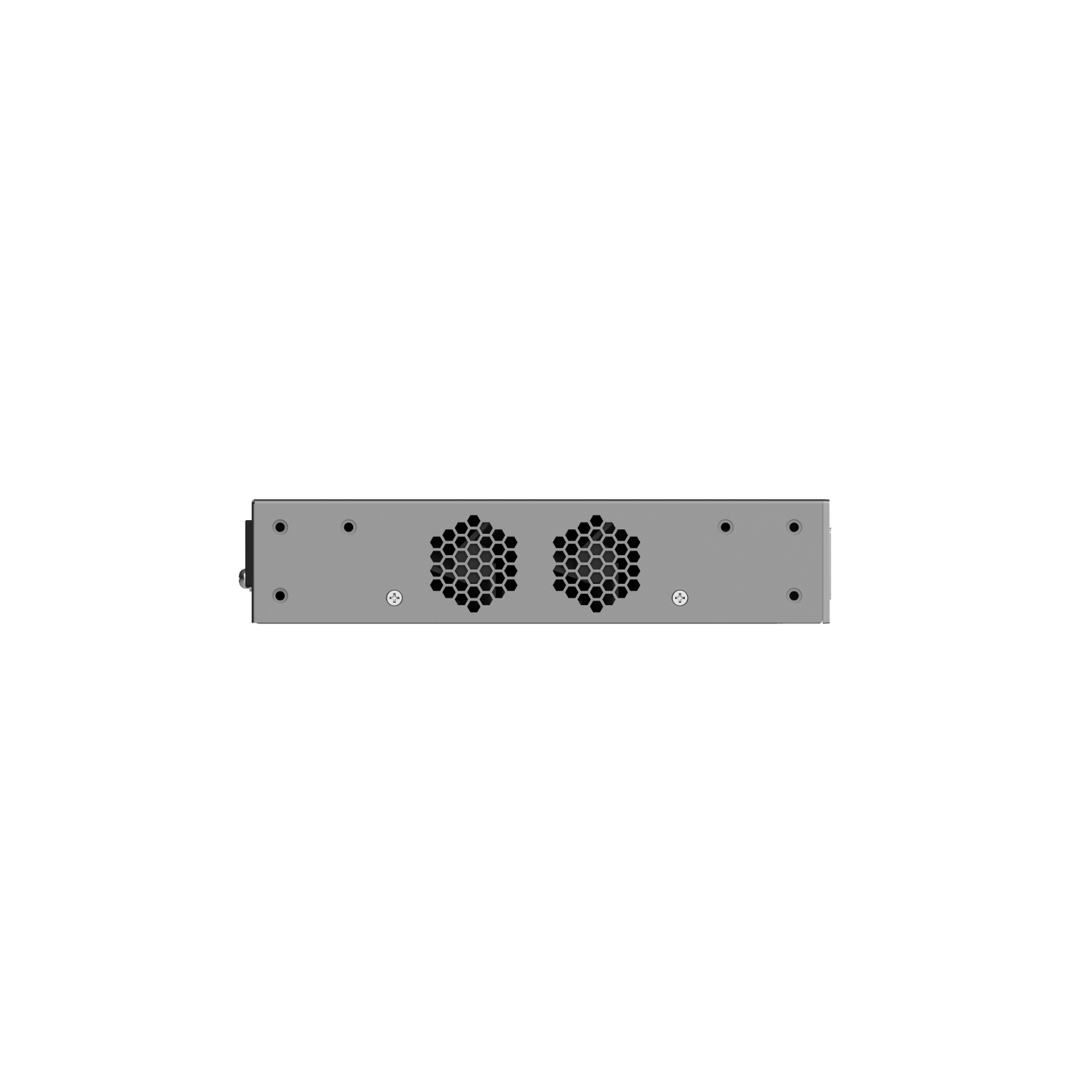

RG-CNC312 Small & Medium Enterprise Networking - 6

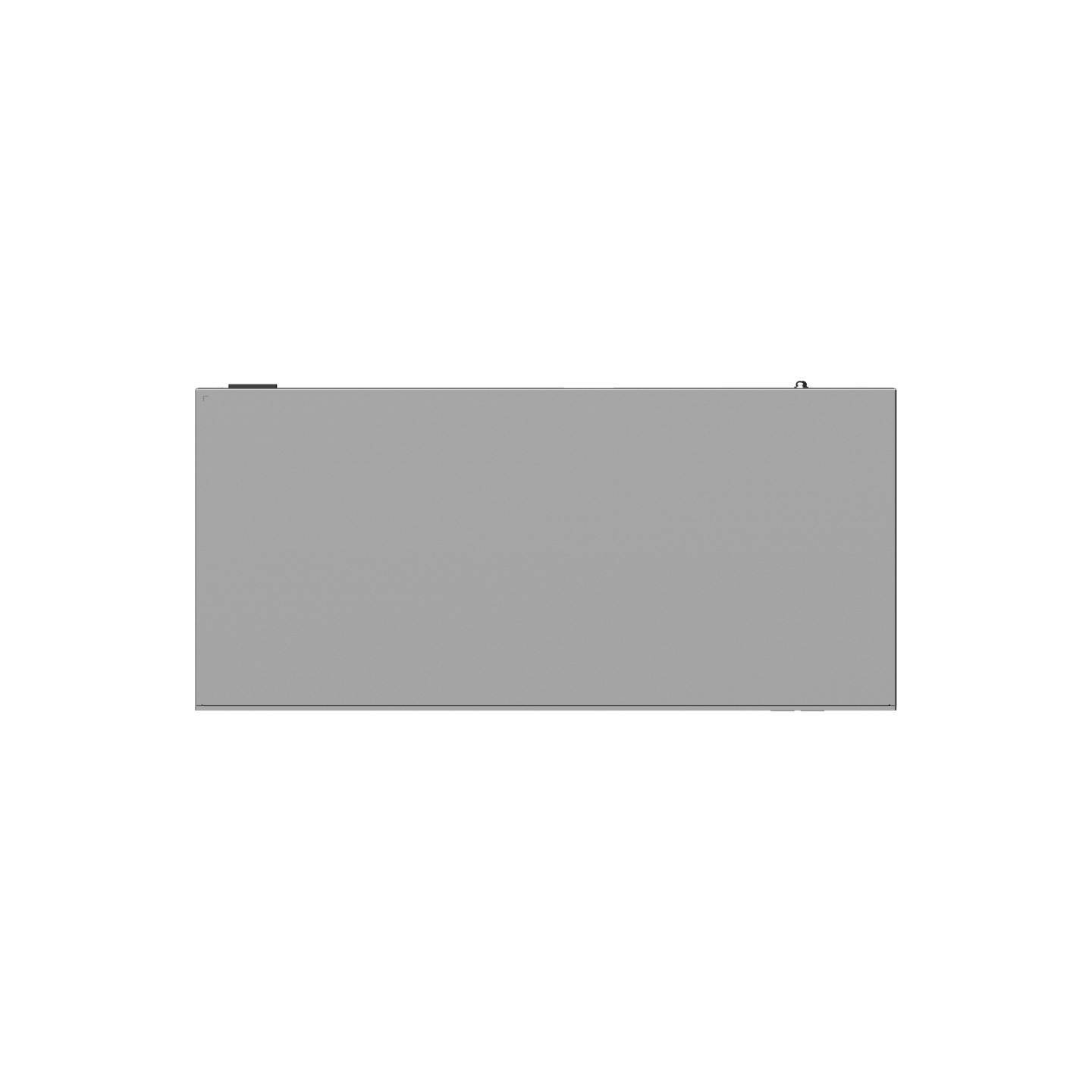

RG-CNC312 Small & Medium Enterprise Networking - 7

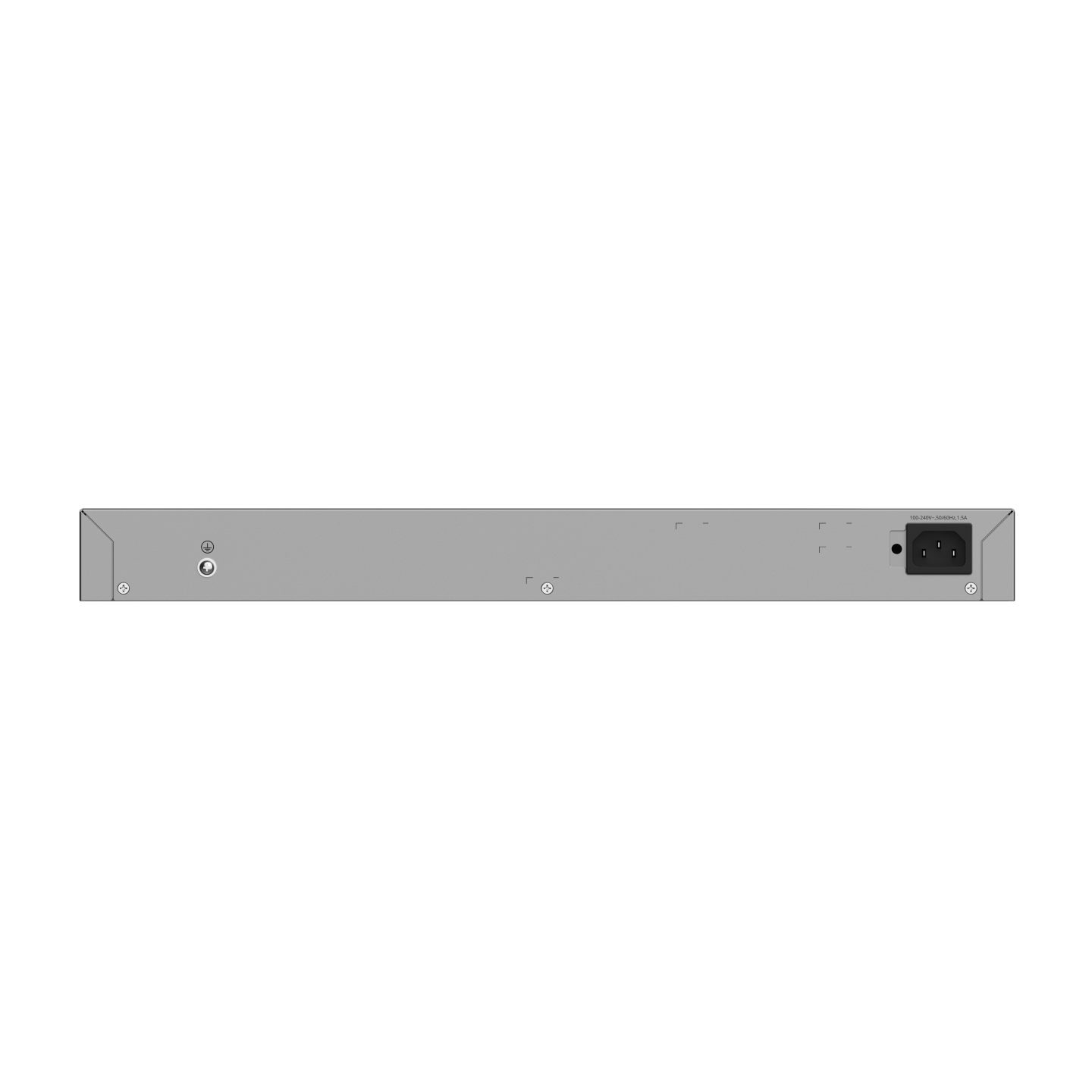

RG-CNC312 Small & Medium Enterprise Networking - 8
RG-CNC312 Small & Medium Enterprise Networking - 1
RG-CNC312 Small & Medium Enterprise Networking - 2
RG-CNC312 Small & Medium Enterprise Networking - 3
RG-CNC312 Small & Medium Enterprise Networking - 4
RG-CNC312 Small & Medium Enterprise Networking - 5
RG-CNC312 Small & Medium Enterprise Networking - 6
RG-CNC312 Small & Medium Enterprise Networking - 7
RG-CNC312 Small & Medium Enterprise Networking - 8

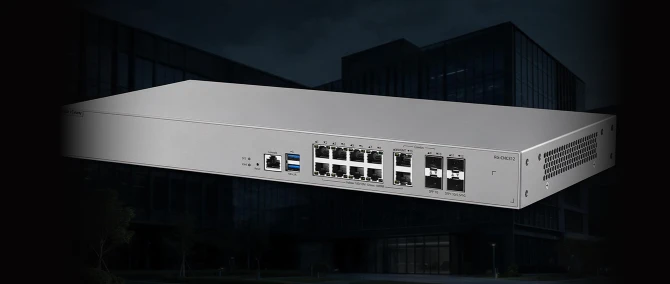

RG-CNC312, High‑Performance 10 Gbps Access Controller for Campus and Multi‑Site Networks

Offices, hotels, warehouses, hospitals, and schools.

Models
RG-CNC105

5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output.

 RG-CNC312

8 x 10/100/1000BASE-T ports, 2 x 1GE SFP/RJ45 combo ports, 2 x 10GE SFP+ ports
Series
Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs
Datasheet Sales Enquiry
Highlight Features
  • Management of up to 512 APs and 3,500 clients for large-scale deployments.
  • 10 Gbps forwarding throughput to mitigate congestion for bandwidth-hungry applications.
  • Multi-vendor management for rapid fault localization in complex networks.
  • Built-in portal and 802.1X authentication using RADIUS, with support for TACACS+ and third-party integration.
  • AP load balancing to avoid overload and ensure steady performance in high-density areas.
  • Continued local authentication and roaming during WAN outages.
Sales Enquiry

Key Specifications

View More

Features

RG-CNC312 High‑Performance 20 Gbps Access Controller for Campus and Multi‑Site Networks

  • 1

    High‑Capacity for Large‑Scale Deployments

    High‑Capacity for Large‑Scale Deployments

    1

    High‑Capacity for Large‑Scale Deployments

    Manages up to 512 APs and up to 3,500 clients. Centralized control for complex networks.
  • 2

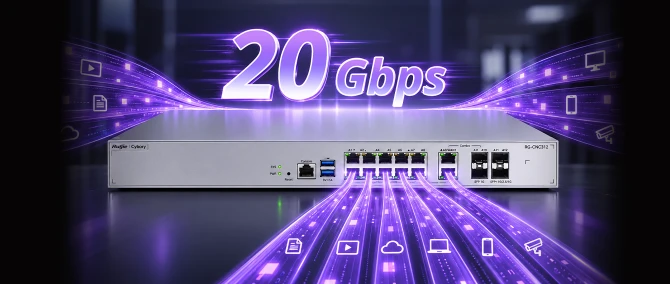

    20 Gbps Forwarding Performance

    20 Gbps Forwarding Performance

    2

    20 Gbps Forwarding Performance

    20 Gbps throughput helps mitigate congestion for bandwidth-hungry applications.
  • 3

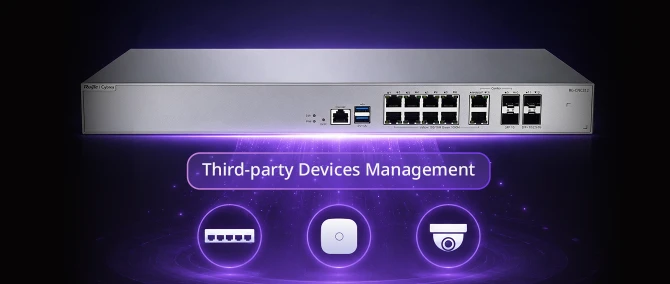

    Multi‑Vendor Management

    Multi‑Vendor Management

    3

    Multi‑Vendor Management

    Collects and manages multi‑vendor device info. Central hub for rapid fault localization in complex networks.
  • 4

    Unified Authentication

    Unified Authentication

    4

    Unified Authentication

    Featuring a built‑in portal and 802.1X authentication server, the RG-CNC series supports RADIUS, TACACS+, and integration with Cisco ISE and Aruba ClearPass.
  • 5

    Load Balancing

    Load Balancing

    5

    Load Balancing

    The RG-CNC series monitors AP loads and distributes clients across neighboring APs. This helps avoid overload and enables steady performance in high-density areas.
  • 6

    Responsive Roaming Experience

    Responsive Roaming Experience

    6

    Responsive Roaming Experience

    The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.
  • 7

    WAN Outage Resilience

    WAN Outage Resilience

    7

    WAN Outage Resilience

    Supports continued local authentication and roaming when Internet connectivity fails.
  • 8

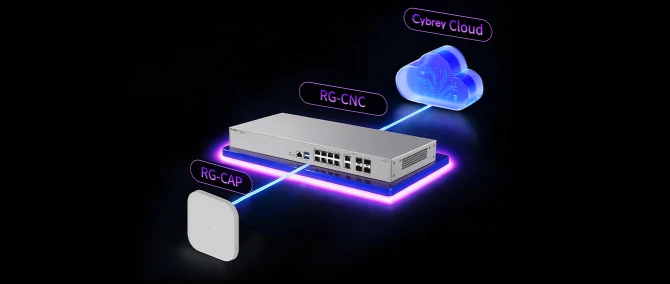

    Cloud-Edge Collaborative Wireless Network

    Cloud-Edge Collaborative Wireless Network

    8

    Cloud-Edge Collaborative Wireless Network

    Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

In the Box

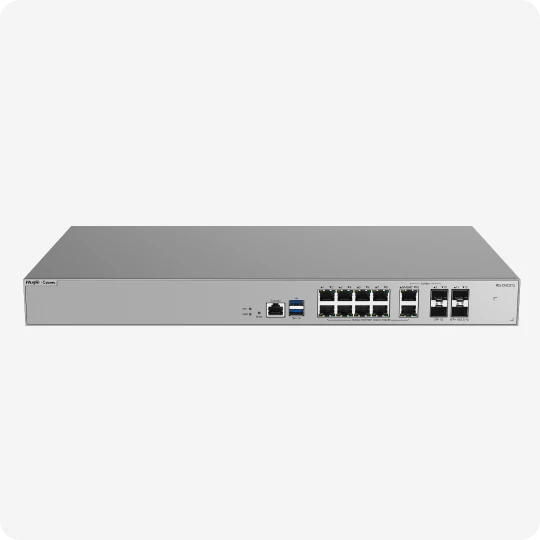

  • RG-CNC312

    × 1

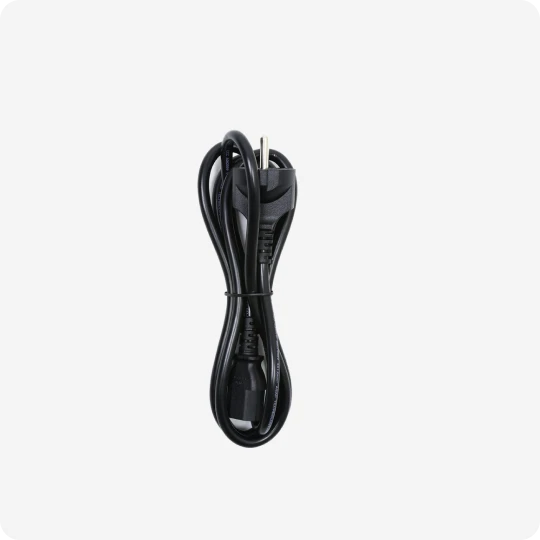

  • Power cord

    × 1

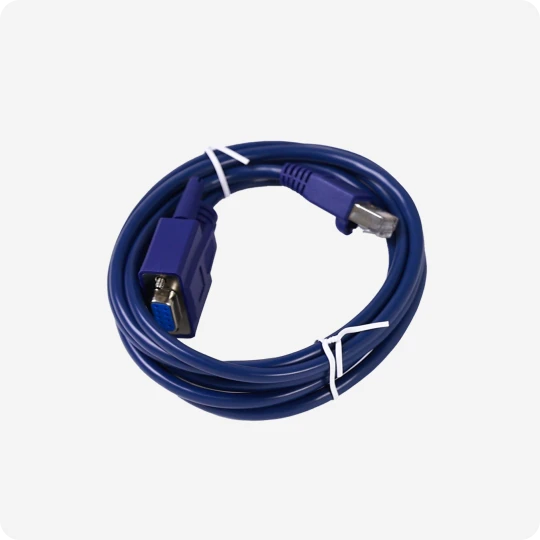

  • Console cable

    × 1

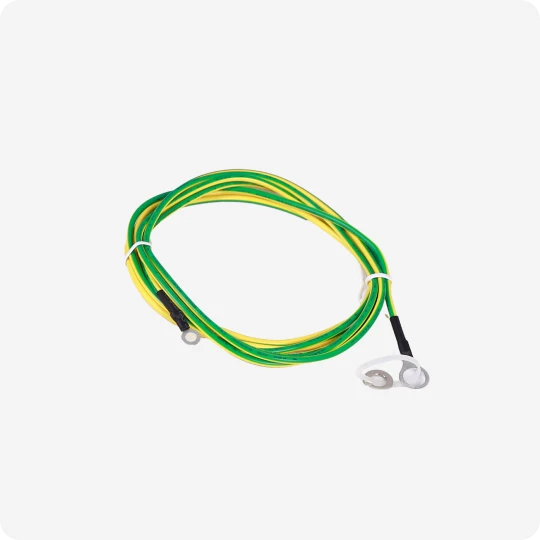

  • Grounding wire

    × 1

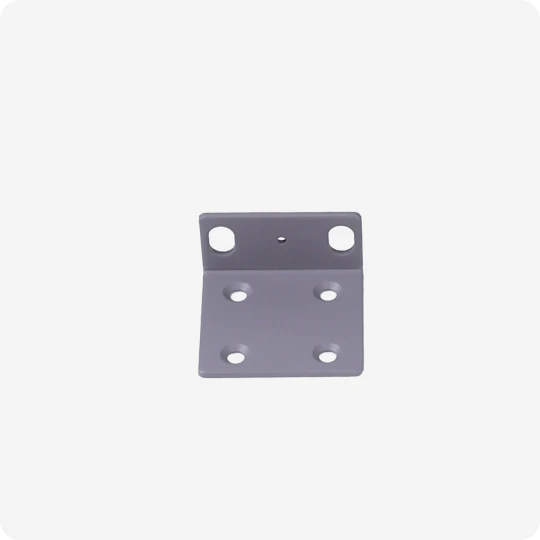

  • Rack-mount bracket

    × 2

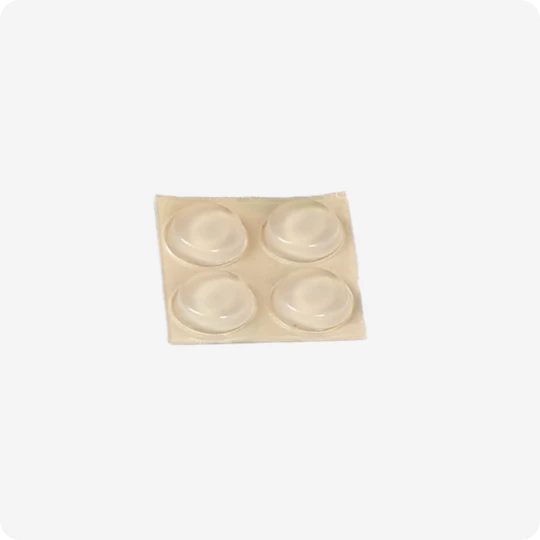

  • Rubber pad

    × 1

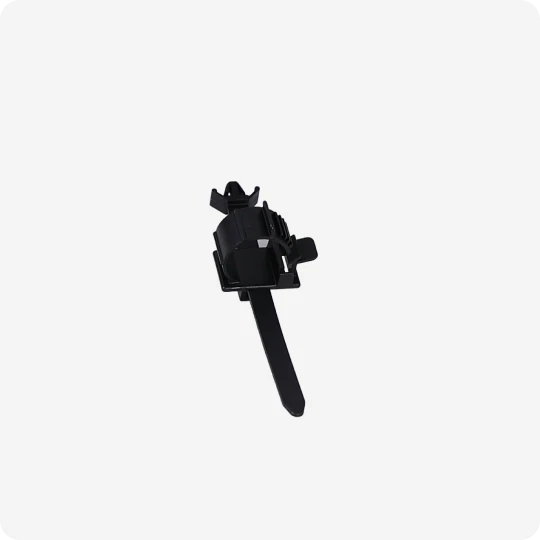

  • Power cord retention clip

    × 1

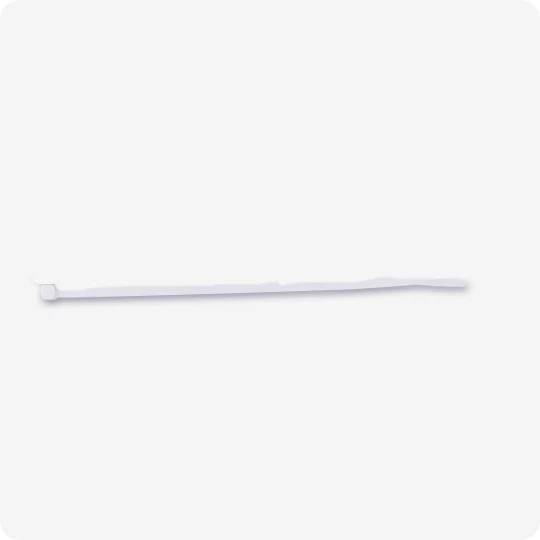

  • Cable tie

    × 1

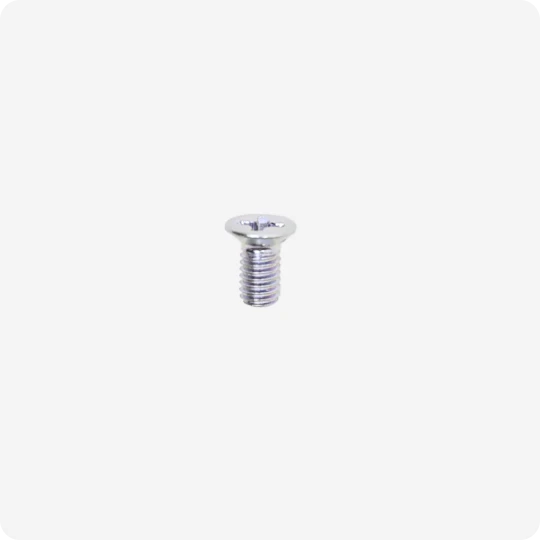

  • M4 x 8 mm Phillips countersunk head screws

    × 6

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

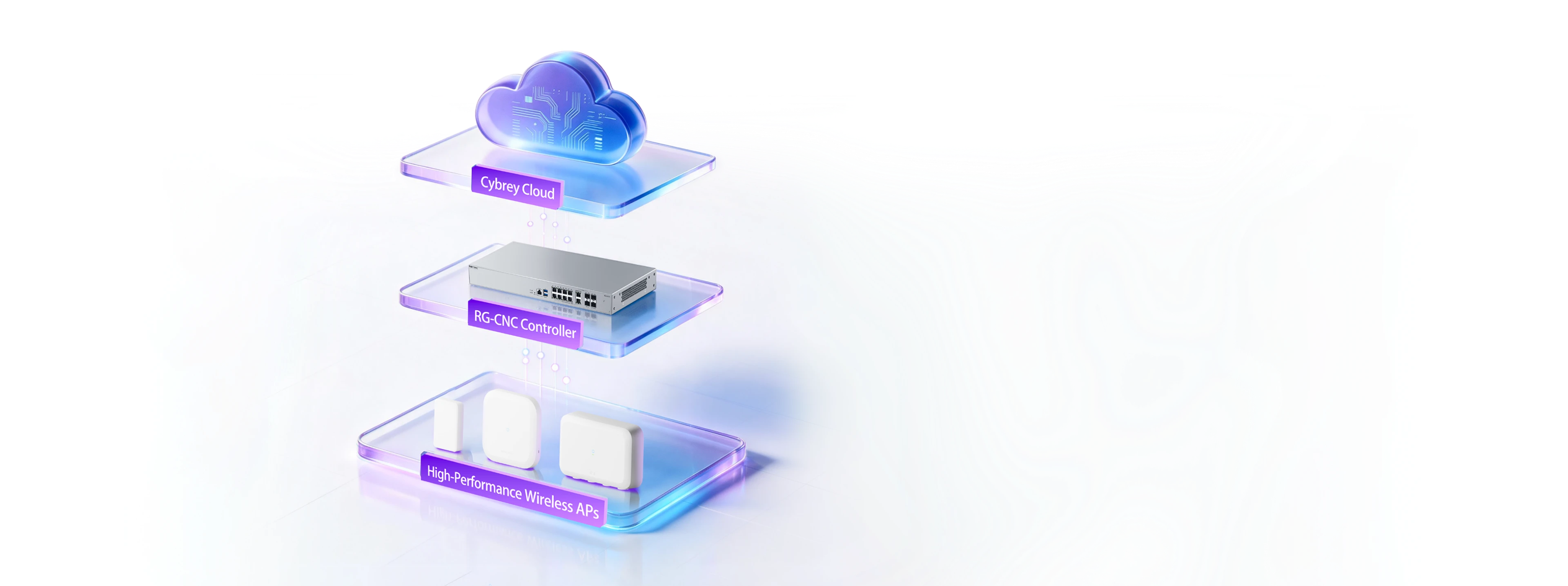

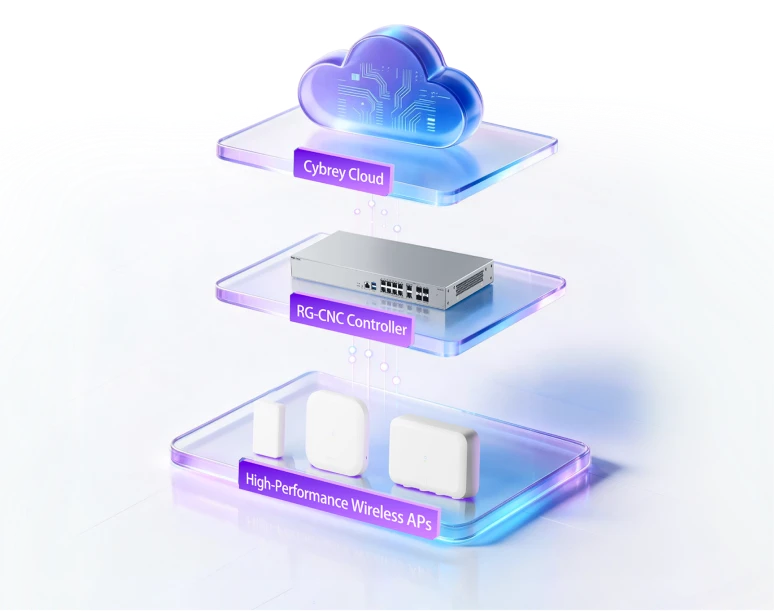

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

  • 1

    Cybrey Cloud

    AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis

  • 2

    RG-CNC Controller

    Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.

  • 3

    High-Performance Wireless APs

    Frontline Soldiers: Execute RF and client actions and report field feedback.

Specifications

Hardware Specifications

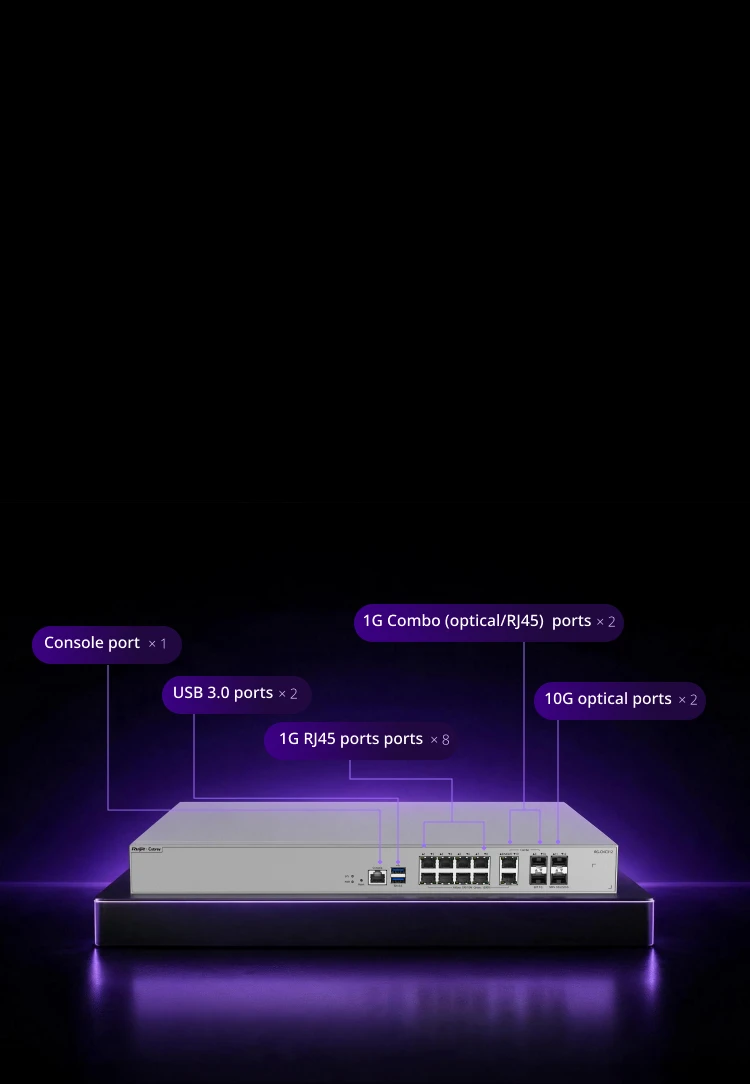

Port Specifications

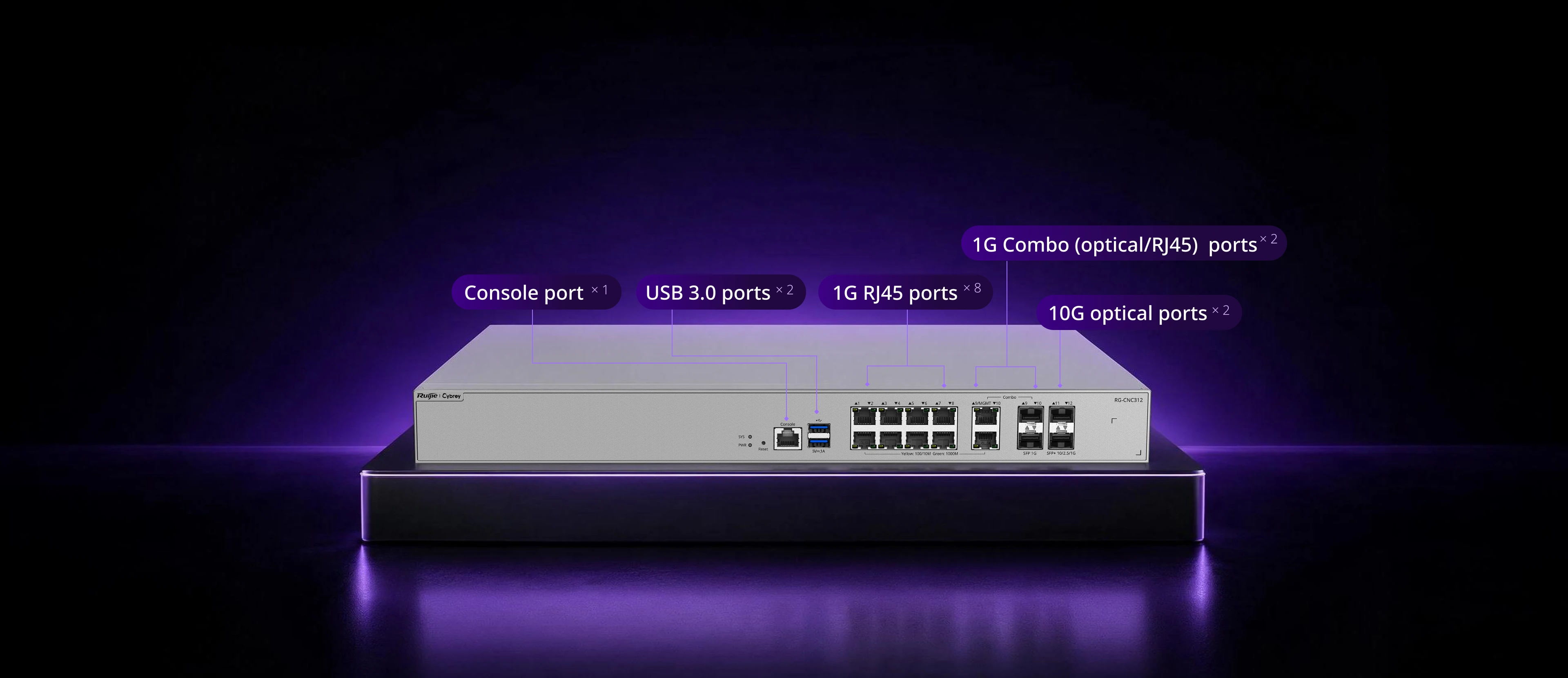

Fixed service port
  • 8 x 10/100/1000BASE-T ports
    2 x 1GE SFP/RJ45 combo ports (Port 9/MGMT can be used as the management interface.)
    2 x 10GE SFP+ ports
Fixed management port
  • 1 x RJ45 console port
    2 x USB 3.0 ports, compatible with USB 2.0
LED
  • 1 x system LED
    1 x power LED
    8 x 10/100 Mbps RJ45 port LEDs
    8 x 1000 Mbps RJ45 port LEDs
    2 x 10/100 Mbps RJ45 combo port LEDs
    2 x 1000 Mbps RJ45 combo port LEDs
    2 x SFP combo port LEDs
    2 x SFP+ port LEDs
Reset button
  • 1
Dimensions and Weight
Unit dimensions (W x D x H)
  • 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets)
    486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., with rack-mount brackets)
Packaging dimensions (W x D x H)
  • 565 mm x 475 mm x 393 mm (22.24 in. x 18.70 in. x 15.47 in.)
Rack height
  • 1 RU
Unit weight
  • 2.7 kg (5.95 lbs)
Packaging weight
  • 3.5 kg (7.72 lbs)
Color
  • Gray
System Specifications
Flash memory
  • 16 MB
RAM
  • 4 GB DDR4
Power Supply and Consumption
Power input
  • ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
    ● Rated input current: 1.5 A
DC power supply
  • Fixed power supply
Maximum power consumption
  • 30 W
Environment and Reliability
Altitude
  • Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)
    Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
Mounting options
  • Rack-mount and desktop placement
MTBF
  • 400,000 hours
Operating humidity
  • 10% RH to 90% RH (non-condensing)
Operating temperature
  • 0°C to 45°C (32°F to 113°F)
    Note: At altitudes ranging from 3,000 m (9,842.52 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
Storage humidity
  • 5% RH to 95% RH (non-condensing)
Storage temperature
  • –40°C to +70°C (–40°F to +158°F)
    Note: At altitudes ranging from 3,000 m (9,842.52 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.
Certification and Regulatory Compliance
Certification
  • CE, CB
EMC compliance
  • EN 55032
    EN 55035
    EN 61000-3-3
    EN 300386
    EN IEC 61000-3-2
Safety compliance
  • IEC 62368-1
Software Specifications
Bandwidth Features
Bandwidth control
  • AP-based bandwidth control
    Client-based bandwidth control
    Intelligent dynamic bandwidth control based on channel utilization
    Intelligent dynamic bandwidth control based on critical services
    SSID-based bandwidth control
Client Management
Client limit
  • Radio-based client limit
    SSID-based client limit
Dynamic blocklist/allowlist
  • Dynamic blocklist
Smart steering
  • AP load balancing
    Configuring load balancing based on client count
    Configuring load balancing based on client traffic
Static blocklist/allowlist
  • Static allowlist
    Static blocklist
Radio Management
SSID management basics
  • SSID hiding
Roaming Features
Layer 2 roaming
  • Layer 2 roaming
    Inter-AC Layer 2 roaming
    Intra-AC Layer 2 roaming
Layer 3 roaming
  • Layer 3 roaming
    Inter-AC Layer 3 roaming
    Intra-AC Layer 3 roaming
Security Features
Client security
  • Hotspot2.0 authentication
    WPA-802.1X authentication
    WPA-PSK authentication
    WPA-WPA2 authentication
    WPA2-802.1X authentication
    WPA2-PSK authentication
    WPA2-WPA3 authentication
    WPA3-Enterprise
    WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256)
    WPA3-Enterprise with AES-CCMP-128
    WPA3-OWE authentication
    WPA3-Personal
    WEP authentication
802.1X
  • Dynamic ACL assignment
Client identification
  • Client identification
CPP
  • CPP
MAB
  • MAB
NFPP
  • NFPP
RADIUS
  • RADIUS
Web authentication
  • Web authentication
    Captive portal
RF security
  • WIDS
    AC-based client isolation
    AP-based client isolation
Layer 3 Features
IPv6
  • ICMPv6
    IPv6 basic features
    Neighbor discovery
    Ping over IPv6
NAT
  • NAT
Management Features
SNMP
  • SNMPv1/v2c/v3
    SNMP
Alerts
  • Alerts
Cloud-based management
  • Cloud-based management
SON
  • SON
SSH
  • SSH
Syslog
  • Syslog
Telnet
  • Telnet
Web-based management
  • Web-based management
IP Services
DHCP
  • DHCPv4 client
    DHCPv6 client
NTP
  • NTP client
    NTP server
Networking Features
RIPT
  • RIPT
VAC
  • Hot swapping of member ACs
    Load balancing across multiple ACs
    Multiple ACs are virtualized into a logical system (VAC).
    N:M multi-AC hot standby
    RIPT for VAC services
Routing Features
IPv4 routing basics
  • Static routing
IPv6 routing basics
  • Static IPv6 routing
Application Protocol Features
TFTP
  • TFTP
Device Management
Device IP management
  • Obtaining an IP address through DHCP
Device IP Management
  • Static IPv4 address
Multicast Features
IGMP snooping
  • Multicast-to-unicast conversion
Centralized Management
Forwarding mode
  • Local forwarding
    Centralized forwarding
Capacity Specifications
Layer 2 Features
Maximum number of created VLANs
  • 4094
Layer 3 Features
Maximum number of ARP entries
  • 32768
ACL and QoS
Software ACE capacity
  • 65536
Client Management
Maximum number of managed clients per AC
  • 3500
Centralized Management
Number of configurable APs
  • 2048
Number of pre-installed AP licenses per AC
  • 32
Maximum number of connected APs
  • 1024
Maximum number of managed online APs
  • 512
Number of managed CAPWAP tunnels
  • 1024
IP Services
Number of DHCP address pools
  • 2000
Security Features
Number of 802.1X authenticated clients
  • 1300
Number of portal authenticated clients
  • 1300
Cloud-based Management of Third-Party Devices
Number of third-party devices
  • 128
Networking Features
Number of non-redundant managed CAPWAP tunnels
  • 1536
Package Contents
Device
Main unit
  • 1
Accessories
Grounding wire
  • 1
Power cord
  • 1
Rack-mount bracket
  • 2 x rack-mount brackets (W x D x H: 43 mm x 41 mm x 21.3 mm / 1.69 in. x 1.61 in. x 0.84 in.)
Rubber pad
  • 4
Screw
  • 6 x M4 x 8 mm Phillips countersunk head screws
Console cable
  • 1
Cable tie
  • 2
Power cord retention clip
  • 1
Manual
User Manual
  • 1
Warranty Card
  • 1
Show More

Resources

All Resources
Learn about Products or Solutions
Installation
Software and Configuration
Videos

How to Configure Wired and Wireless Networks on the Cybrey Platform？

Oct. 29, 2026

How to Onboard Cybrey Devices through Cloud, eWeb, and App？

Oct. 29, 2026

How to Manage Third Party Devices on Cybrey Cloud？

Oct. 29, 2026

How to Integrate Microsoft Entra ID with SSE for Portal and 802.1X Authentication?

Oct. 29, 2026
Show More
Views
How would you rate your experience on this page?
Very disatisfying
Very satisfying
If you would like to offer more comment, please type in the textbox below, that would be helpful for the improvement of this page.
Submit
Thank you for your feedback!

Ruijie Networks websites use cookies to deliver and improve the website experience.

See our cookie policy for further details on how we use cookies and how to change your cookie settings.

Accept All

Manage Cookies

Cookie Manager

When you visit any website, the website will store or retrieve the information on your browser. This process is mostly in the form of cookies. Such information may involve your personal information, preferences or equipment, and is mainly used to enable the website to provide services in accordance with your expectations. Such information usually does not directly identify your personal information, but it can provide you with a more personalized network experience. We fully respect your privacy, so you can choose not to allow certain types of cookies. You only need to click on the names of different cookie categories to learn more and change the default settings. However, blocking certain types of cookies may affect your website experience and the services we can provide you.

  • Performance cookies

    Through this type of cookie, we can count website visits and traffic sources in order to evaluate and improve the performance of our website. This type of cookie can also help us understand the popularity of the page and the activity of visitors on the site. All information collected by such cookies will be aggregated to ensure the anonymity of the information. If you do not allow such cookies, we will have no way of knowing when you visited our website, and we will not be able to monitor website performance.

  • Essential cookies

    This type of cookie is necessary for the normal operation of the website and cannot be turned off in our system. Usually, they are only set for the actions you do, which are equivalent to service requests, such as setting your privacy preferences, logging in, or filling out forms. You can set your browser to block or remind you of such cookies, but certain functions of the website will not be available. Such cookies do not store any personally identifiable information.

Accept All

View Cookie Policy Details

Contact Us

Contact Us

How can we help you?

Contact Us

Get an Order help

Contact Us

Get a tech support

2026 Ruijie Networks Official Website User Experience Survey Questionnaire

Your opinions and feelings are crucial for our improvement.

Fill in the survey
