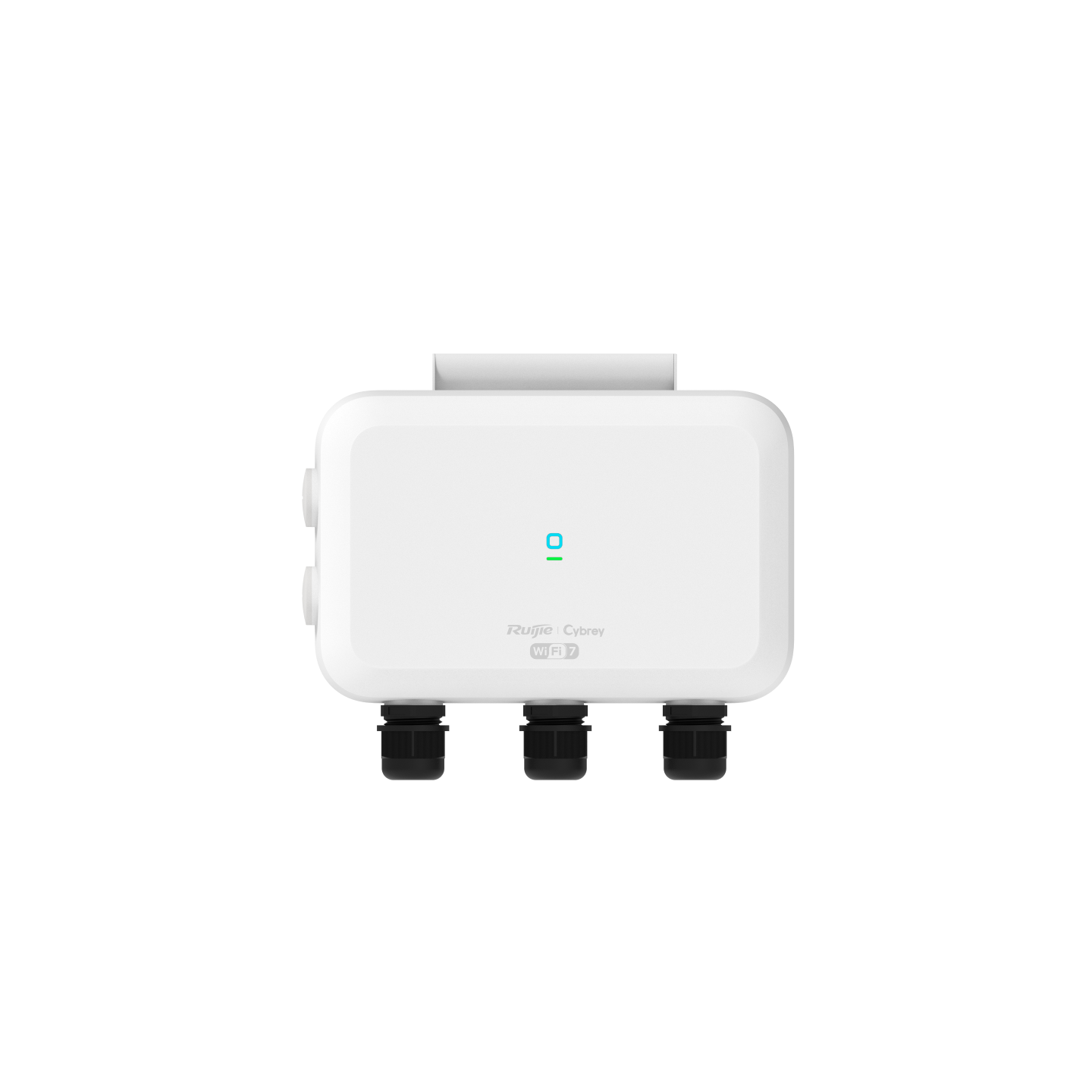

RG-CAP72-O Small & Medium Enterprise Networking - 1

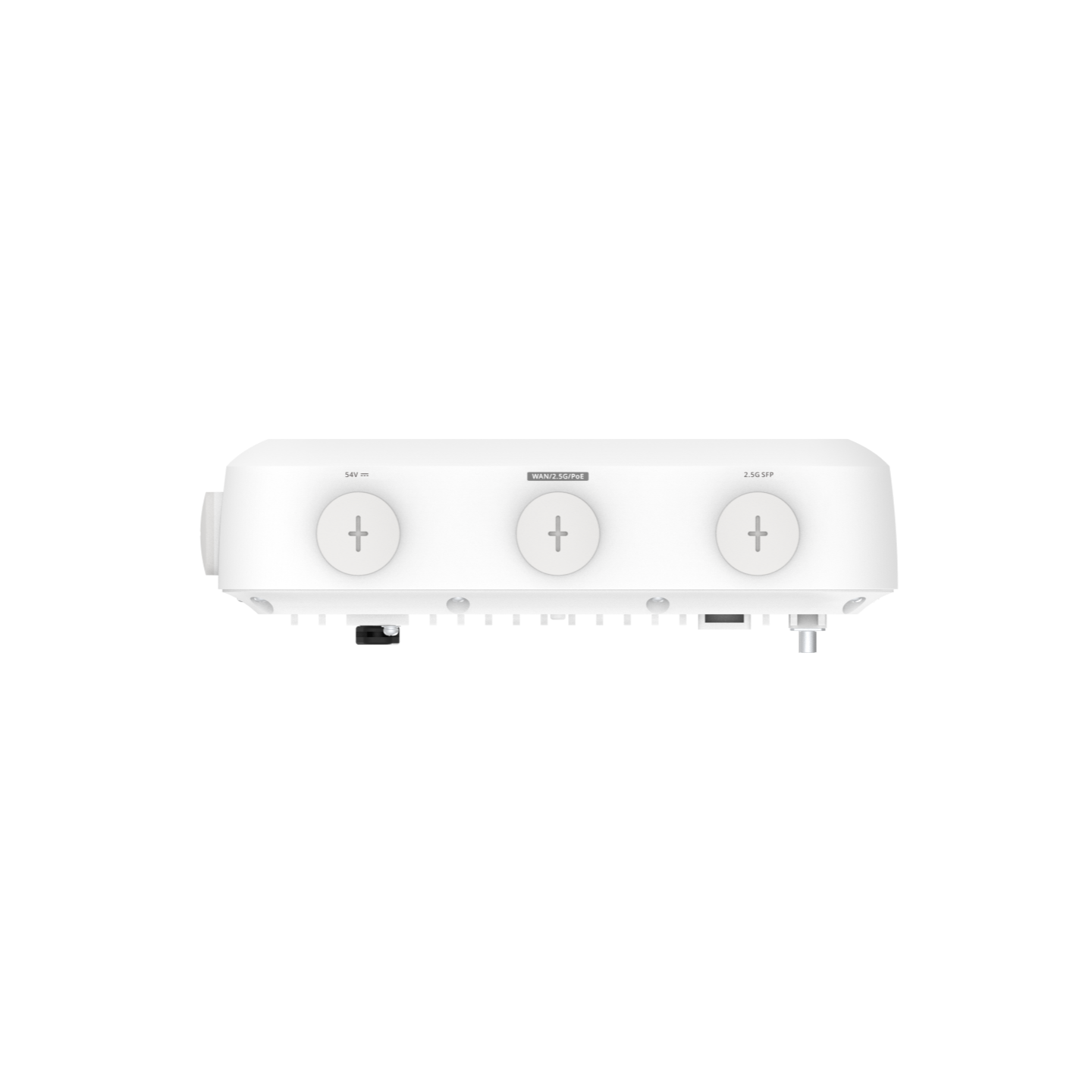

RG-CAP72-O Small & Medium Enterprise Networking - 2

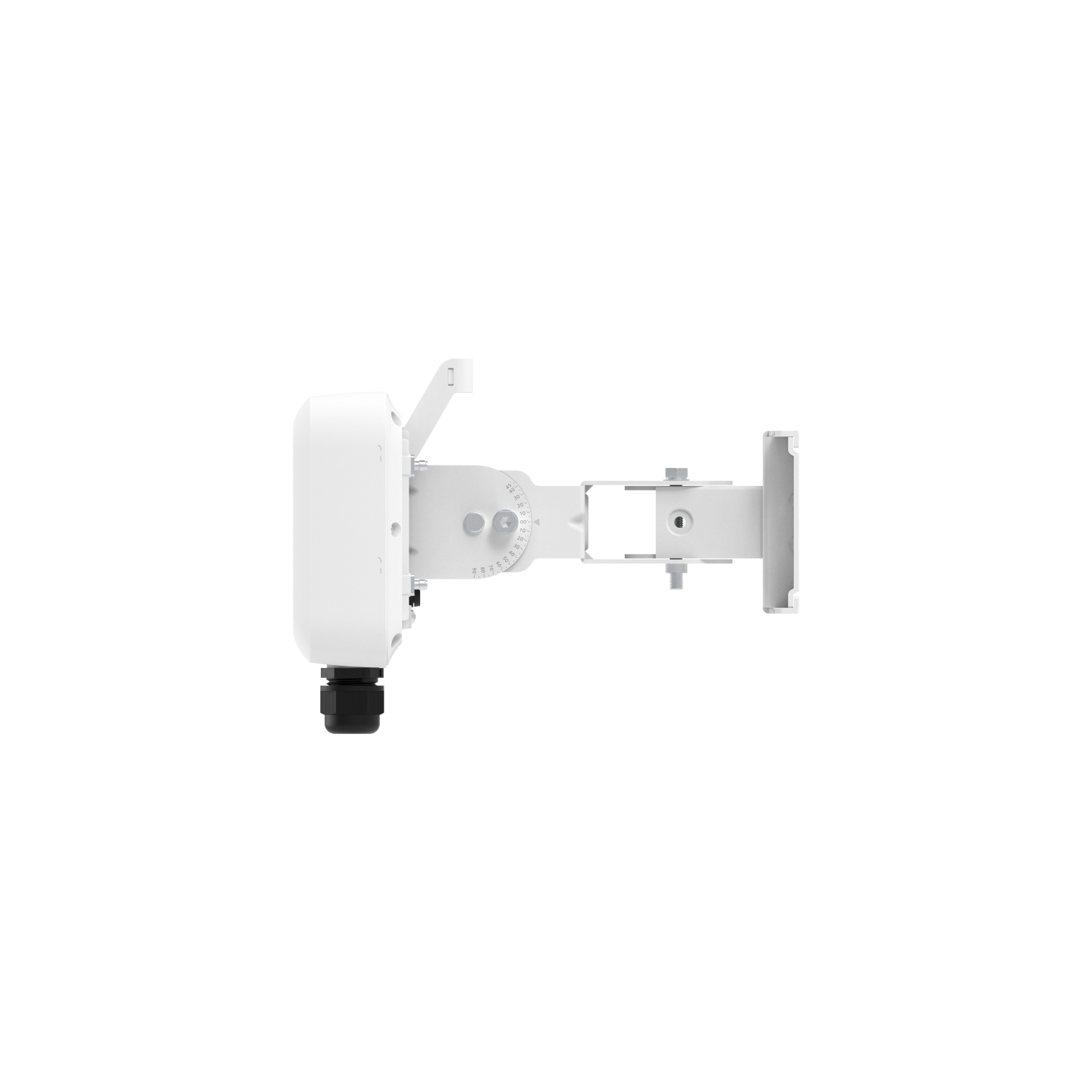

RG-CAP72-O Small & Medium Enterprise Networking - 3

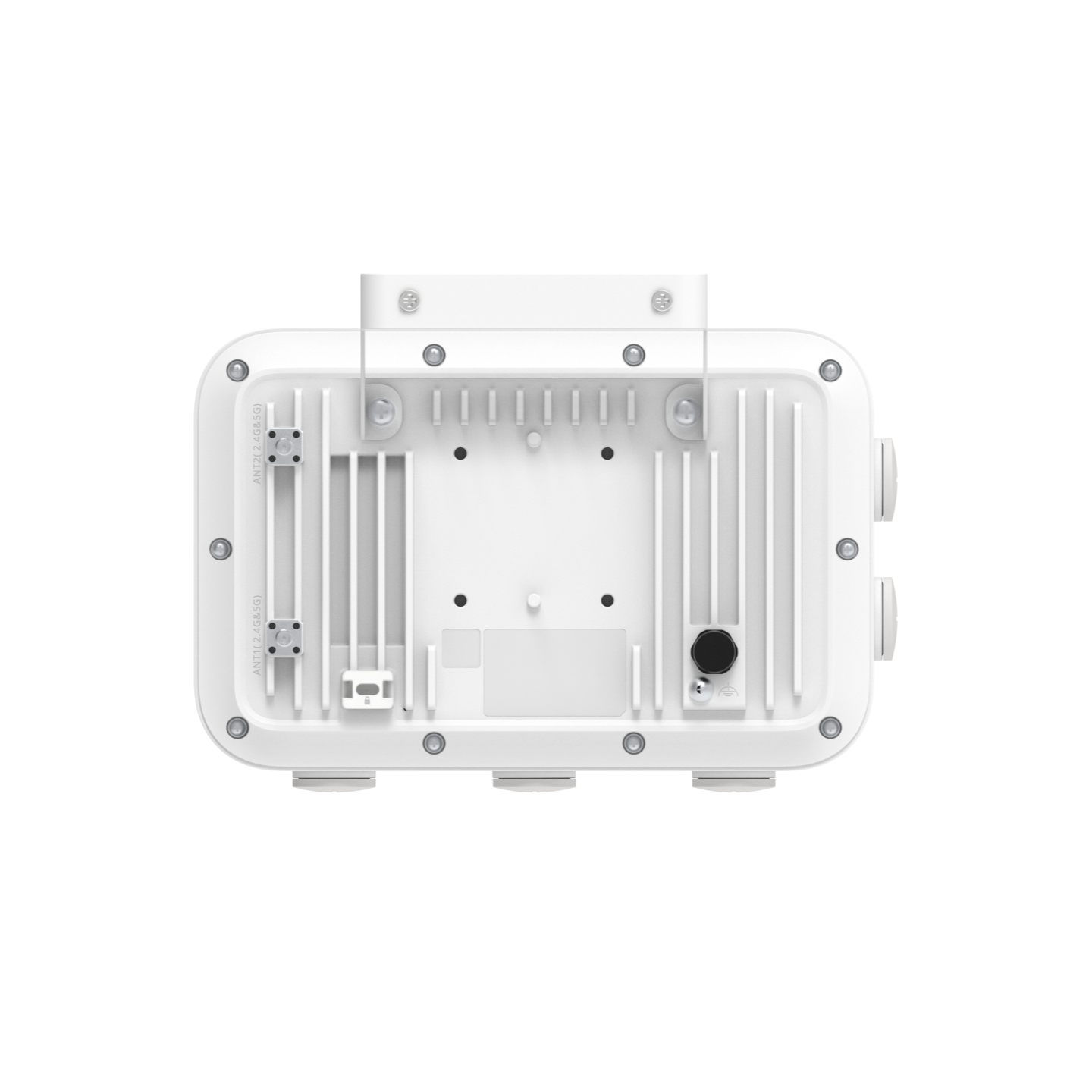

RG-CAP72-O Small & Medium Enterprise Networking - 4

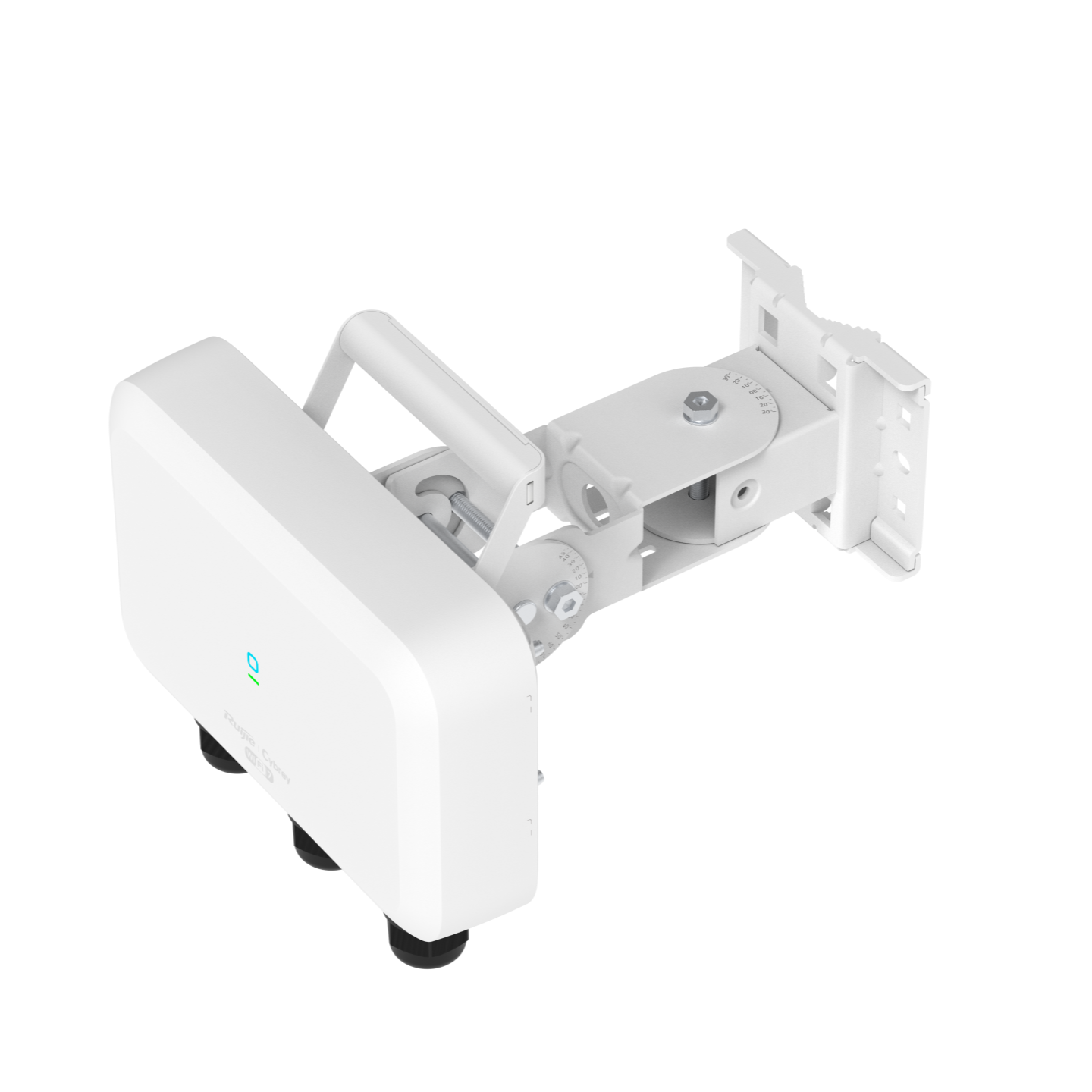

RG-CAP72-O Small & Medium Enterprise Networking - 5

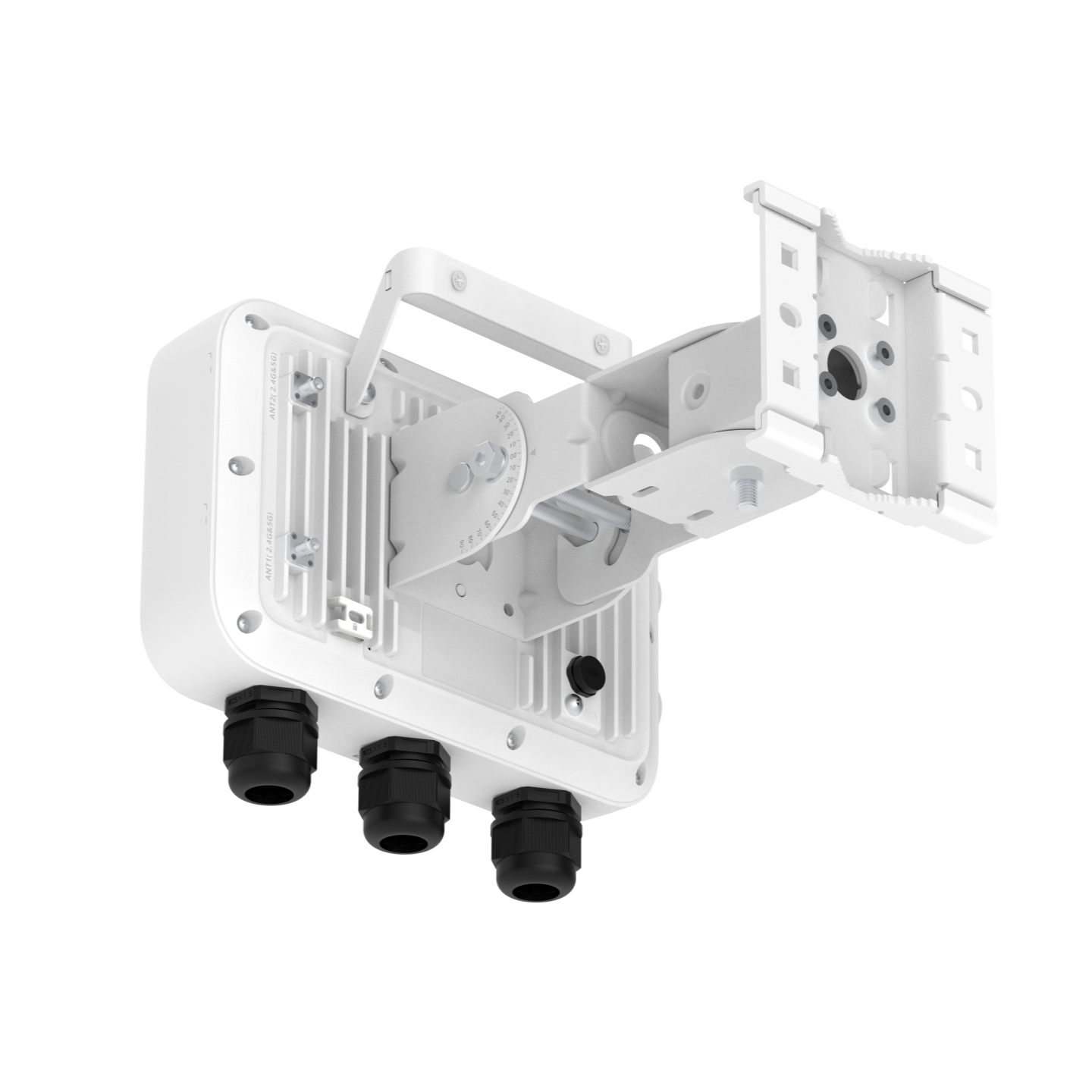

RG-CAP72-O Small & Medium Enterprise Networking - 6


RG-CAP72-O, Wi-Fi 7 BE3600 Outdoor Access Point

Offices, hotels, warehouses, hospitals, and schools.

Models

RG-CAP62-O

Wi-Fi 6, AX3000

RG-CAP72-O

Wi-Fi 7, BE3600

RG-CAP73-O

Wi-Fi 7, BE9300

RG-CAP62-I

Wi-Fi 6, AX3000

RG-CAP72-I

Wi-Fi 7, BE3600

RG-CAP72Pro-IE

Wi-Fi 7, BE6500

RG-CAP73-I

Wi-Fi 7, BE9300

RG-CAP62-WP

Wi-Fi 6, AX3000

RG-CAP72-WP

Wi-Fi 7, BE3600

RG-CNC105

5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output.

RG-CNC312

8 x 10/100/1000BASE-T ports, 2 x 1GE SFP/RJ45 combo ports, 2 x 10GE SFP+ ports

RG-ANT30-D2

2 x RP-SMA female antenna connectors

RG-ANT90-T2

2 x RP-SMA female antenna connectors

RG-ANT90-T6

6 x RP-SMA female antenna connectors

Series

Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs

Datasheet Sales Enquiry

Highlight Features

BE3600 Wi-Fi 7 speed for hotel beach resorts, industrial parks, and logistics yards.
4096-QAM for 20% higher peak data rates than Wi-Fi 6.
MRU for better channel utilization and lower latency in crowded environments.
Dual 2.5G ports (RJ45 + SFP) with fiber support for long-distance deployment
Built-in antennas and support for external directional antennas to expand coverage.
Flexible power supply options: PoE, DC, and Power over Fiber (PoF).
IP68-rated dust and water protection with F2-grade UV-resistant materials.
Built-in 6 kV surge protection for reliable outdoor operation.
Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3 encryption, and a Kensington lock slot.

Key Specifications
Features
Specifications
Resources
Videos

Sales Enquiry

Key Specifications

Features

RG-CAP72-O Ruijie Cybrey Wi-Fi 7 BE3600 Outdoor Access Point

1

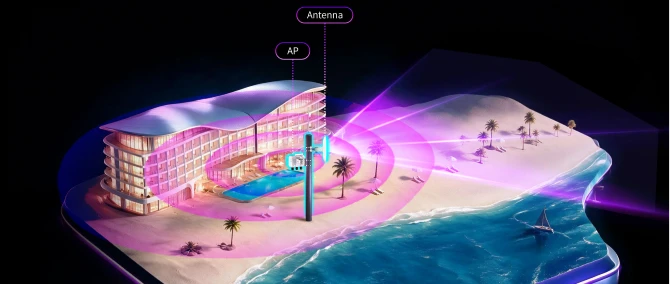

BE3600 Wi‑Fi 7 Speed

BE3600 Wi‑Fi 7 Speed

1

BE3600 Wi‑Fi 7 Speed
Provides low-latency connectivity for hotel beach resorts, large industrial parks, and logistics yards.
2

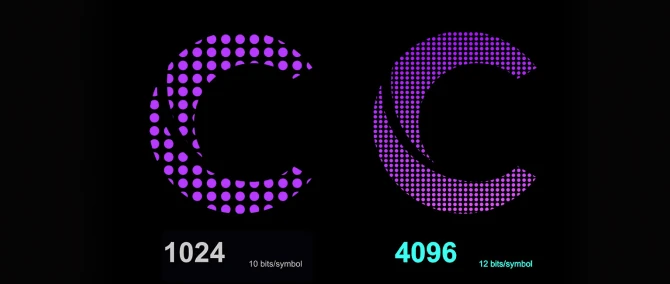

4096‑QAM for Higher Peak Rates

4096‑QAM for Higher Peak Rates

2

4096‑QAM for Higher Peak Rates
Features two 2.5G ports — RJ45 for copper and SFP for fiber. The SFP port supports long-distance fiber connnection over several kilometers.
3

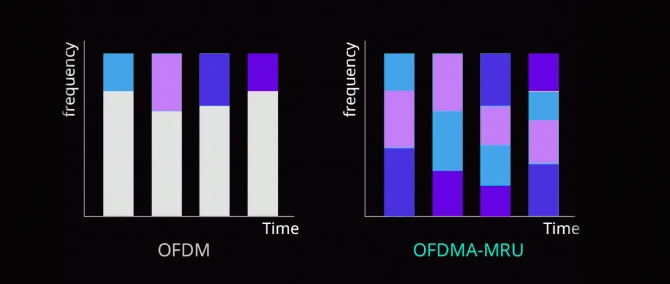

MRU for Multi‑User Performance

MRU for Multi‑User Performance

3

MRU for Multi‑User Performance
MRU for Multi‑User Performance Multi‑Resource Unit improves channel utilization in crowded environments and reduces latency when many clients are connected.
4

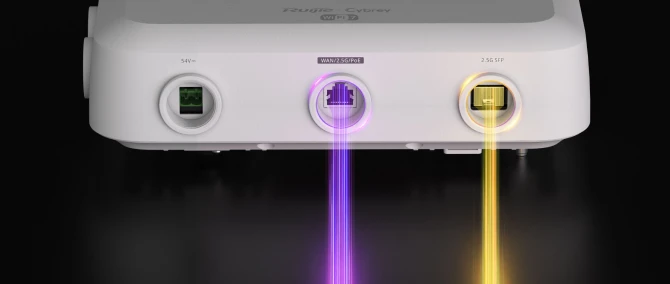

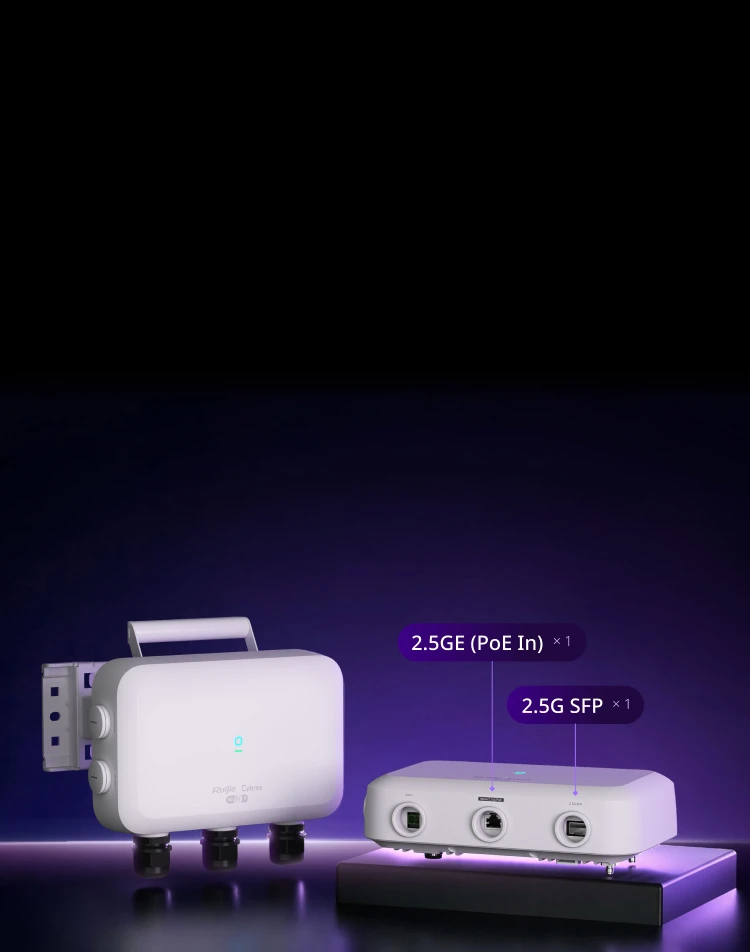

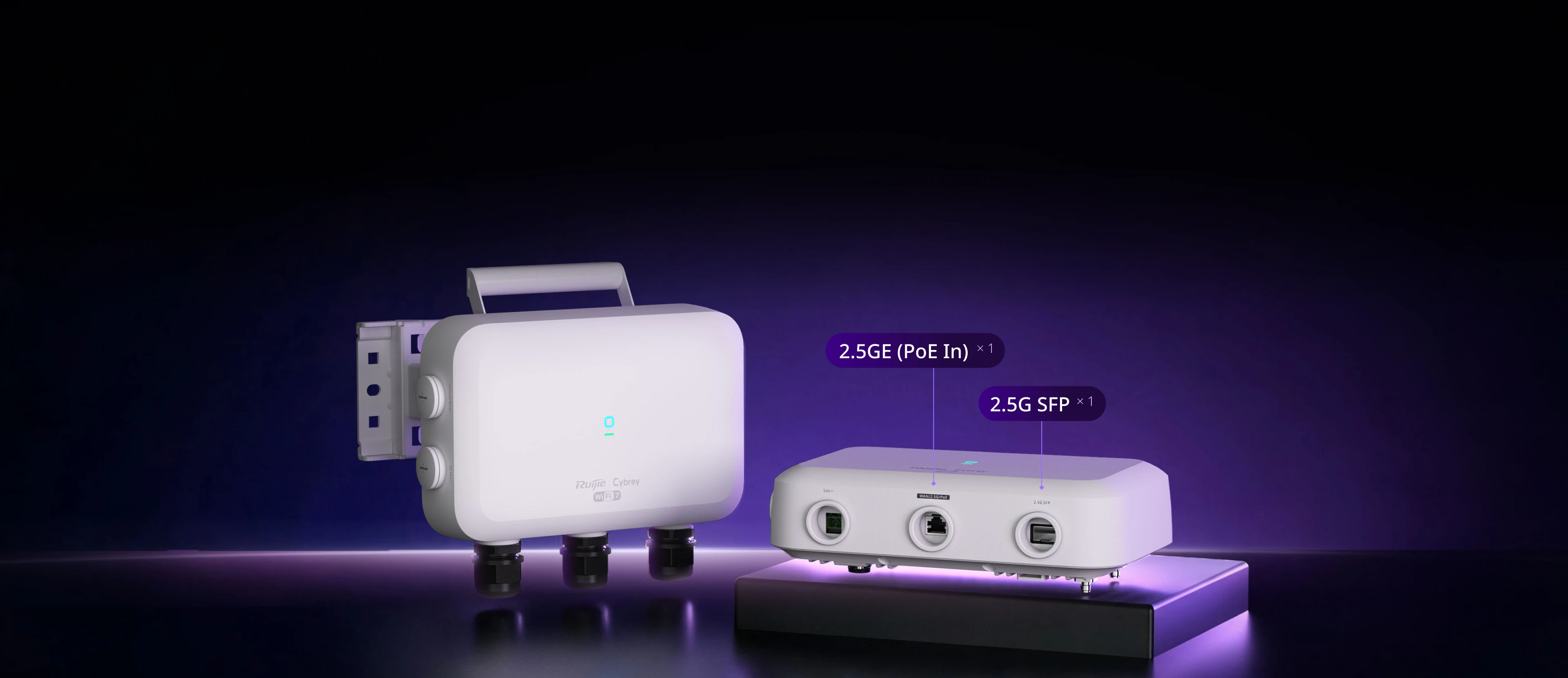

2.5GE RJ45 + 2.5G SFP

2.5GE RJ45 + 2.5G SFP

4

2.5GE RJ45 + 2.5G SFP
Features two 2.5G ports — RJ45 for copper and SFP for fiber. The SFP port supports long-distance fiber connnection over several kilometers.

5

Flexible Antenna Options

Flexible Antenna Options

5

Flexible Antenna Options
Features built-in antennas for standard coverage, with external antenna support for directional long-distance coverage. This expands coverage and reduces deployment costs.
6

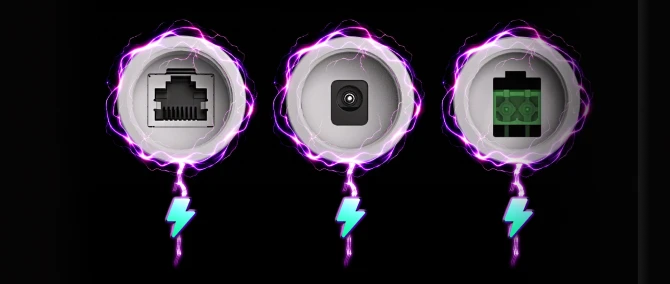

Flexible Power Supply Options

Flexible Power Supply Options

6

Flexible Power Supply Options
Supports PoE, DC, and Power over Fiber (PoF), enabling flexible device deployment.
7

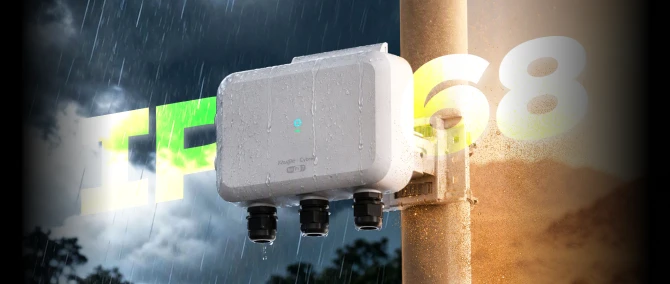

Dust & Water Resistance

Dust & Water Resistance

7

Dust & Water Resistance
Provides IP68-rated dust and water protection, and features F2-grade UV-resistant materials.
8

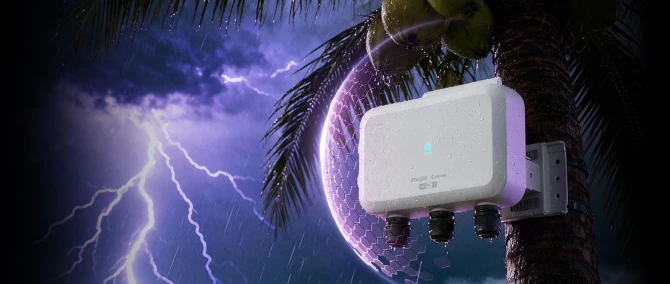

Outdoor Surge Protection

Outdoor Surge Protection

8

Outdoor Surge Protection
Built-in 6 kV surge protection enables reliable operation in harsh outdoor conditions.

9

Enterprise Security

Enterprise Security

9

Enterprise Security
Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a Kensington lock.
10

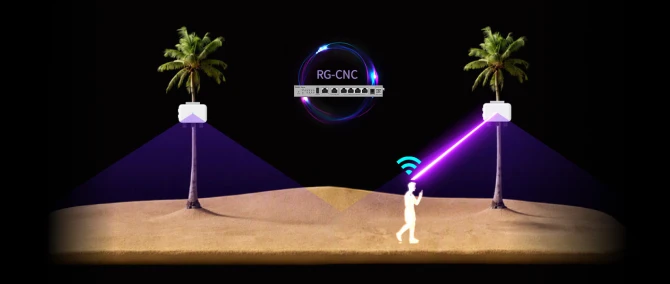

Responsive Roaming Experience

Responsive Roaming Experience

10

Responsive Roaming Experience
The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.
11

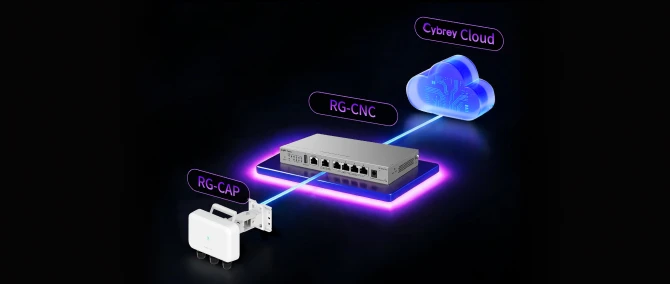

Cloud-Edge Collaborative Wireless Network

Cloud-Edge Collaborative Wireless Network

11

Cloud-Edge Collaborative Wireless Network
Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

In the Box

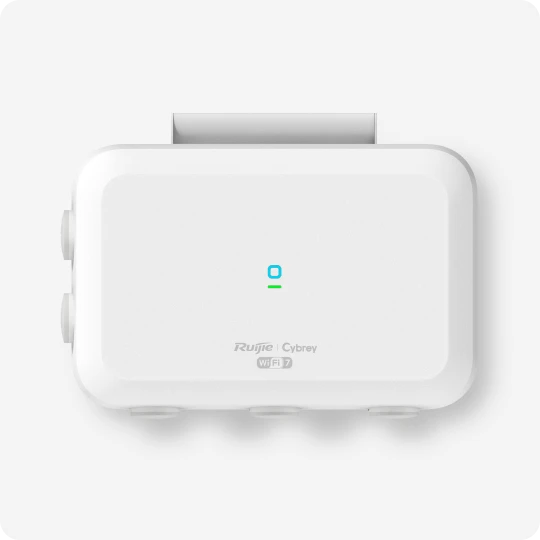

RG-CAP72-O
× 1

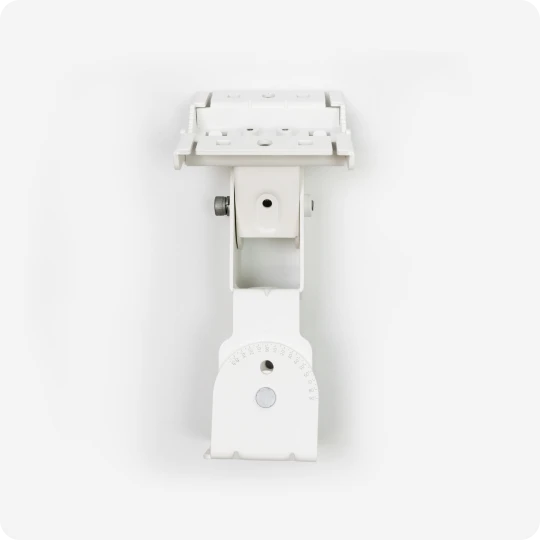

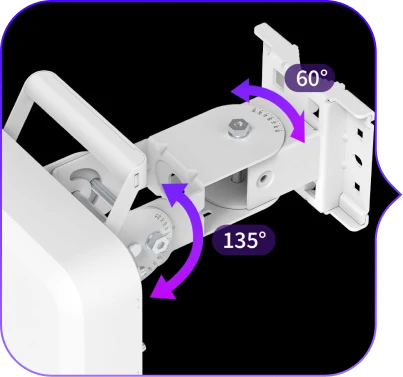

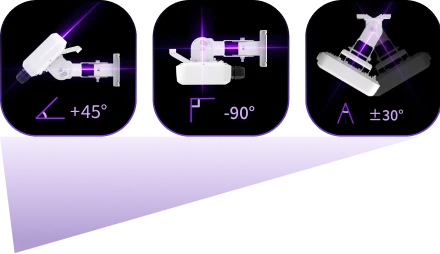

Adjustable mounting bracket
× 1

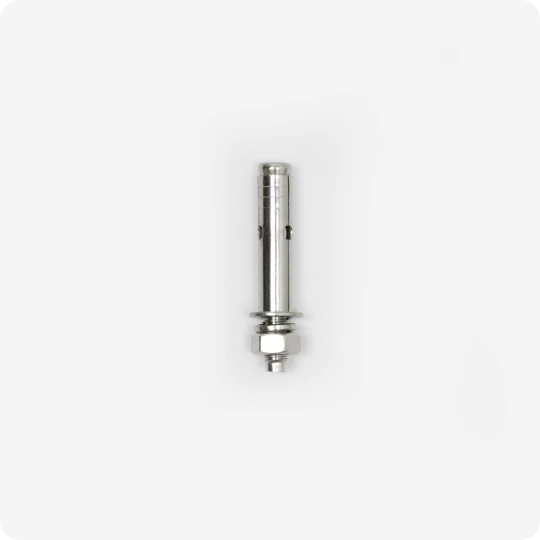

M8 x 60 mm Expansion anchors
× 2

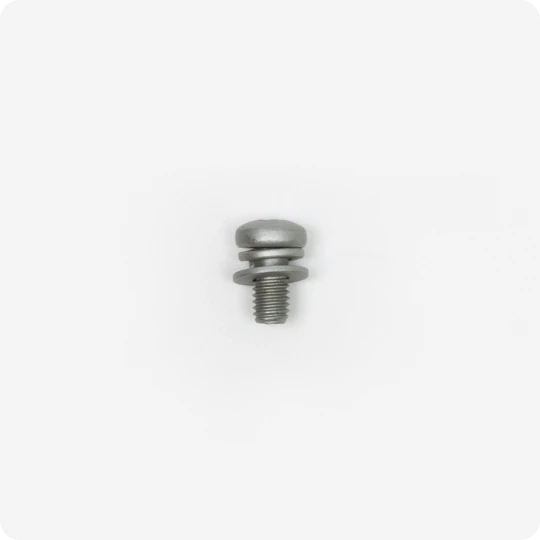

M5 x 10 mm Dacromet-coated screws
× 4

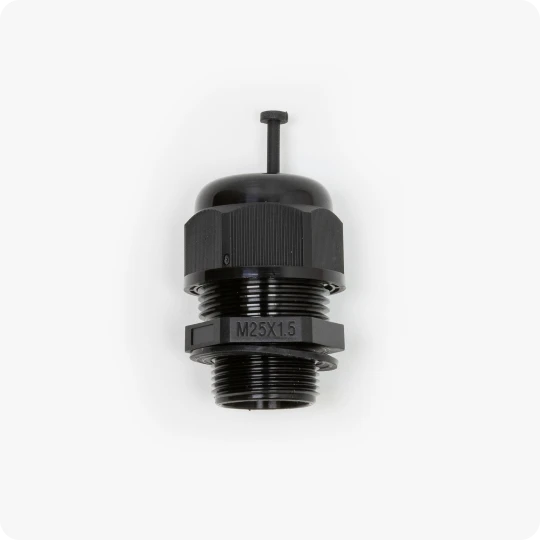

Cable gland assemblies for Ethernet cable and DC power cord
× 2
Cable gland assemblies for optical fiber and hybrid cable
× 2

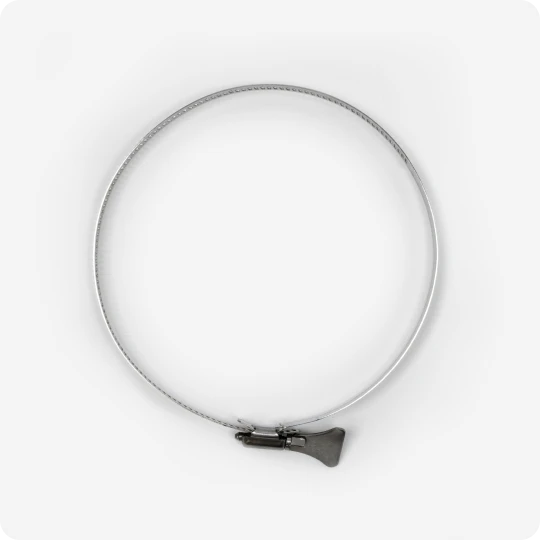

Hose clamp
× 2

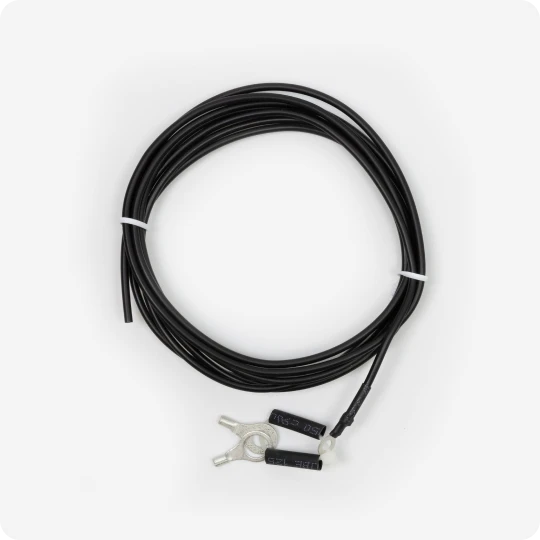

2 m (6.56 ft.) Grounding wire
× 1

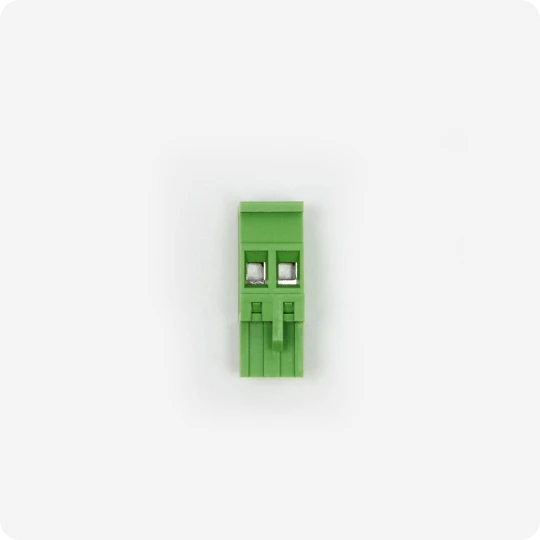

Terminal block
× 1

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

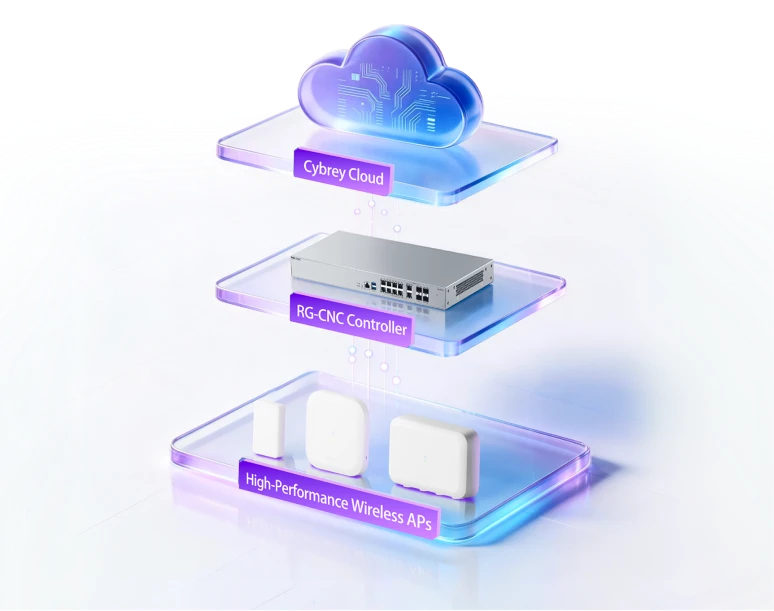

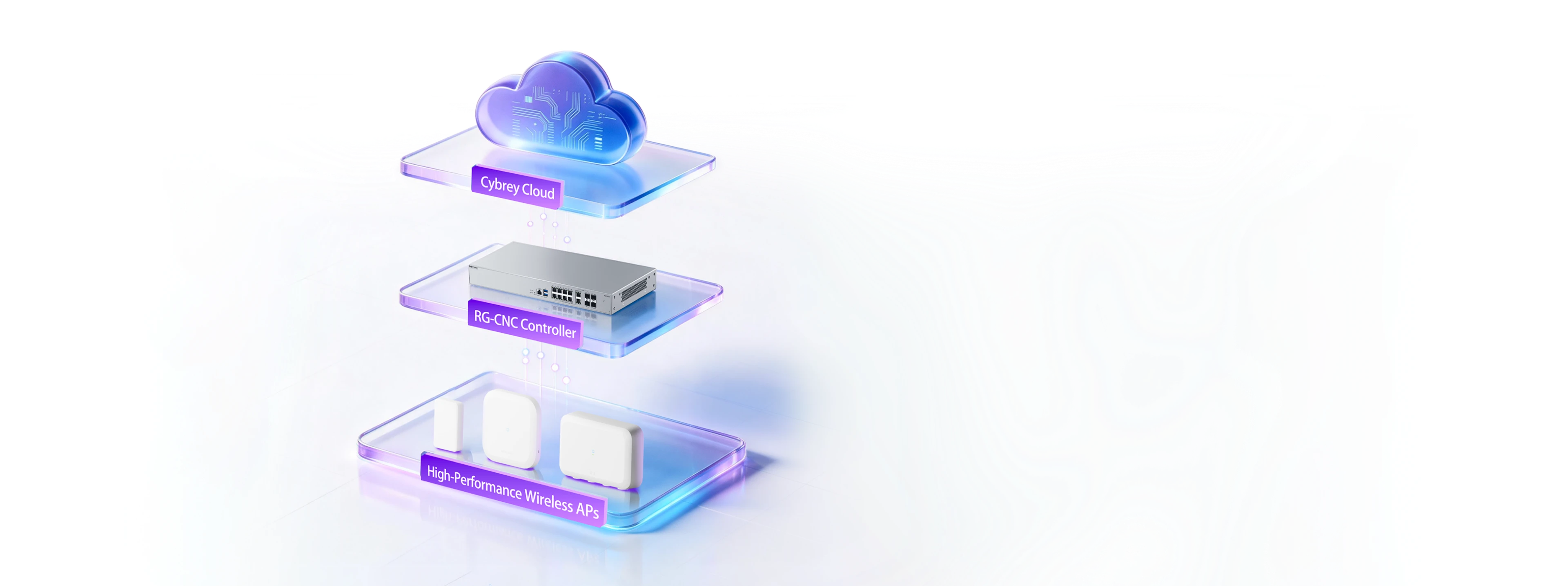

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

1
Cybrey Cloud

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis
2
RG-CNC Controller

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.
3
High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Specifications

Hardware Specifications

Wi-Fi Radio

Wi-Fi standards

IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax

Wi-Fi standards (2.4 GHz)

IEEE 802.11b (Wi-Fi 1)
IEEE 802.11g (Wi-Fi 3)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Wi-Fi standards (5 GHz)

IEEE 802.11a (Wi-Fi 2)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ac (Wi-Fi 5)
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Radio design

Dual-radio
4 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 2x2, MU-MIMO

Data rates

Combined peak data rate: 3570 Mbps
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 2882 Mbps

External antenna connectors

2 RP-SMA female antenna connectors
● ANT1 (2.4G&5G) and ANT2 (2.4G&5G) correspond to Radio 1 and Radio 2, respectively.

Maximum transmit power

Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):
Note: The transmit power is limited by local regulatory requirements.

European Union & United Kingdom:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
Myanmar:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5725–5825 MHz, EIRP ≤ 30 dBm
Thailand:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5825 MHz, EIRP ≤ 30 dBm
Indonesia:
2400–2483.5 MHz, EIRP ≤ 36 dBm
5725–5825 MHz, EIRP ≤ 36 dBm
Egypt:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
Vietnam:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5850 MHz, EIRP ≤ 30 dBm

Maximum transmit power (2.4 GHz)

Combined power: 28 dBm (single-stream power: 25 dBm)
Note: The transmit power is limited by local regulatory requirements.

Maximum transmit power (5 GHz)

Combined power: 28 dBm (single-stream power: 25 dBm)
Note: The transmit power is limited by local regulatory requirements.

Modulation types

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM

Operating frequency bands

● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
Note: Country-specific restrictions apply. To use the preceding frequency bands, ensure that they are supported in your country or region.

Receive sensitivity

802.11a: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –74 dBm (54 Mbps)
802.11b: –96 dBm (1 Mbps), –93 dBm (5.5 Mbps), –89 dBm (11 Mbps)
802.11g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps)
802.11n HT20: –88 dBm (MCS0), –70 dBm (MCS7)
802.11n HT40: –85 dBm (MCS0), –67 dBm (MCS7)
802.11ac VHT20: –88 dBm (MCS0), –65 dBm (MCS8)
802.11ac VHT40: –85 dBm (MCS0), –60 dBm (MCS9)
802.11ac VHT80: –82 dBm (MCS0), –57 dBm (MCS9)
802.11ac VHT160: –79 dBm (MCS0), –54 dBm (MCS9)
802.11ax HE20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11)
802.11ax HE40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11)
802.11ax HE80: –82 dBm (MCS0)，–57 dBm (MCS9), –52 dBm (MCS11)
802.11ax HE160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11)
802.11be EHT20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11), –52 dBm (MCS13)
802.11be EHT40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11), –49 dBm (MCS13)
802.11be EHT80: –82 dBm (MCS0), –57 dBm (MCS9), –52 dBm (MCS11), –46 dBm (MCS13)
802.11be EHT160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11), –43 dBm (MCS13)

Antenna

Antenna type

● 2.4 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas
● 5 GHz: 2 x built-in omnidirectional antennas, switching between built-in and external antennas
Note: When external antennas are used, the access point uses two external RP-SMA female antenna connectors. The external antenna connectors are labeled ANT1(2.4G&5G) and ANT2(2.4G&5G).
● Bluetooth: 1 x built-in omnidirectional antenna

Antenna gain

2.4 GHz: 2.60 dBi
5 GHz: 3.10 dBi
Bluetooth: 1.90 dBi

Port Specifications

Fixed service port

● 1 x 10/100/1000/2.5GBASE-T port, supporting IEEE 802.3af/at-compliant PoE input
● 1 x 2.5GE SFP port, compatible with 1GE optical transceiver

Fixed management port

1 x RJ45 console port

LED

1 x system LED
1 x RSSI LED

Reset button

Bluetooth Radio

Bluetooth

Bluetooth 5.3
● Remote maintenance through a Bluetooth serial port

Maximum Bluetooth transmit power

10 dBm

Power Supply and Consumption

DC power supply

● DC power adapter: 54 V, 0.6 A
● DC connector dimensions:
Outer diameter: 5.5 mm (0.22 in.)
Inner diameter: 2.1 mm (0.08 in.)
Depth: 10 mm (0.39 in.)
Note: If both DC power and PoE are available, DC power is preferred.

DC power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

PoE power supply

● IEEE 802.3af (PoE)
● IEEE 802.3at (PoE+)
Note: If both DC power and PoE are available, DC power is preferred.

PoF power supply

● IEEE 802.3af (PoE)
● IEEE 802.3at (PoE+)
Note:
1. If both DC power and PoE are available, DC power is preferred.
2. If PoF input is adopted, the AP must be used with a dedicated PSE.

Maximum power consumption

18 W

IEEE 802.3af power input

Port restrictions: The 2.5GE SFP port is unavailable.
Radio restrictions: The transmit power of both 2.4 GHz and 5 GHz radios is limited to 60%, and their data rates are limited to 50%.
Other feature restrictions: N/A

IEEE 802.3at power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

Environment and Reliability

Operating temperature

–40°C to +65°C (–40°F to +149°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Operating humidity

0% RH to 100% RH (non-condensing)

Storage humidity

0% RH to 100% RH (non-condensing)

Storage temperature

–40°C to +85°C (–40°F to +185°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Corrosion resistance

IEC 62368-1
IEC 60950-22

IP rating

IP68

Lock option

Kensington lock slot

MTBF

400,000 hours

Mounting options

Wall-mount and pole-mount

Dimensions and Weight

Unit dimensions (W x D x H)

248 mm x 78 mm x 163 mm (9.76 in. x 3.07 in. x 6.42 in., without the mounting bracket)

Packaging dimensions (W x D x H)

346 mm x 311 mm x 143 mm (13.62 in. x 12.24 in. x 5.63 in.)

Unit weight

Main unit: 1.4 kg (3.09 lbs)
Mounting bracket: 1.35 kg (2.98 lbs)

Packaging weight

3.3 kg (7.28 lbs)

Color

White

System Specifications

Flash memory

256 MB SPI NAND Flash

RAM

1 GB DDR4

Certification and Regulatory Compliance

Certification

CE, CB, Wi-Fi Alliance

EMC compliance

EN 55032
EN 61000-3-3
EN IEC 61000-3-2
EN 55035
EN 301 489-1
EN 301 489-3
EN 301 489-17

Radio

EN 300 328
EN 301 893
EN 300 440

RF exposure

EN IEC 62311

Safety compliance

IEC 62368-1

Software Specifications

Bandwidth Features

Bandwidth control

AP-based bandwidth control
Client-based bandwidth control
Intelligent dynamic bandwidth control based on channel utilization
Intelligent dynamic bandwidth control based on critical services
SSID-based bandwidth control

Client Management

Client limit

Radio-based client limit
SSID-based client limit

Dynamic blocklist/allowlist

Dynamic blocklist

Smart steering

AP load balancing
Configuring load balancing based on client count
Configuring load balancing based on client traffic

Static blocklist/allowlist

Static allowlist
Static blocklist

Radio Management

SSID management basics

SSID hiding

Roaming Features

Layer 2 roaming

Layer 2 roaming

Layer 3 roaming

Layer 3 roaming

Security Features

Client security

Hotspot2.0 authentication
WPA-802.1X authentication
WPA-PSK authentication
WPA-WPA2 authentication
WPA2-802.1X authentication
WPA2-PSK authentication
WPA2-WPA3 authentication
WPA3-Enterprise
WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256)
WPA3-Enterprise with AES-CCMP-128
WPA3-OWE authentication
WPA3-Personal
WEP authentication

802.1X

Dynamic ACL assignment

Client identification

AI-based identification of client types, operating systems, operating system versions, vendors, and models
Client identification

CPP

MAB

NFPP

NFPP

RADIUS

RADIUS

Web authentication

Web authentication

Layer 3 Features

IPv6

ICMPv6
IPv6 basic features
Neighbor discovery
Ping over IPv6

NAT

NAT
PPTP, SIP, FTP, DNS, and TFTP

Management Features

SNMP

SNMPv1/v2c/v3
SNMP

Alerts

Alerts

Cloud-based management

Cloud-based management

SON

SSH

Syslog

Syslog

Telnet

Telnet

Web-based management

Web-based management

IP Services

DHCP

DHCPv4 client
DHCPv6 client

NTP

NTP client
NTP server

Networking Features

RIPT

RIPT

Routing Features

IPv4 routing basics

Static routing

IPv6 routing basics

Static IPv6 routing

Device Management

AP mode management

Mode switching

Device IP management

Obtaining an IP address through DHCP

Device IP Management

Static IPv4 address

Multicast Features

IGMP snooping

Multicast-to-unicast conversion

Capacity Specifications

Client Management

Maximum number of associated clients per AP

1024
Note: The number of associated clients varies according to the environment.

Recommended number of associated clients per AP

Radio Management

Maximum number of BSSIDs per AP

IP Services

Number of DHCP address pools

2000

Package Contents

Device

Main unit

Accessories

Cable gland assembly

2 x cable gland assemblies for Ethernet cable and DC power cord
2 x cable gland assemblies for optical fiber and hybrid cable

Grounding wire

1 x 2 m (6.56 ft.) grounding wire

Hose clamp

Mounting bracket

1 x adjustable mounting bracket (W x D x H: 126 mm x 106 mm x 215 mm / 4.96 in. x 4.17 in. x 8.46 in.)

Screw

4 x M5 x 10 mm Dacromet-coated screws
2 x M8 x 60 mm expansion anchors

Terminal block

Manual

User Manual

Warranty Card

Resources

All Resources

Learn about Products or Solutions

Installation

Installation Guide

Software and Configuration

Videos

Higher Education

5-Star Hotel Solution

RG-CAP72-O, Wi-Fi 7 BE3600 Outdoor Access Point

Key Specifications

Features

RG-CAP72-O Ruijie Cybrey Wi-Fi 7 BE3600 Outdoor Access Point

In the Box

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

Specifications

Resources

2026 Ruijie Networks Official Website User Experience Survey Questionnaire
