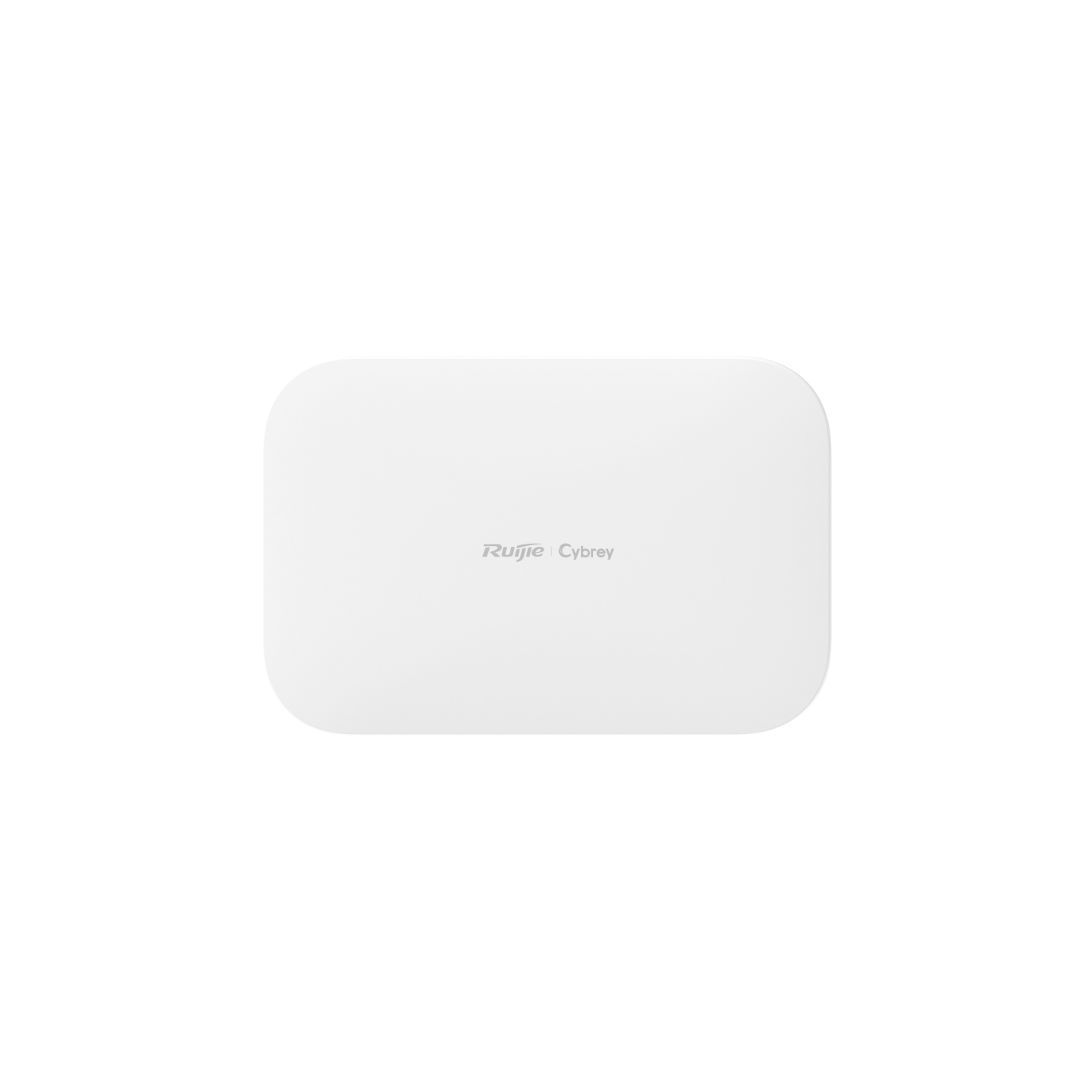

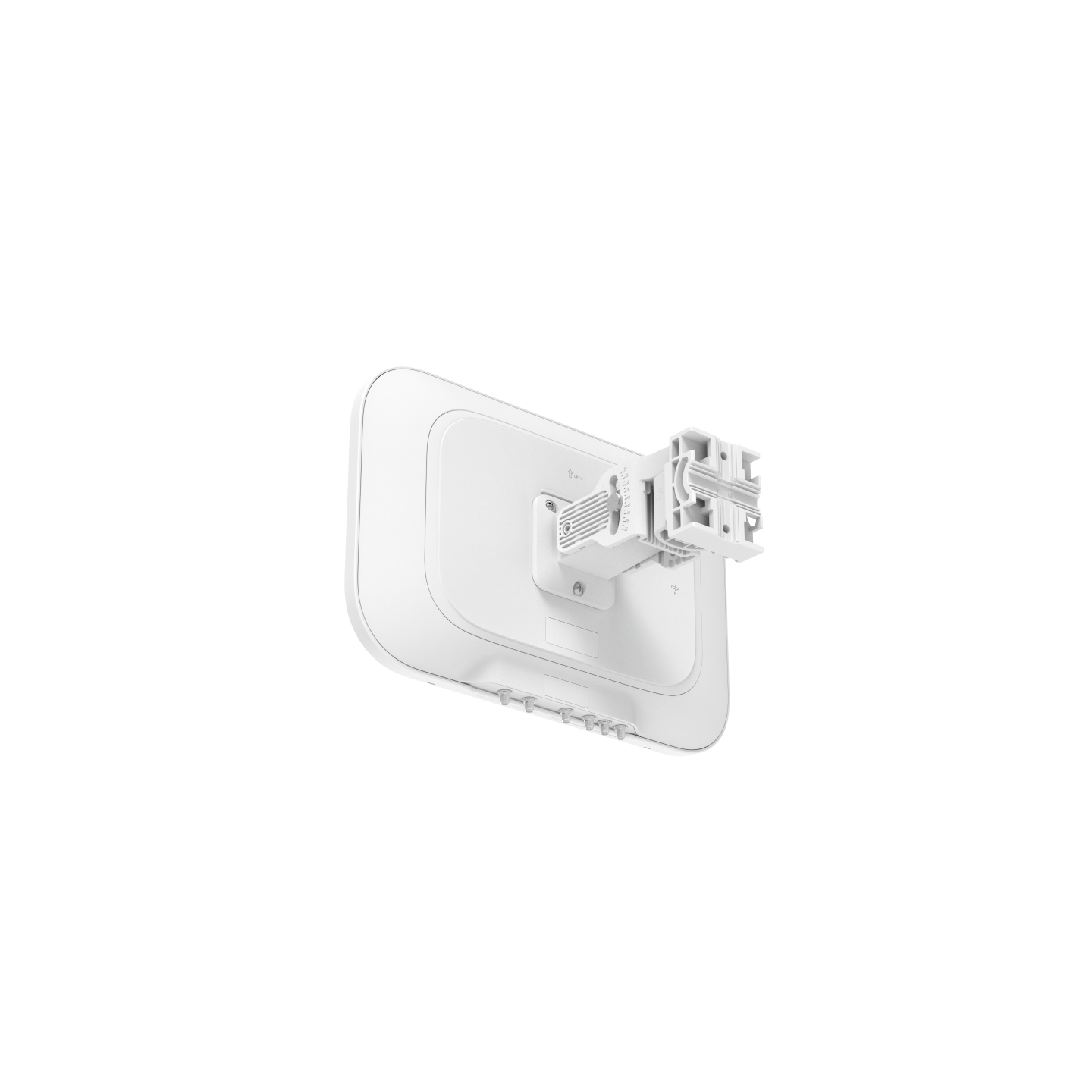

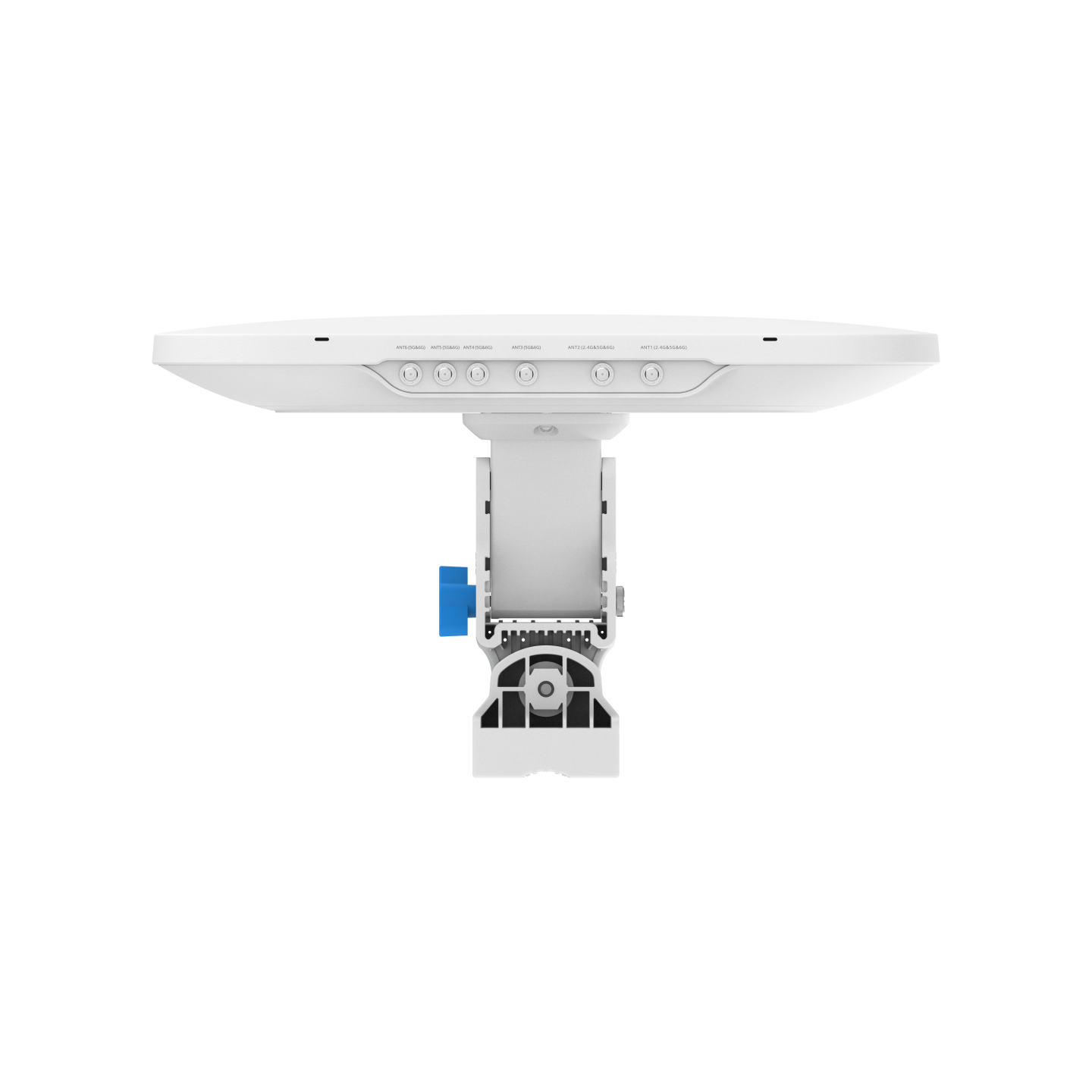

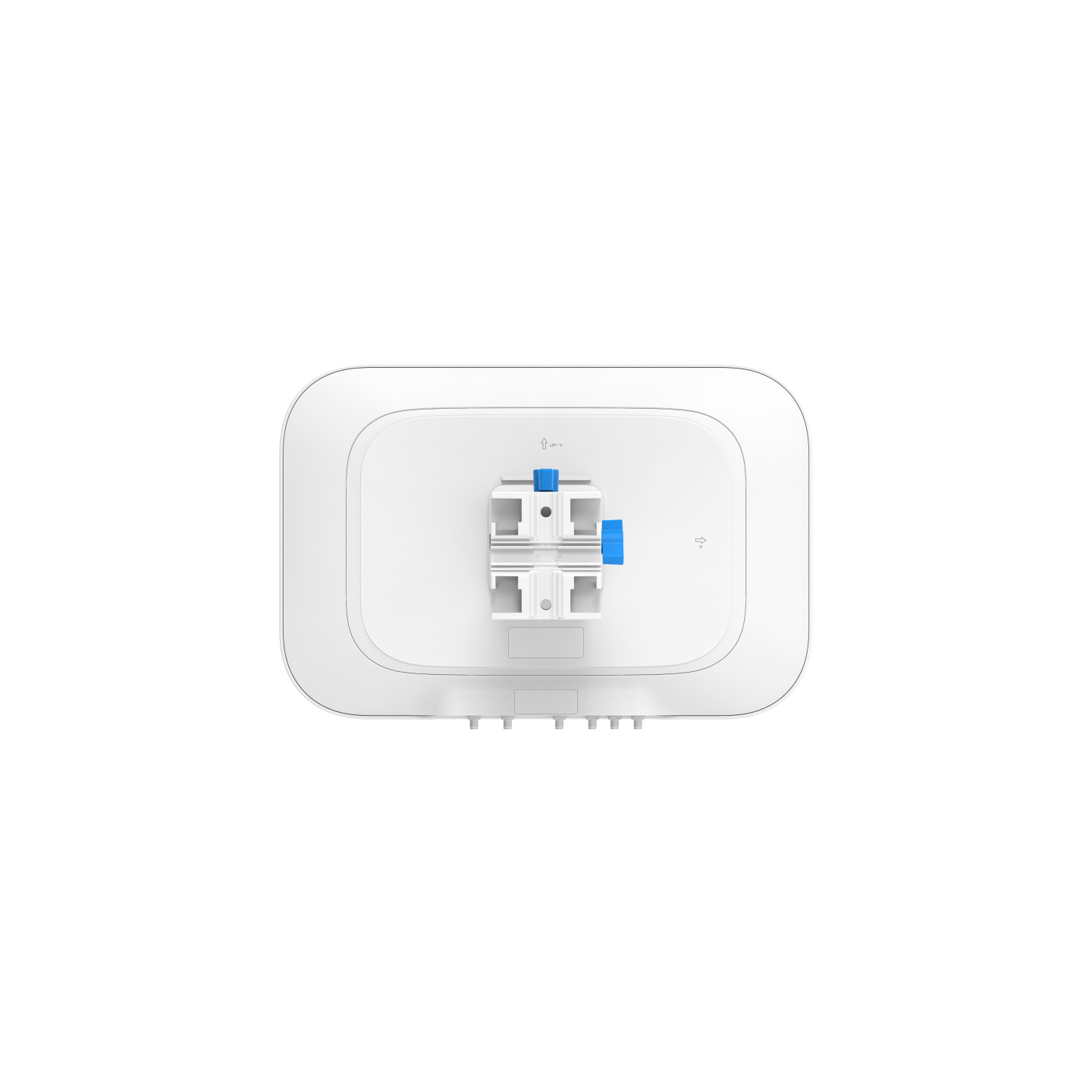

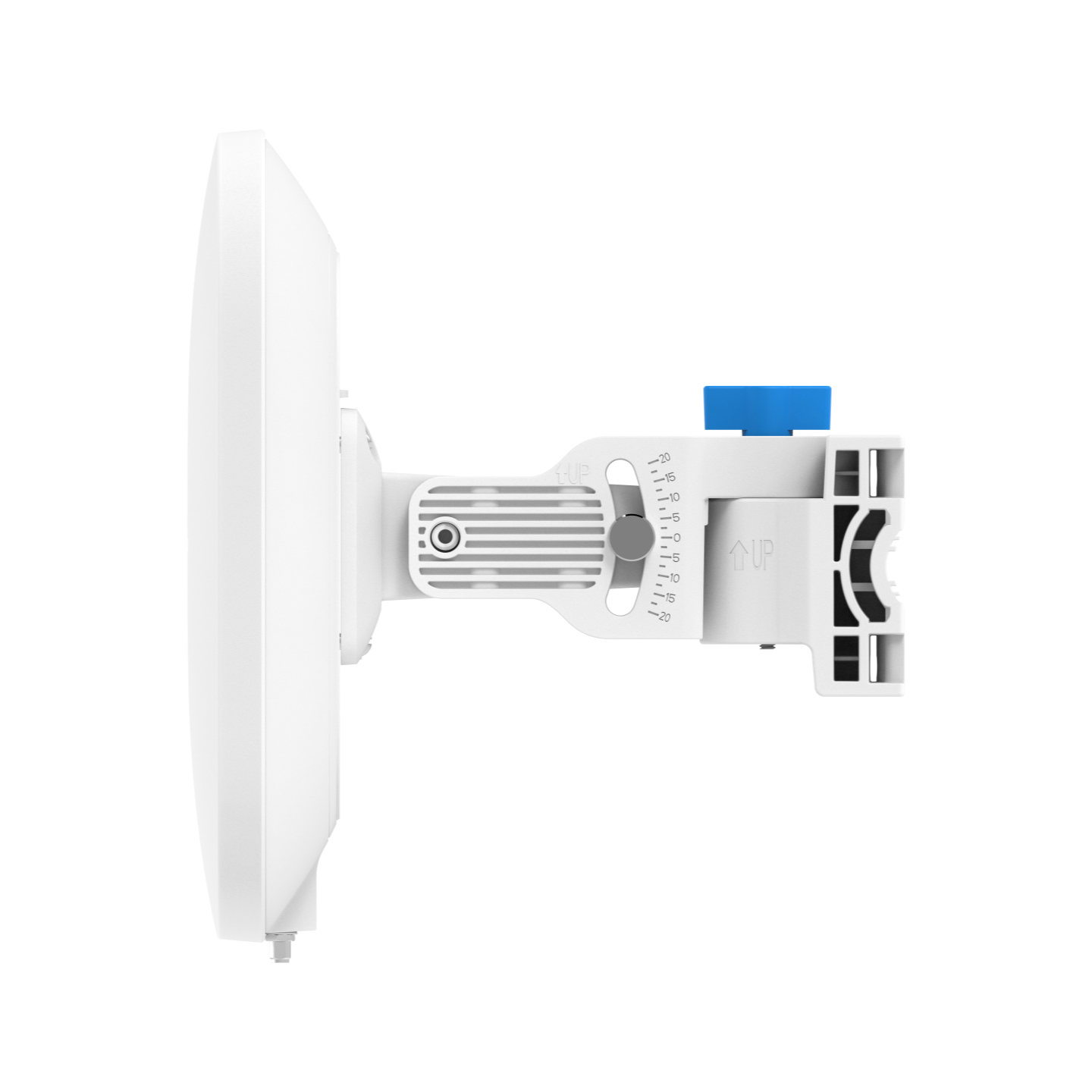

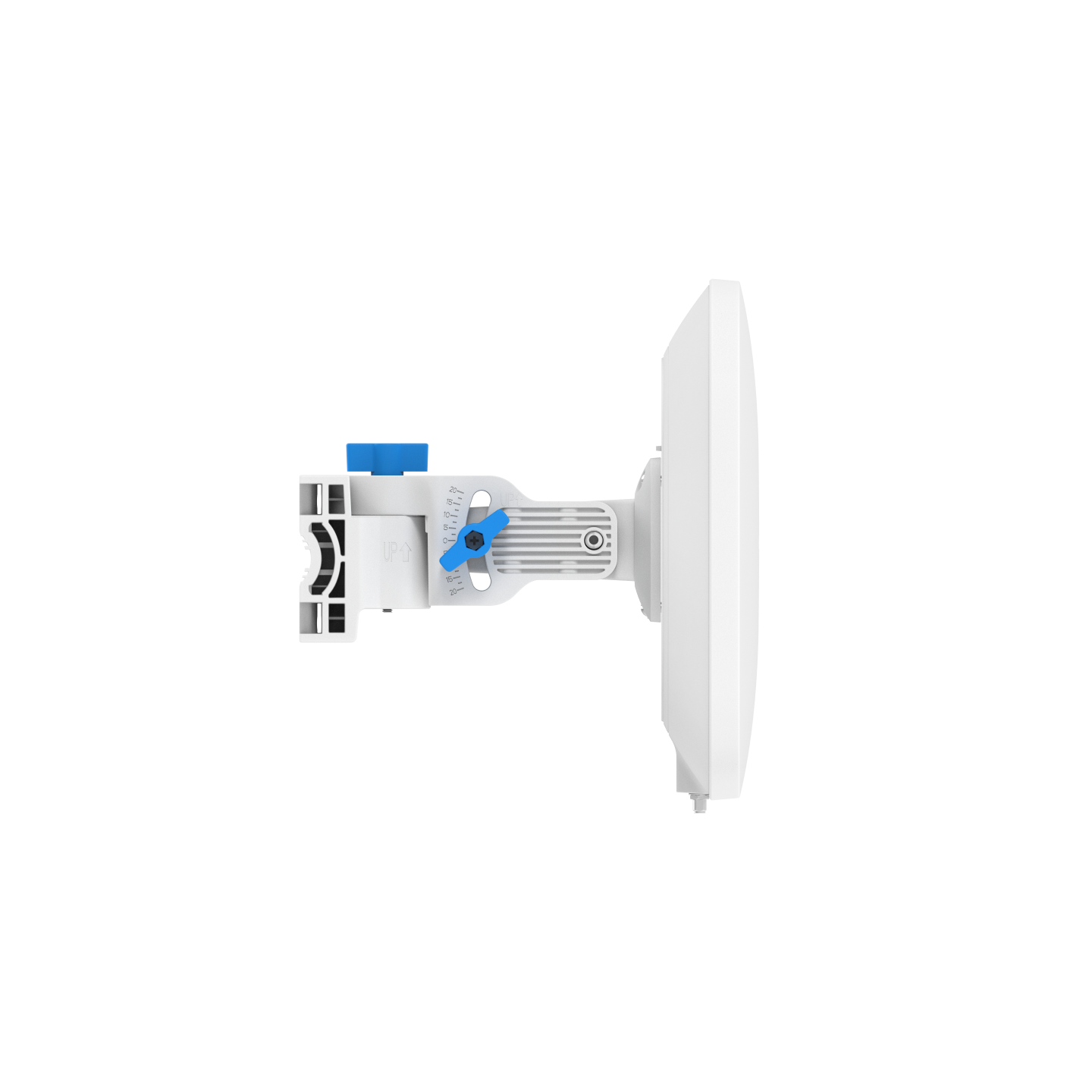

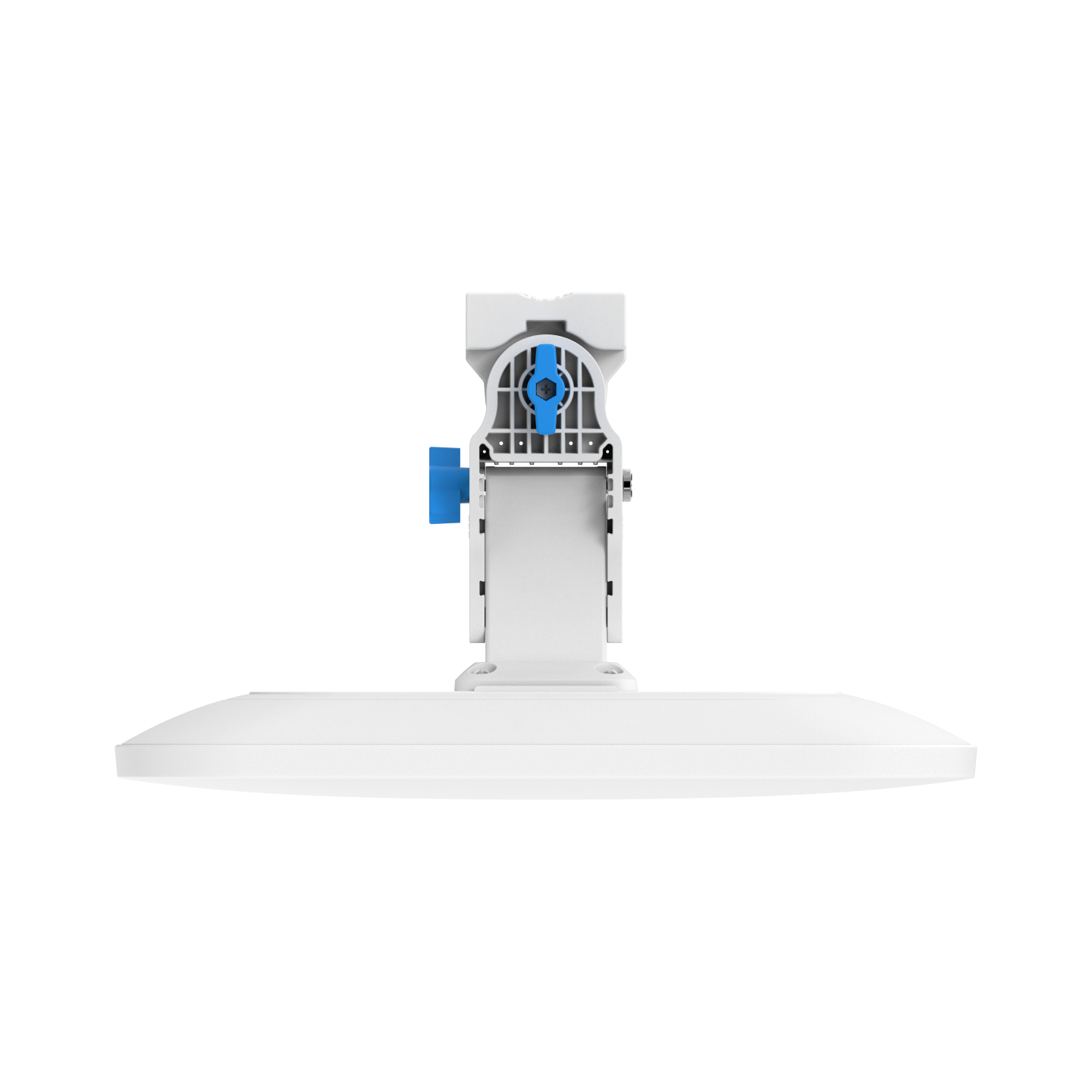

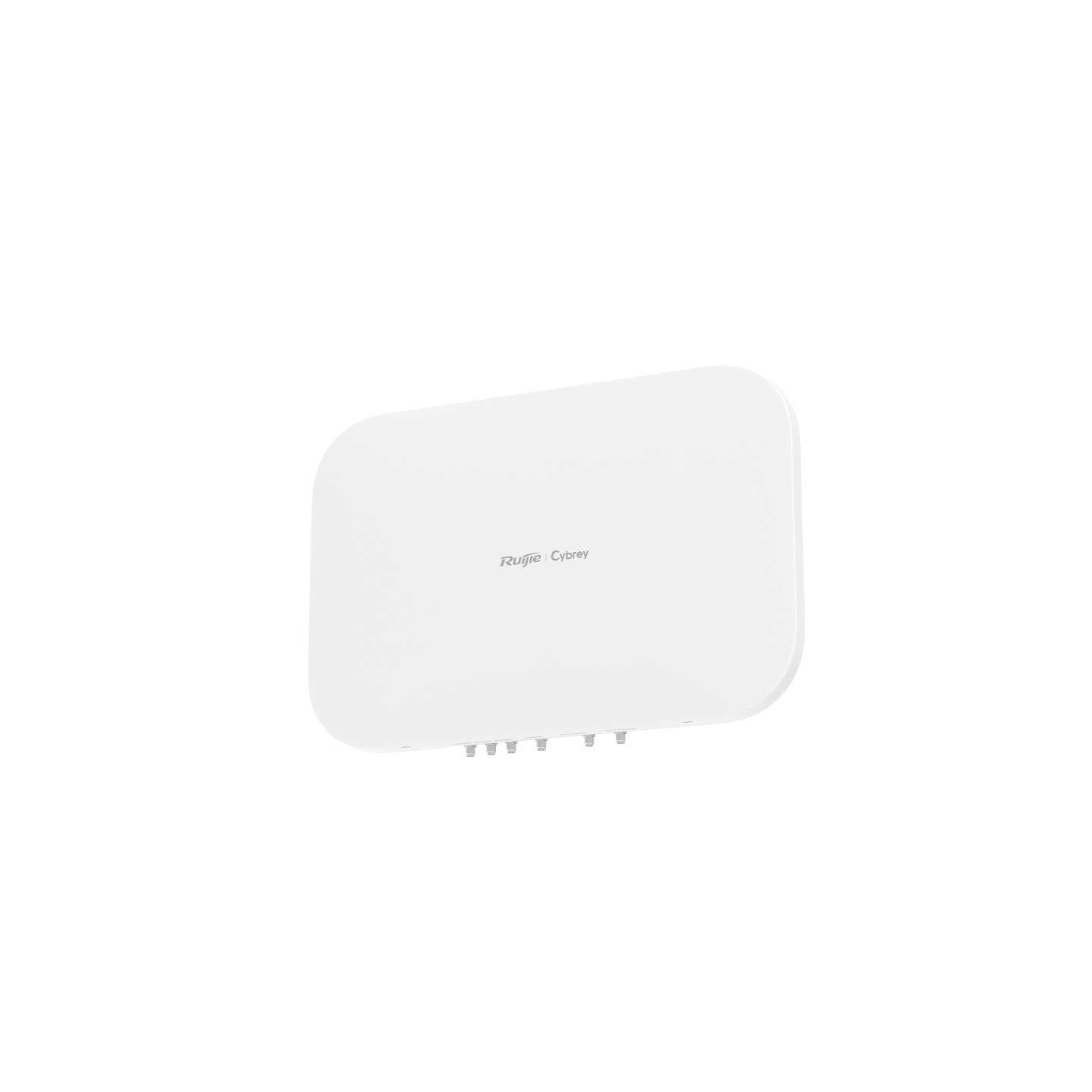

RG-ANT90-T6, Tri‑band Six‑Element Cross‑Polarized High‑Gain Outdoor Antenna

Offices, hotels, warehouses, hospitals, and schools.

Models
RG-ANT30-D2

2 x RP-SMA female antenna connectors

 RG-ANT90-T2

2 x RP-SMA female antenna connectors

 RG-ANT90-T6

6 x RP-SMA female antenna connectors
Series
Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs
Datasheet Sales Enquiry
Highlight Features
  • Six-element, cross-polarized antenna supporting tri-band 2.4/5/6 GHz Wi-Fi.
  • 11 dBi peak gain on 5 GHz and 6 GHz, 9 dBi on 2.4 GHz for stronger, longer-range signals.
  • 65° horizontal and 18° vertical beamwidths on 5 and 6 GHz, plus 60° horizontal and 20° vertical beamwidths on 2.4 GHz for precise signal focusing, reduced interference, and less wasted coverage.
    Sales Enquiry

    Key Specifications

    View More

    Features

    RG-ANT90-T6 Tri‑band Six‑Element Cross‑Polarized High‑Gain Outdoor Antenna

    65° Beamwidth Antenna

    Simplified deployment: Fewer feedlines and mounting points Focused signal with broad lateral coverage, balancing coverage efficiency & signal strength

    In the Box

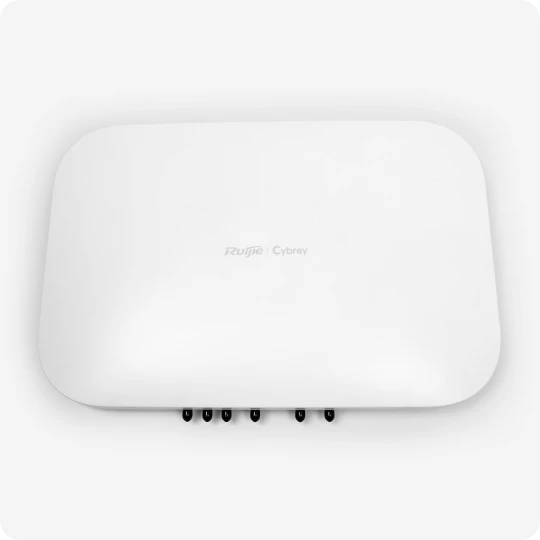

    • RG-ANT90-T6

      x1

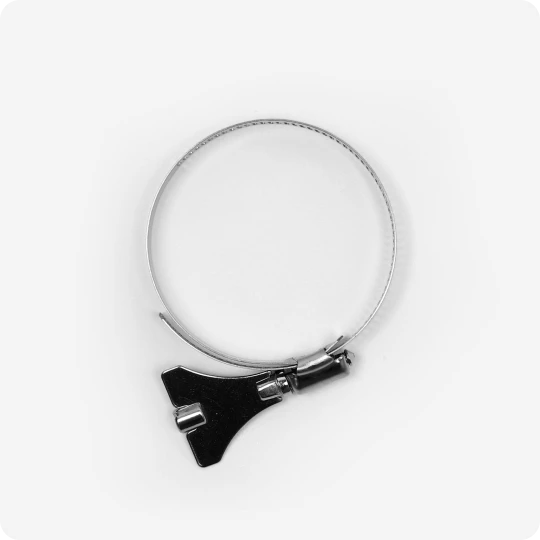

    • Hose clamp

      x2

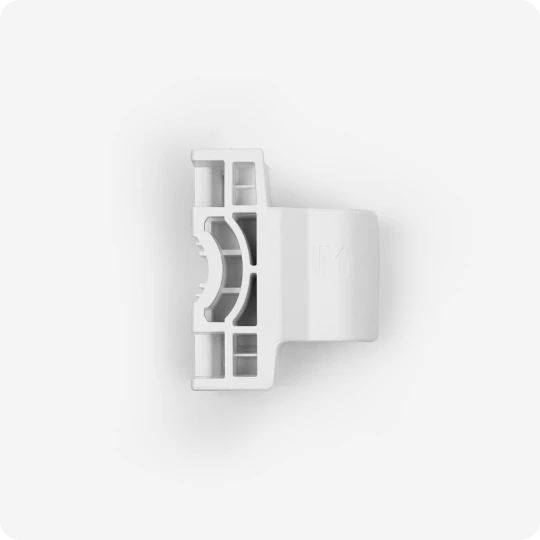

    • Base bracket

      x1

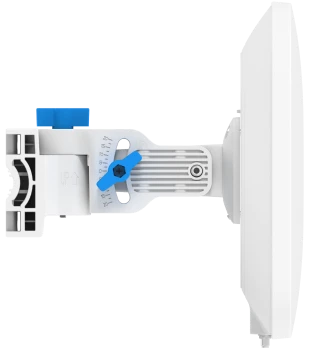

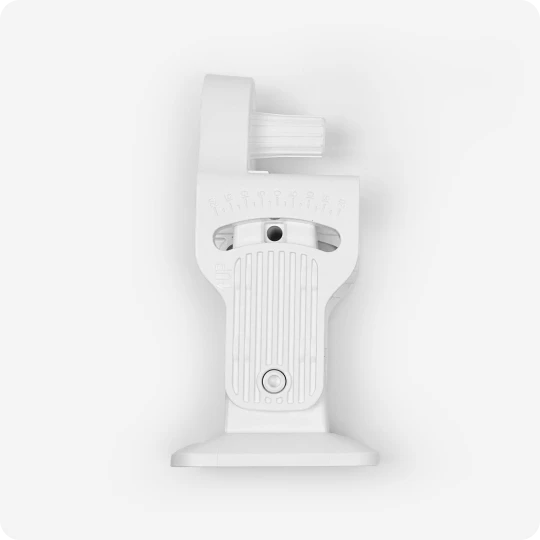

    • Antenna mounting assembly

      x1

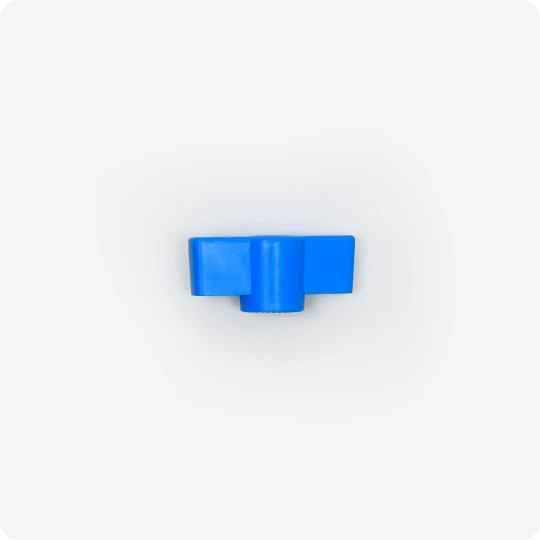

    • Wing knob

      x2

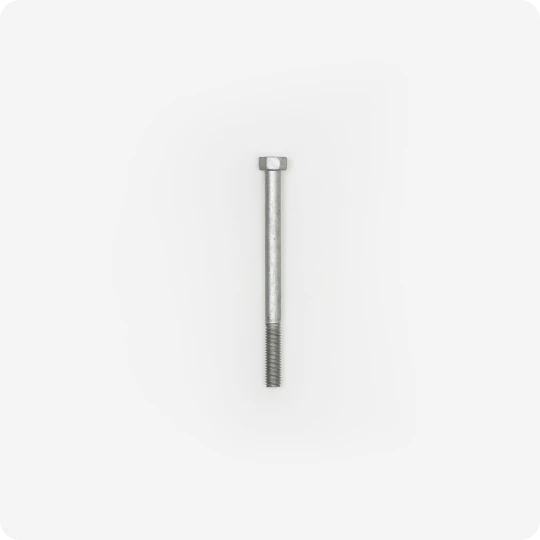

    • M5 x 66 mm Phillips hex head machine screw

      x2

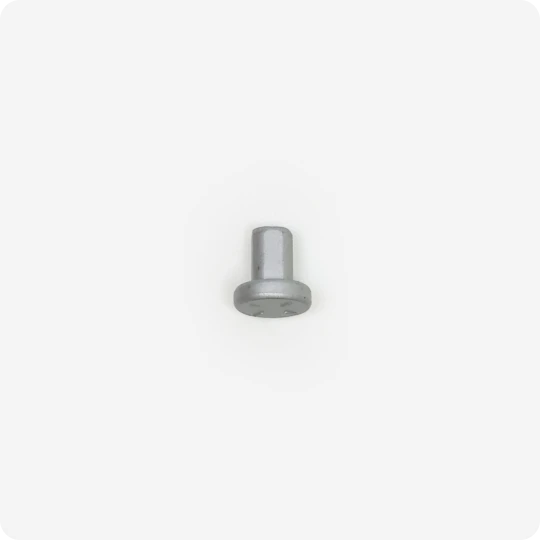

    • Positioning nut

      x1

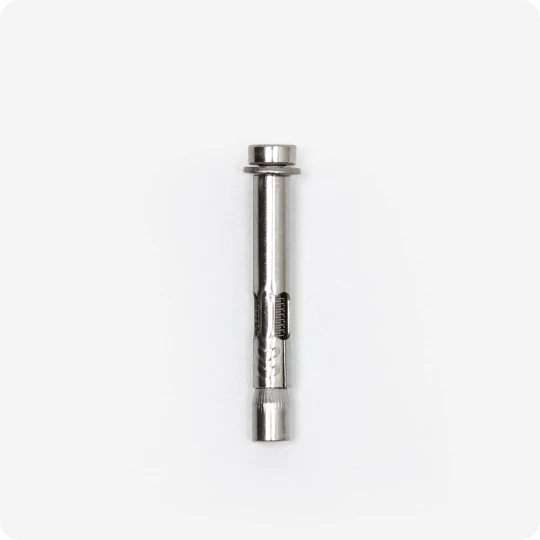

    • M6 x 70 mm expansion anchor

      ×2

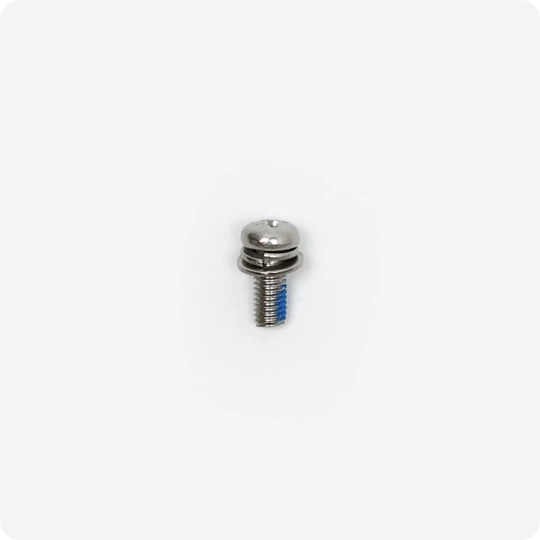

    • M5 x 12 mm Phillips pan head screw

      ×3

    *Accessory pictures are for reference only. Specifications of accessories such as power cords vary by sales region and country. Please refer to the actual item received.

    Specifications

    Hardware Specifications
    Antenna
    Operating frequency bands
    • Band 1: 2400–2500 MHz
      Band 2: 5150–6425 MHz
      Band 3: 6425–7125 MHz
    Polarization
    • Vertical and horizontal polarization
    Antenna gain
    • Band 1: 9 dBi
      Band 2: 11 dBi
      Band 3: 11 dBi
    3-dB azimuth beamwidth
    • Band 1: 65°±10°
      Band 2: 65°±10°
      Band 3: 60°±10°
    3-dB elevation beamwidth
    • Band 1: 27°±5°
      Band 2: 15°±5°
      Band 3: 15°±5°
    Voltage standing wave ratio
    • Band 1: < 2
      Band 2: < 2
      Band 3: < 2.5
    Antenna connector
    • 6 x RP-SMA female antenna connectors
    Dimensions and Weight
    Housing material
    • PC
    Unit dimensions (W x D x H)
    • 360 mm x 240 mm x 45 mm (14.17 in. x 9.45 in. x 1.77 in.)
    Packaging dimensions (W x D x H)
    • 417 mm x 349 mm x 86 mm (16.42 in. x 13.74 in. x 3.39 in.)
    Unit weight
    • 0.97 kg (2.14 lbs, without the mounting bracket)
    Packaging weight
    • 2.4 kg (5.29 lbs)
    Color
    • White
    Power Handling
    Maximum input power
    • 30 dBm per port
    Environment and Reliability
    IP rating
    • IP55
    Mounting options
    • Wall-mount and pole-mount
    Certification and Regulatory Compliance
    Certification
    • CE
    Package Contents
    Device
    Main unit
    • 1
    Accessories
    Hose clamp
    • 2
    Antenna adjustment assembly
    • 1
    Base bracket
    • 1
    Wing knob
    • 2
    M5 x 66 mm Phillips hex head machine screw
    • 2
    Positioning nut
    • 1
    M6 x 70 mm expansion anchor
    • 2
    M5 x 12 mm Phillips pan head screw
    • 3
    Manual
    User Manual
    • 1
    Warranty Card
    • 1
