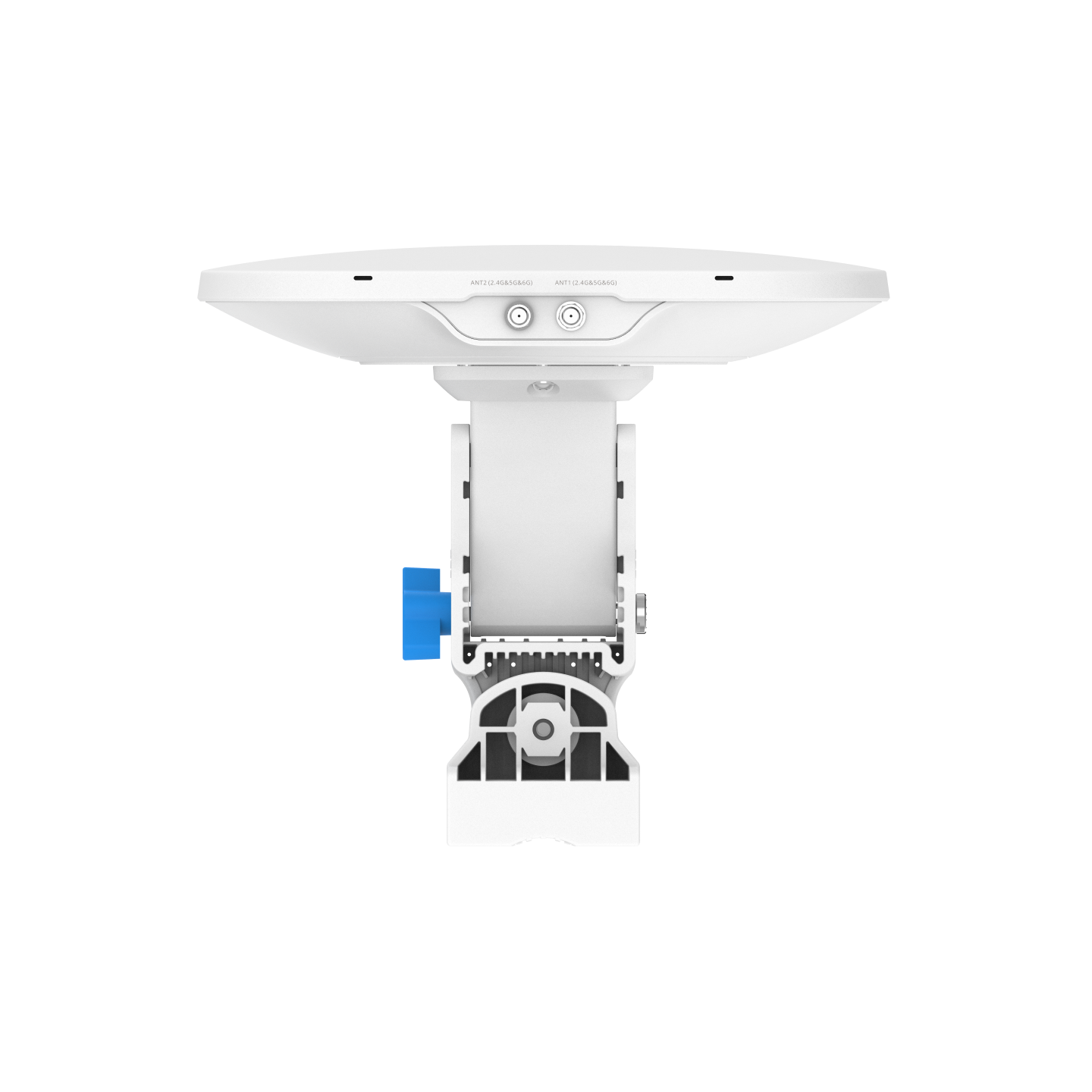

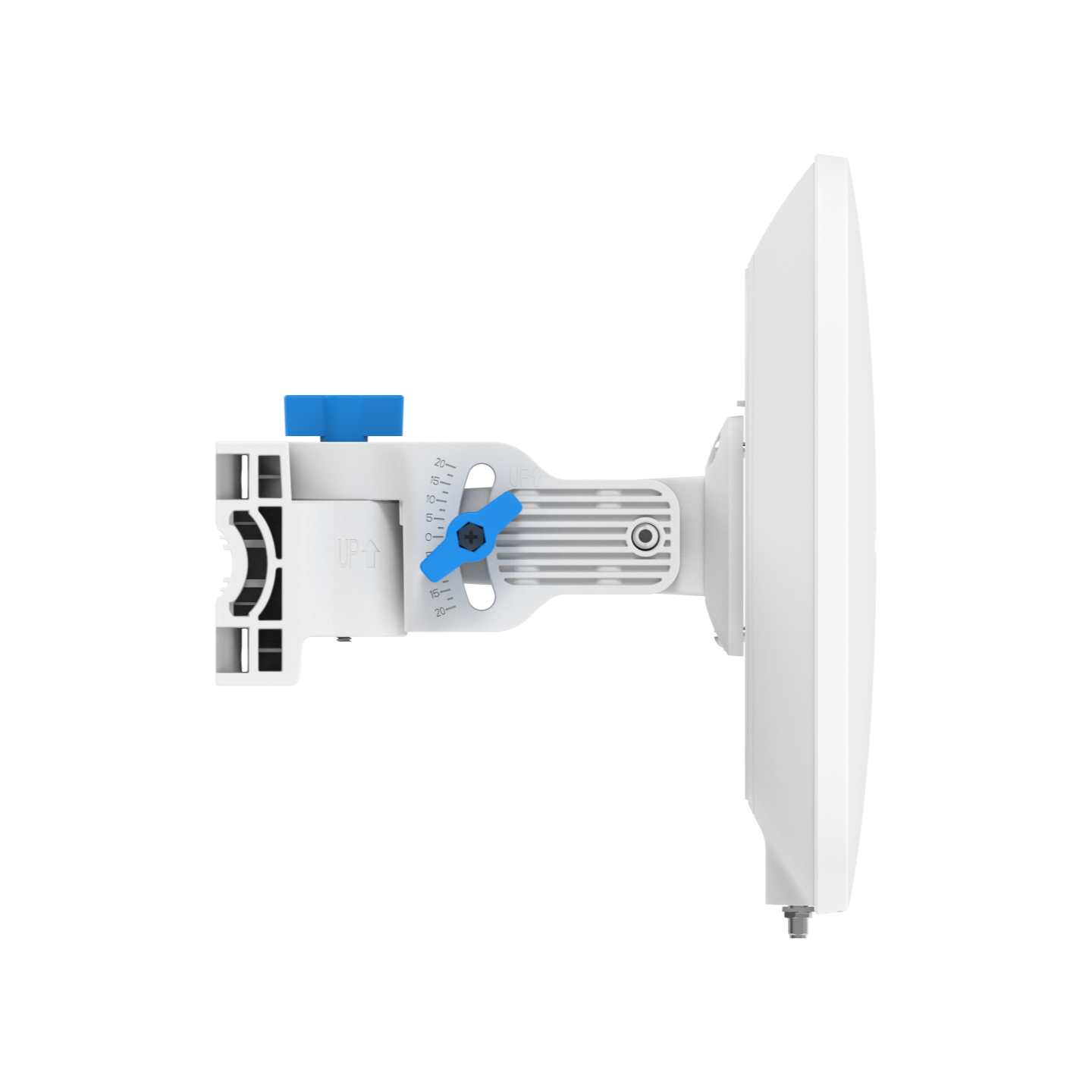

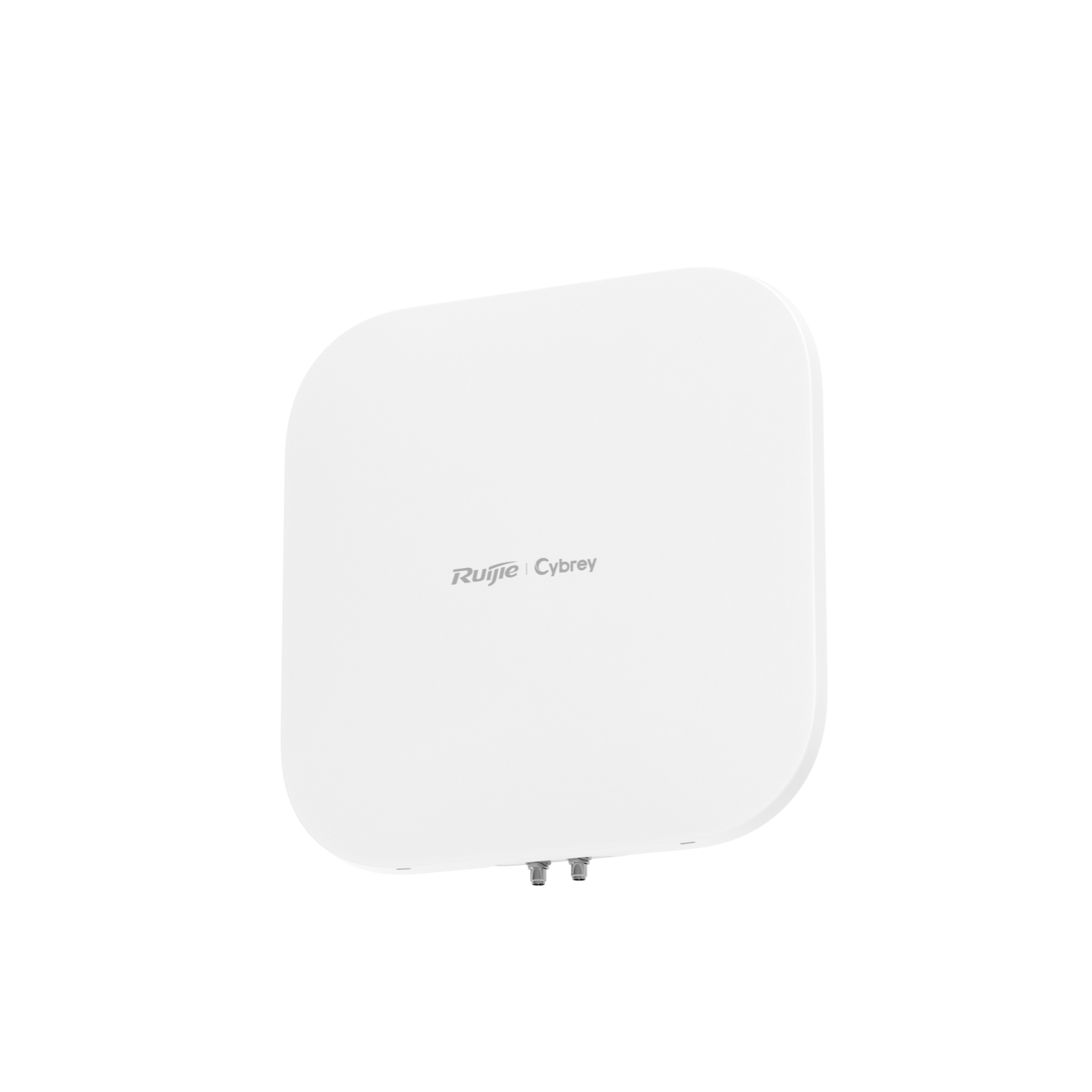

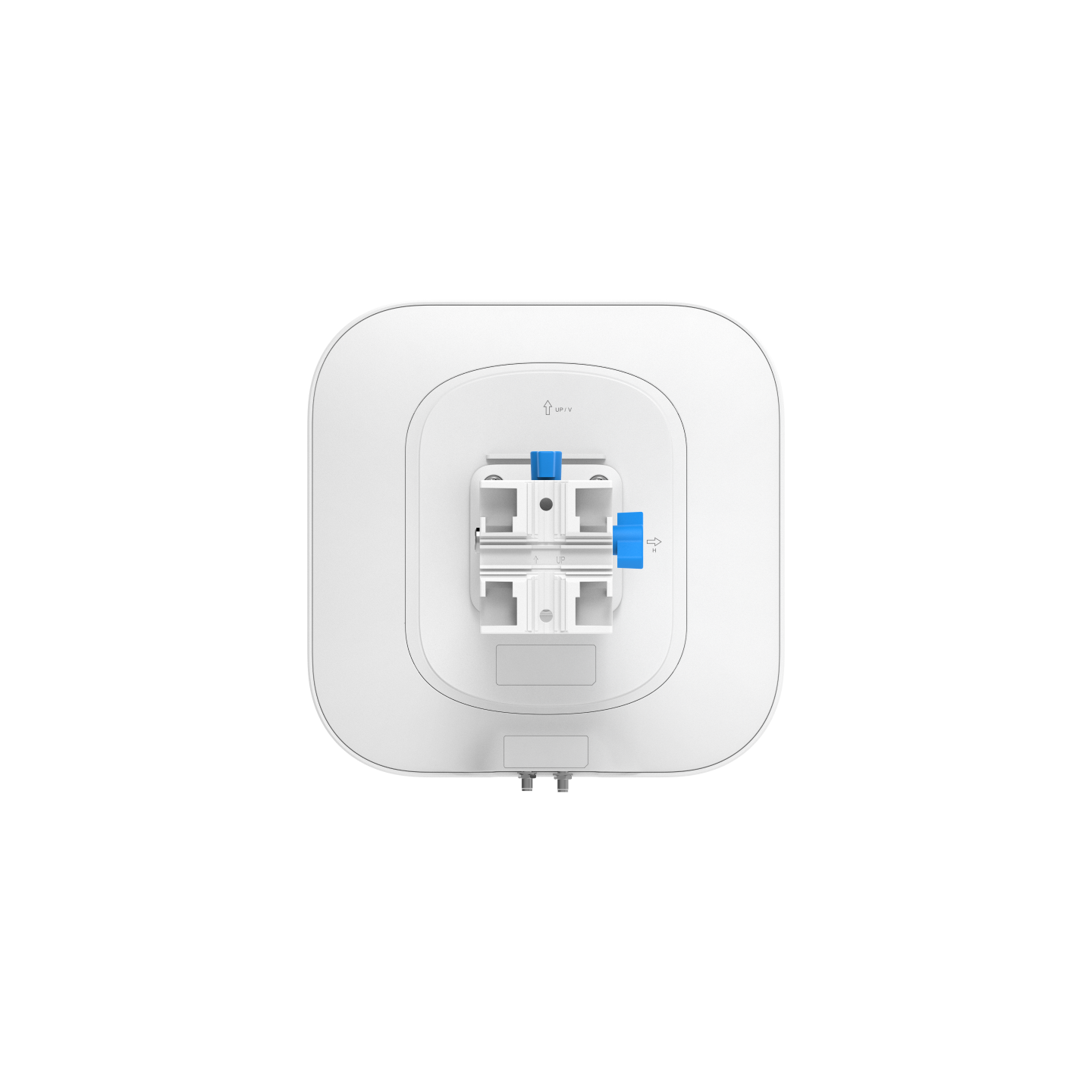

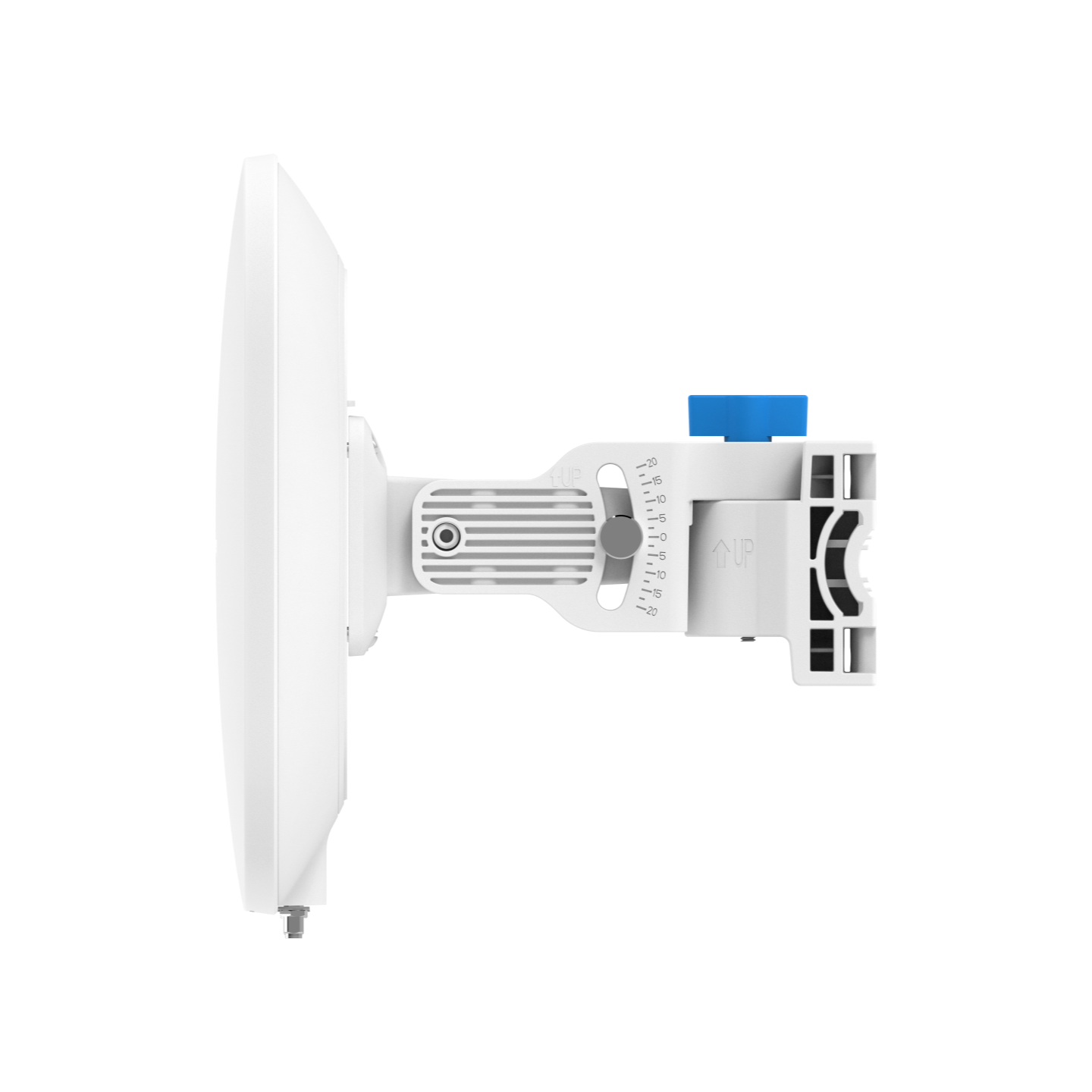

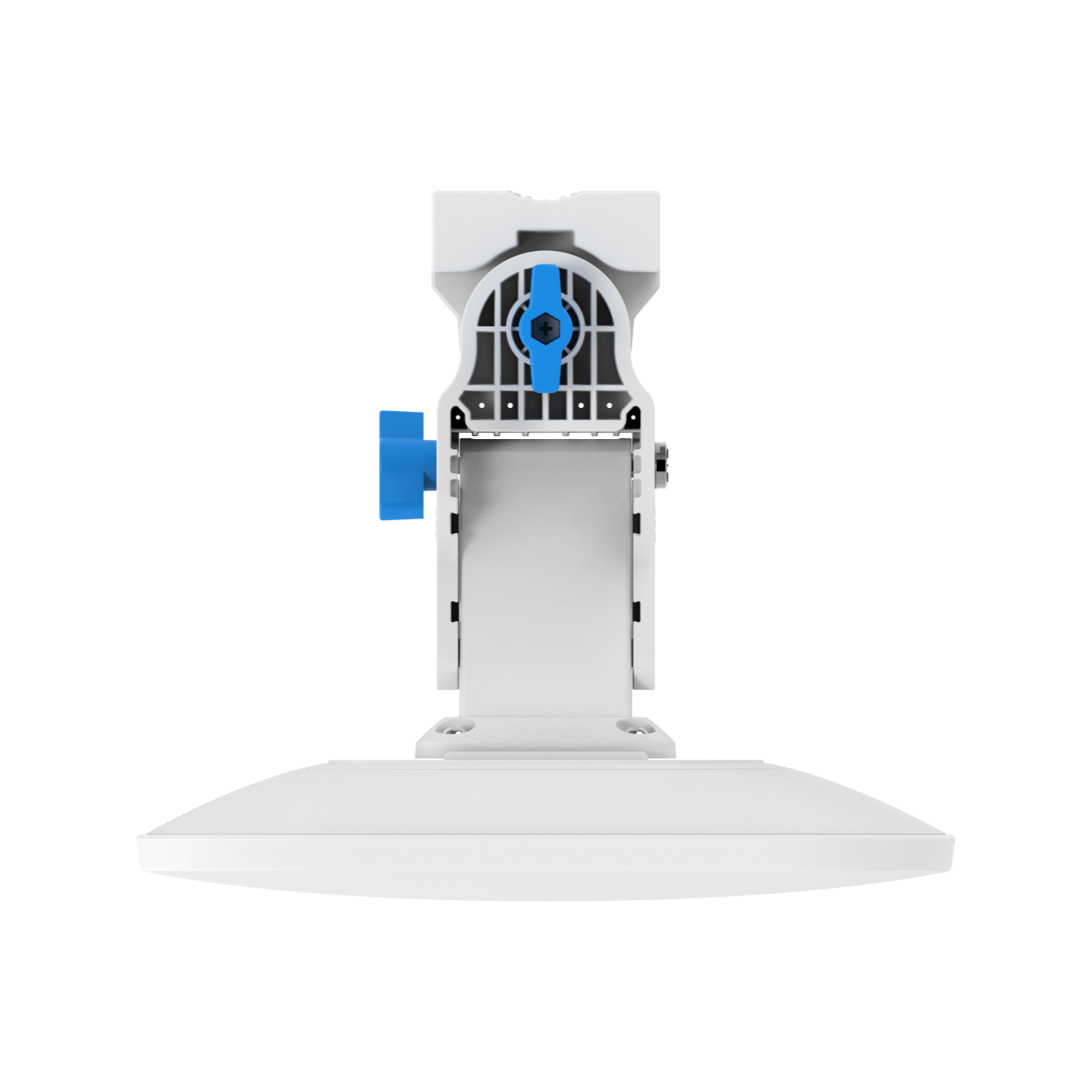

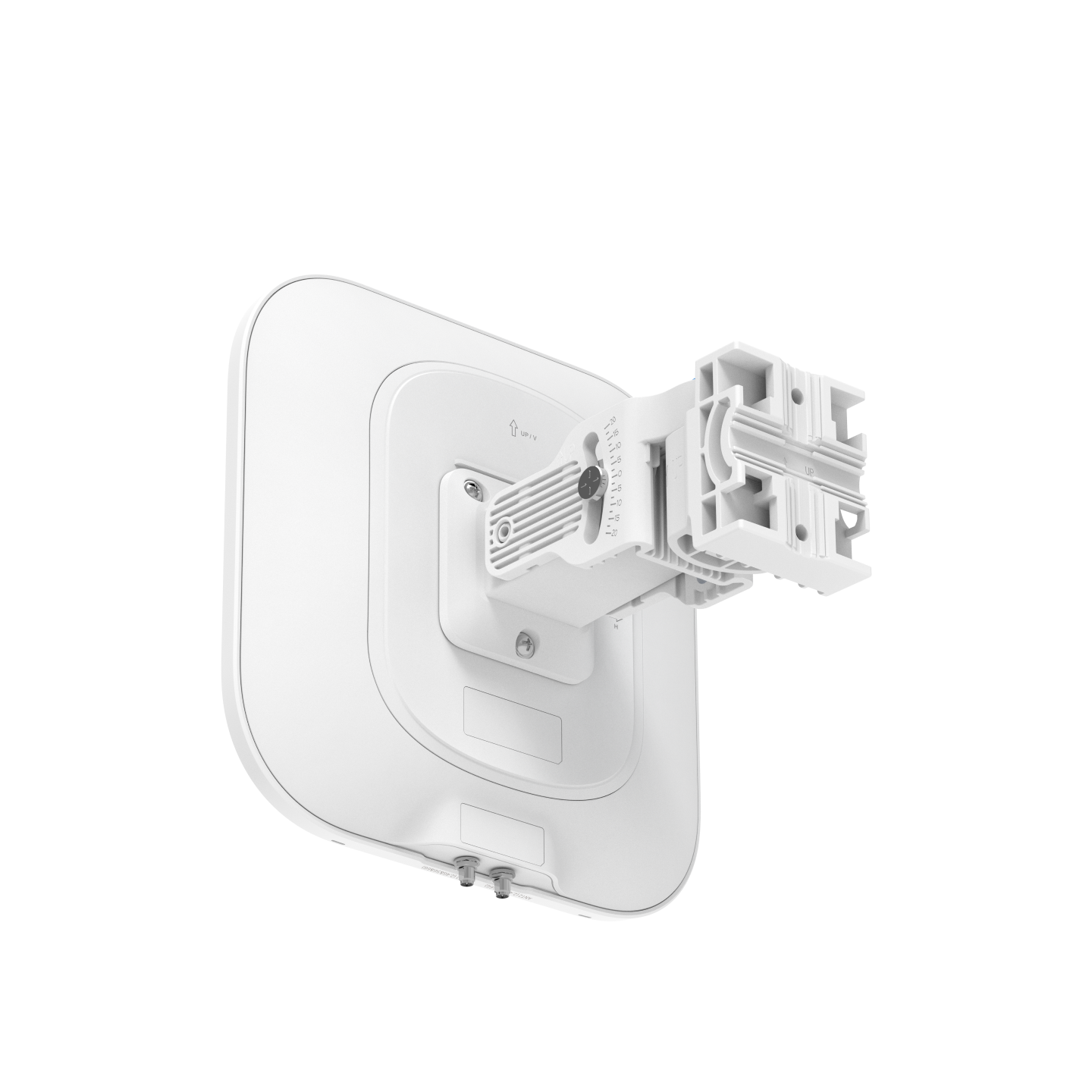

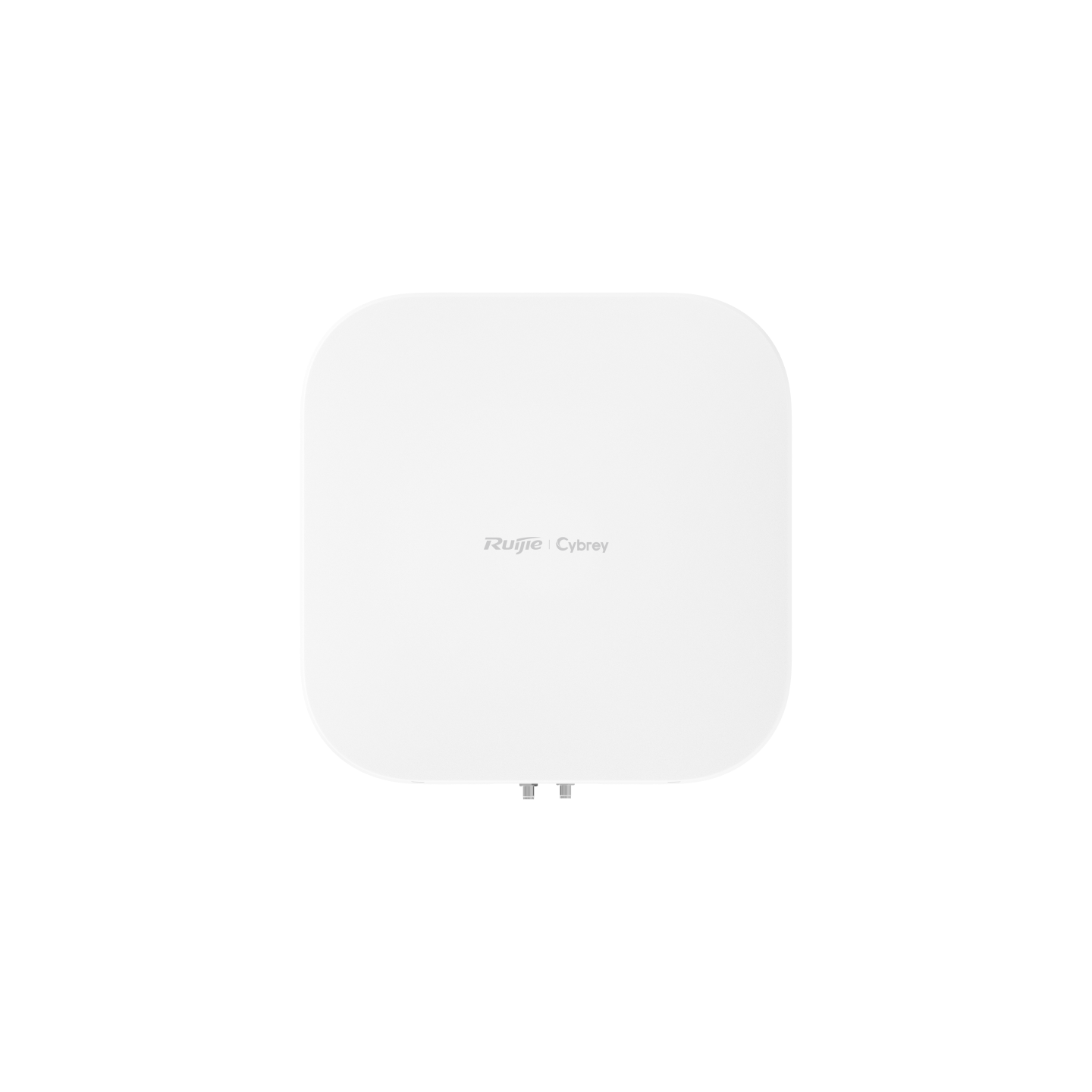

RG-ANT90-T2 Small & Medium Enterprise Networking - 1
RG-ANT90-T2 Small & Medium Enterprise Networking - 2
RG-ANT90-T2 Small & Medium Enterprise Networking - 3
RG-ANT90-T2 Small & Medium Enterprise Networking - 4
RG-ANT90-T2 Small & Medium Enterprise Networking - 5
RG-ANT90-T2 Small & Medium Enterprise Networking - 6
RG-ANT90-T2 Small & Medium Enterprise Networking - 7
RG-ANT90-T2 Small & Medium Enterprise Networking - 8
RG-ANT90-T2 Small & Medium Enterprise Networking - 1
RG-ANT90-T2 Small & Medium Enterprise Networking - 2
RG-ANT90-T2 Small & Medium Enterprise Networking - 3
RG-ANT90-T2 Small & Medium Enterprise Networking - 4
RG-ANT90-T2 Small & Medium Enterprise Networking - 5
RG-ANT90-T2 Small & Medium Enterprise Networking - 6
RG-ANT90-T2 Small & Medium Enterprise Networking - 7
RG-ANT90-T2 Small & Medium Enterprise Networking - 8

RG-ANT90-T2, Tri‑band Two‑Element Cross‑Polarized High‑Gain Outdoor Antenna

Offices, hotels, warehouses, hospitals, and schools.

Models
RG-ANT30-D2

2 x RP-SMA female antenna connectors

 RG-ANT90-T2

2 x RP-SMA female antenna connectors

 RG-ANT90-T6

6 x RP-SMA female antenna connectors
Series
Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs
Datasheet Sales Enquiry
Highlight Features
  • Cross-polarized antenna supporting 2.4/5/6 GHz Wi-Fi.
  • 11 dBi peak gain on 5 GHz and 6 GHz, 9 dBi on 2.4 GHz for stronger, longer-range signals.
  • 65° horizontal and 18° vertical beamwidths on 5 GHz and 6 GHz, plus 60° horizontal and 20° vertical beamwidths on 2.4 GHz for precise signal focusing, reduced interference, and less wasted coverage.
Sales Enquiry

Key Specifications

View More

Features

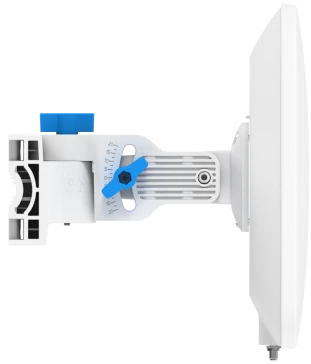

RG-ANT90-T2 Tri‑band Two‑Element Cross‑Polarized High‑Gain Outdoor Antenna

65° Beamwidth Antenna

Simplified deployment: Fewer feedlines and mounting points Focused signal with broad lateral coverage, balancing coverage efficiency & signal strength

In the Box

  • RG-ANT90-T2

    x1

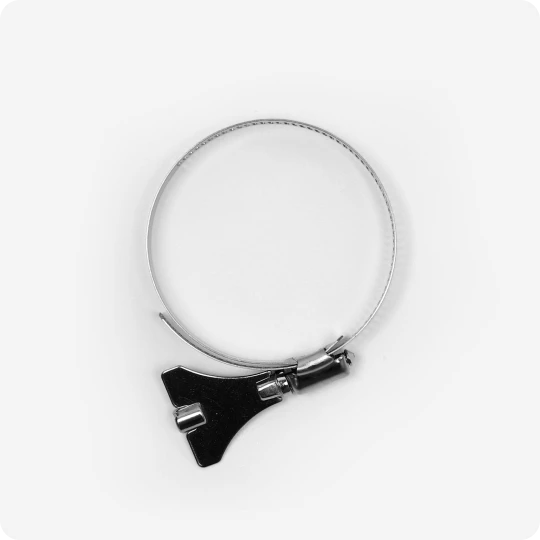

  • Hose clamp

    x2

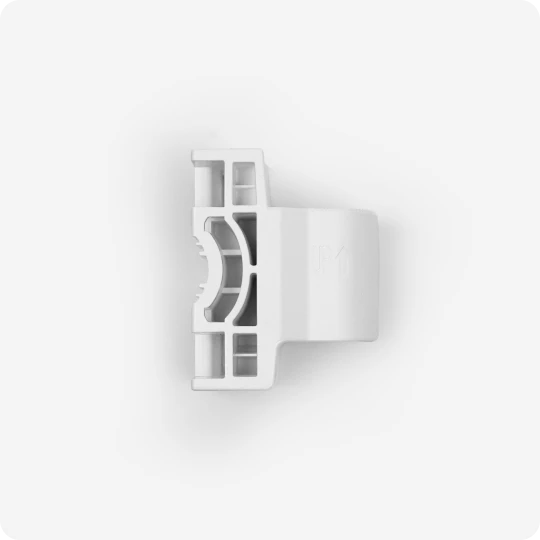

  • Base bracket

    x1

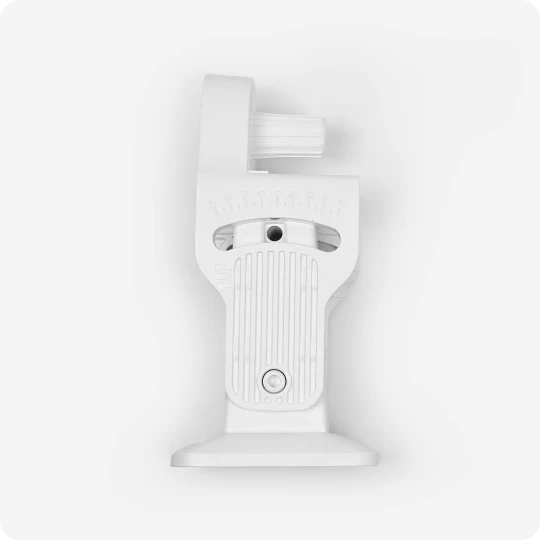

  • Antenna mounting assembly

    x1

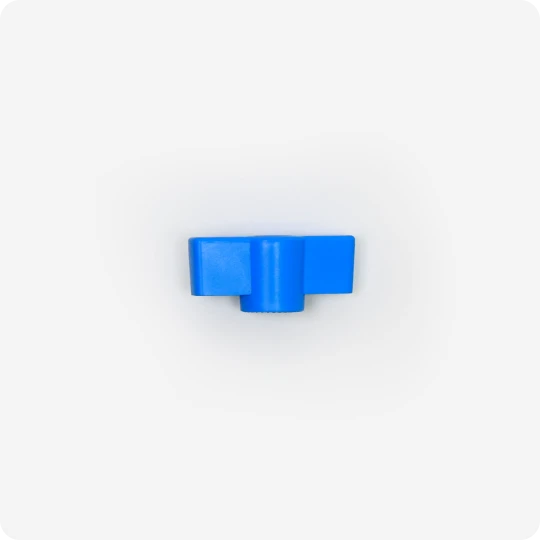

  • Wing knob

    x2

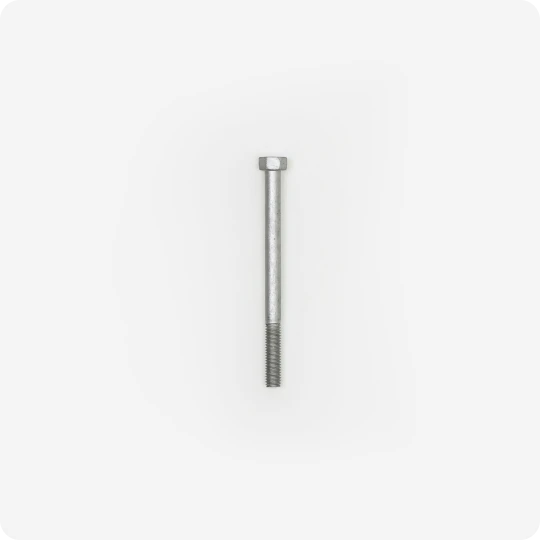

  • M5 x 66 mm Phillips hex head machine screw

    x2

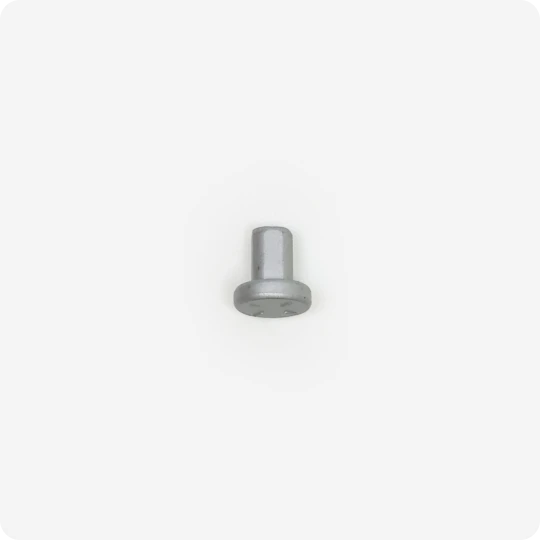

  • Positioning nut

    x1

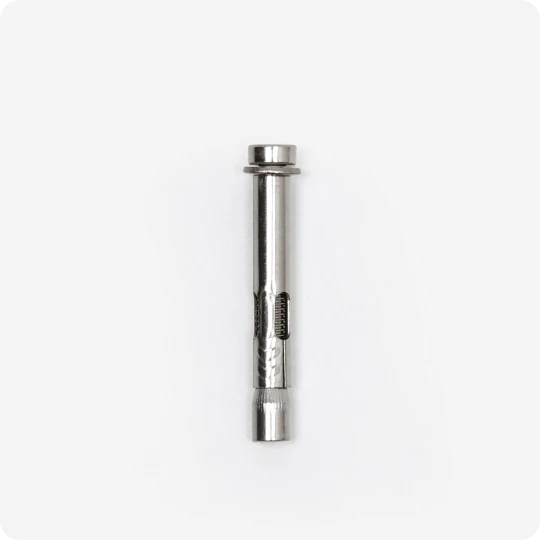

  • M6 x 70 mm expansion anchor

    ×2

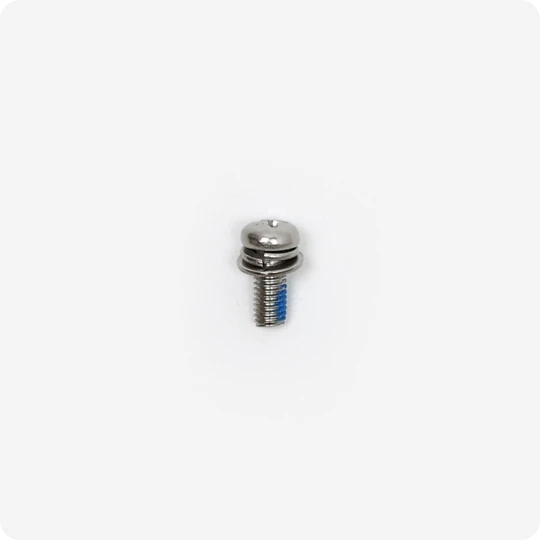

  • M5 x 12 mm Phillips pan head screw

    ×3

*Accessory pictures are for reference only. Specifications of accessories such as power cords vary by sales region and country. Please refer to the actual item received.

Specifications

Hardware Specifications
Antenna
Operating frequency bands
  • Band 1: 2400–2500 MHz
    Band 2: 5150–6425 MHz
    Band 3: 6425–7125 MHz
Polarization
  • Vertical and horizontal polarization
Antenna gain
  • Band 1: 9 dBi
    Band 2: 11 dBi
    Band 3: 11 dBi
3-dB azimuth beamwidth
  • Band 1: 65°±10°
    Band 2: 65°±10°
    Band 3: 60°±10°
3-dB elevation beamwidth
  • Band 1: 27°±5°
    Band 2: 15°±5°
    Band 3: 15°±5°
Voltage standing wave ratio
  • Band 1: < 2
    Band 2: < 2
    Band 3: < 2.5
Antenna connector
  • 2 x RP-SMA female antenna connectors
Dimensions and Weight
Housing material
  • PC
Unit dimensions (W x D x H)
  • 240 mm x 240 mm x 41.5 mm (9.45 in. x 9.45 in. x 1.63 in.)
Packaging dimensions (W x D x H)
  • 349 mm x 349 mm x 84 mm (13.74 in. x 13.74 in. x 3.31 in.)
Unit weight
  • 0.615 kg (1.36 lbs, without the mounting bracket)
Packaging weight
  • 1.8 kg (3.97 lbs)
Color
  • White
Power Handling
Maximum input power
  • 30 dBm per port
Environment and Reliability
IP rating
  • IP55
Mounting options
  • Wall-mount and pole-mount
Certification and Regulatory Compliance
Certification
  • CE
Package Contents
Device
Main unit
  • 1
Accessories
Hose clamp
  • 2
Antenna adjustment assembly
  • 1
Base bracket
  • 1
Wing knob
  • 2
M5 x 66 mm Phillips hex head machine screw
  • 2
Positioning nut
  • 1
M6 x 70 mm expansion anchor
  • 2
M5 x 12 mm Phillips pan head screw
  • 3
Manual
User Manual
  • 1
Warranty Card
  • 1
Show More
