Campus Switches RG-S5315-24MG6XS-UP-E Next-Generation 24-Port 2.5GE Multi-GE Access Switches with 10GE Uplinks, Supporting up to 90 W (PoE++) Power Output per Port

Features

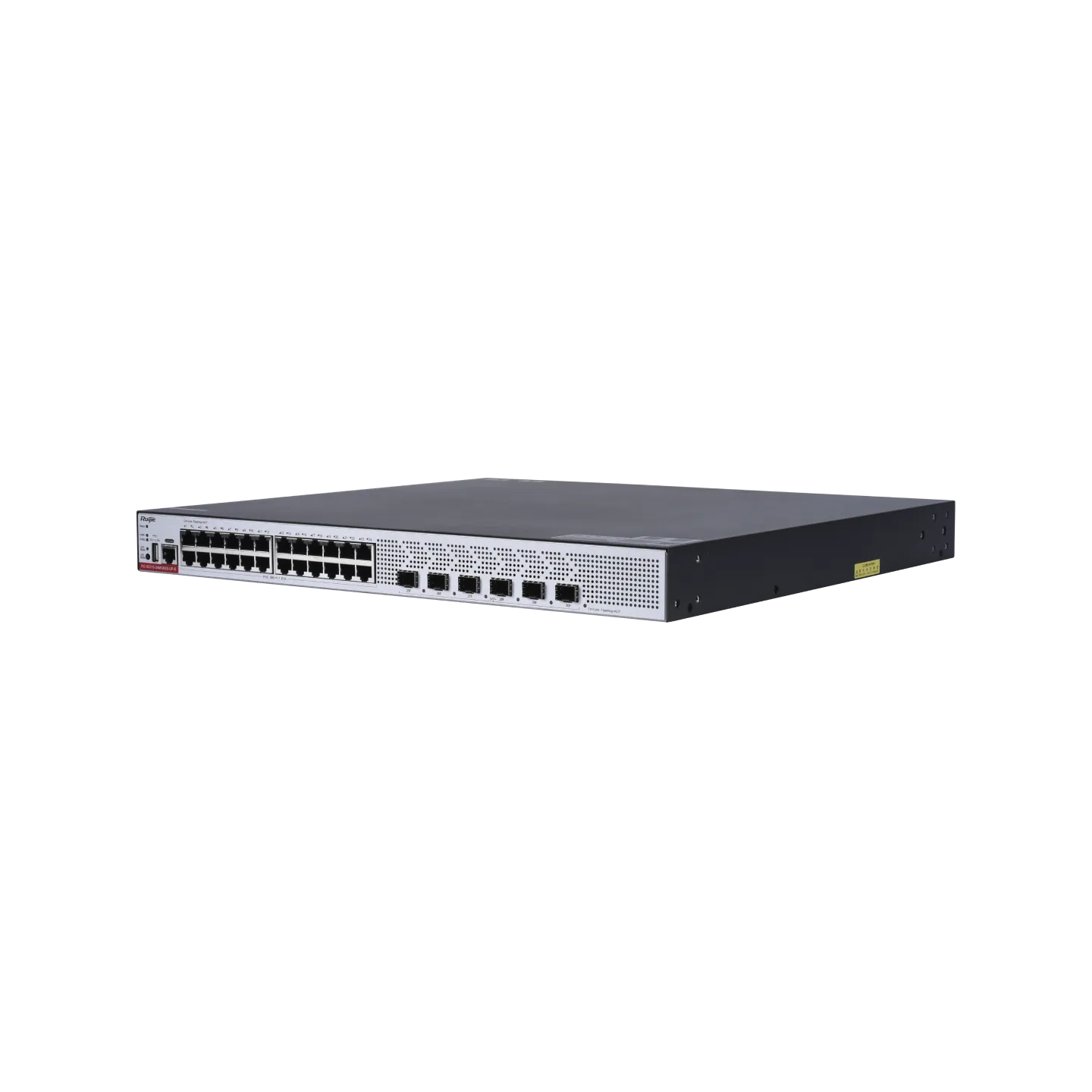

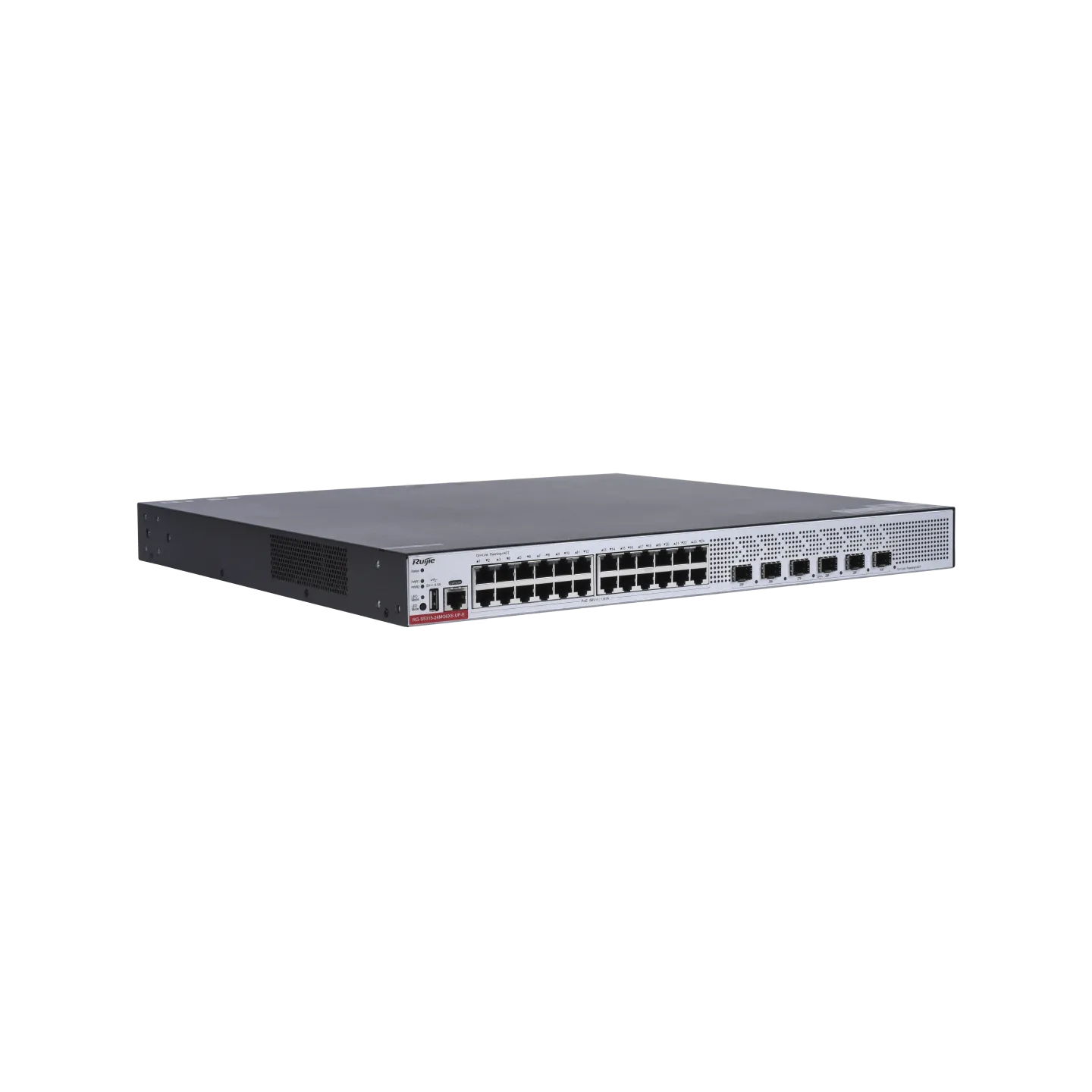

2.5GE Multi-GE Switch RG-S5315-24MG6XS-UP-E

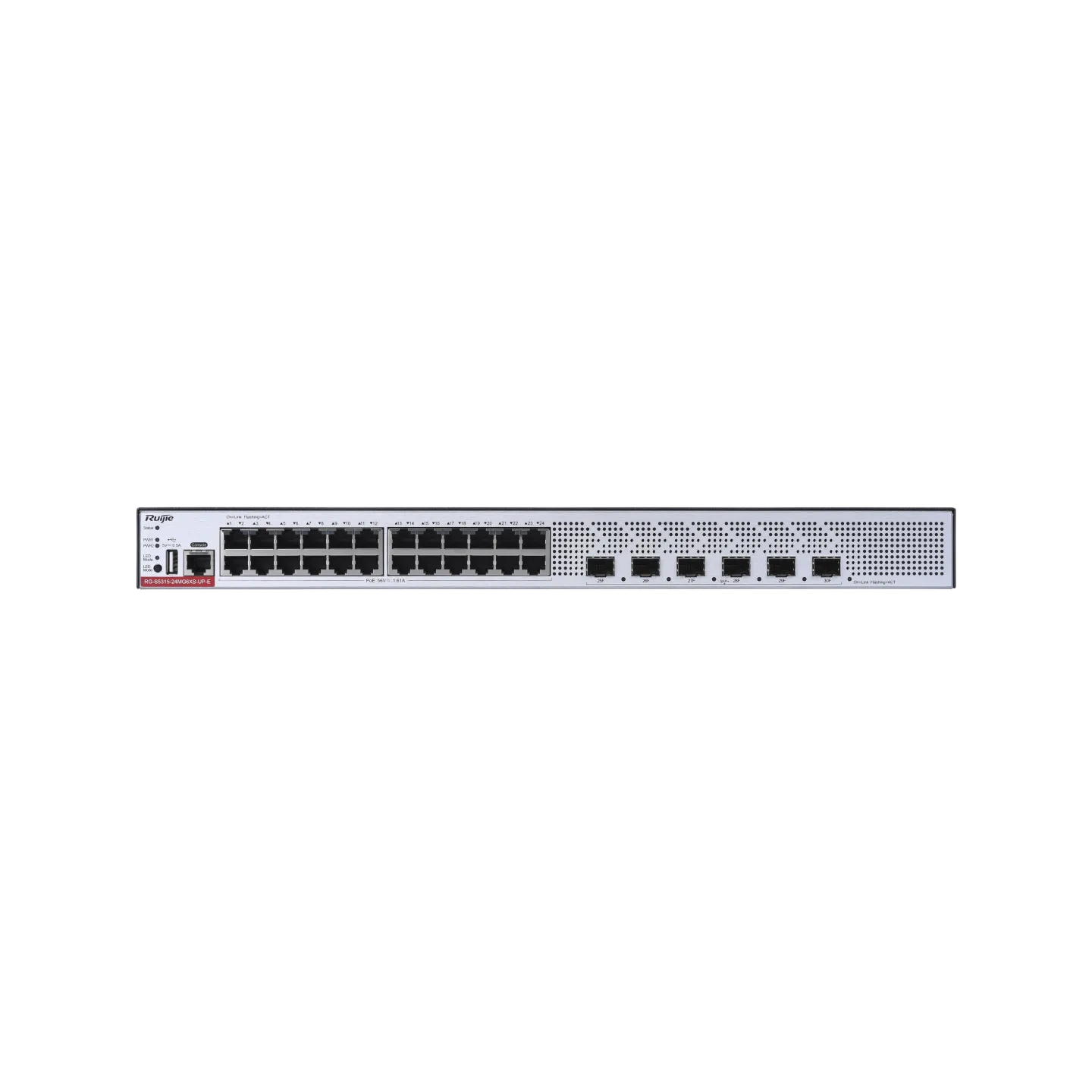

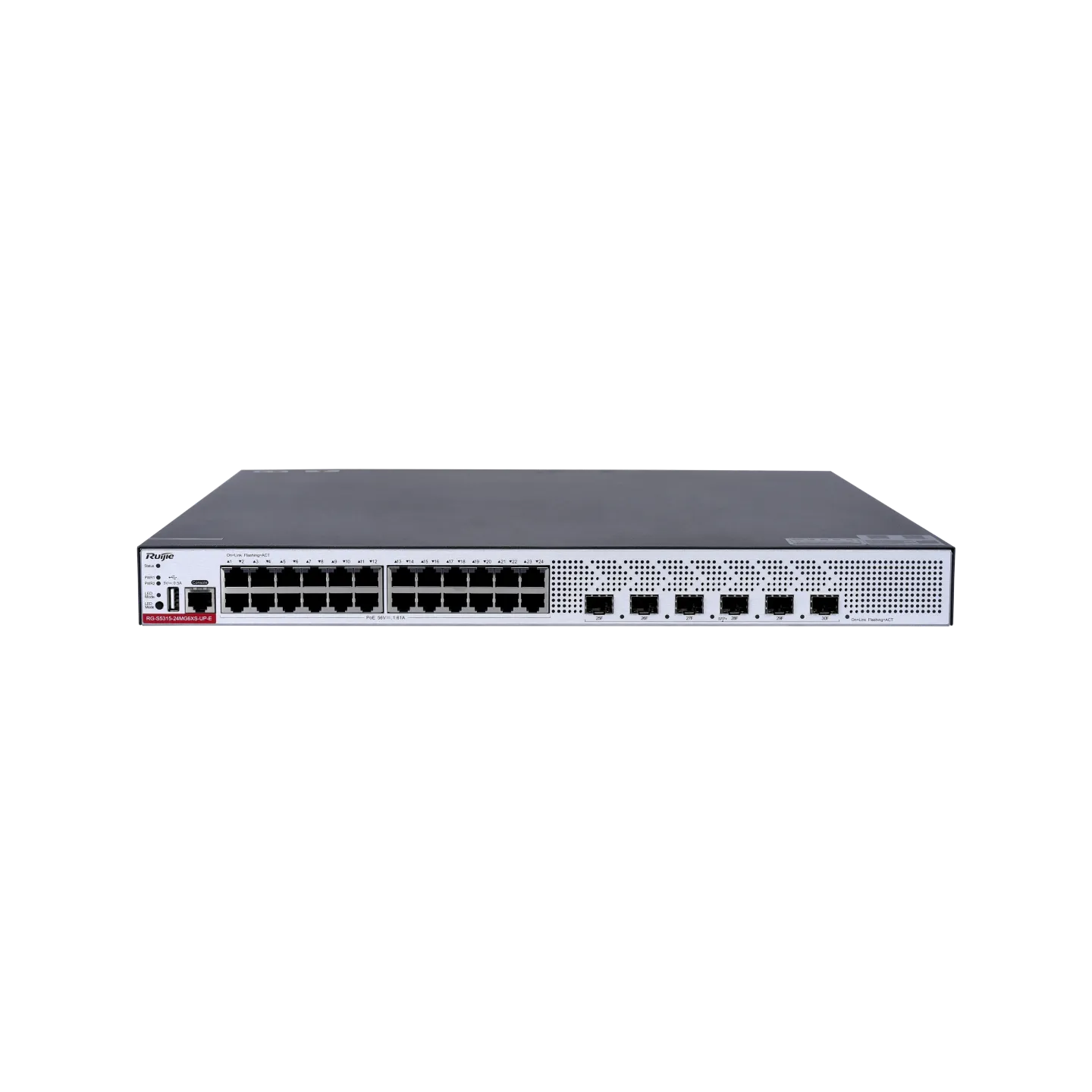

The RG-S5315-E series switch provides 24 100/1000/2500BASE-T ports for access and six 1G/2.5G/10G SFP+ ports for uplink communication, which can better adapt to terminals and deliver faster hardware processing performance and more convenient operation experience.

Ports

Dimensions

2.5GE Bandwidth Effortlessly Handles Wi-Fi 7 or Later APs, Beyond Gigabit Limits

Upgrade from 1GE to 2.5GE, 2.5X faster without changing cables, ideal for Wi-Fi 6E/7 or Later APs and enabling smoother 4K/8K video/streaming media, High-definition video conferencing and AR/VR applications.

Supports PoE++, Delivering Up to 90 W per Port to Power a Variety of Terminal Devices

The switch automatically detects and supplies the optimal power for connected PoE devices. With each port supporting up to 90 W (PoE++) and a total PoE budget of 1,600 W, it meets the demands of high-power applications such as security surveillance, teleconferencing systems, and Wi-Fi 6E/7 access points.

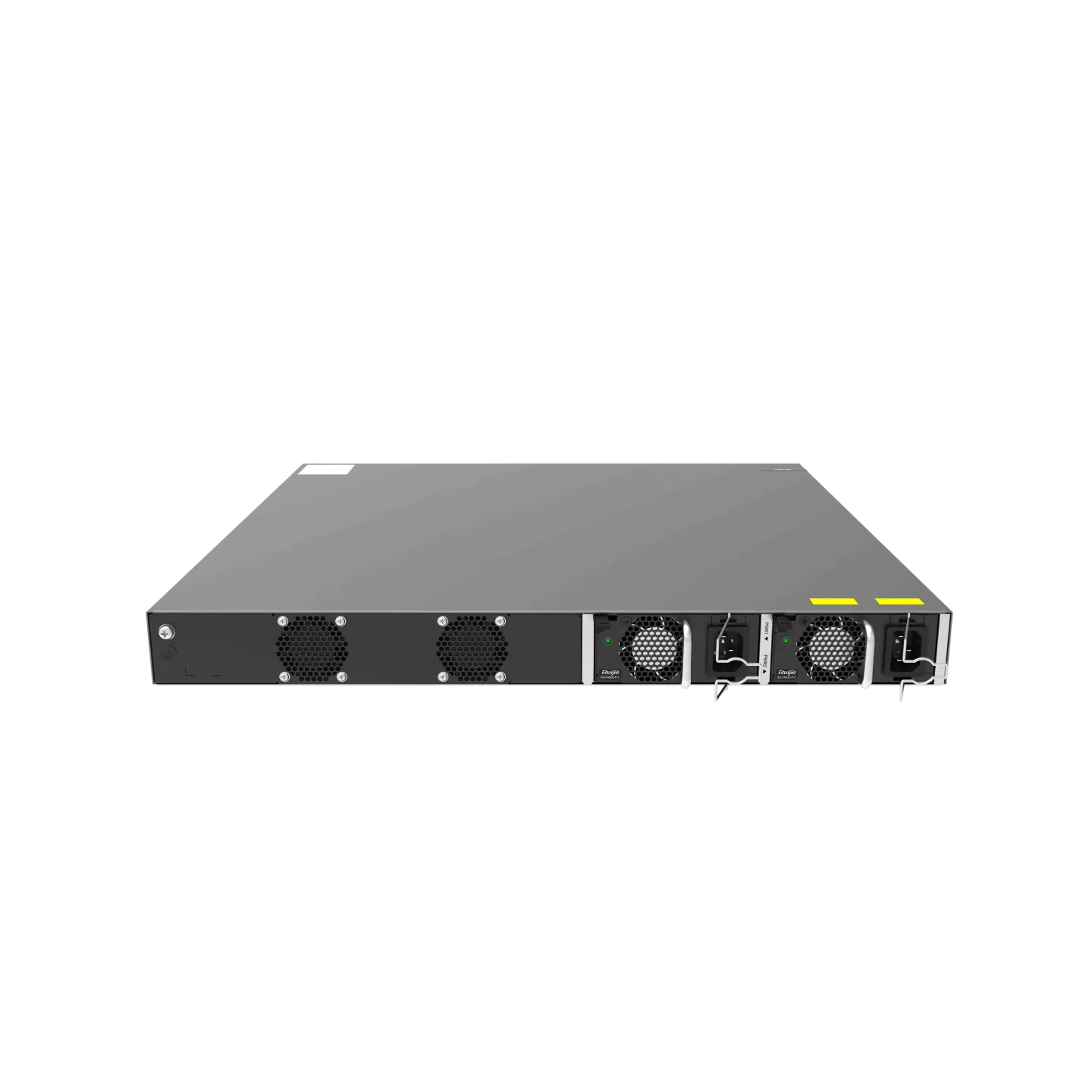

Hot-Swappable Power Modules, Supporting 1+1 Power Supply Redundancy

2 power modules slots supports hot-swappable and 1+1 redundancy, realizing failover within seconds and service continuity during power replacement, ensuring link reliability.

RG-UNC Unified Networking Central – Simplified Management, Automated and Effortless Operations

Unified platform management, real-time monitoring of network status, comprehensive insight into the user experience chain, intelligent analysis and diagnosis, and comprehensive protection of the business experience.
Supports end-to-end operation and maintenance of optical links, and makes optical networks visible, manageable, and controllable.

Specifications

Hardware Specifications

Port Specifications	RG-S5315-24MG6XS-UP-E
Fixed service port	24 x 100/1000/2500BASE-T ports, supporting PoE/PoE+/ PoE++ 6 x 1GE/2.5GE/10GE SFP+ ports
Module slot	2 x power module slots
Power module	RG-PA1000I-P-F RG-PA600I-P-F
Fixed management port	1 x RJ45 console port
USB port	1 x USB port

System Specifications	RG-S5315-24MG6XS-UP-E
System packet forwarding rate *1	240 Gbps
System switching capacity *2	180 Mpps
CPU	Dual-core CPU built-in MAC processor, each core with the clock speed of 1.0 GHz
Real-time clock (RTC)	Supported
BootROM	16 MB
Flash memory	256 MB
Memory	1 GB
Switch buffer	2 MB

*1 means the system's packet forwarding rate.
*2 means the system's switching capacity.

Dimensions and Weight	RG-S5315-24MG6XS-UP-E
Unit dimensions (W x D x H)	442 mm × 420 mm × 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Shipping dimensions (W x D x H)	575 mm × 568 mm × 185 mm (22.64 in. x 22.36 in. x 7.28 in.)
Rack height	1 RU
Unit weight	4.1 kg (9.04 lbs)
Shipping weight	6.8 kg (14.99 lbs)

Power Supply and Consumption	RG-S5315-24MG6XS-UP-E
Power supply	2 x pluggable power modules
Power module redundancy	Dual IEEE 802.3at or IEEE 802.3af power supplies are supported, and power supplies can work in hot standby mode.
Power input	RG-PA600I-P-F (AC input): - Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz - Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz - Maximum input current: 8 A RG-PA1000I-P-F (AC input 1): - Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz - Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz - Maximum input current: 12 A RG-PA1000I-P-F (AC input 2): - Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz - Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz - Maximum input current: 8 A
Maximum output power	RG-PA600I-P-F: 600 W RG-PA1000I-P-F: - 100 V AC to 130 V AC: 930 W; - 200 V AC to 240 V AC: 1000 W;
PoE port	All RJ45 ports support PoE/PoE+/PoE++ (IEEE802.3af/at/bt) power supply.
PoE cable pairs	Four pairs (1--2, 3--6, 4--5 and 7--8 pairs)
PoE output power	Each PoE port provides up to 90 W of power. The maximum power depends on the configured power supply. - 1 x RG-PA600I-P-F: 470 W - 2 x RG-PA600I-P-F: 940 W; - 1 x RG-PA1000I-P-F: 800 W - 2 x RG-PA1000I-P-F: 1600 W; a maximum output of 1600 W over 24 ports
Maximum power consumption	≤ 75 W (without PoE load) < 1675 W (with PoE full load)

Note: The maximum number of powered devices supported by the switch is determined by the available power of the switch and the actual power consumption of each device.

Environment and Reliability	RG-S5315-24MG6XS-UP-E
Temperature	Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: --40°C to +70°C (--40°F to +158°F) Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Humidity	Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing)
Altitude	Operating altitude: 0--5,000 m (0--16,404 ft.) Storage altitude: 0--5,000 m (0--16,404 ft.)
Mean time between failure (MTBF)	> 200,000 hours
Fan	2 x fixed fan modules
Heat Dissipation	Air intake from the left and front panel, air exhaust from the rear panel
Acoustic noise	SPL at ambient temperature of 27°C (80.6°F): 31.9 dB (30% PoE load, 2 RG- PA600I-P-F power modules, adjusted fan speed), 32.3 dB (30% PoE load, 2 RG-PA1000I-P-F power modules, adjusted fan speed)
Power module hot swapping	Supported
USB hot swapping	Supported
Cable hot swapping	Supported by all ports
Power Supply Monitoring	Obtaining the power supply model: supported Obtaining the in-place status: supported Fault alarm: supported
Fan monitoring	Automatic fan speed regulation Fan failure alarm
Temperature monitoring	Temperature monitoring: supported Temperature alarm: supported Overtemperature protection: supported
ESD	ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV
Surge protection	Service port: common mode 10 kV Power port: common mode 6 kV, differential mode 6 kV

Certification and Regulatory Compliance	RG-S5315-24MG6XS-UP-E
Safety regulations	IEC 62368-1
EMC regulations	EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Software Specifications

Model	RG-S5315-24MG6XS-UP-E
IEEE 802.1Q VLAN	A maximum of 4,000 IEEE 802.1Q VLANs Port-based VLAN MAC-based VLAN Private VLAN Voice VLAN GARP VLAN Registration Protocol (GVRP)
QinQ	Basic QinQ Selective QinQ
ACL	Standard IP ACLs (IP-based hardware ACLs) Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port IDs) Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) Time-based ACLs Expert ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port ID, protocol type, and time) ACL 80 IPv6 ACL Global ACL ACL redirection
QoS	Port traffic identification Rate limiting on port traffic 802.1p/differentiated services code point (DSCP)/type of service (ToS) traffic classification Eight priority queues per port Strict priority (SP), Weighted Round Robin (WRR), and SP+WRR queue scheduling
Mirroring	One-to-one mirroring, many-to-one mirroring, one-to-many mirroring Switched port analyzer (SPAN) and remote SPAN Flow-based local and remote mirroring
DHCP	DHCP server DHCP client DHCP snooping DHCP relay IPv6 DHCP snooping IPv6 DHCP client IPv6 DHCP relay
Security feature	3-tuple binding (IP address, MAC address, and port) 3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC-based 802.1X authentication MAC Authentication Bypass (MAB) Portal authentication and Portal 2.0 authentication ARP check Dynamic ARP Inspection (DAI) ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection RADIUS and TACAS+ AAA (IPv4/IPv6) for device login management Secure Shell (SSH) and SSH V2.0 Bridge Protocol Data Unit (BPDU) guard IP source guard CPP and NFPP Port protection
Ring network protocol	In compliance with the G.8032 international standard ring network protocol Ethernet Ring Protection Switching (ERPS), well compatible with other products that support this protocol
PoE	IEEE 802.3af/at/bt-compliant power supply Automatic and energy-efficient power supply management modes Uninterruptible power supply upon warm start Scheduled power-on and power-off of PoE ports based on the time policy Port priority
IP routing	IPv4/IPv6 static routing Routing Information Protocol (RIP), RIP next generation (RIPng), Open Shortest Path First Version 2 (OSPFv2), and OSPFv3 Routing policy
Basic IPv6 protocols	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping, IPv6 tracert, and other IPv6 protocols
SAVI	Neighbor Solicitation (NS), Neighbor Advertisement (NA), Router Solicitation (RS), and Router Advertisement (RA) packet attack defense Preventing an unauthorized DHCPv6 server from allocating IPv6 addresses Cache of invalid terminal information
VSU	VSU Local stacking and remote stacking Cross-chassis link bundling within the stack Virtualization through standard service ports
Reliability	1+1 power redundancy Bidirectional Forwarding Detection (BFD) IPv6-based gateway hot backup protocol (Virtual Router Redundancy Protocol Version 3 [VRRPv3])
ZTP	CWMP (TR-069)
Management feature	SNMPv1/v2c/v3, CLI (Telnet/console), RMON (1, 2, 3, 9), Web, SSH, syslog/debugging, Network Time Protocol (NTP)/Simple Network Time Protocol (SNTP), File Transfer Protocol (FTP), Trivial File Transfer Protocol (TFTP), and sFlow

Resources All Resources

Learn about Products or Solutions

Product Datasheet

Order Information

Switch and Power Module

Model	Description
RG-S5315-24MG6XS-UP-E	24 x 100/1000/2500BASE-T ports with auto-negotiation, supporting PoE/PoE+/PoE++ and the maximum PoE output power of 1600 W, 6 x 1GE/2.5GE/10GE SFP+ ports, 2 modular power supply slots (at least one power module needs to be configured, only when the PoE load of the whole device is less than PoE output power of single power supply and dual power supplies are used, redundancy is supported)

Note: 6 x 1GE/2.5GE /10GE SFP+ ports support 1GE SFP transceivers, 2.5GE SFP transceivers and 10GE SFP+ transceivers.

Power Module

Model	Description
RG-PA600I-P-F	600 W AC power module, PoE power module
RG-PA1000I-P-F	1,000 W AC power module, PoE power module

GE Optical Transceivers

Model	Description
MINI-GBIC-GT	1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a The port needs to be configured with auto-negotiation
MINI-GBIC-SX-MM850	1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
MINI-GBIC-LX-SM1310	1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
MINI-GBIC-LH40-SM1310	1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-ZX80-SM1550	1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
GE-SFP-LX20-SM1310-BIDI	1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF
GE-SFP-LX20-SM1550-BIDI	1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF
GE-SFP-LX03-SM1310-BIDI-I	1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
GE-SFP-LX03-SM1550-BIDI-I	1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.

2.5GE Optical Transceivers

Model	Description
2.5G-SFP-LX03-SM1310-BIDI-I	2500BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
2.5G-SFP-LX03-SM1550-BIDI-I	2500BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

10GE Optical Transceivers

Model	Description
XG-SFP-SR-MM850	10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310	10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550	10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF
XG-SFP-ZR-SM1550	10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF
XG-SFP-LR10-SM1270-BIDI-I	10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF
XG-SFP-LR10-SM1330-BIDI-I	10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF
XG-SFP-AOC1M	10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M	10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M	10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers

CWDM Transceivers

Model	Description
GE-SFP-LR(A1-8)-H	1000BASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 70ºC (32ºF to 158ºF)
GE-SFP-LR(A1-8)-H-E	1000BASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 85ºC (32ºF to 185ºF)
MG-SFP-LR(A1-8)-H	2.5GBASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 70ºC (32ºF to 158ºF)
MG-SFP-LR(A1-8)-H-E	2.5GBASE-LR, access switch-side group of 8 SFP CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 85ºC (32ºF to 185ºF)
XG-SFP-LR(A1-8)-H	10GBASE-LR, access switch-side group of 8 SFP+ CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 70ºC (32ºF to 158ºF)
XG-SFP-LR(A1-8)-H-E	10GBASE-LR, access switch-side group of 8 SFP+ CWDM transceivers, 8 different wavelengths for 8 access devices, Duplex LC, 10 km over SMF, operating temperature of 0ºC to 85ºC (32ºF to 185ºF)
