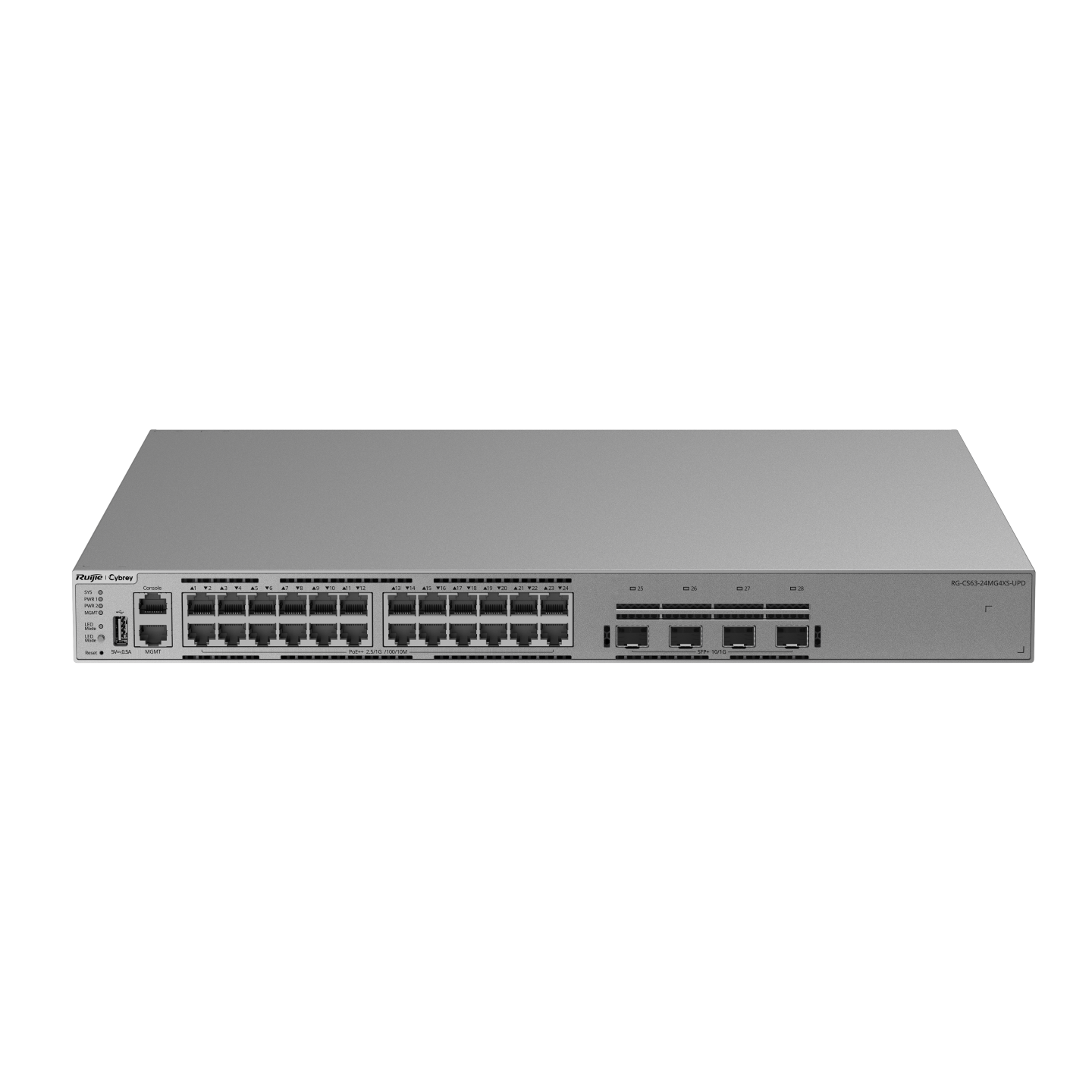

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 1

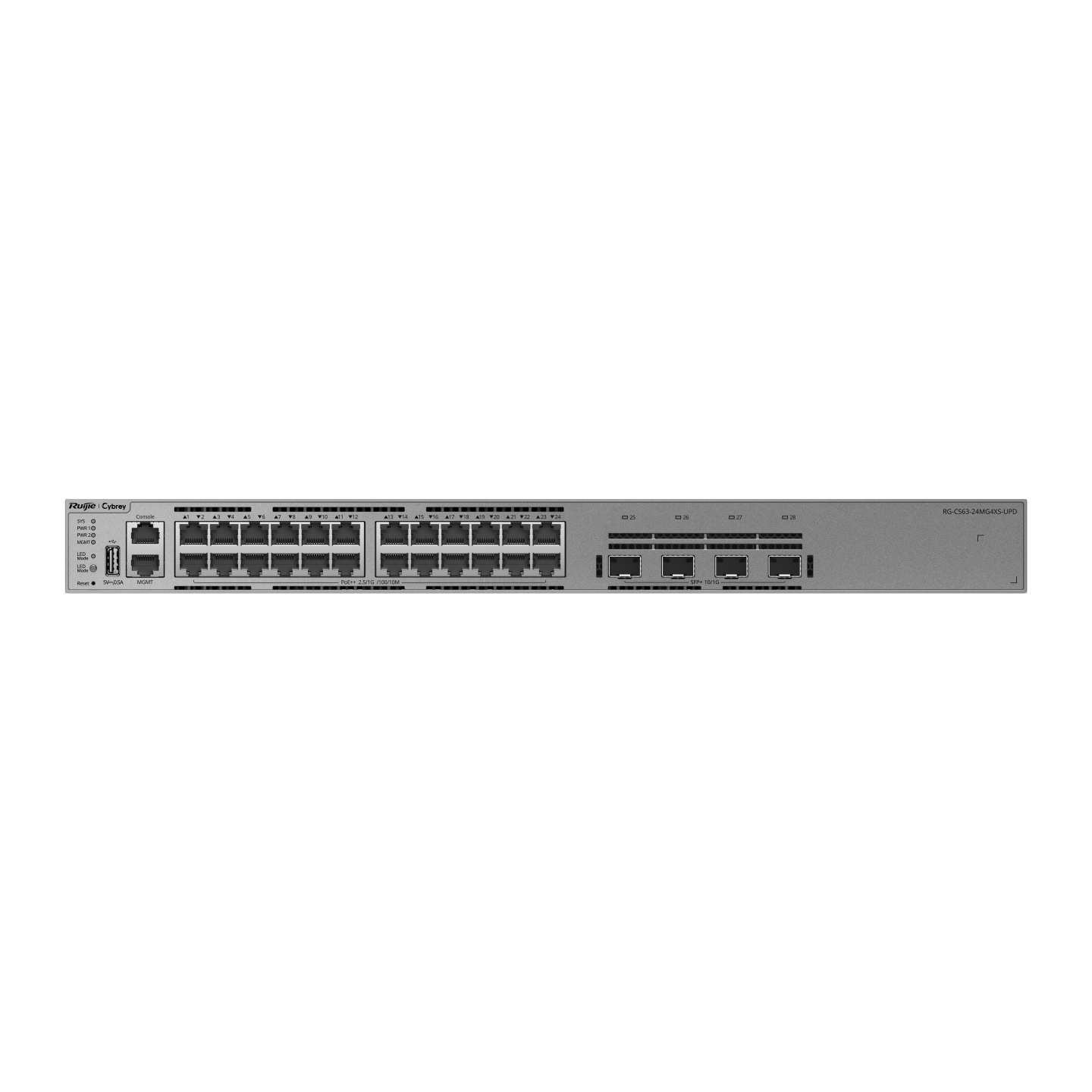

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 2

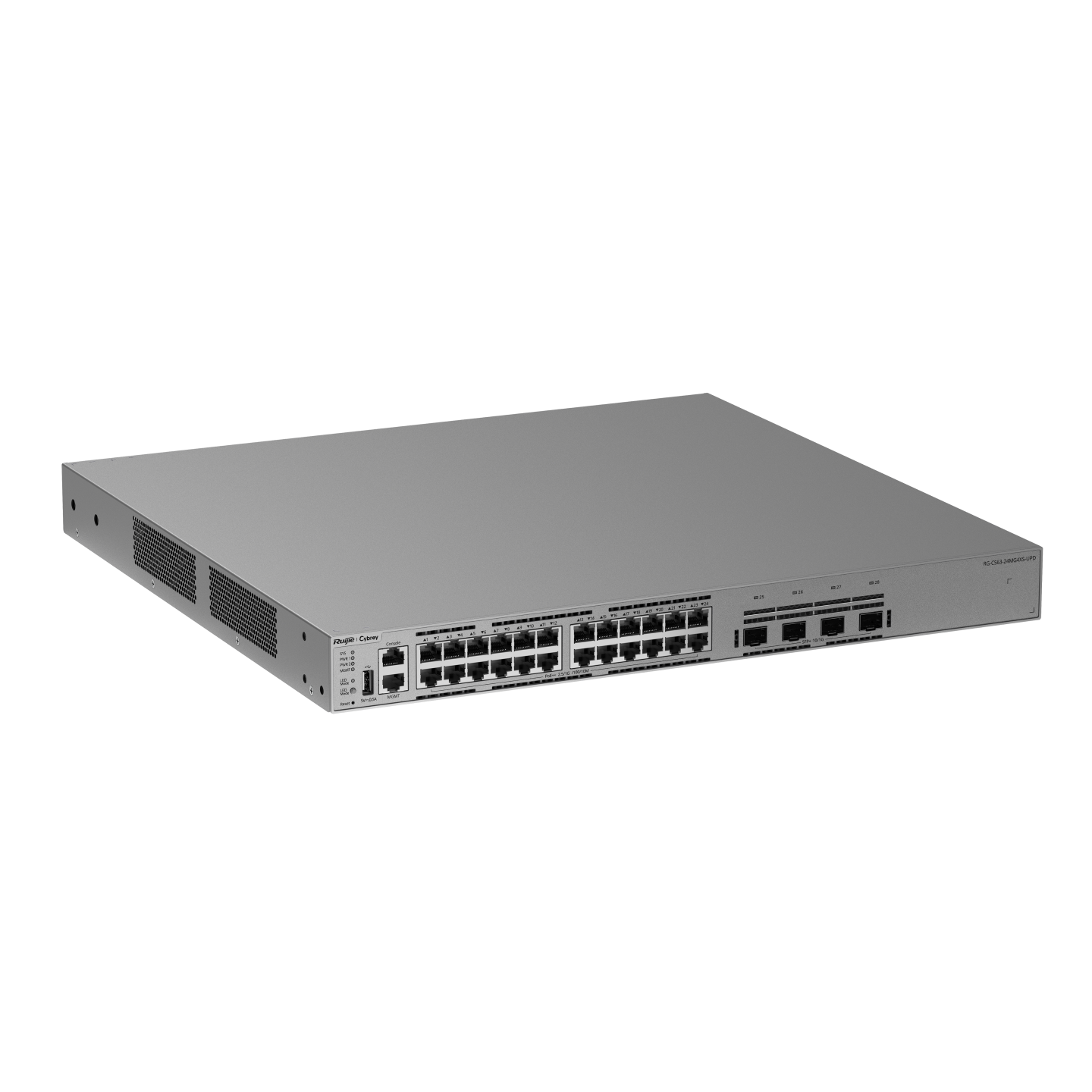

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 3

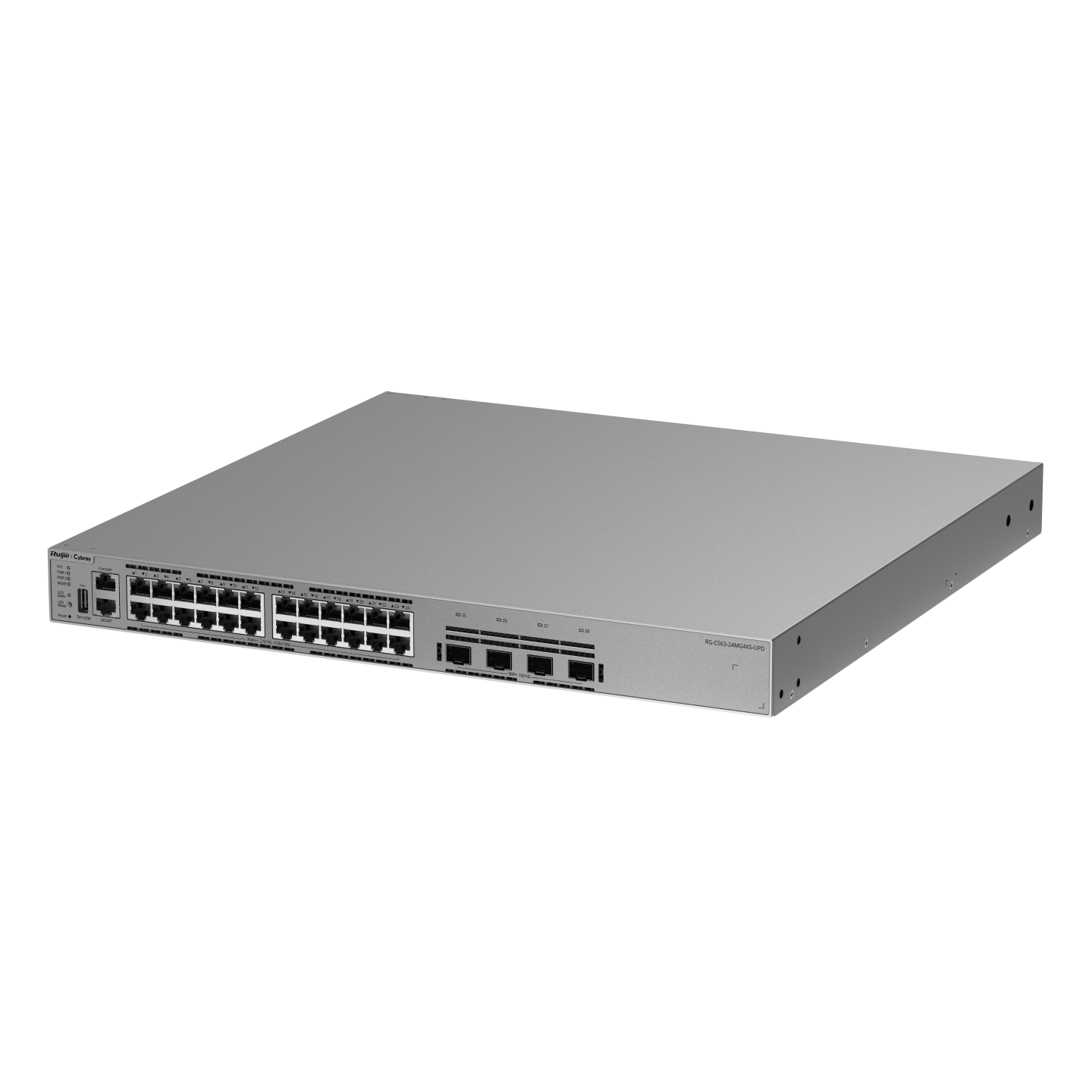

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 4

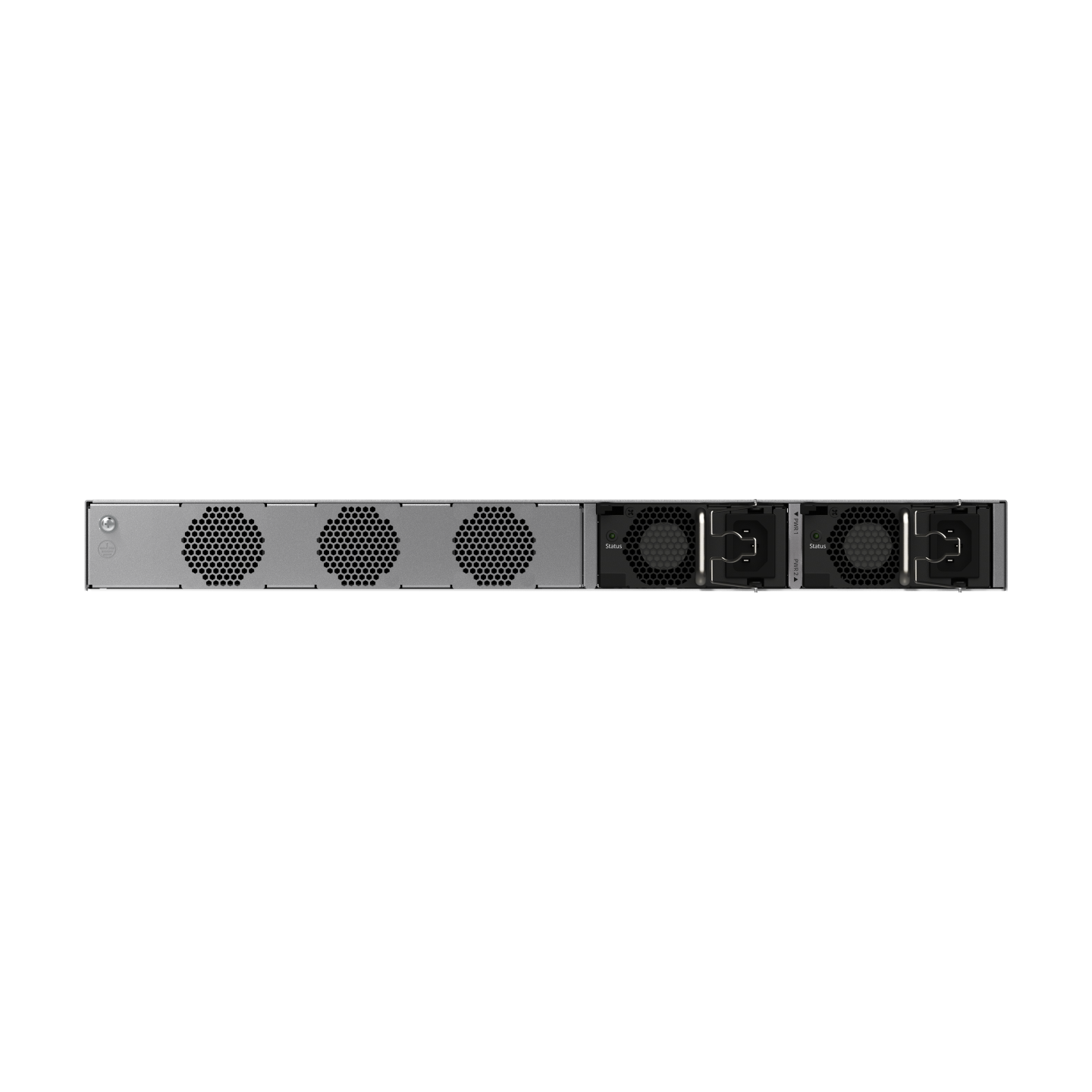

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 5

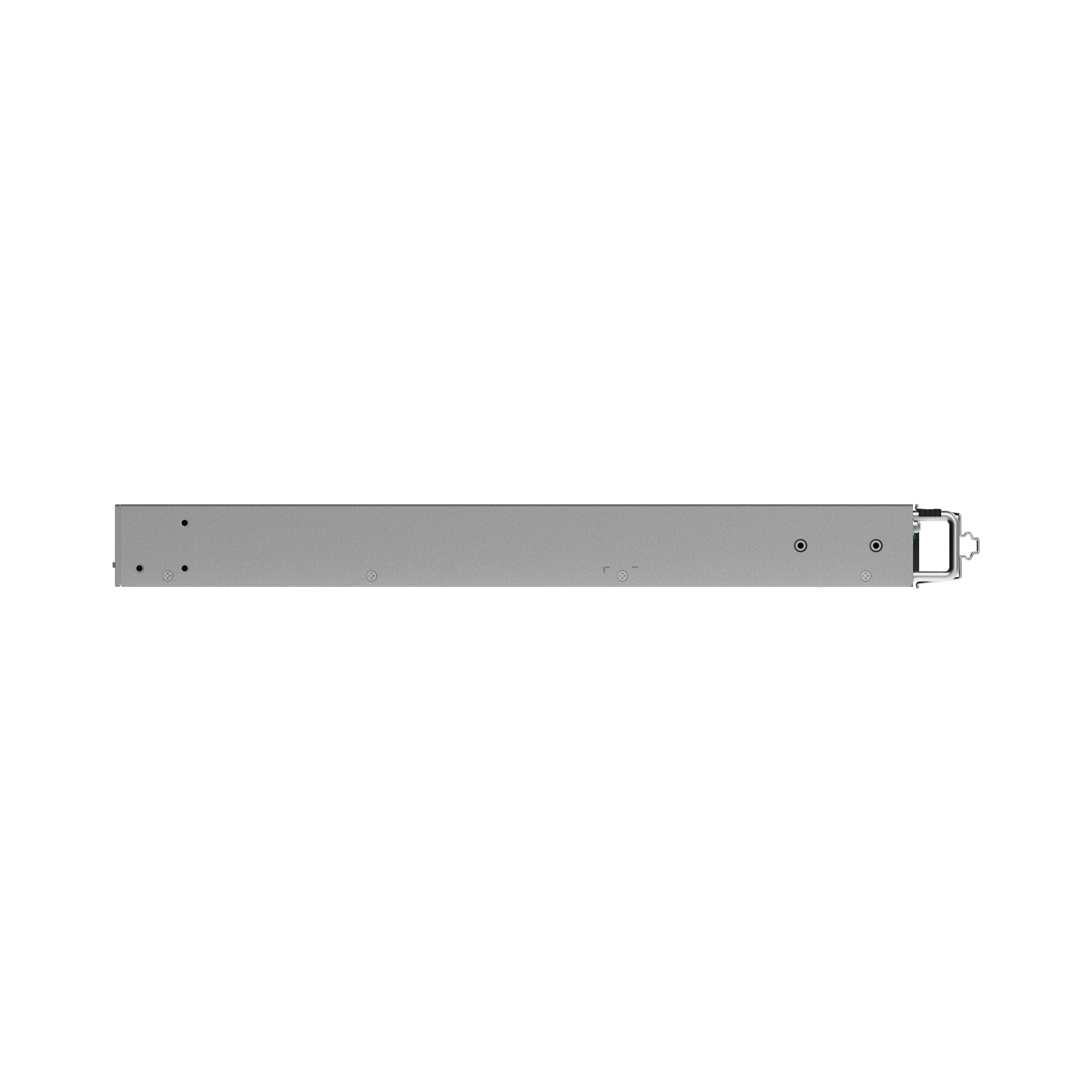

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 6

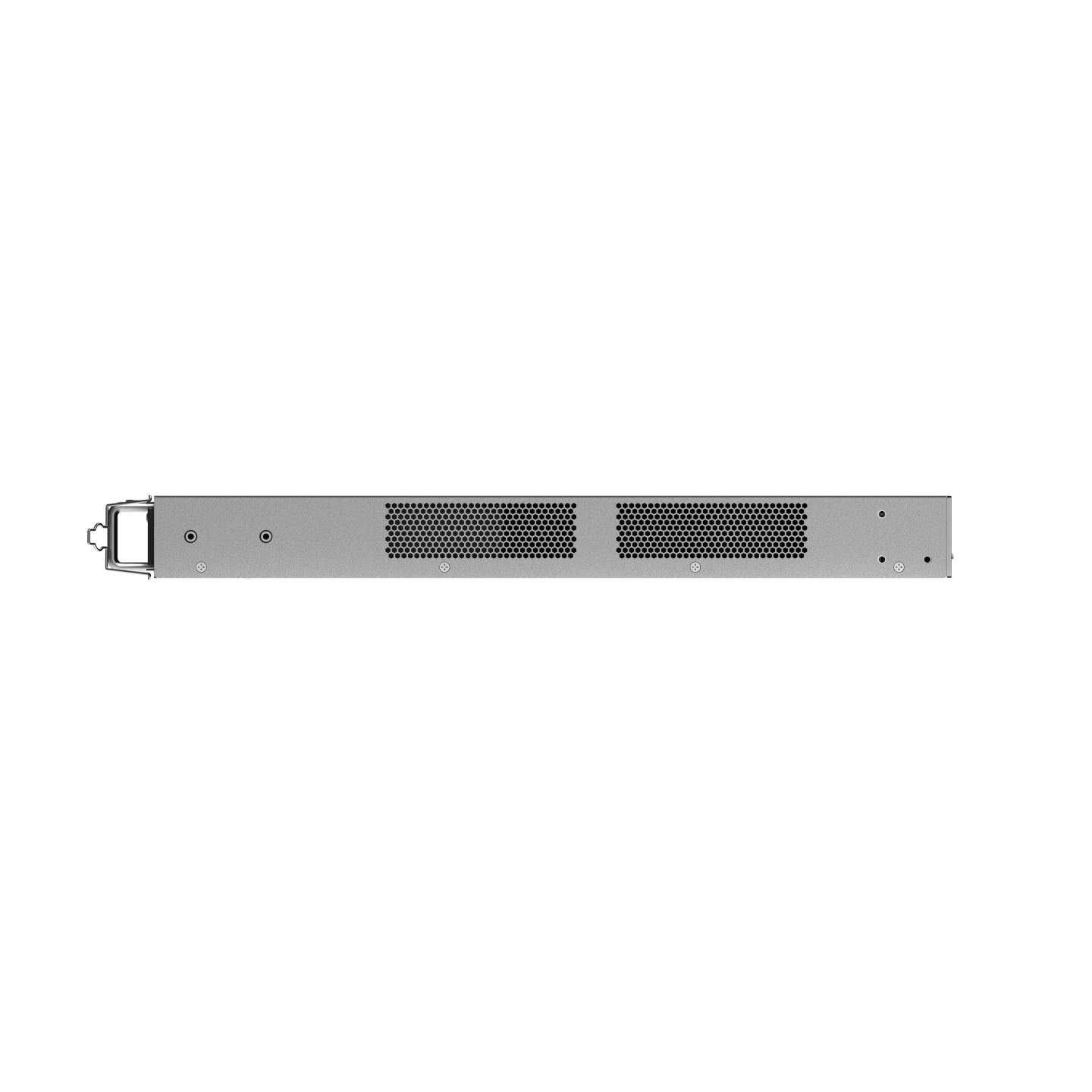

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 7

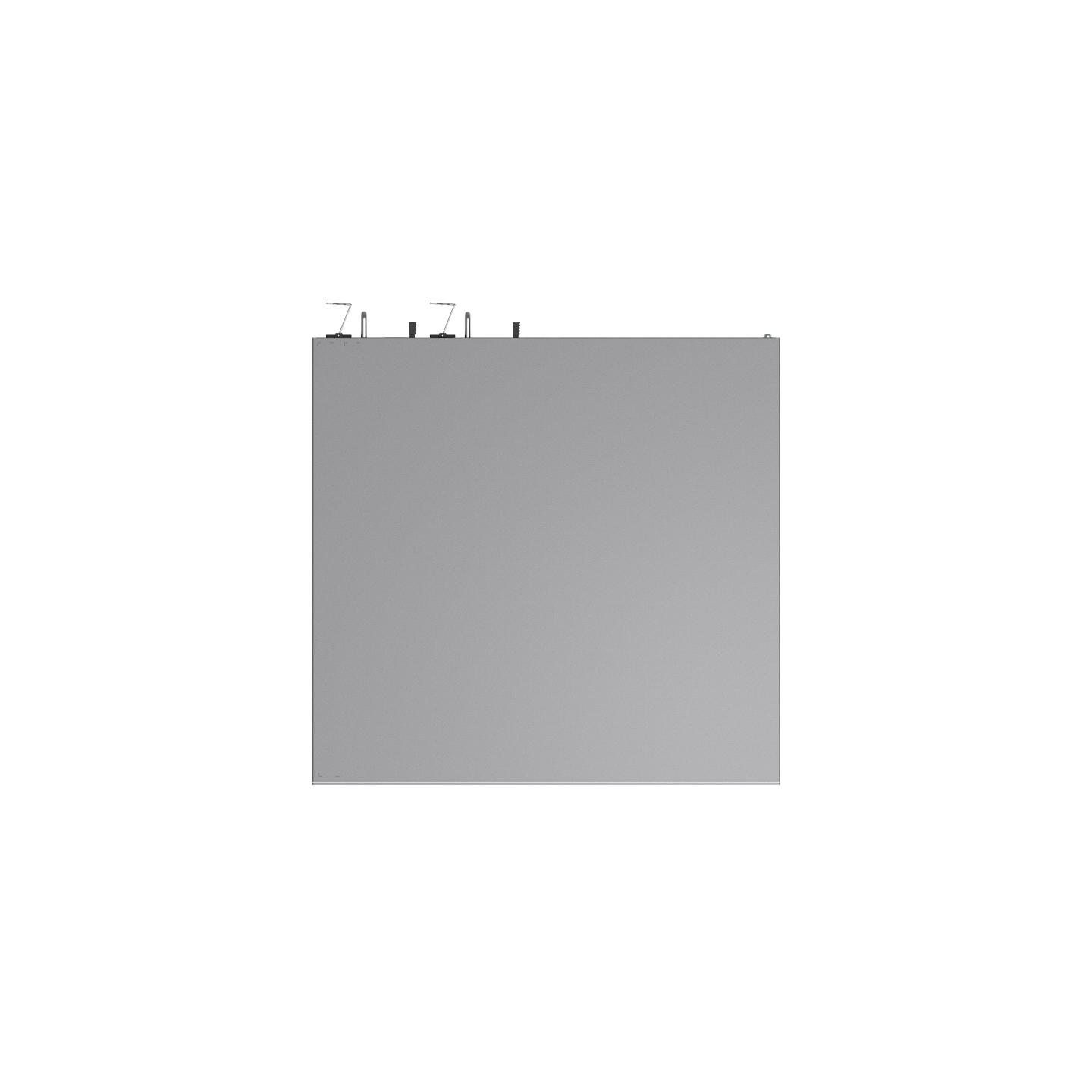

RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 8
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 1
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 2
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 3
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 4
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 5
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 6
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 7
RG-CS63-24MG4XS-UPD Small & Medium Enterprise Networking - 8

RG-CS63-24MG4XS-UPD, Layer 3 Access Switches with 10G Uplinks

Offices, hotels, warehouses, hospitals, and schools.

Models
RG-CS63-24MG4XS-UPD

24 x 10/100/1000/2.5GBASE-T ports, supporting PoE/PoE+/PoE++,4 x 1GE/10GE SFP+ ports
Series
RG-CS61 Series RG-CS62 Series RG-CS63 Series RG-CS65 Series
Datasheet Sales Enquiry
Highlight Features
  • Class 8 90 W high-power PoE
  • 10 kV port surge protection
  • Supports operating temperatures up to 50°C
  • Hot-swappable dual power supplies
  • Dual flash, dual boot, and dual bin
  • Circuit isolation protection based on optical ports
  • Supports up to 8 devices in a VSU
  • Comprehensive Layer 3 service features
Sales Enquiry

Key Specifications

View More

Features

RG-CS63-24MG4XS-UPD
Layer 3 Access Switches with Multi‑Gig Ports and 10G SFP+ Uplinks

  • 1

    Access Switches with 10G Uplinks

    Access Switches with 10G Uplinks

    1

    Access Switches with 10G Uplinks

    Equipped with 24 x 10/100/1000/2.5GBASE-T ports and 4 x 10G SFP+ uplinks, the access switches deliver high‑speed access for next‑gen Wi‑Fi 8 APs and bandwidth‑hungry clients.
  • 2

    90 W PoE (Class 8)

    90 W PoE (Class 8)

    2

    90 W PoE (Class 8)

    Class 8 90 W PoE powers high‑power devices like industrial cameras, smart displays, and Wi-Fi 7 APs.
  • 3

    8-Unit Stacking

    8-Unit Stacking

    3

    8-Unit Stacking

    8-unit stacking for flexible expansion helps maintain continuous service during device failures.
  • 4

    Dual-boot & Dual-bin

    Dual-boot & Dual-bin

    4

    Dual-boot & Dual-bin

    Dual-boot for reliable device startup and reboot, and dual-bin for redundant system partitions help maintain stable service operation.
  • 5

    Area-based Port Power Supply

    Area-based Port Power Supply

    5

    Area-based Port Power Supply

    When an optical transceiver experiences a short-circuit fault, Cybrey switches support optical port isolation to help prevent broader system impact.
  • 6

    Layer 3 Capabilities

    Layer 3 Capabilities

    6

    Layer 3 Capabilities

    Cybrey switches provide full Layer 3 capabilities, supporting both Layer 2 flat deployment and Layer 3 networking. They deliver fast convergence and fault domain isolation, improve SLA performance, and reduce TCO.
  • 7

    10 kV Surge Protection & 50°C Operation

    10 kV Surge Protection & 50°C Operation

    7

    10 kV Surge Protection & 50°C Operation

    Compared with typical switches that support 6–8 kV surge protection and operation up to 45°C, Cybrey switches deliver 10 kV surge protection and stable performance at temperatures up to 50°C, making them suitable for harsh environments.

In the Box

  • RG-CS63-24MG4XS-UPD

    × 1

  • Rack-mount bracket

    × 2

  • Rack-mount guide

    × 2

  • Rack-mount guide rail

    × 2

  • M4 x 8 mm screws

    × 10

  • Rubber pad

    × 1

  • Grounding wire

    × 1

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Cybrey Cloud, Make Your Business Easy

  • Interface Configuration

  • MAC Address Management

  • Vlan Configuration

  • 802.1X Authentication

Specifications

Hardware Specifications
Port Specifications
Fixed service port
  • 24 x 10/100/1000/2.5GBASE-T ports, supporting PoE/PoE+/PoE++
    4 x 1GE/10GE SFP+ ports
Console port
  • 1
MGMT port
  • 1
USB
  • 1
System Specifications
Switching capacity
  • 200 Gbps (Gbit/s)
Forwarding rate
  • 148.8 Mpps
Packet buffer size
  • 64 Mbit
CPU
  • Quad-core ARM A55 CPU frequency up to 1.2 GHz
SDRAM
  • 2 GB+4 bit ECC
Flash memory
  • 512 MB
BootROM
  • 16 MB
Real-time clock (RTC)
  • Yes
Dimensions and Weight
Unit dimensions (W x D x H)
  • 442 mm x 420 mm x 43.6 mm (17.4 in. x 16.54 in. x 1.72 in.)
Rack height
  • 1 RU
Packaging dimensions (W x D x H)
  • 570 mm x 565 mm x 200 mm (22.44 in. x 22.24 in. x 7.87 in.)
Unit weight
  • 5.1 kg (11.24 lbs)
Packaging weight
  • 7.57 kg (16.69 lbs)
Power Supply and Consumption
Power module
  • RG-PA600I-P-FC
    RG-PA1000I-P-FC
Power supply mode
  • 2 x pluggable power modules (not pre-installed)
Maximum power consumption
  • Full-load:
    110 V: 1900 W
    220 V: 1850 W
    No-load:
    110 V: 93.5 W
    220 V: 90.9 W
Power input
  • RG-PA600I-P-FC (AC input):
    ● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
    ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
    ● Maximum input current: 8 A
    RG-PA1000I-P-FC (AC input 1):
    ● Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz
    ● Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz
    ● Maximum input current: 12 A
    RG-PA1000I-P-FC (AC input 2):
    ● Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz
    ● Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz
    ● Maximum input current: 8 A
PoE
  • Yes
Number of PoE-out ports
  • All RJ45 ports support PoE/PoE+ and PoE++ power supply (IEEE 802.3af/at and 802.3bt).
PoE budget
  • The PoE budget varies depending on the power modules used:
    ● 1 x RG-PA600I-P-FC: 470 W
    ● 1 x RG-PA1000I-P-FC: 800 W
    ● 2 x RG-PA600I-P-FC: 940 W
    ● 2 x RG-PA1000I-P-FC: 1600 W

    Note: Mixed use of the RG-PA600I-P-FC and RG-PA1000I-P-FC power modules will be supported after a device software upgrade.
PoE budget per port
  • 90 W
PoE power cable pairs
  • Four pairs (1-2, 3-6, 4-5, and 7-8 pairs)
Environment and Reliability
Operating temperature
  • 0°C to 50°C (32°F to 122°F)
Storage temperature
  • –40°C to +70°C (–40°F to +158°F)
Operating humidity
  • 10% RH to 90% RH (non-condensing)
Storage humidity
  • 5% RH to 95% RH (non-condensing)
Operating altitude
  • 0 m to 5000 m (0 ft. to 16,404.20 ft.)
Cooling
  • Air cooling, front-to-rear airflow, left-to-rear airflow
Fan
  • 3 x fixed fans
Noise
  • 27°C (80.6°F): 61 dB
Fan speed adjustment
  • Intelligent speed adjustment
Power redundancy
  • Yes
    2 x RG-PA1000I-P-FC: 1+1 power redundancy (only PoE load ≤ 800 W)
    2 x RG-PA600I-P-FC: 1+1 power redundancy (only PoE load ≤ 470 W)
Hot swapping of power modules
  • Yes
Hot swapping of cables
  • Yes
USB hot swapping
  • Yes
Surge protection
  • Service port:±10 kV for common mode
    MGMT port:±10 kV for common mode
    Power connector: ±6 kV for common mode and ±6 kV for differential mode
ESD prevention
  • Contact discharge: 6 kV
    Air discharge: 8 kV
Temperature monitoring and protection
  • Temperature monitoring, temperature alarm, and over-temperature protection
Fan monitoring
  • Fault alarm
Power supply monitoring
  • Monitoring of power supply model and status
    Power supply failure alarming
MTBF
  • > 400,000 hours
Energy efficiency
  • Yes
Certification and Regulatory Compliance
Safety regulations
  • IEC 62368-1 EN 62368-1
EMC regulations
  • EN 300386, EN 55032 Class A, EN 55035,
    EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN IEC 61000-4-3,
    EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN IEC 61000-4-11
Product Information
Warranty
  • 5 years
Software Specifications
Layer 2 Features
VLAN
  • IEEE 802.1Q
    Port-based VLAN
    MAC-based VLAN
    Voice VLAN
    IP/Subnet-based VLAN
    Protocol-based VLAN
    Private VLAN
    Super VLAN
    GVRP
Spanning tree
  • IEEE802.1d STP
    IEEE802.1w RSTP
    Standard 802.1s MSTP
LLDP
  • LLDP
    LLDP-MED
Basic QinQ
  • Basic QinQ
    Transparent transmission of double-tagged packets
Selective QinQ
  • Selective QinQ
REUP
  • REUP
RLDP
  • RLDP
ERPS(G.8032)
  • ERPS(G.8032)
Layer 3 Features
ARP
  • ARP
    anyIP
ND
  • Neighbor discovery
VRF
  • IPv4 and IPv6 VRF
Routing Features
Static routing
  • IPv4 static routing
    IPv6 static routing
OSPF
  • OSPFv2 basics
    OSPFv3 basics
BGP4
  • BGP4 basics
BGP4+
  • BGP4+ basics
IS-ISv4
  • IS-ISv4 basics
IS-ISv6
  • IS-ISv6 basics
RIP
  • RIP
    RIPv2
RIPng
  • RIPng
PBR
  • IPv4 PBR
    IPv6 PBR
Multicast Features
IGMP snooping
  • IGMP snooping v1/v2
    IGMP snooping v3
IGMP
  • IGMPv1/v2/v3
    IGMP proxy
MLD snooping
  • MLD snooping
    MLD snooping v2
MLD
  • MLDv1/v2
PIM-SMv4
  • PIM-SMv4
    PIM-SSMv4
PIM-DMv4
  • PIM-DMv4
PIM-SMv6
  • PIM-SMv6
    PIM-SSMv6
MSDP
  • MSDP
ACL and QoS
ACL
  • IP standard ACL
    IP extended ACL
    MAC extended ACL
    IPv6 ACL
    Expert ACL
    Time-based ACL
    ACL-based redirection
    ACL80
QoS
  • Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences
    SP
    WRR
    SP+WRR
    DRR
    SP+DRR
    WFQ
    SP+WFQ
    Congestion avoidance: tail drop
    Traffic shaping (ingress/egress)
Security Features
802.1X
  • Port-based authentication
    MAC-based authentication
AAA
  • AAA
Web-based authentication
  • HTTP-based authentication
    HTTPS-based authentication
IP source guard
  • IP source guard
IPv6 source guard
  • IPv6 source guard
SAVI
  • SAVI
Global IP-MAC binding
  • Configuring global IP-MAC binding entries
TACACS+
  • TACACS+
CPP
  • Hardware CPP
Port isolation
  • Port isolation
RADIUS
  • RADIUS
Port Security
  • Port Security
NFPP
  • NFPP
High Availability
VSU
  • Device virtualization
VRRP
  • IPv4 VRRPv2
    IPv4 VRRPv3
    IPv6 VRRP
VRRP+
  • IPv4 VRRP+
    IPv6 VRRP+
BFD
  • BFD detection
DLDP
  • DLDP
Interface Features
Aggregate interface
  • LACP basics
Mirroring
  • SPAN
    RSPAN
Management Features
SNMP
  • SNMPv1/v2c/v3
    RMON (1, 2, 3, 9)
SSH
  • SSHv2
    SSHv1
sFlow
  • sFlow
gRPC
  • gRPC framework
NETCONF
  • NETCONF
SON
  • SON
Cybrey Cloud
  • Cybrey Cloud
OAM Features
PoE
  • Uninterrupted power supply upon warm start
    PoE port priority
IP Services
DHCP
  • DHCPv4 client
    DHCPv4 server
    DHCPv4 relay
    DHCPv4 snooping
    DHCPv6 client
    DHCPv6 relay
    DHCPv6 snooping
ND snooping
  • ND snooping
DNS
  • DNS client
    DNSv6 client
NTP
  • NTP client
    NTP server
SNTP
  • SNTP client
    SNTP
FTP
  • FTP client
    FTP server
TFTP
  • TFTP client
    TFTP server
System Features
USB
  • USB 2.0
Capacity Specifications
Layer 2 Features
Maximum number of global MAC addresses (The device must be able to learn the maximum number of MAC addresses in the full-mesh test model.)
  • Default: 64000 (subject to the UFT capacity)
Maximum number of created VLANs
  • 4094
Jumbo frame length / Port MTU
  • 9216
Layer 2 traffic convergence time
  • ≤ 200 ms
Layer 3 Features
Maximum number of ARP entries
  • Recommended default: 30000 (subject to the UFT capacity)
Routing Features
IPv4 routing table size
  • 32000
IPv6 routing table size
  • 8000 (resources shared with IPv4 routing)
Multicast Features
Maximum number of IPv4 multicast routing table entries
  • 4000
Maximum number of IPv6 multicast routing table entries
  • 4000
ACL and QoS
Maximum number of inbound ACE entries
  • 4500
Maximum number of outbound ACE entries
  • 1000
Maximum number of QoS hardware queues
  • 8 unicast queues + 8 multicast queues
High Availability
Maximum number of VSU members
  • 8
Package Contents
Device
Main unit
  • 1
Accessories
Rack-mount bracket
  • 2
Rack-mount guide
  • 2
Rack-mount guide rail
  • 2
Screw
  • 10 x M4 x 8 mm screws
Rubber pad
  • 4
Grounding wire
  • 1
Manual
User Manual
  • 1
Warranty Card
  • 1
Show More

Resources

All Resources
Learn about Products or Solutions
Installation
Software and Configuration
How would you rate your experience on this page?
Very disatisfying
Very satisfying
If you would like to offer more comment, please type in the textbox below, that would be helpful for the improvement of this page.
Submit
Thank you for your feedback!

Ruijie Networks websites use cookies to deliver and improve the website experience.

See our cookie policy for further details on how we use cookies and how to change your cookie settings.

Accept All

Manage Cookies

Cookie Manager

When you visit any website, the website will store or retrieve the information on your browser. This process is mostly in the form of cookies. Such information may involve your personal information, preferences or equipment, and is mainly used to enable the website to provide services in accordance with your expectations. Such information usually does not directly identify your personal information, but it can provide you with a more personalized network experience. We fully respect your privacy, so you can choose not to allow certain types of cookies. You only need to click on the names of different cookie categories to learn more and change the default settings. However, blocking certain types of cookies may affect your website experience and the services we can provide you.

  • Performance cookies

    Through this type of cookie, we can count website visits and traffic sources in order to evaluate and improve the performance of our website. This type of cookie can also help us understand the popularity of the page and the activity of visitors on the site. All information collected by such cookies will be aggregated to ensure the anonymity of the information. If you do not allow such cookies, we will have no way of knowing when you visited our website, and we will not be able to monitor website performance.

  • Essential cookies

    This type of cookie is necessary for the normal operation of the website and cannot be turned off in our system. Usually, they are only set for the actions you do, which are equivalent to service requests, such as setting your privacy preferences, logging in, or filling out forms. You can set your browser to block or remind you of such cookies, but certain functions of the website will not be available. Such cookies do not store any personally identifiable information.

Accept All

View Cookie Policy Details

Contact Us

Contact Us

How can we help you?

Contact Us

Get an Order help

Contact Us

Get a tech support
