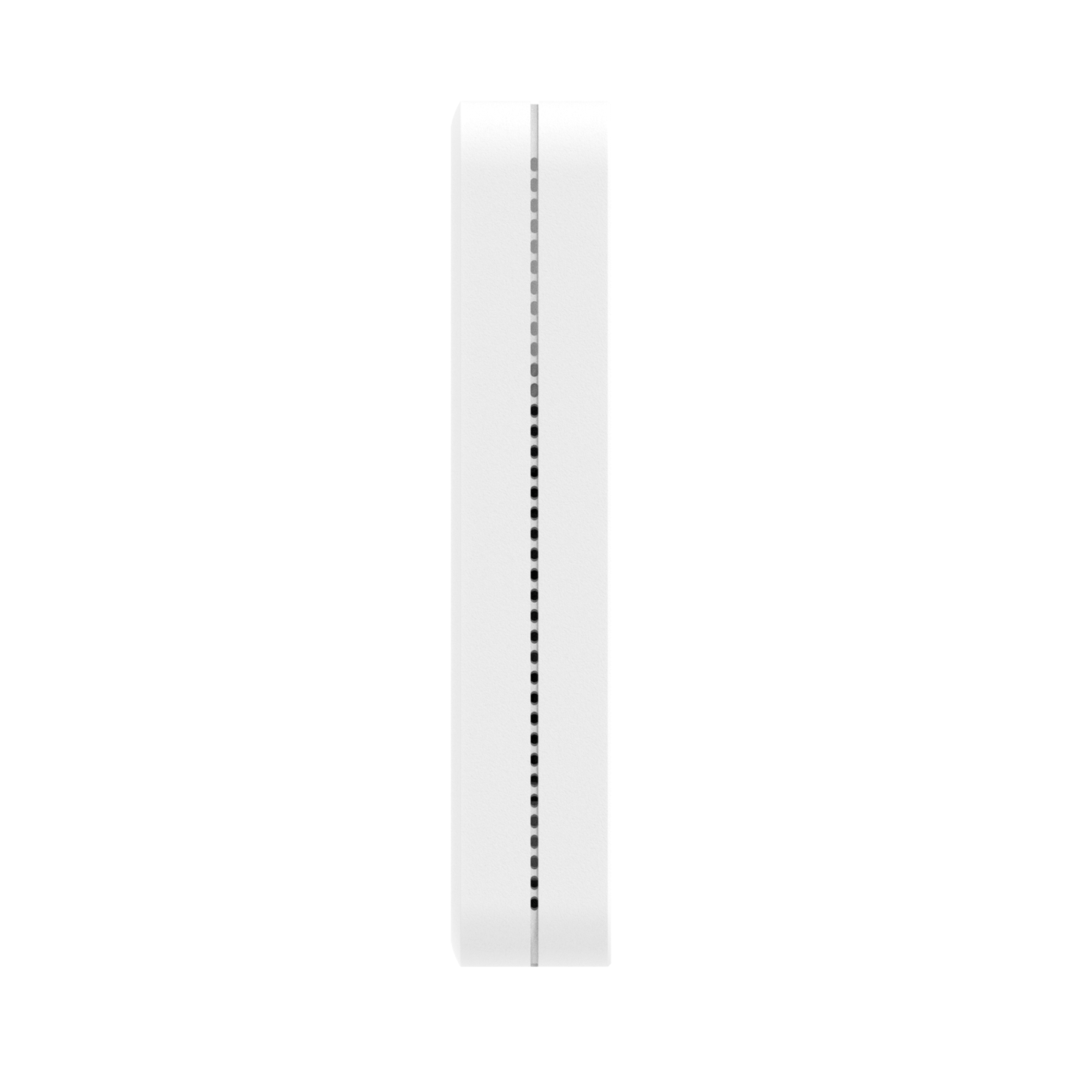

RG-CAP72-WP Small & Medium Enterprise Networking - 3

RG-CAP72-WP Small & Medium Enterprise Networking - 4

RG-CAP72-WP Small & Medium Enterprise Networking - 5

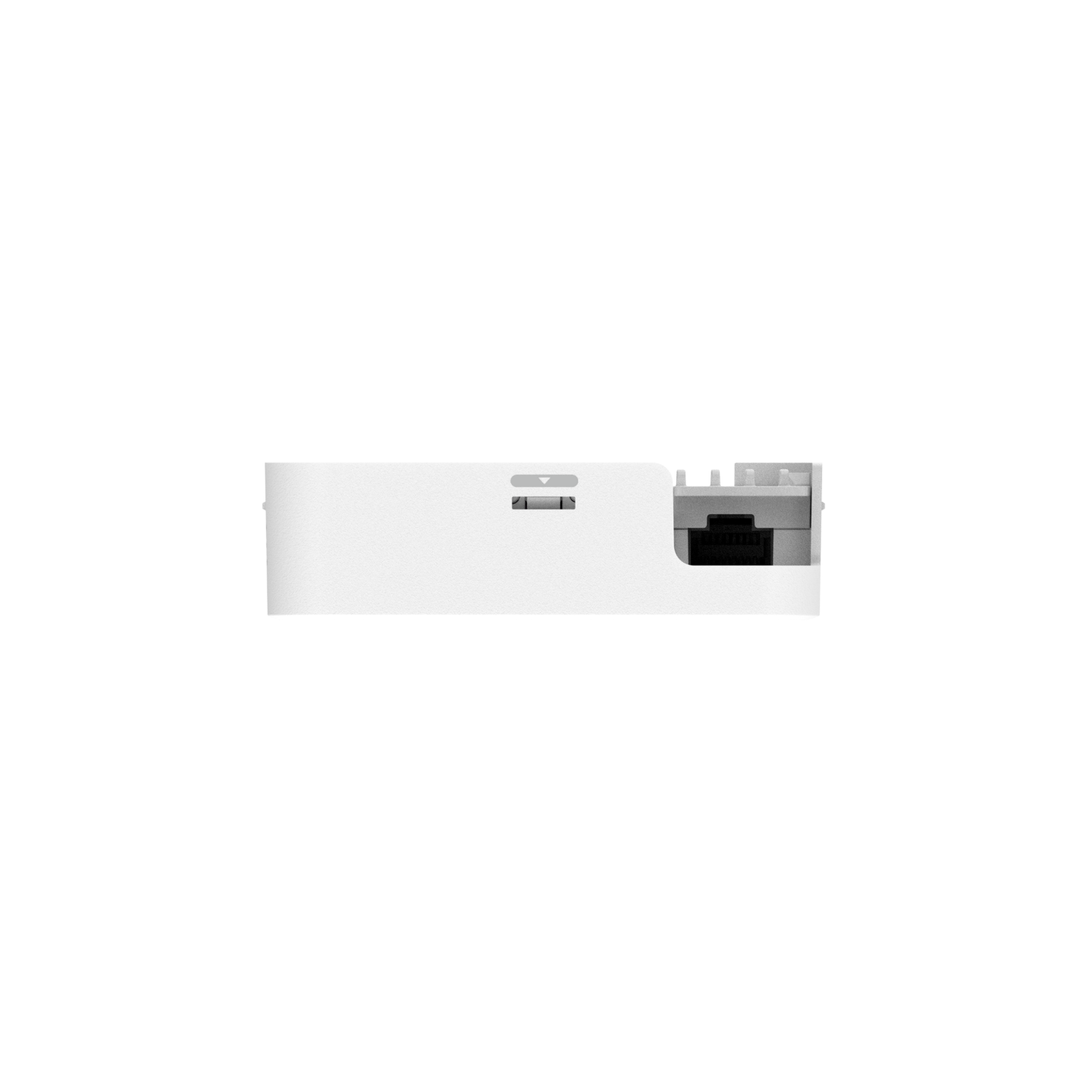

RG-CAP72-WP Small & Medium Enterprise Networking - 6

RG-CAP72-WP Small & Medium Enterprise Networking - 7

RG-CAP72-WP Small & Medium Enterprise Networking - 8

RG-CAP72-WP Small & Medium Enterprise Networking - 9

RG-CAP72-WP Small & Medium Enterprise Networking - 10

RG-CAP72-WP Small & Medium Enterprise Networking - 11

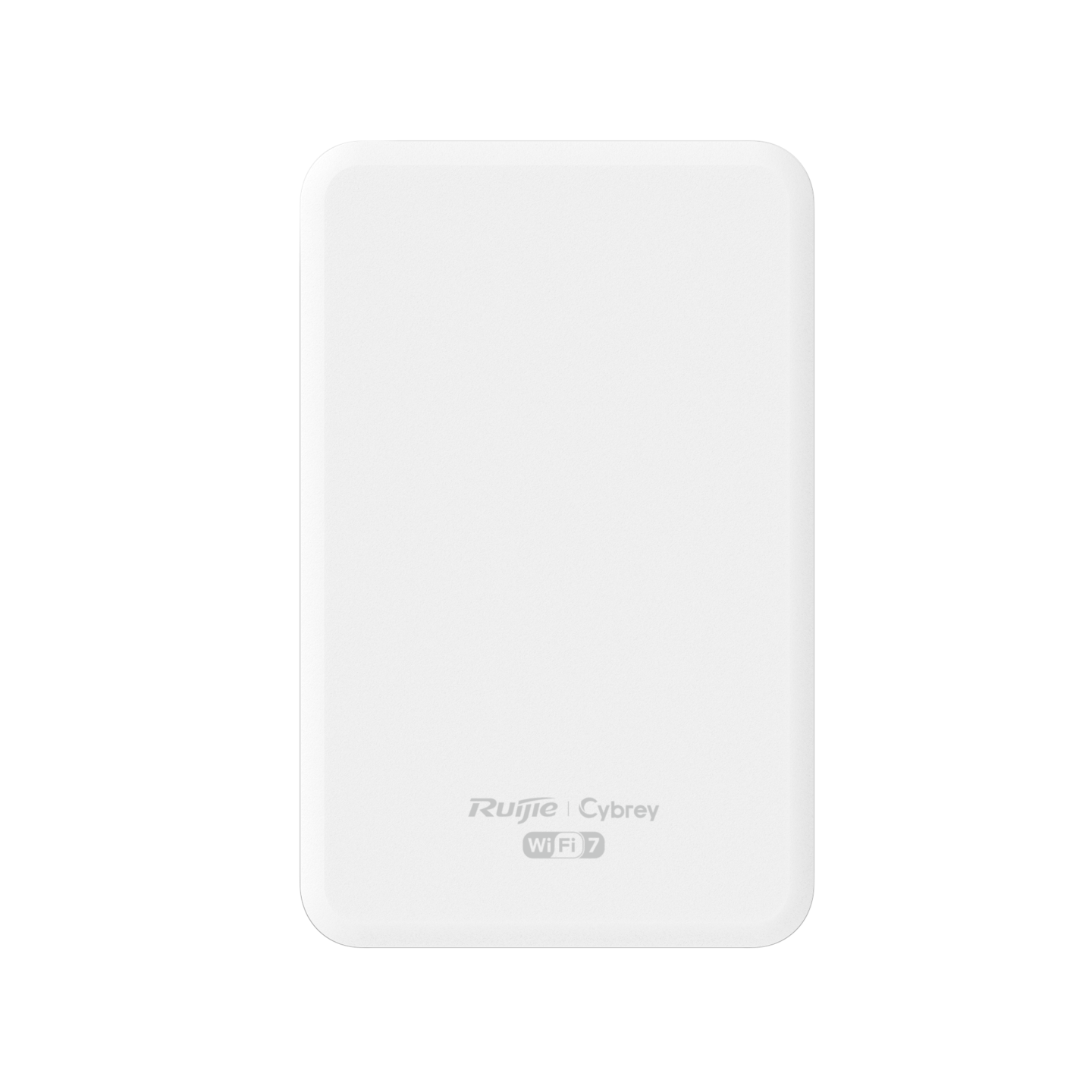

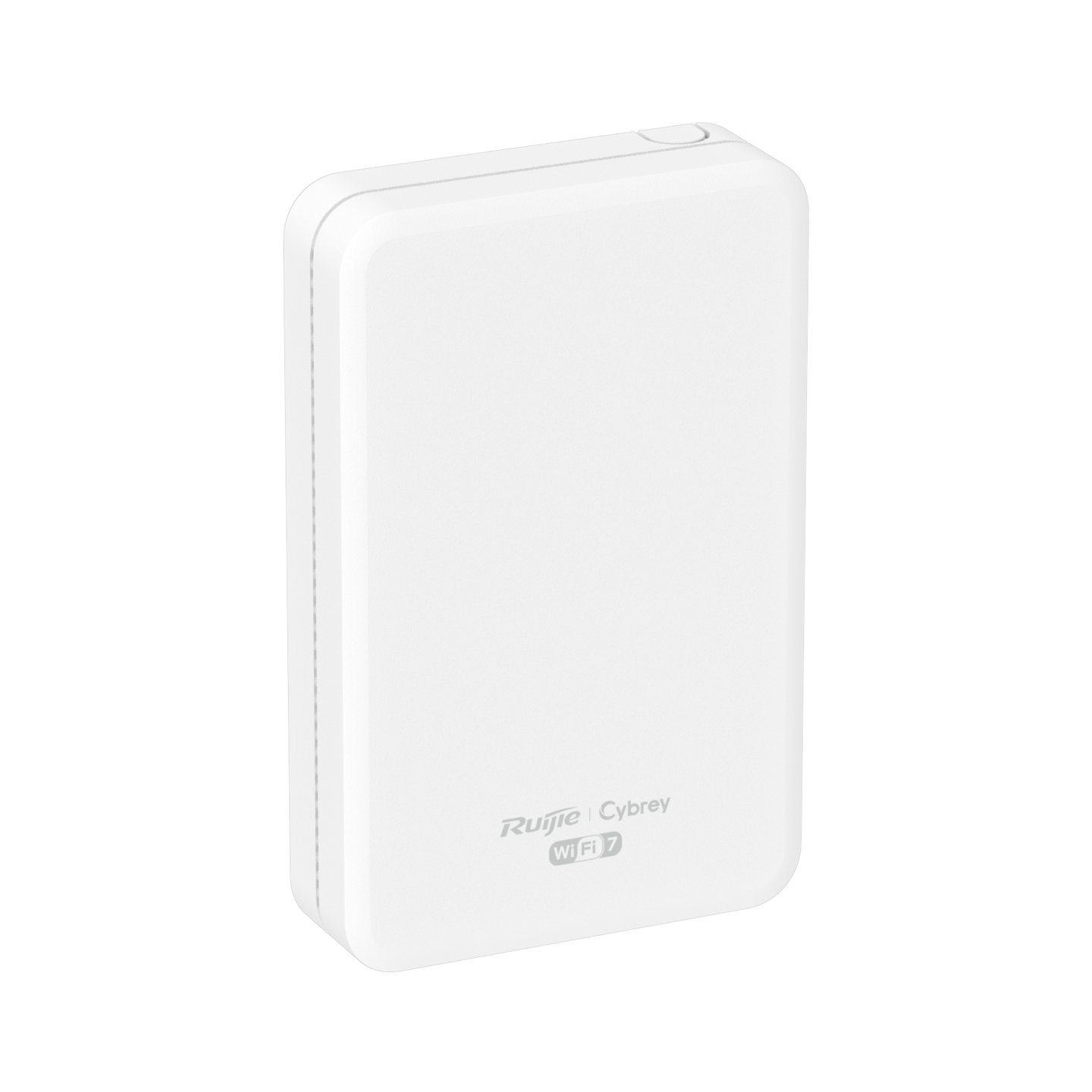

RG-CAP72-WP, Wi-Fi 7 BE3600 Wall-Plate Access Point

Offices, hotels, warehouses, hospitals, and schools.

Models

RG-CAP62-WP

Wi-Fi 6, AX3000

RG-CAP72-WP

Wi-Fi 7, BE3600

RG-CAP62-I

Wi-Fi 6, AX3000

RG-CAP72-I

Wi-Fi 7, BE3600

RG-CAP72Pro-IE

Wi-Fi 7, BE6500

RG-CAP73-I

Wi-Fi 7, BE9300

RG-CAP62-O

Wi-Fi 6, AX3000

RG-CAP72-O

Wi-Fi 7, BE3600

RG-CAP73-O

Wi-Fi 7, BE9300

RG-CNC105

5 x 10/100/1000/2.5GBASE-T ports, with ports 2–5 supporting IEEE 802.3af/at-compliant PoE output.

RG-CNC312

8 x 10/100/1000BASE-T ports, 2 x 1GE SFP/RJ45 combo ports, 2 x 10GE SFP+ ports

RG-ANT30-D2

2 x RP-SMA female antenna connectors

RG-ANT90-T2

2 x RP-SMA female antenna connectors

RG-ANT90-T6

6 x RP-SMA female antenna connectors

Series

Cybrey Access Controllers Cybrey Ceiling Mount APs Cybrey External Antennas Cybrey Outdoor APs Cybrey Wall-Plate APs

Datasheet Sales Enquiry

Highlight Features

BE3600 Wi-Fi 7 speed with lower latency for office and guestroom environments.
4096-QAM for 20% higher peak data rates than Wi-Fi 6.
MRU for better channel utilization and lower latency in crowded environments.
2.5G uplink port for high-speed Internet access.
4 LAN ports with PoE Out for IP phones or cameras.
Enterprise-grade security with GPSK, WIDS/WIPS, WPA2/WPA3, and a Kensington lock slot.
Standard wall-box mounting for quick upgrades.

Key Specifications
Features
Specifications
Resources
Videos

Sales Enquiry

Key Specifications

Features

RG-CAP72-WP Ruijie Cybrey Wi-Fi 7 BE3600 Wall-Plate Access Point

1

BE3600 Wi‑Fi 7 Speed

BE3600 Wi‑Fi 7 Speed

1

BE3600 Wi‑Fi 7 Speed
Provides lower latency and smoother performance for guest rooms, office cubicles, and clinic environments.
2

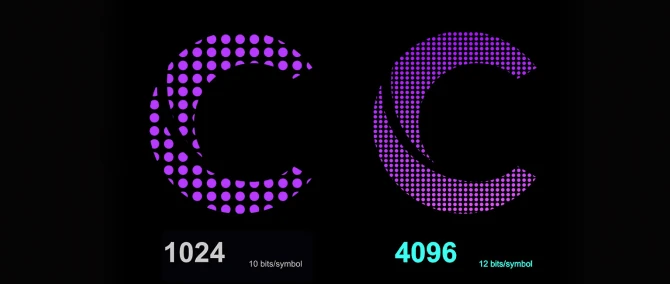

4096‑QAM for Higher Peak Rates

4096‑QAM for Higher Peak Rates

2

4096‑QAM for Higher Peak Rates
Wi-Fi 7 with 4096‑QAM modulation delivers 20% higher peak data rates than Wi‑Fi 6.
3

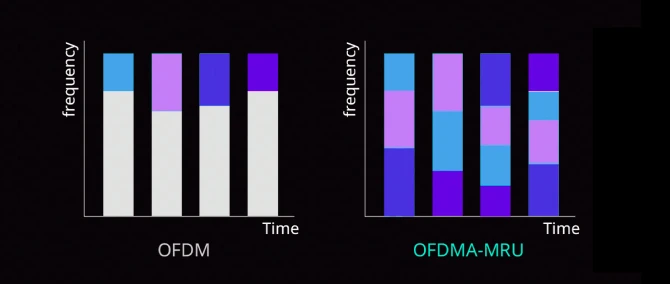

MRU for Multi‑User Performance

MRU for Multi‑User Performance

3

MRU for Multi‑User Performance
Multi‑Resource Unit improves channel utilization in crowded environments and reduces latency when many clients are connected.

4

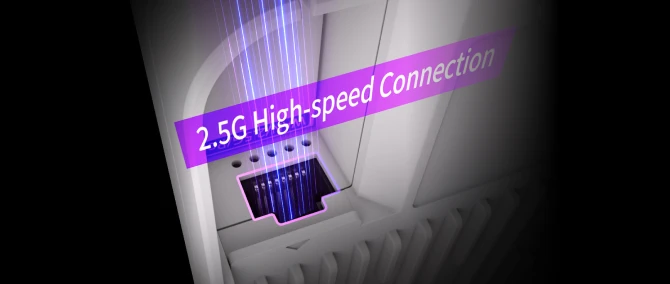

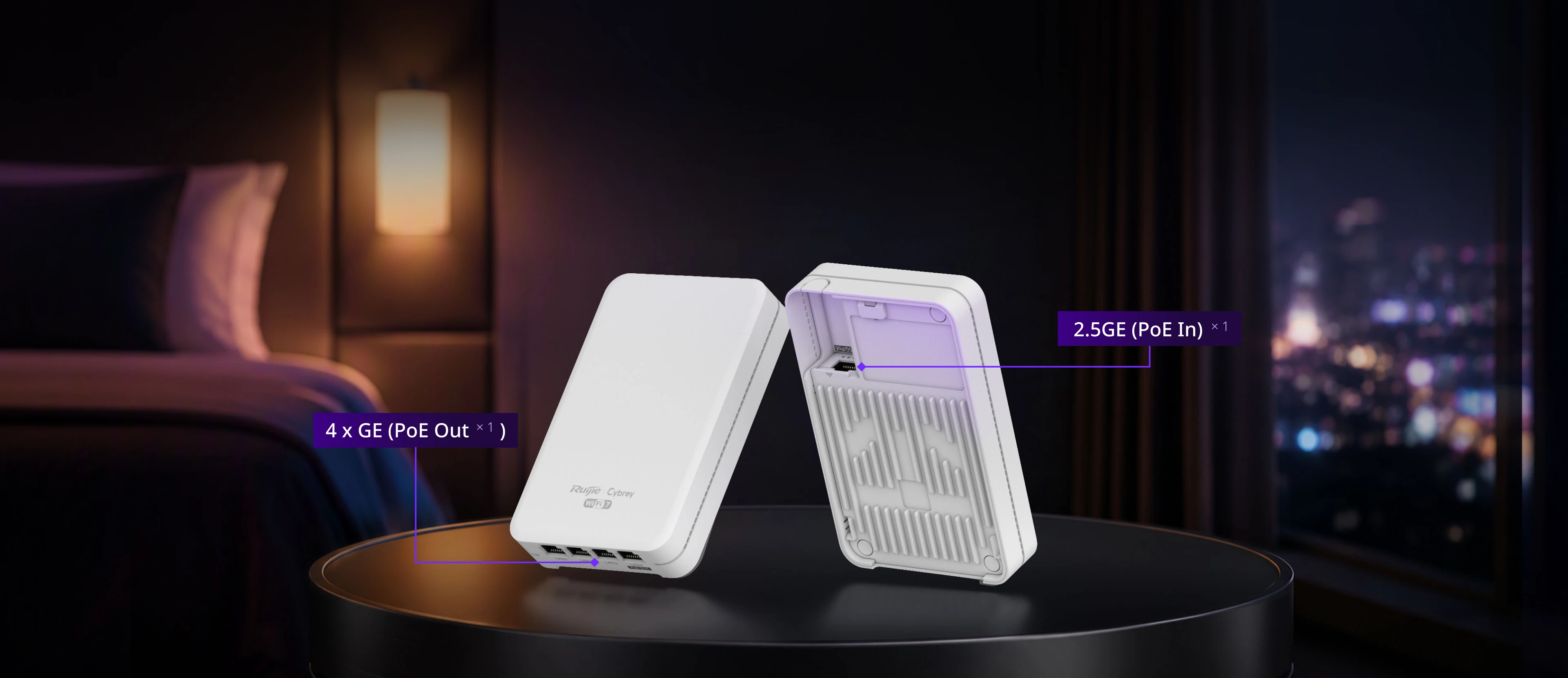

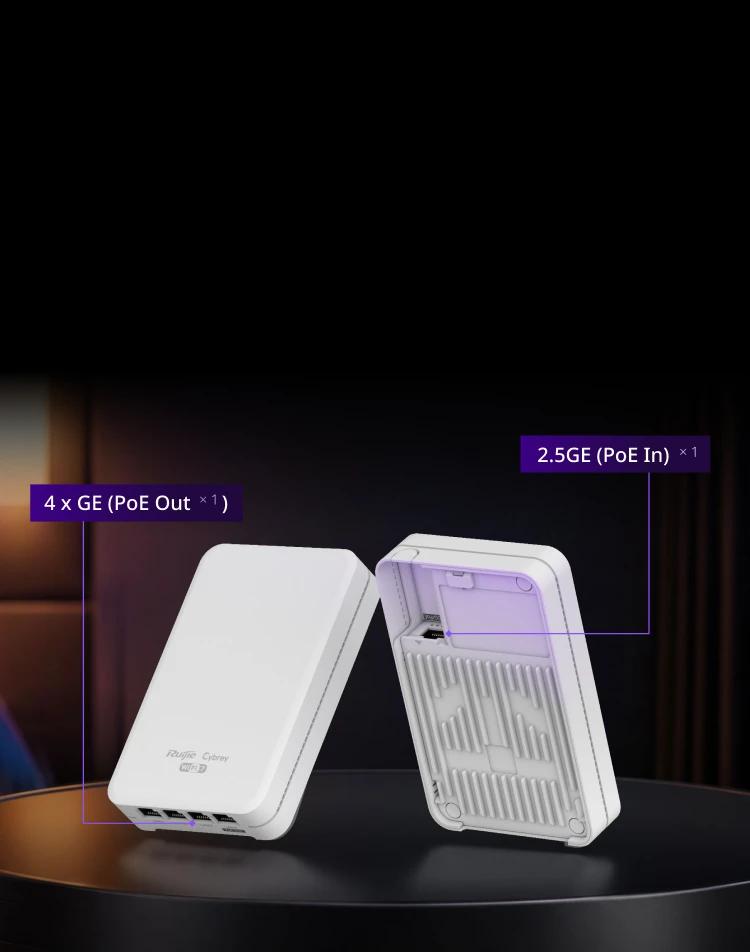

2.5GE Uplink

2.5GE Uplink

4

2.5GE Uplink
Features a multi‑gigabit port for high‑speed Internet access and large file transfers.
5

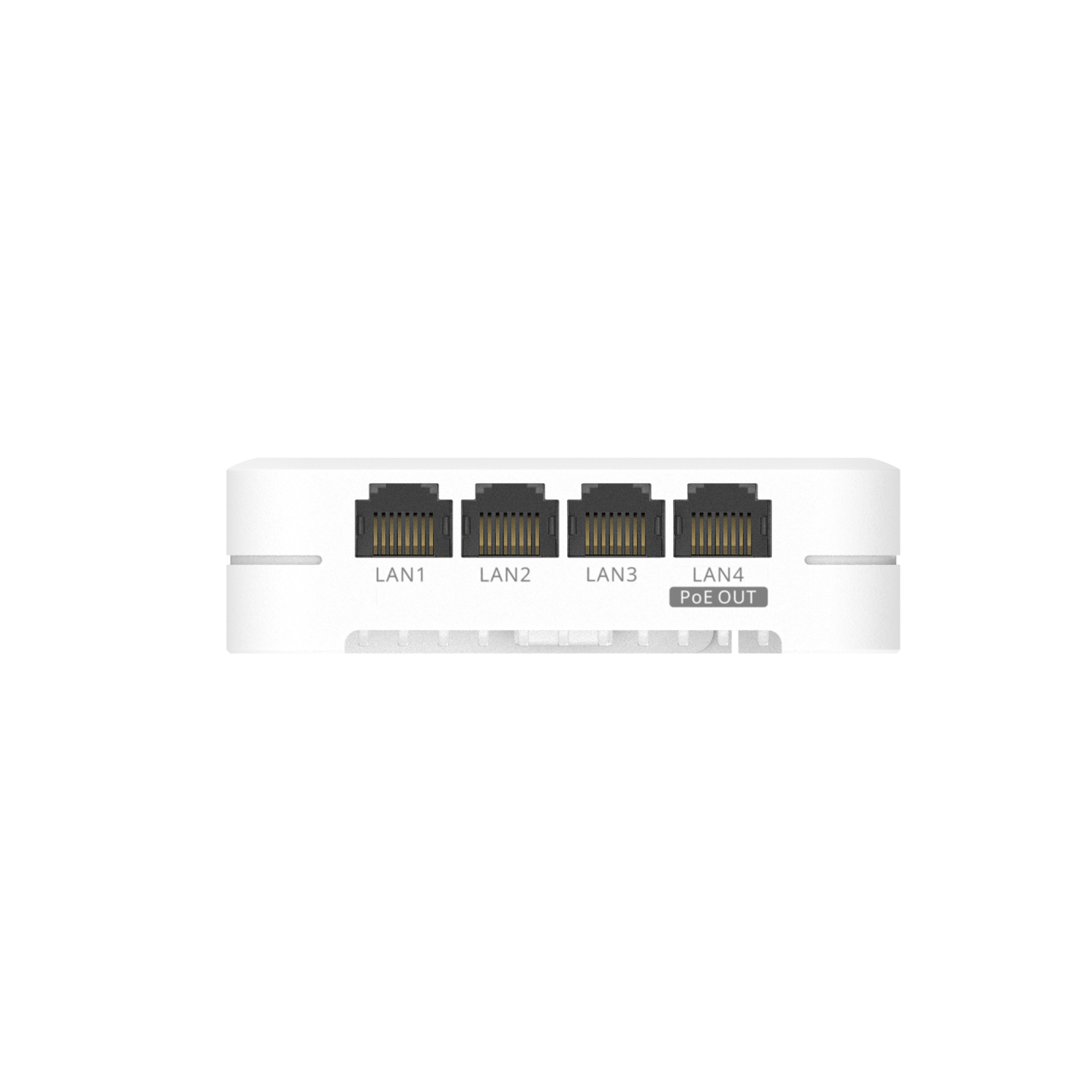

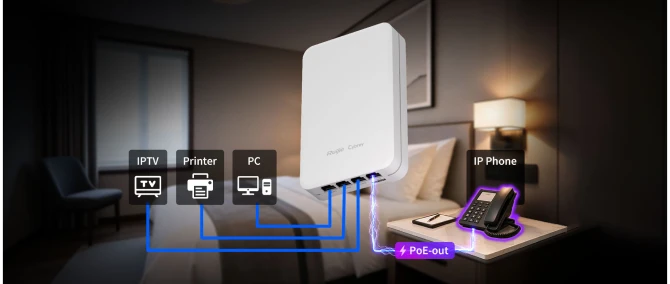

4 LAN Ports (One PoE Out)

4 LAN Ports (One PoE Out)

5

4 LAN Ports (One PoE Out)
Features 4 LAN ports for wired devices, with one PoE Out port that powers an IP phone or camera directly.
6

Enterprise Security

Enterprise Security

6

Enterprise Security
Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a Kensington lock.

7

Responsive Roaming Experience

Responsive Roaming Experience

7

Responsive Roaming Experience
The RG-CNC series coordinates APs to steer wireless clients to suitable access points for improved roaming performance.
8

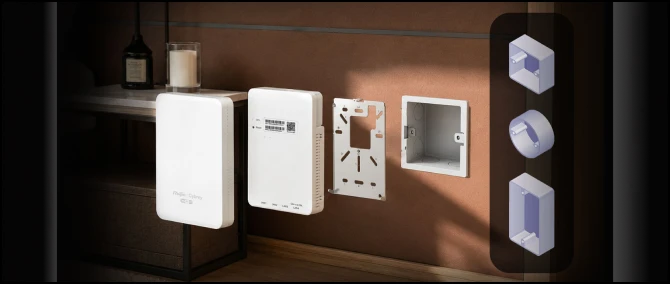

Easy Installation

Easy Installation

8

Easy Installation
Fits standard junction boxes, enabling quick upgrade for hotel rooms and office spaces.
9

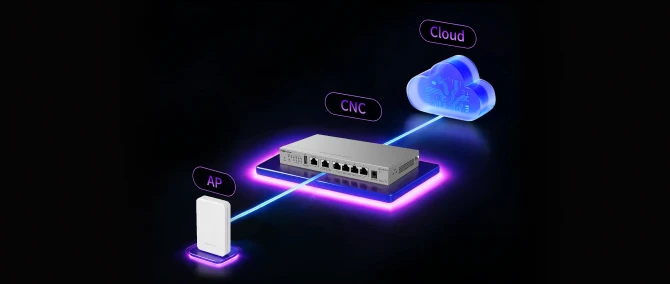

Cloud-Edge Collaborative Wireless Network

Cloud-Edge Collaborative Wireless Network

9

Cloud-Edge Collaborative Wireless Network
Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.

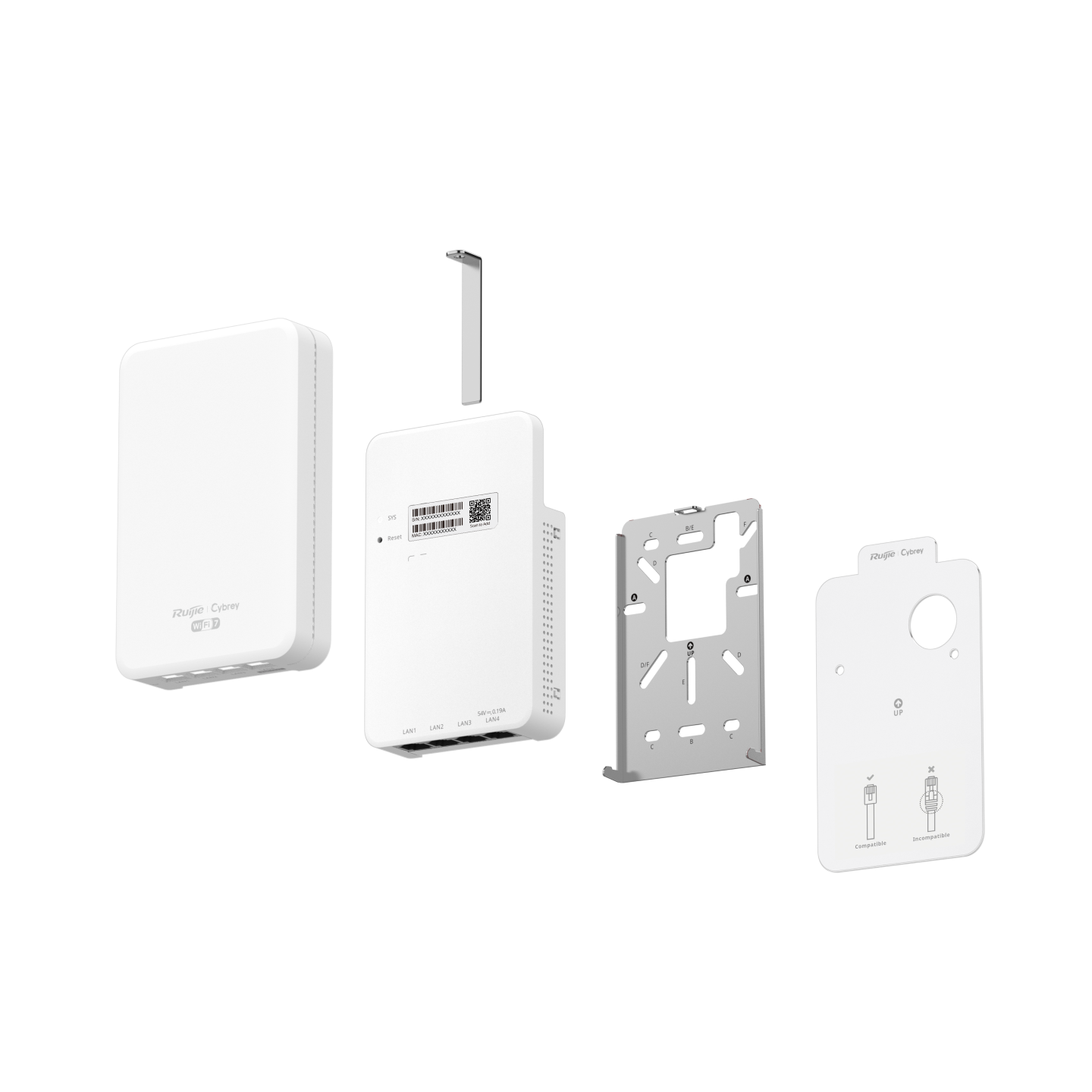

In the Box

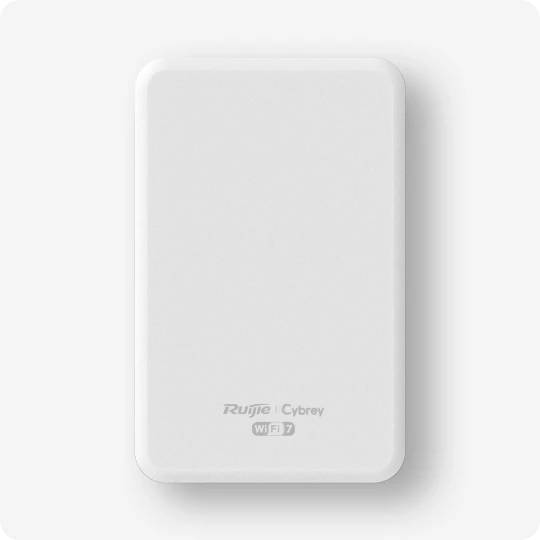

RG-CAP72-WP
× 1

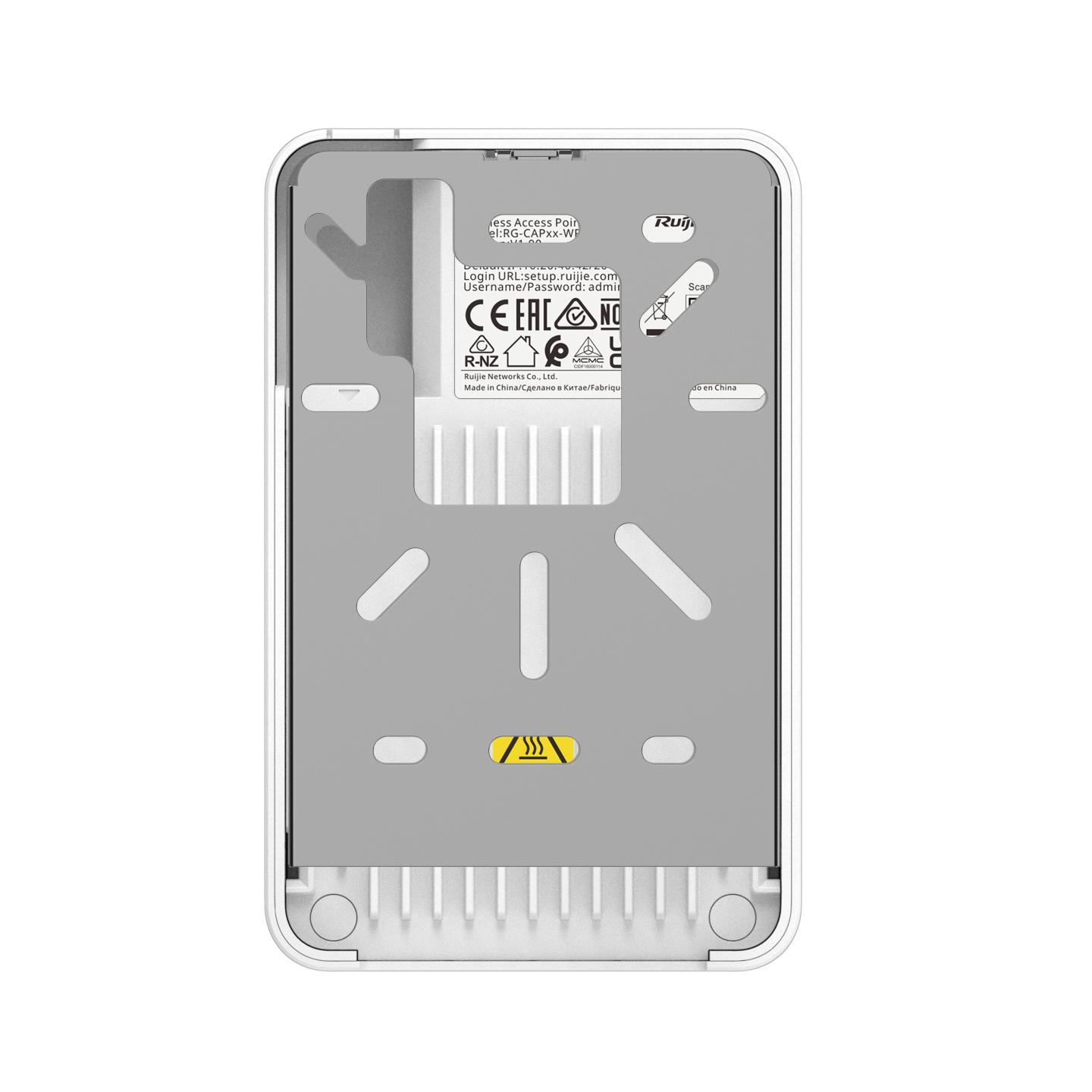

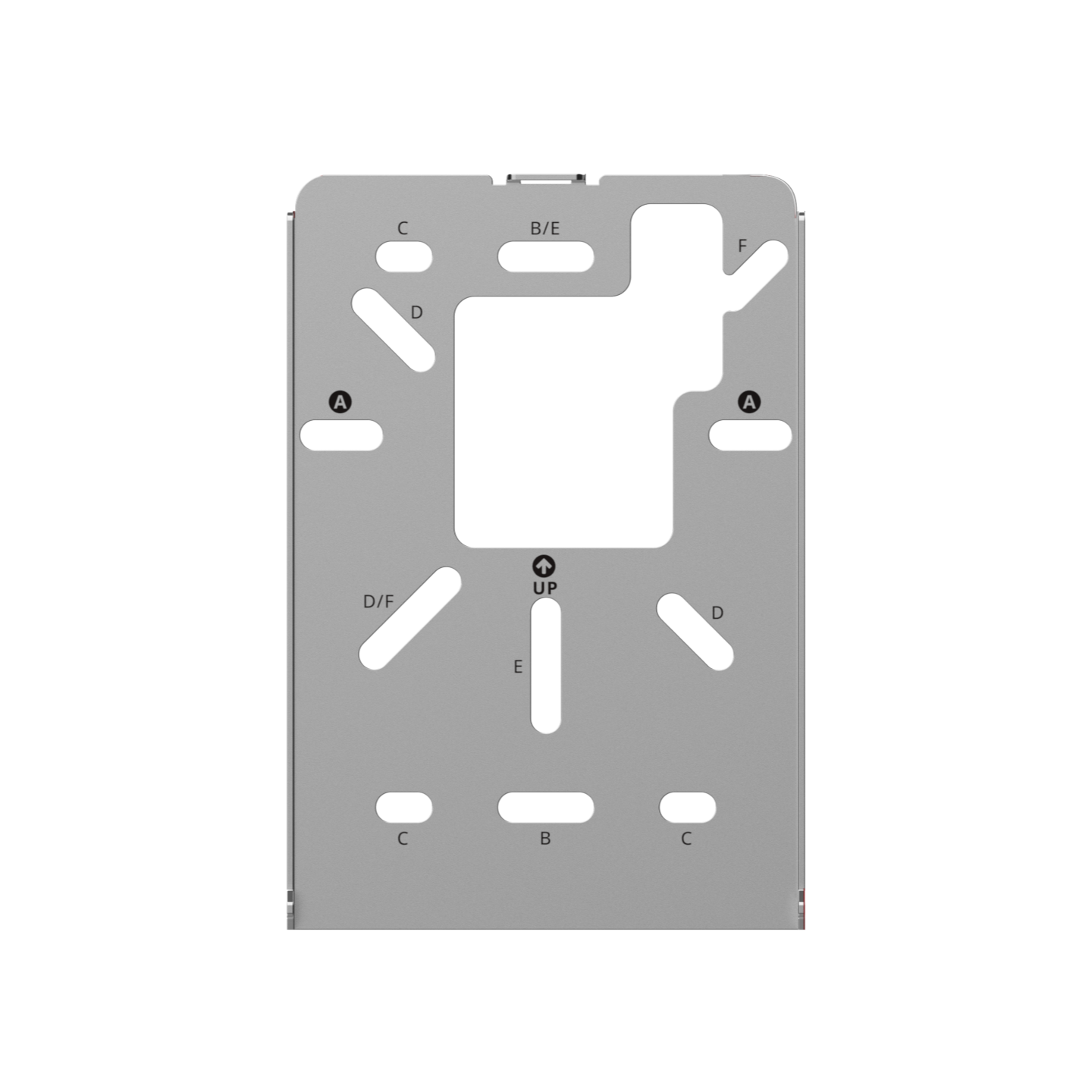

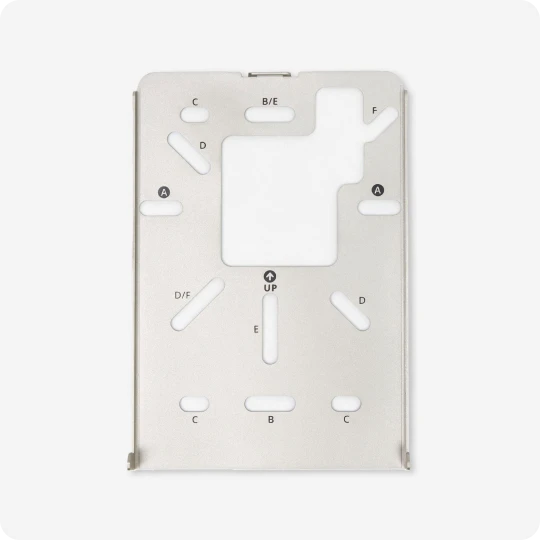

Mounting bracket
× 1

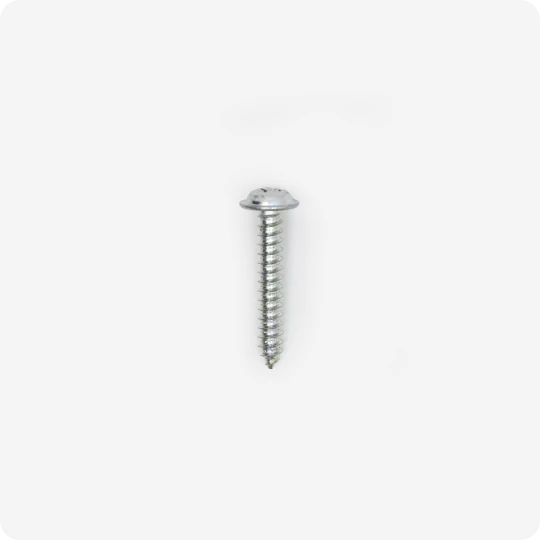

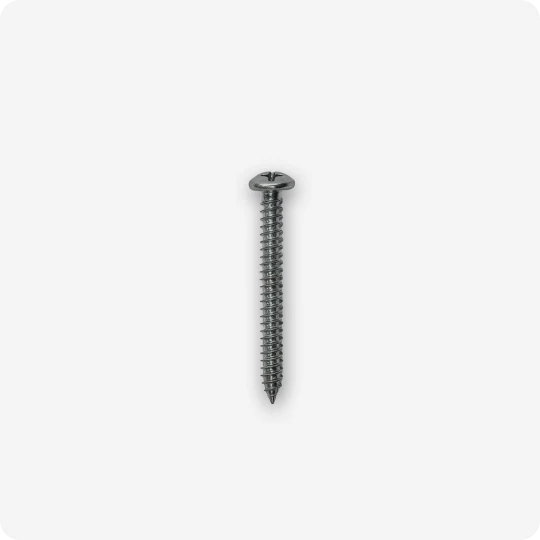

ST4.2 x 25 mm Phillips tapping screws
× 4

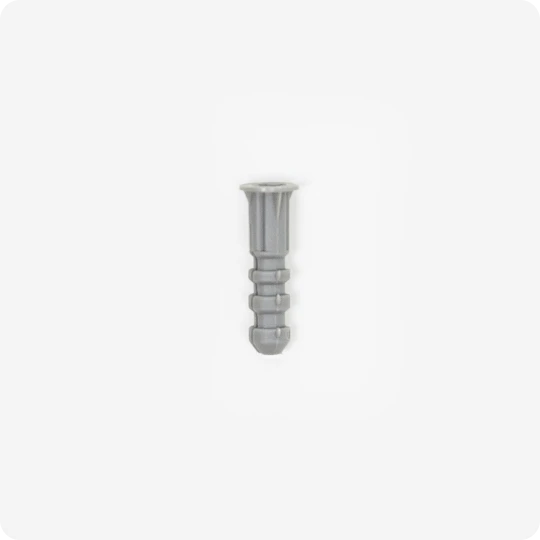

φ6.3 x 25 mm Plastic expansion anchors
× 4

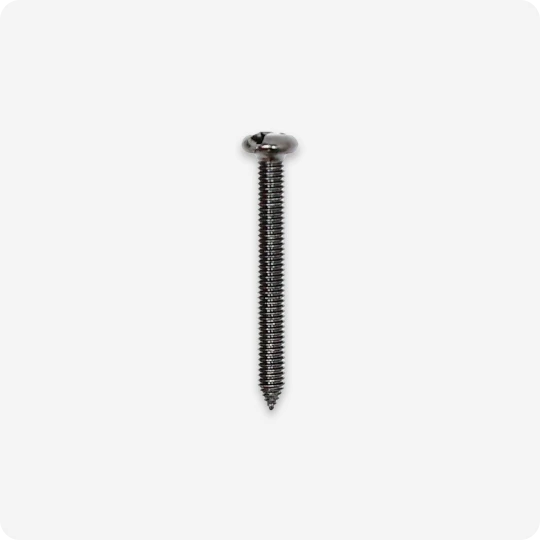

ST3 x 30 mm Phillips tapping screws
× 2
M3.5 x 30 mm Phillips machine screws
× 2
M4 x 40 mm Phillips machine screws
× 2

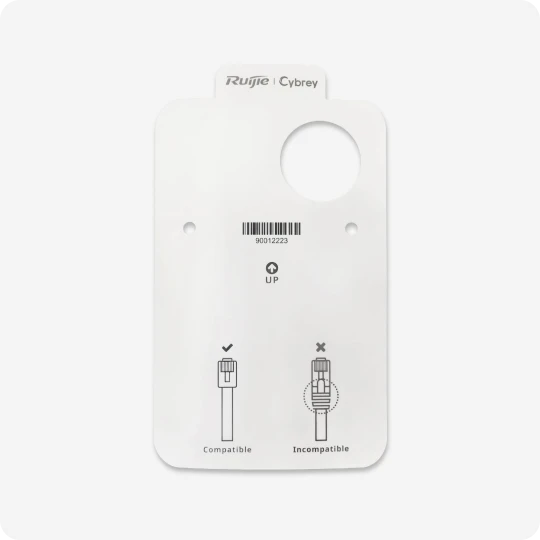

Alignment sticker
× 1

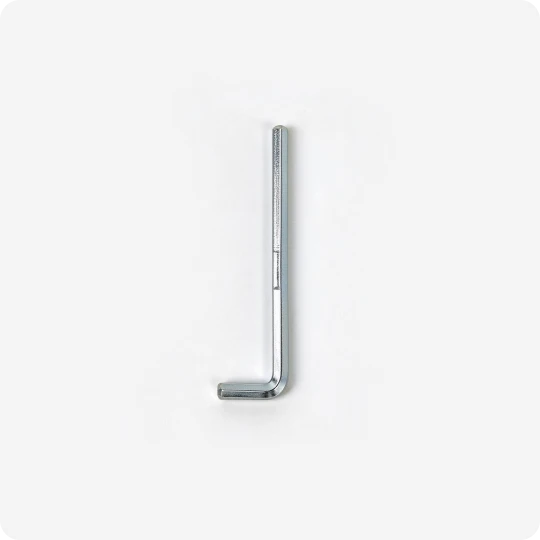

Key to security lock slot
× 1

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

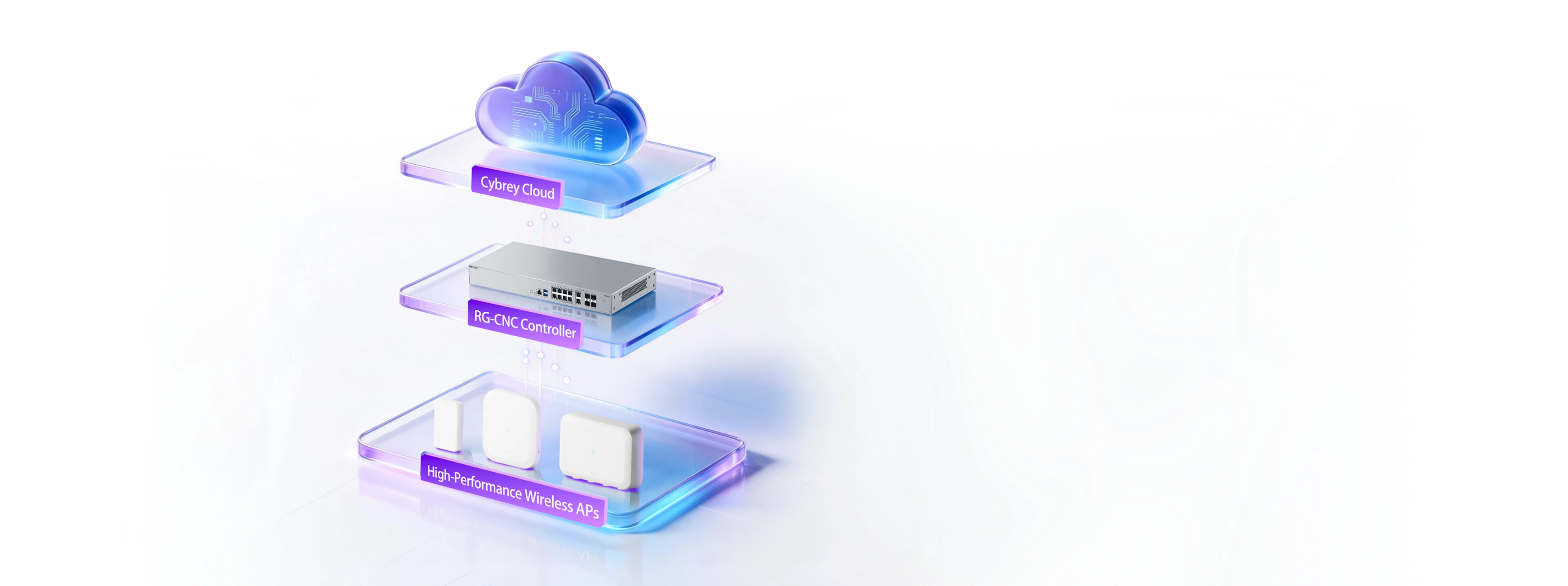

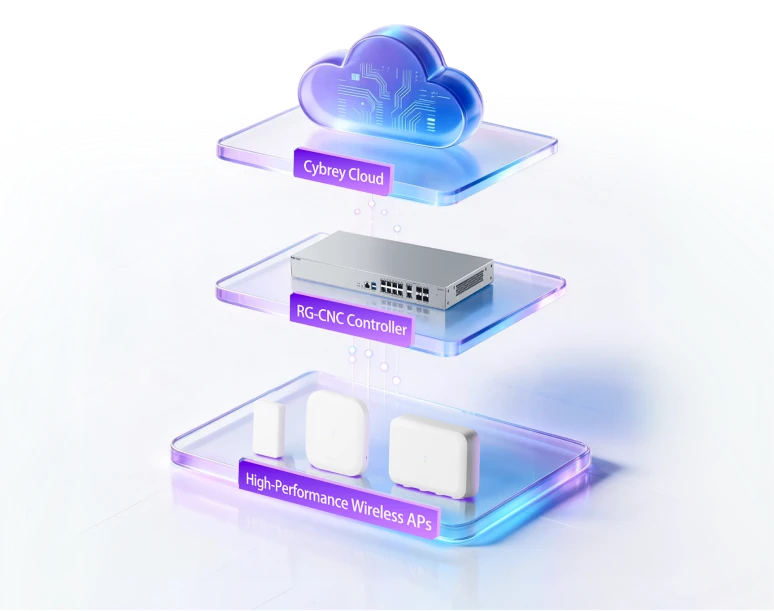

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

1
Cybrey Cloud

AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis
2
RG-CNC Controller

Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.
3
High-Performance Wireless APs

Frontline Soldiers: Execute RF and client actions and report field feedback.

Specifications

Hardware Specifications

Wi-Fi Radio

Wi-Fi standards

IEEE 802.11be (Wi-Fi 7), compatible with IEEE 802.11a/b/g/n/ac/ax

Wi-Fi standards (2.4 GHz)

IEEE 802.11b (Wi-Fi 1)
IEEE 802.11g (Wi-Fi 3)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Wi-Fi standards (5 GHz)

IEEE 802.11a (Wi-Fi 2)
IEEE 802.11n (Wi-Fi 4 )
IEEE 802.11ac (Wi-Fi 5)
IEEE 802.11ax (Wi-Fi 6)
IEEE 802.11be (Wi-Fi 7)

Radio design

Dual-radio
4 spatial streams
● Radio 1: 2.4 GHz, 2x2, MU-MIMO
● Radio 2: 5 GHz, 2x2, MU-MIMO

Data rates

Combined peak data rate: 3570 Mbps
● Radio 1: 2.4 GHz, 688 Mbps
● Radio 2: 5 GHz, 2882 Mbps

Maximum transmit power

Frequency bands and maximum Effective Isotropic Radiated Power (EIRP):
Note: The transmit power is limited by local regulatory requirements.

European Union & United Kingdom:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
Myanmar:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5725–5825 MHz, EIRP ≤ 30 dBm
Thailand:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5825 MHz, EIRP ≤ 30 dBm
Indonesia:
2400–2483.5 MHz, EIRP ≤ 27 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5725–5825 MHz, EIRP ≤ 23 dBm
Egypt:
2400–2483.5 MHz, EIRP ≤ 20 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
Vietnam:
2400–2483.5 MHz, EIRP ≤ 23 dBm
5150–5350 MHz, EIRP ≤ 23 dBm
5470–5725 MHz, EIRP ≤ 30 dBm
5725–5850 MHz, EIRP ≤ 30 dBm

Maximum transmit power (2.4 GHz)

Combined power: 21 dBm (single-stream power: 18 dBm)
Note: The transmit power is limited by local regulatory requirements.

Maximum transmit power (5 GHz)

Combined power: 21 dBm (single-stream power: 18 dBm)
Note: The transmit power is limited by local regulatory requirements.

Modulation types

802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM

Operating frequency bands

● Radio 1: 802.11b/g/n/ax/be, 2.400 GHz to 2.4835 GHz, EHT20/EHT40
● Radio 2: 802.11a/n/ac/ax/be, 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz, EHT20/EHT40/EHT80/EHT160
Note: Country-specific restrictions apply. To use the preceding frequency bands, ensure that they are supported in your country or region.

Receive sensitivity

802.11a: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –74 dBm (54 Mbps)
802.11b: –96 dBm (1 Mbps), –93 dBm (5.5 Mbps), –89 dBm (11 Mbps)
802.11g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps)
802.11n HT20: –88 dBm (MCS0), –70 dBm (MCS7)
802.11n HT40: –85 dBm (MCS0), –67 dBm (MCS7)
802.11ac VHT20: –88 dBm (MCS0), –65 dBm (MCS8)
802.11ac VHT40: –85 dBm (MCS0), –60 dBm (MCS9)
802.11ac VHT80: –82 dBm (MCS0), –57 dBm (MCS9)
802.11ac VHT160: –79 dBm (MCS0), –54 dBm (MCS9)
802.11ax HE20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11)
802.11ax HE40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11)
802.11ax HE80: –82 dBm (MCS0)，–57 dBm (MCS9), –52 dBm (MCS11)
802.11ax HE160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11)
802.11be EHT20: –88 dBm (MCS0), –63 dBm (MCS9), –58 dBm (MCS11), –52 dBm (MCS13)
802.11be EHT40: –85 dBm (MCS0), –60 dBm (MCS9), –55 dBm (MCS11), –49 dBm (MCS13)
802.11be EHT80: –82 dBm (MCS0), –57 dBm (MCS9), –52 dBm (MCS11), –46 dBm (MCS13)
802.11be EHT160: –79 dBm (MCS0), –54 dBm (MCS9), –49 dBm (MCS11), –43 dBm (MCS13)

Antenna

Antenna type

2.4 GHz and 5 GHz: 2 x built-in dual-band omnidirectional antennas

Antenna gain

2.4 GHz: 2.95 dBi
5 GHz: 5.17 dBi

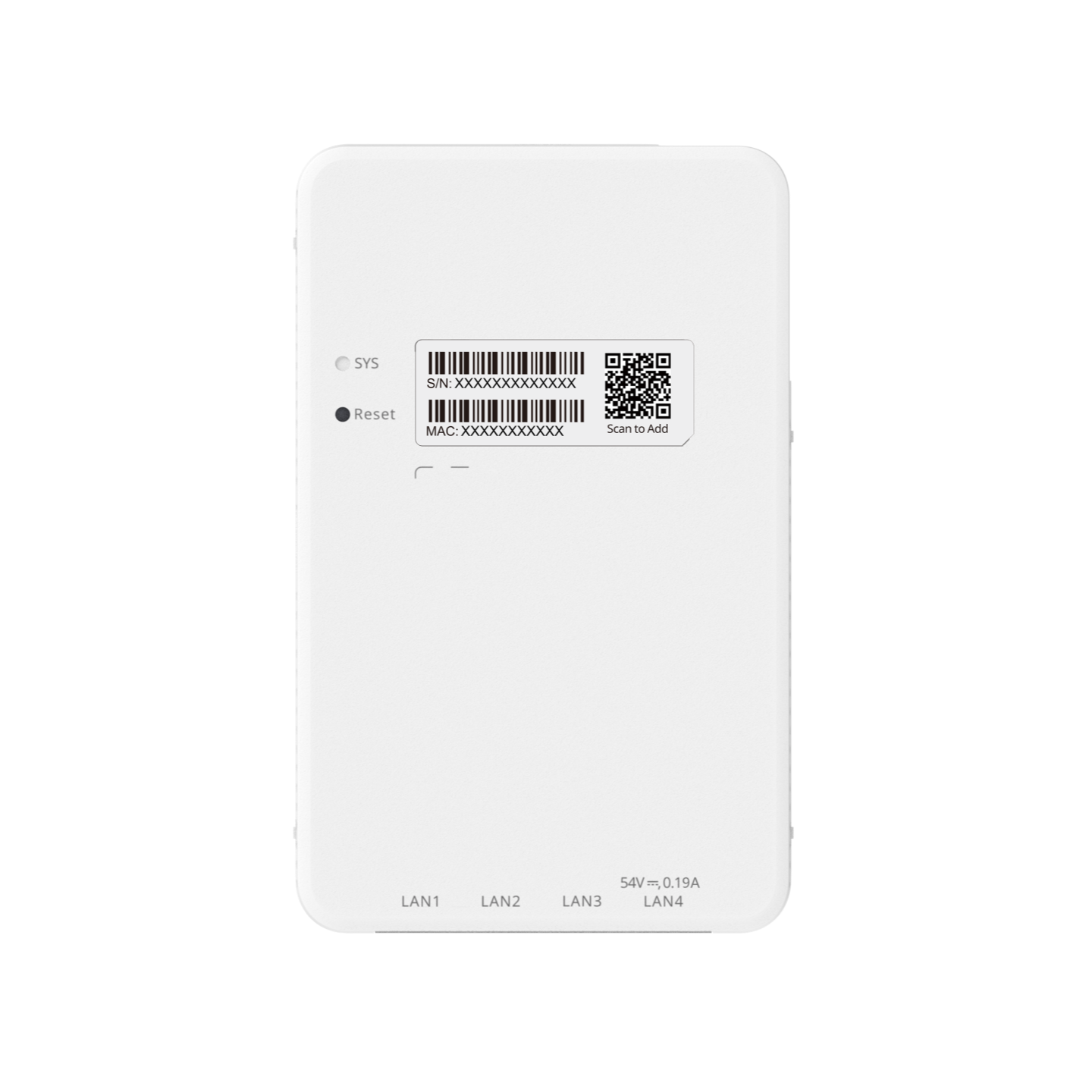

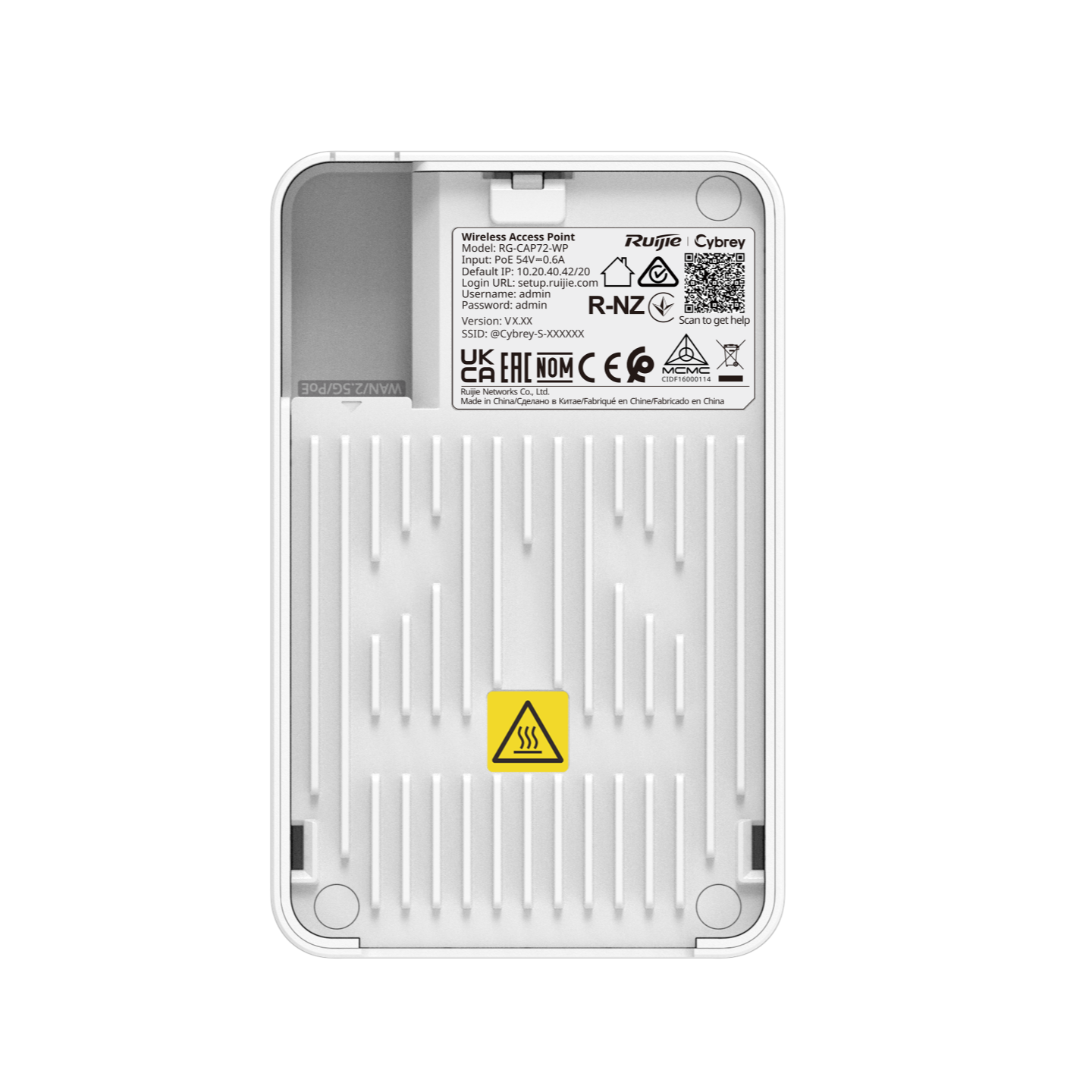

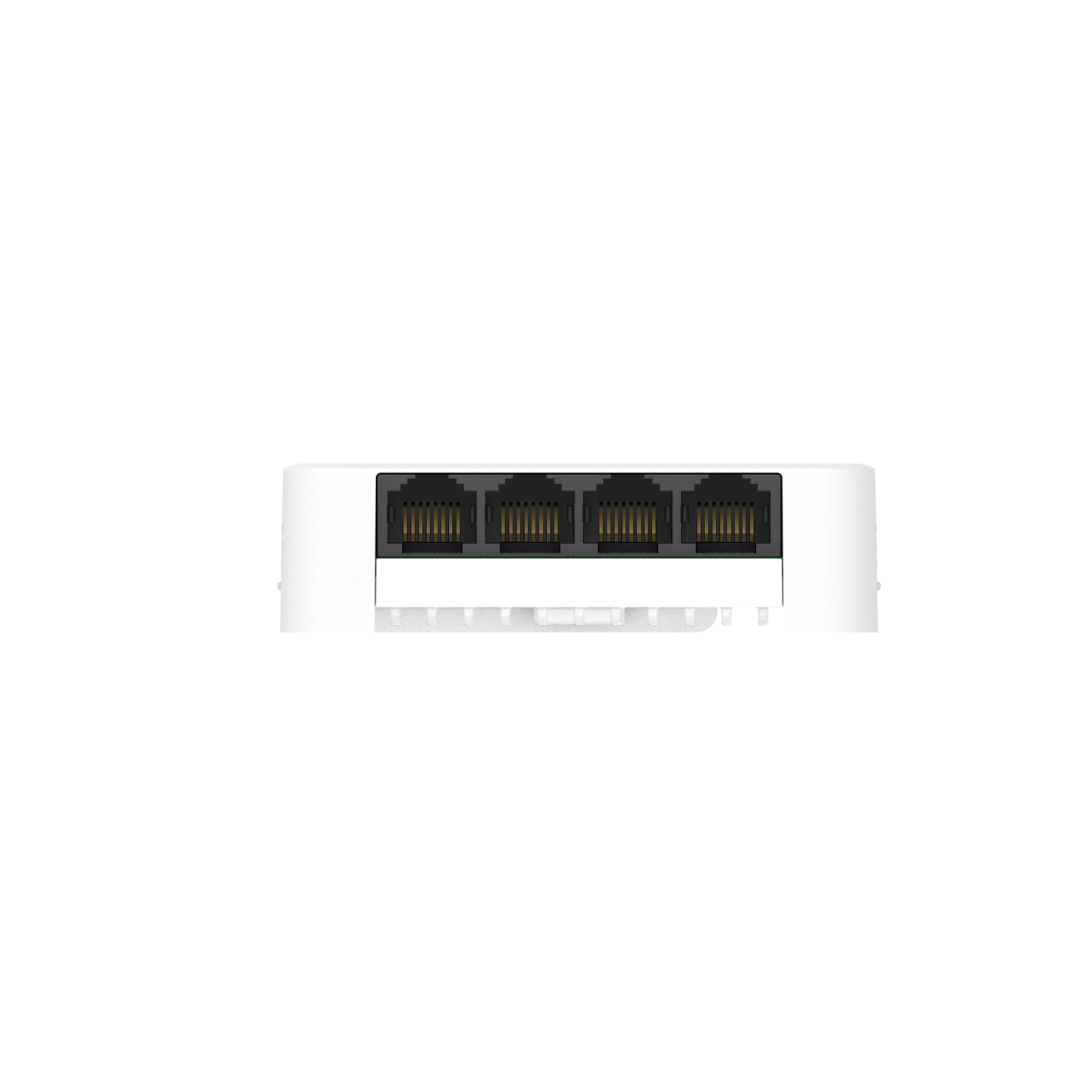

Port Specifications

Fixed service port

● 1 x 10/100/1000/2.5GBASE-T port, supporting IEEE 802.3af/at PoE input
● 3 x 10/100/1000BASE-T ports
● 1 x 10/100/1000BASE-T port, supporting PoE output

Fixed management port

1 x micro USB console port

LED

1 x system LED

Reset button

Power Supply and Consumption

DC power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

PoE power supply

● IEEE 802.3af (PoE)
● IEEE 802.3at (PoE+)

Power output

Supported
● LAN4 port can provide 54 V/10 W power output.

PoE budget

10 W (with an IEEE 802.3at-compliant power source)

Maximum power consumption

23.5 W (including 10 W PoE output)

Number of PoE Out ports

IEEE 802.3af power input

Port restrictions: The LAN4 port cannot provide power output.
Radio restrictions: N/A
Other feature restrictions: N/A

IEEE 802.3at power input

Port restrictions: N/A
Radio restrictions: N/A
Other feature restrictions: N/A

Environment and Reliability

Operating temperature

–10°C to +40°C (14°F to 104°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Operating humidity

5% RH to 95% RH (non-condensing)

Storage humidity

0% RH to 95% RH (non-condensing)

Storage temperature

–40°C to +70°C (–40°F to +158°F)
Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 220 m (721.78 ft.) increase in elevation.

Lock option

Securing latch

MTBF

400,000 hours

Mounting options

Wall-mount and junction box-mount

Dimensions and Weight

Unit dimensions (W x D x H)

86 mm x 25 mm x 135 mm (3.39 in. x 0.98 in. x 5.31 in., without the mounting bracket)

Packaging dimensions (W x D x H)

113 mm x 177.5 mm x 63 mm (4.45 in. x 6.99 in. x 2.48 in.)

Unit weight

Main unit: 0.23 kg (0.51 lbs)
Mounting bracket: 0.06 kg (0.13 lbs)

Packaging weight

0.46 kg (1.01 lbs)

Color

White

System Specifications

Flash memory

256 MB SPI NAND Flash

RAM

1 GB DDR4

Certification and Regulatory Compliance

Certification

CE, CB, Wi-Fi Alliance

EMC compliance

EN 55032
EN 61000-3-3
EN IEC 61000-3-2
EN 55035
EN 301 489-1
EN 301 489-3
EN 301 489-17

Radio

EN 300 328
EN 301 893
EN 300 440

RF exposure

EN IEC 62311

Safety compliance

IEC 62368-1

Software Specifications

Bandwidth Features

Bandwidth control

AP-based bandwidth control
Client-based bandwidth control
Intelligent dynamic bandwidth control based on channel utilization
Intelligent dynamic bandwidth control based on critical services
SSID-based bandwidth control

Client Management

Client limit

Radio-based client limit
SSID-based client limit

Dynamic blocklist/allowlist

Dynamic blocklist

Smart steering

AP load balancing
Configuring load balancing based on client count
Configuring load balancing based on client traffic

Static blocklist/allowlist

Static allowlist
Static blocklist

Radio Management

SSID management basics

SSID hiding

Roaming Features

Layer 2 roaming

Layer 2 roaming

Layer 3 roaming

Layer 3 roaming

Security Features

Client security

Hotspot2.0 authentication
WPA-802.1X authentication
WPA-PSK authentication
WPA-WPA2 authentication
WPA2-802.1X authentication
WPA2-PSK authentication
WPA2-WPA3 authentication
WPA3-Enterprise
WPA3-Enterprise (uses Suite-B 192-bit, GCMP-256)
WPA3-Enterprise with AES-CCMP-128
WPA3-OWE authentication
WPA3-Personal
WEP authentication

802.1X

Dynamic ACL assignment

Client identification

AI-based identification of client types, operating systems, operating system versions, vendors, and models
Client identification

CPP

MAB

NFPP

NFPP

RADIUS

RADIUS

Web authentication

Web authentication

Layer 3 Features

IPv6

ICMPv6
IPv6 basic features
Neighbor discovery
Ping over IPv6

NAT

NAT
PPTP, SIP, FTP, DNS, and TFTP

Management Features

SNMP

SNMPv1/v2c/v3
SNMP

Alerts

Alerts

Cloud-based management

Cloud-based management

SON

SSH

Syslog

Syslog

Telnet

Telnet

Web-based management

Web-based management

IP Services

DHCP

DHCPv4 client
DHCPv6 client

NTP

NTP client
NTP server

Networking Features

RIPT

RIPT

Routing Features

IPv4 routing basics

Static routing

IPv6 routing basics

Static IPv6 routing

Device Management

AP mode management

Mode switching

Device IP management

Obtaining an IP address through DHCP

Device IP Management

Static IPv4 address

Multicast Features

IGMP snooping

Multicast-to-unicast conversion

Capacity Specifications

Client Management

Maximum number of associated clients per AP

1024
Note: The number of associated clients varies according to the environment.

Recommended number of associated clients per AP

Radio Management

Maximum number of BSSIDs per AP

IP Services

Number of DHCP address pools

2000

Package Contents

Device

Main unit

Accessories

Alignment sticker

Key to security lock

Mounting bracket

1 x mounting bracket
(W x D x H: 78.5 mm x 13 mm x 114.6 mm / 3.09 in. x 0.51 in. x 4.51 in.)

Screw

4 x ST4.2 x 25 mm Phillips tapping screws
4 x φ6.3 x 25 mm plastic expansion anchors
2 x ST3 x 30 mm Phillips tapping screws
2 x M3.5 x 30 mm Phillips machine screws
2 x M4 x 40 mm Phillips machine screws

Manual

User Manual

Warranty Card

Resources

All Resources

Learn about Products or Solutions

Installation

Installation Guide

Software and Configuration

Videos

Higher Education

5-Star Hotel Solution

RG-CAP72-WP, Wi-Fi 7 BE3600 Wall-Plate Access Point

Key Specifications

Features

RG-CAP72-WP Ruijie Cybrey Wi-Fi 7 BE3600 Wall-Plate Access Point

In the Box

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network

Specifications

Resources

2026 Ruijie Networks Official Website User Experience Survey Questionnaire
