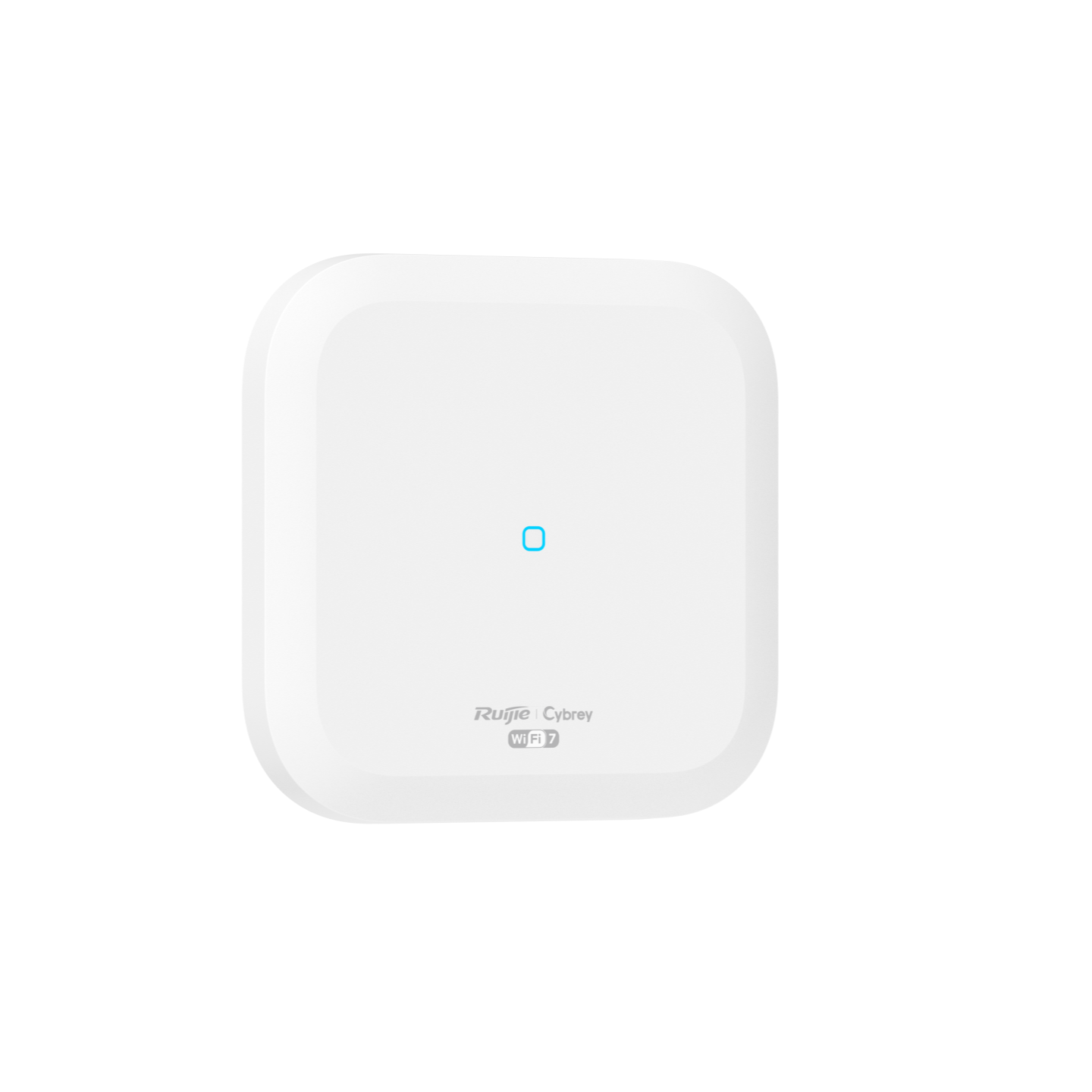

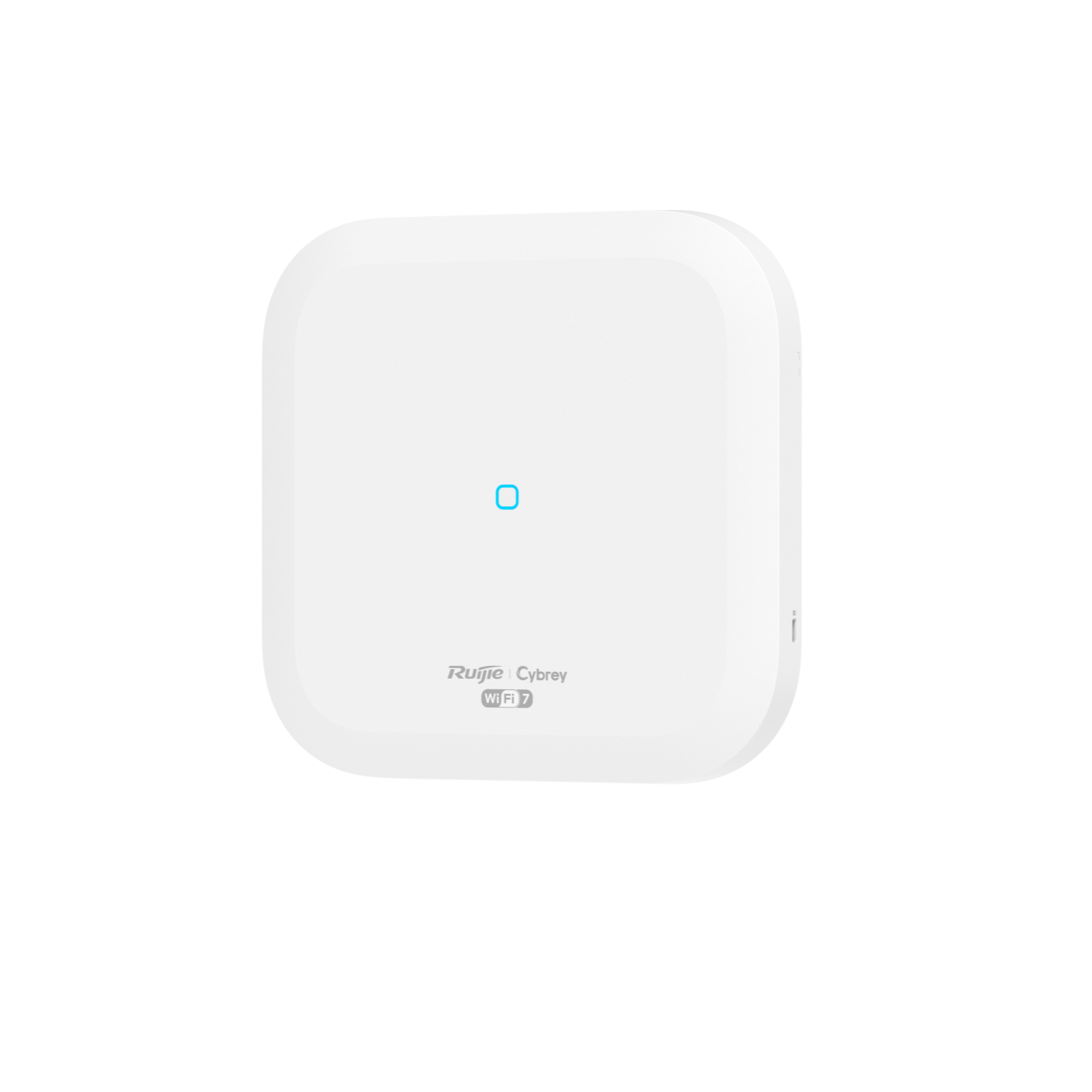

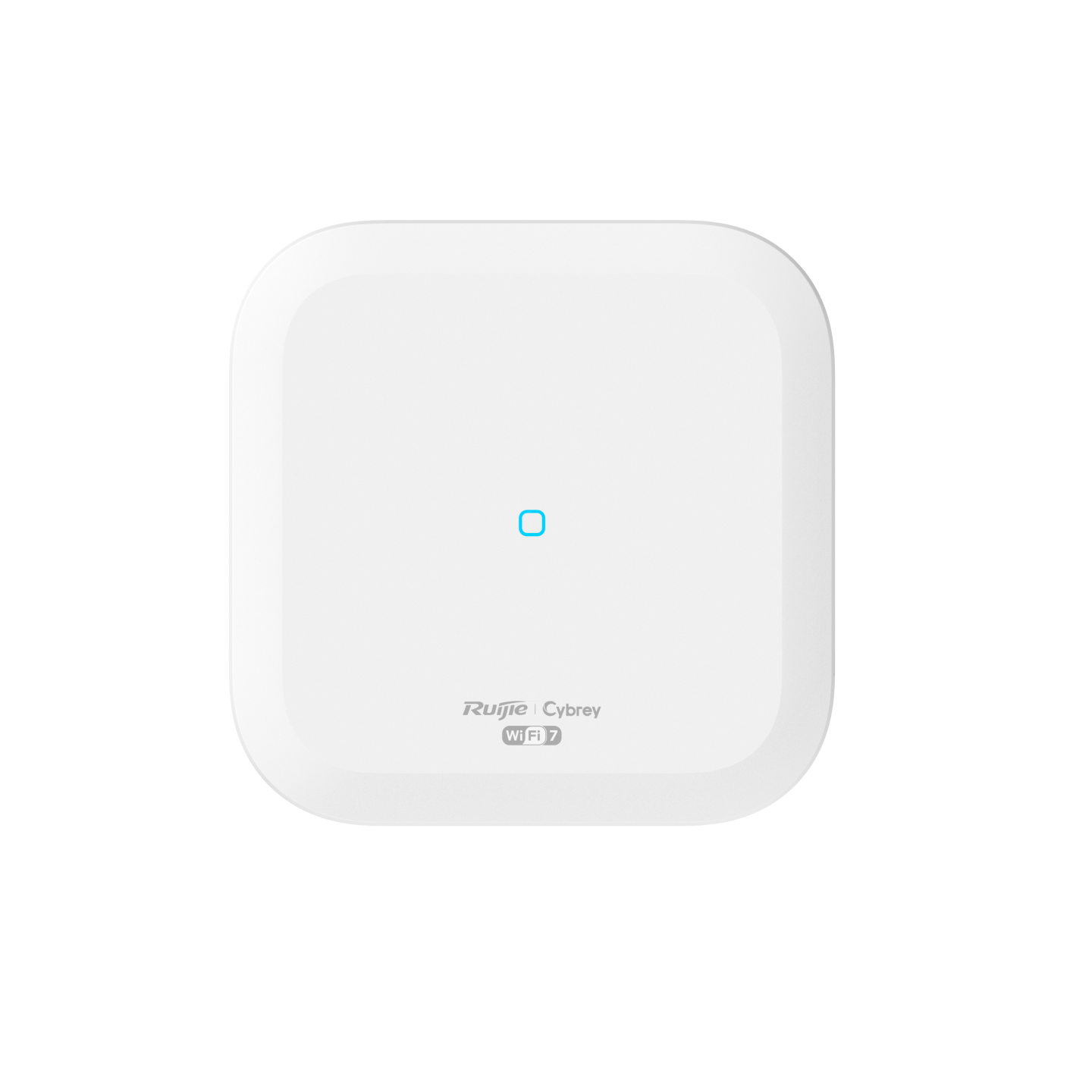

RG-CAP72Pro-IE Ruijie Cybrey Wi-Fi 7 BE6500 Ceiling Mount Access Point
-
-
1

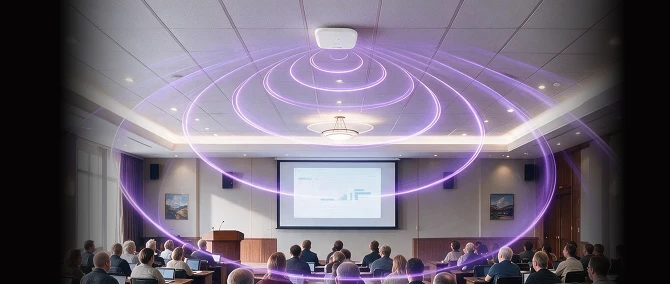

BE6500 Wi-Fi 7 Speed
BE6500 Wi-Fi 7 Speed
1 -
BE6500 Wi-Fi 7 Speed

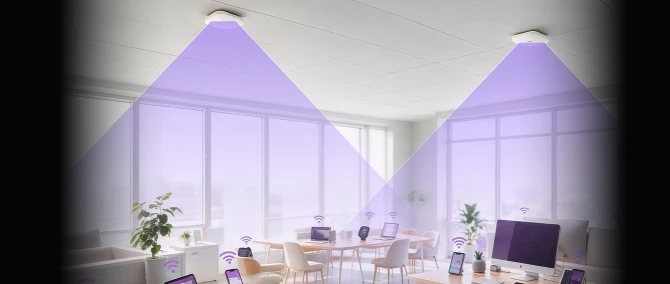

Provides high‑throughput connectivity for bandwidth‑heavy clients in hotel conference halls and large‑scale office environments.
-
-
-
2

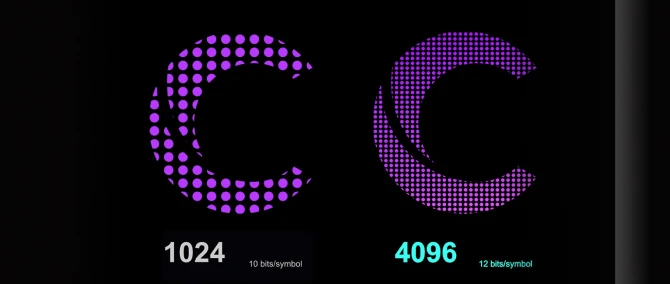

4096-QAM for Higher Peak Rates
4096-QAM for Higher Peak Rates
2 -
4096-QAM for Higher Peak Rates
Wi-Fi 7 with 4096‑QAM modulation delivers 20% higher peak data rates than Wi‑Fi 6.
-
-
-
3

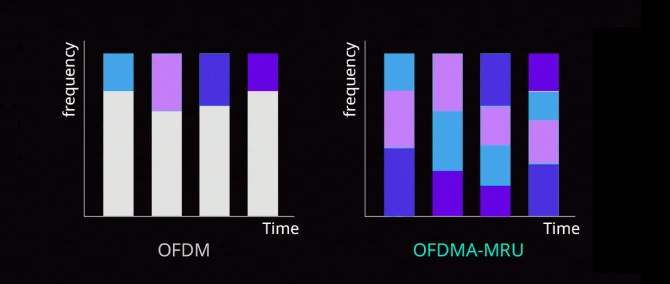

MRU for Multi-User Performance
MRU for Multi-User Performance
3 -
MRU for Multi-User Performance
Multi‑Resource Unit improves channel utilization in crowded environments and reduces latency when many clients are connected.
-
-
-
4

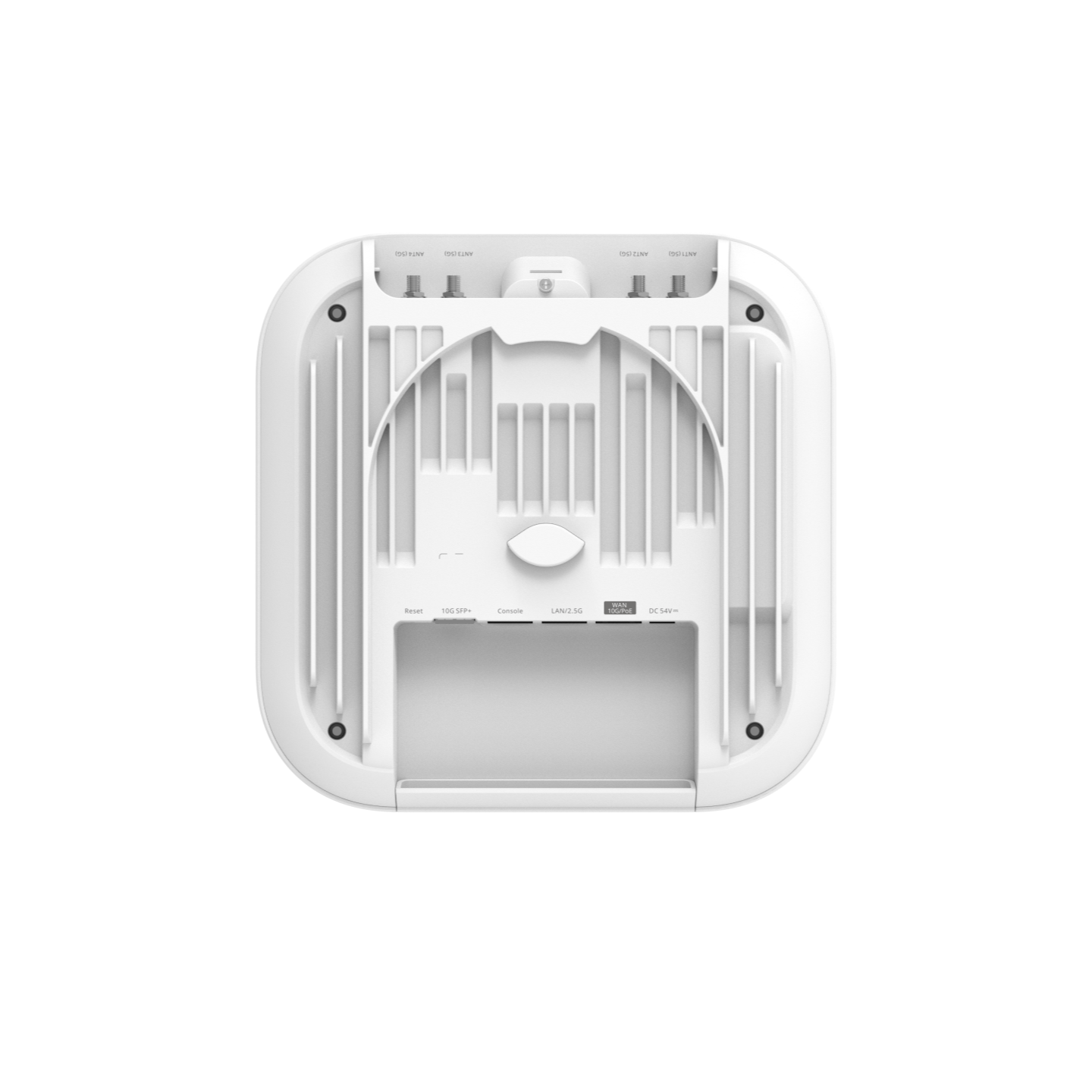

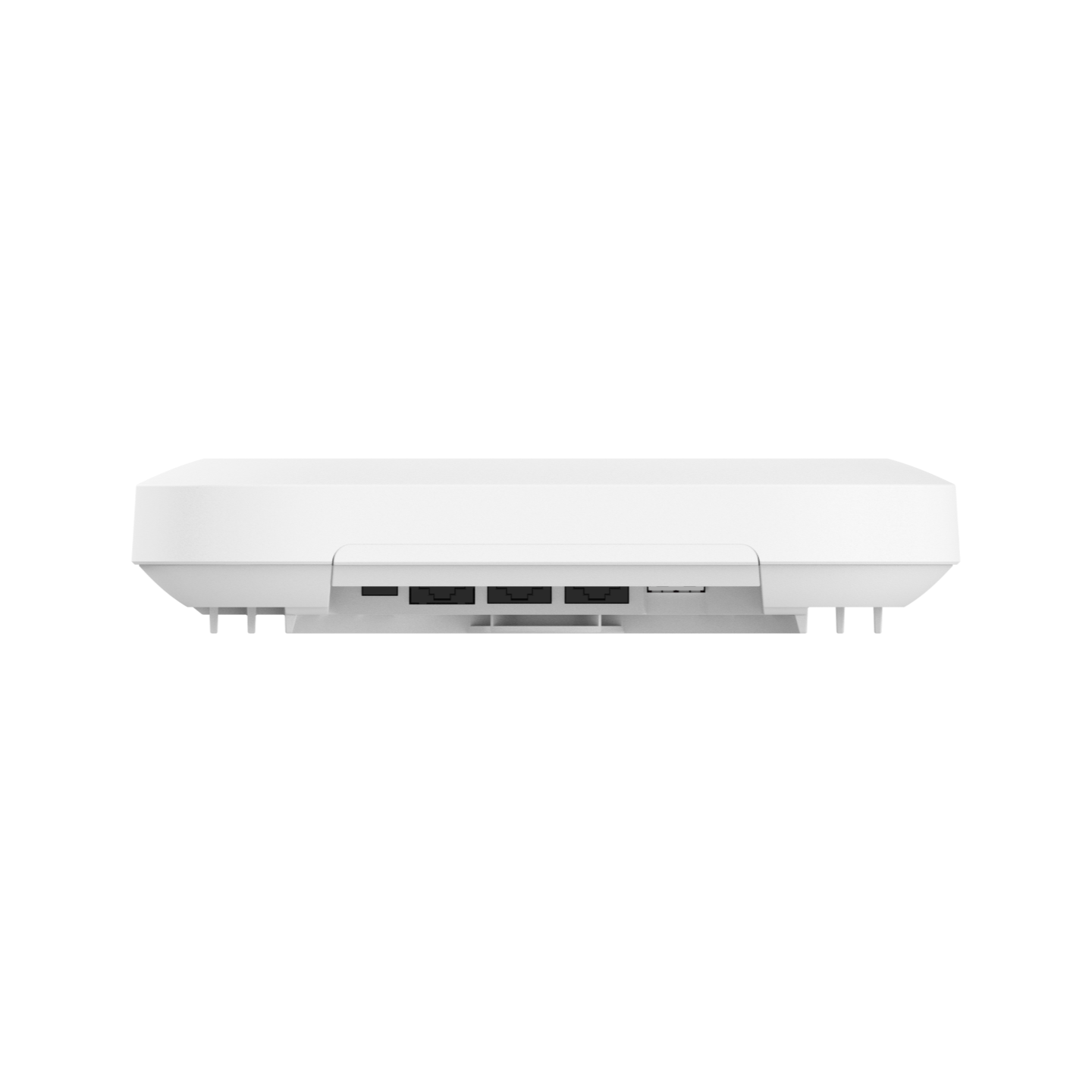

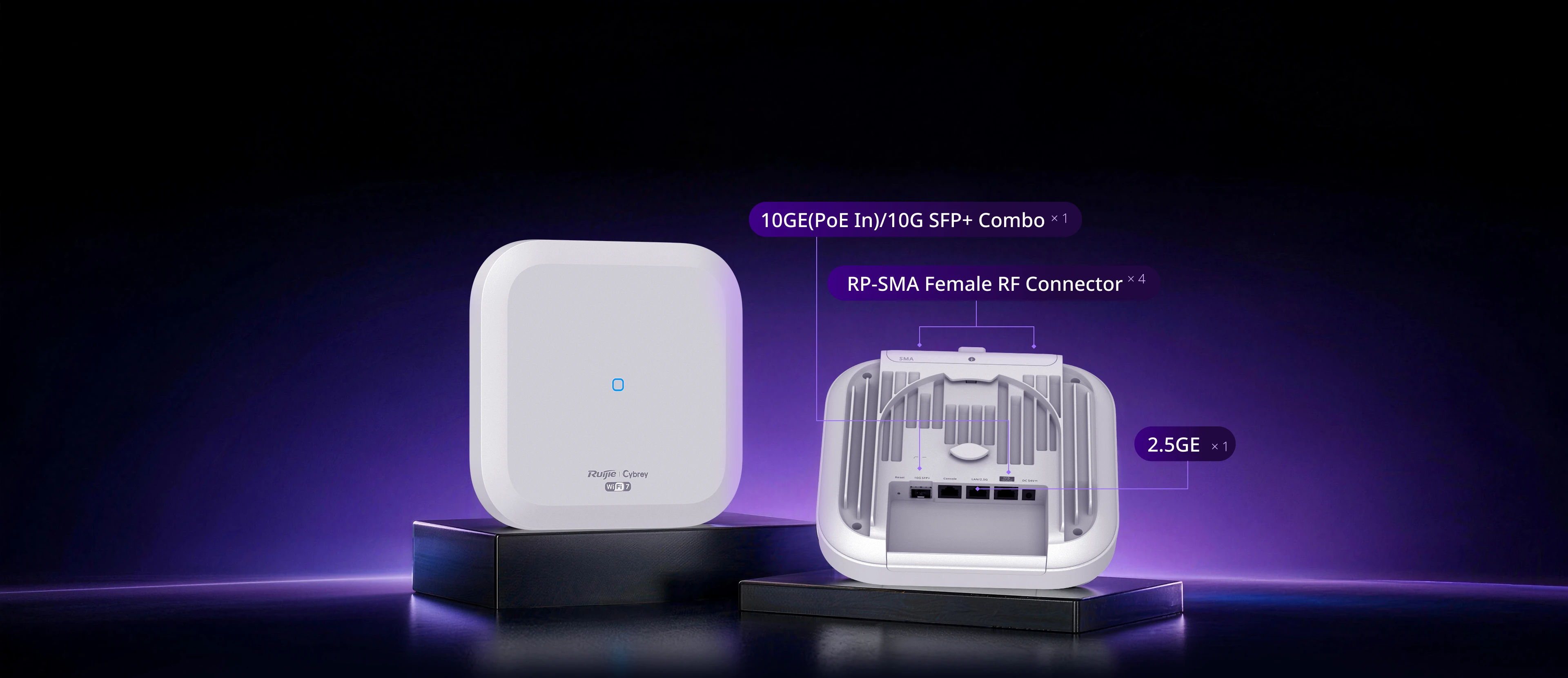

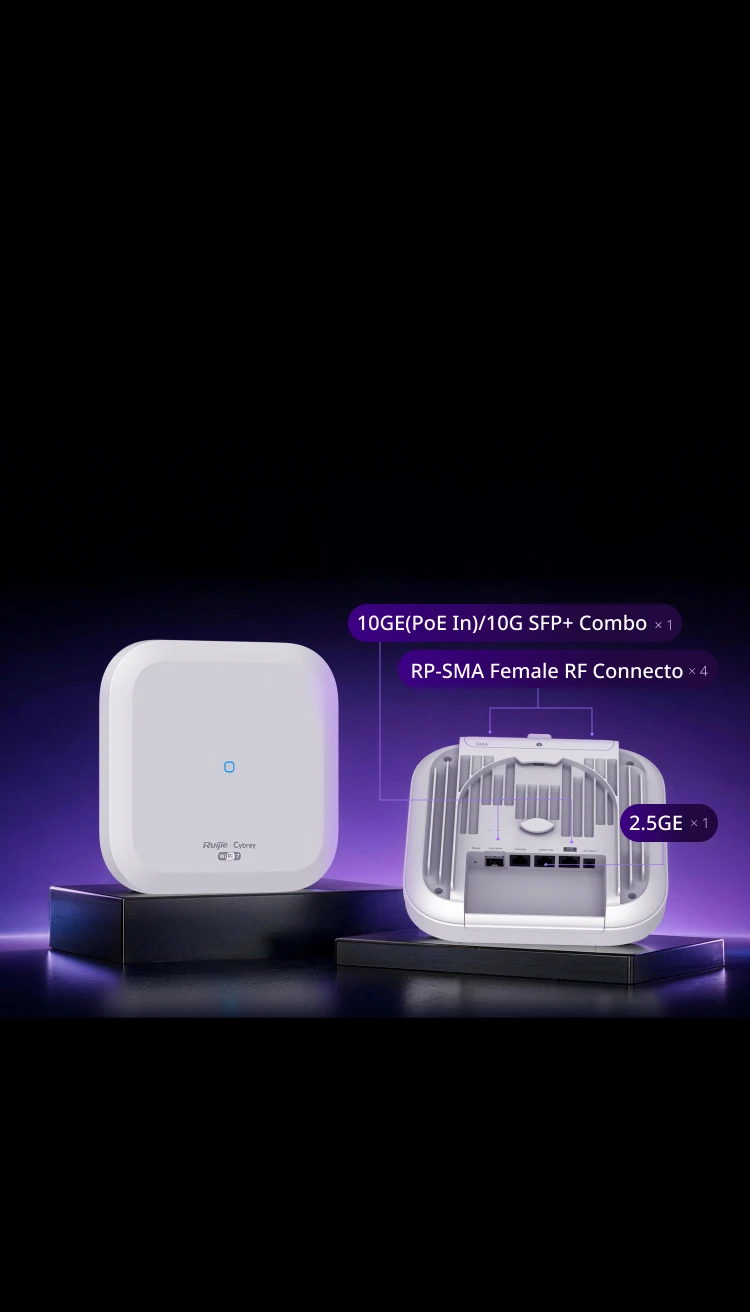

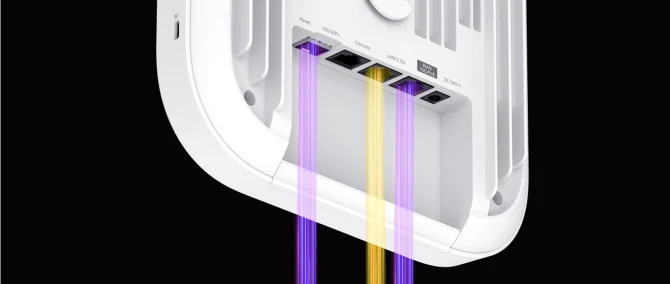

10G Combo + 2.5G Port
10G Combo + 2.5G Port
4 -
10G Combo + 2.5G Port

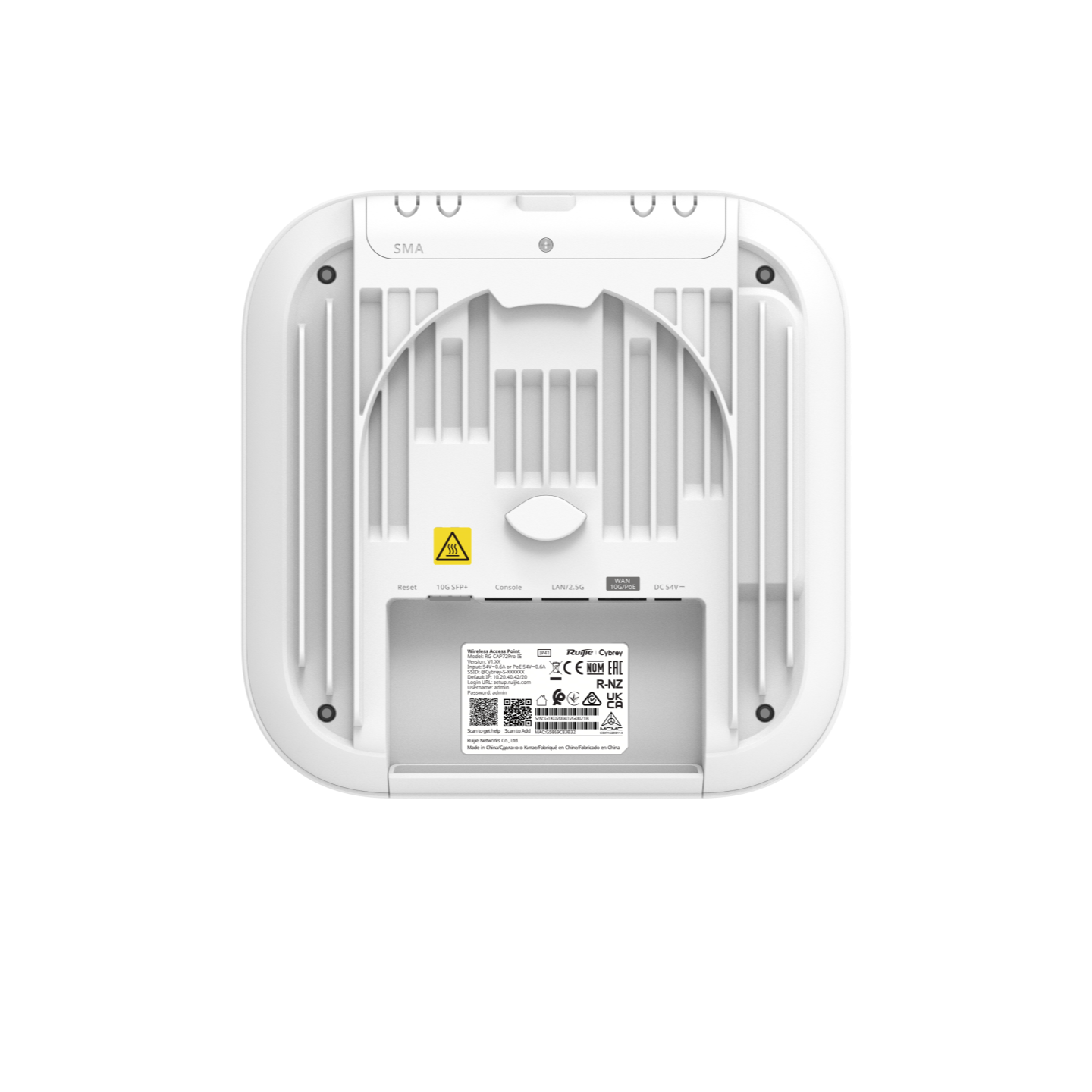

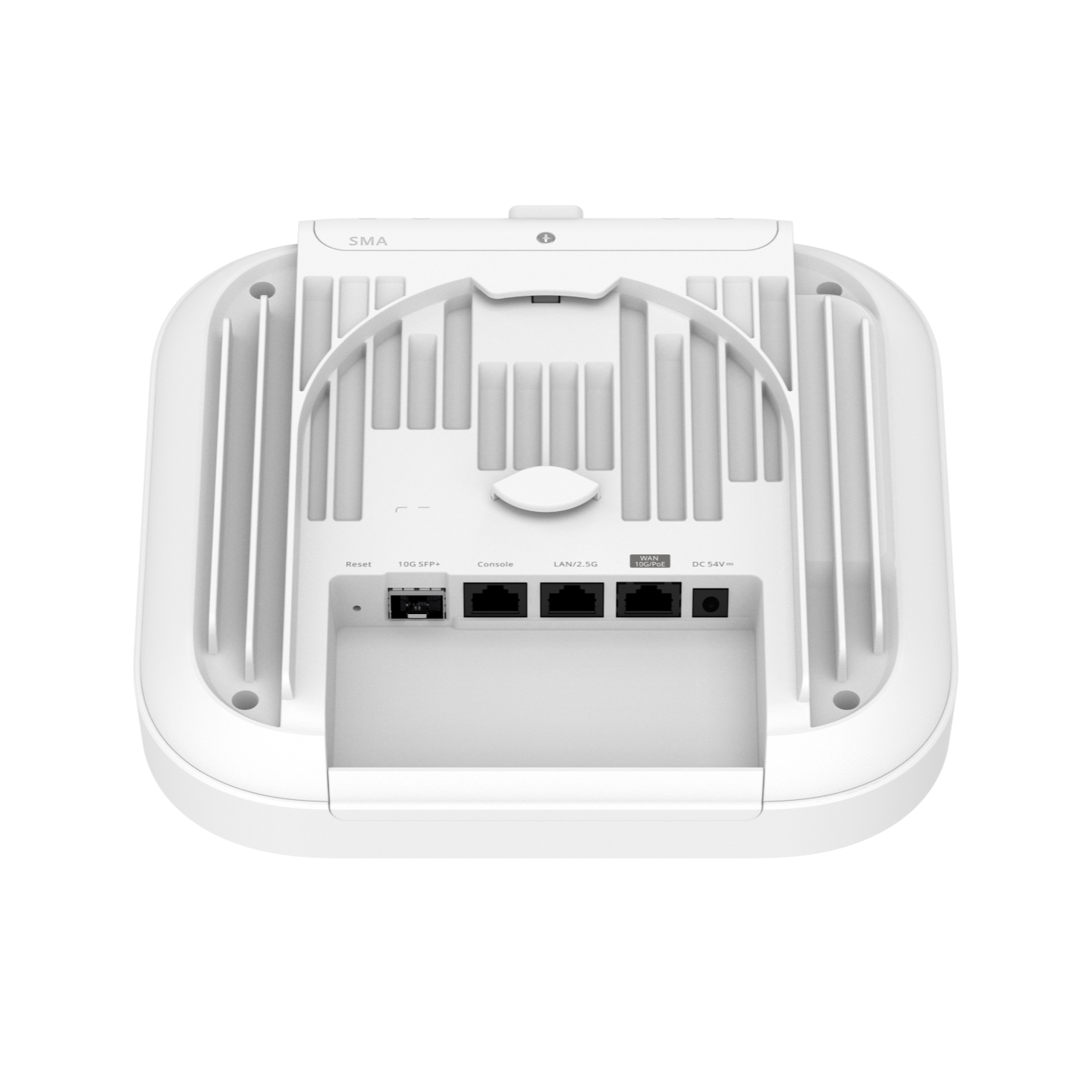

Features one 10G RJ45/SFP+ combo port and a dedicated 2.5G port, delivering high-capacity backhaul and wired connectivity.
-
-
-
5
Multi‑Beam Directional Antennas
Multi‑Beam Directional Antennas
5 -
Multi‑Beam Directional Antennas
Features built-in 75° and 35° beam antennas with sidelobe suppression, plus support for external 20° narrow-beam antennas. Reduces coverage overlap and interference in high-density ceiling-mounted deployments.
-
-
-
6
Enterprise Security
Enterprise Security
6 -
Enterprise Security
Supports GPSK-based dynamic VLAN assignment, WIDS/WIPS threat detection and prevention, WPA2/WPA3 encryption, plus physical security with a Kensington lock and securing latch.
-
-
-
7
Full-time AI Radio for Responsive Roaming
Full-time AI Radio for Responsive Roaming
7 -
Full-time AI Radio for Responsive Roaming
Full-time dedicated AI Radio continuously scans all channels and enables responsive steering. The AP works with the RG-CNC series to steer clients to suitable APs for improved roaming performance.
-
-
-
8
Load Balancing
Load Balancing
8 -
Load Balancing
Balances clients across APs and steers them between 2.4 GHz and 5 GHz radios, enabling consistent performance in high-density areas.
-
-
-
9
Cloud-Edge Collaborative Wireless Network
Cloud-Edge Collaborative Wireless Network
9 -
Cloud-Edge Collaborative Wireless Network
Cloud AI provides global visibility and planning. The RG-CNC series executes decisions locally for real-time control. The RG-CAP series reports real-time data and enforces decisions onsite. Together, they enhance wireless experience across the network.
-
Full-Time AI Radio for Responsive Roaming
AI Radio mode continuously monitors client status and intelligently steers clients to the suitable AP, enabling fast, low-latency roaming with smooth connectivity.

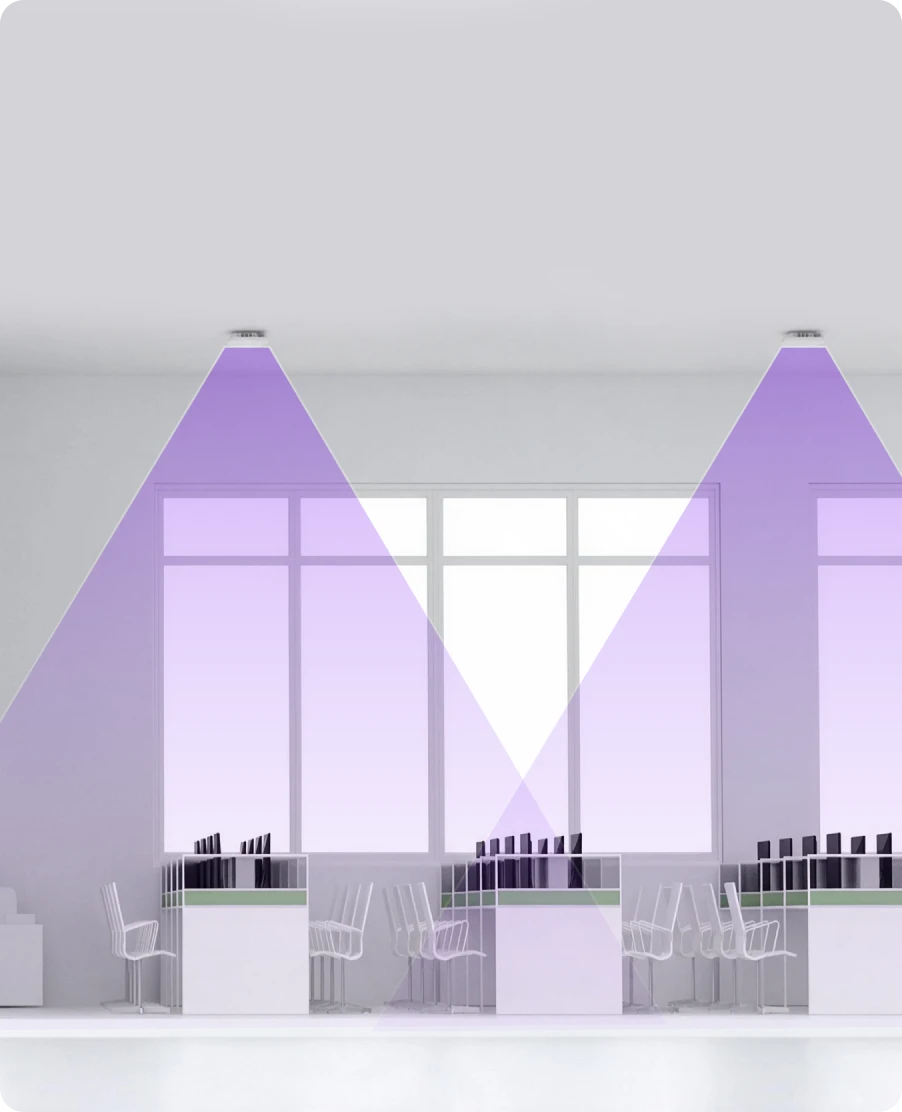

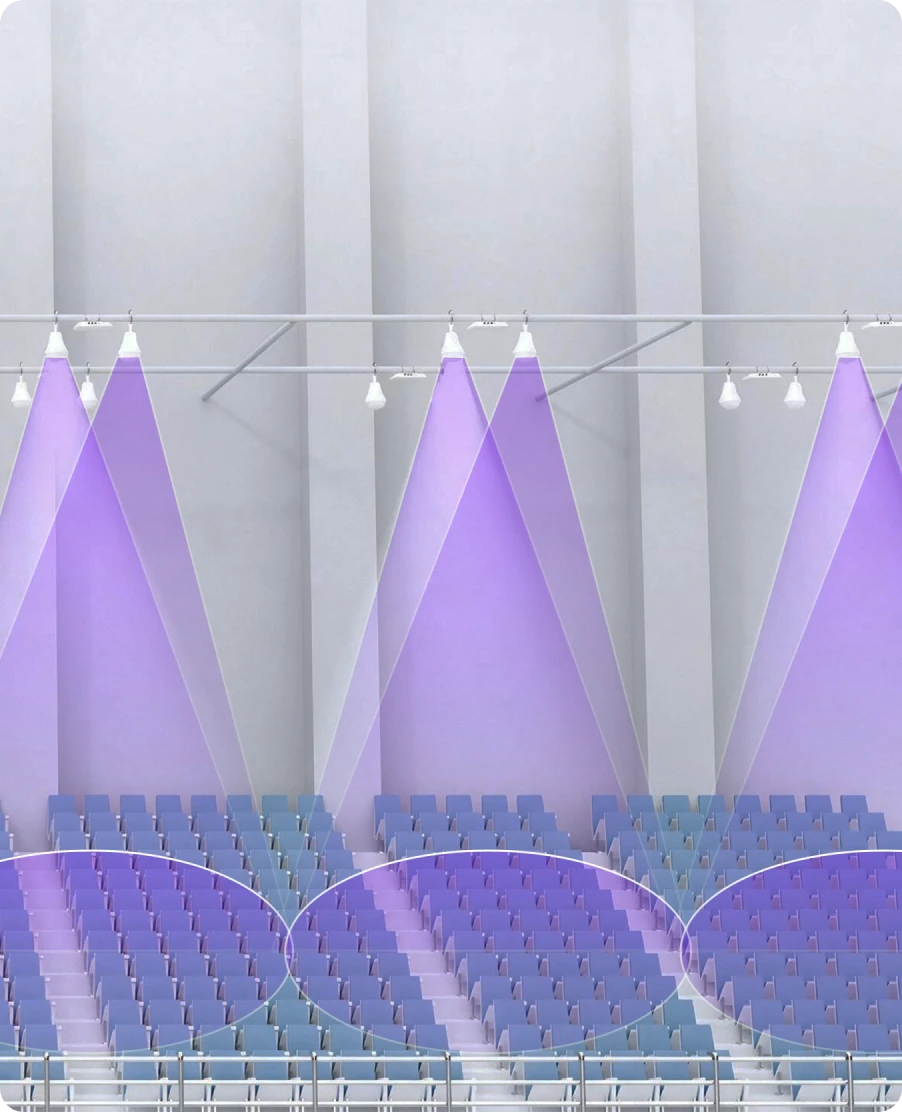

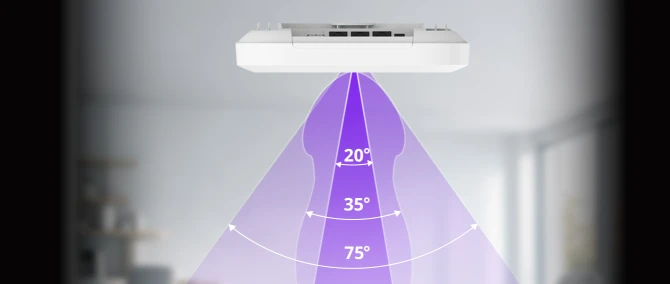

Multi‑Beam Directional Antennas
Supports 75°, 35°, and 20° beamwidth options for flexible deployment:
-
-
-
75° mode – medium‑height ceilings (under 5 m): meeting rooms, open working areas
-
-
-
-

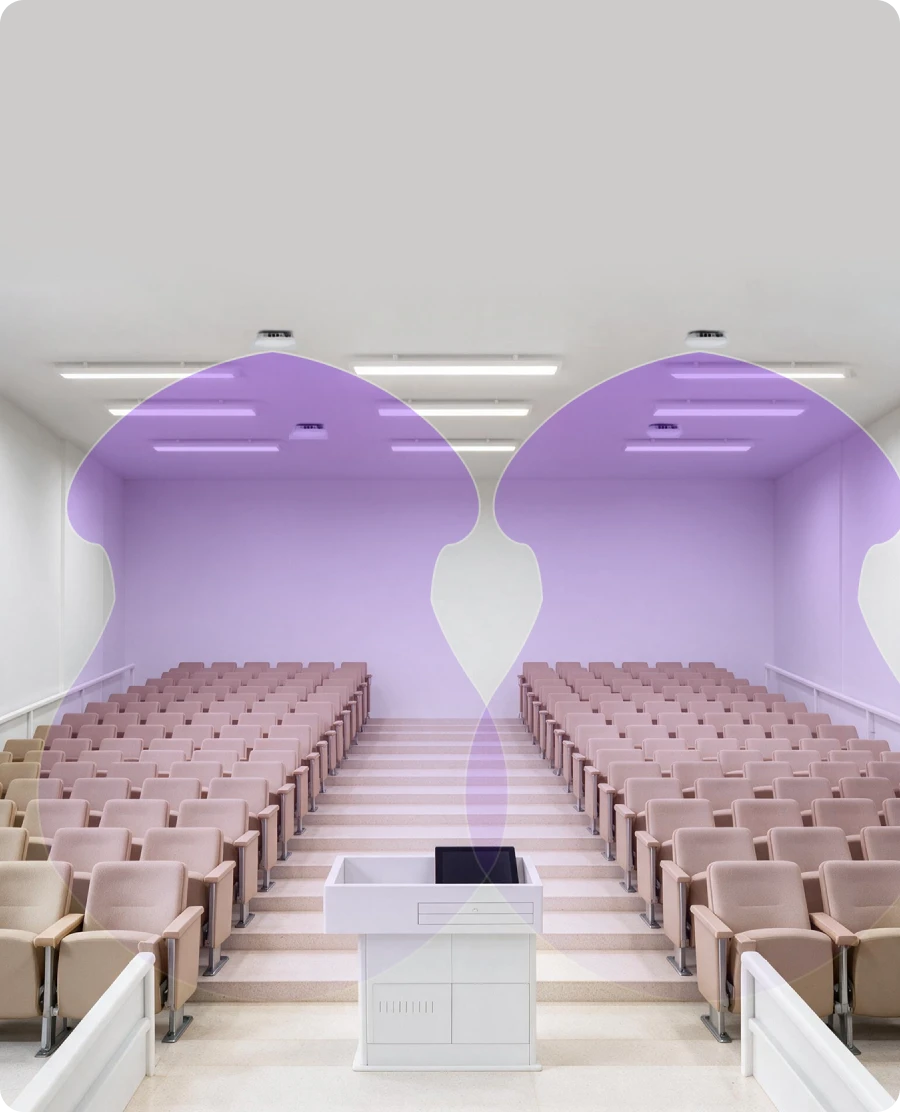

35° mode – high ceilings (5–12 m): large conference halls, auditorium
-
-
-
-
20° mode – ultra‑high ceilings (over 12 m): indoor stadiums, exhibition centers, airport terminals
The 20° antenna mode must be implemented together with the RG-ANT30-D2 antenna
-
In the Box
-
-
-

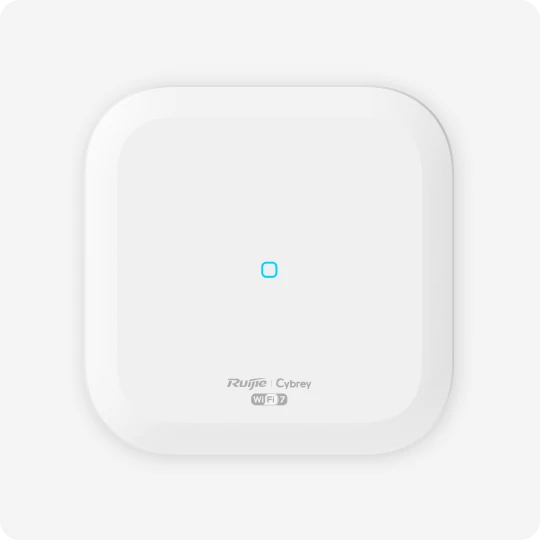

RG-CAP72Pro-IE
× 1
-
-
-
-

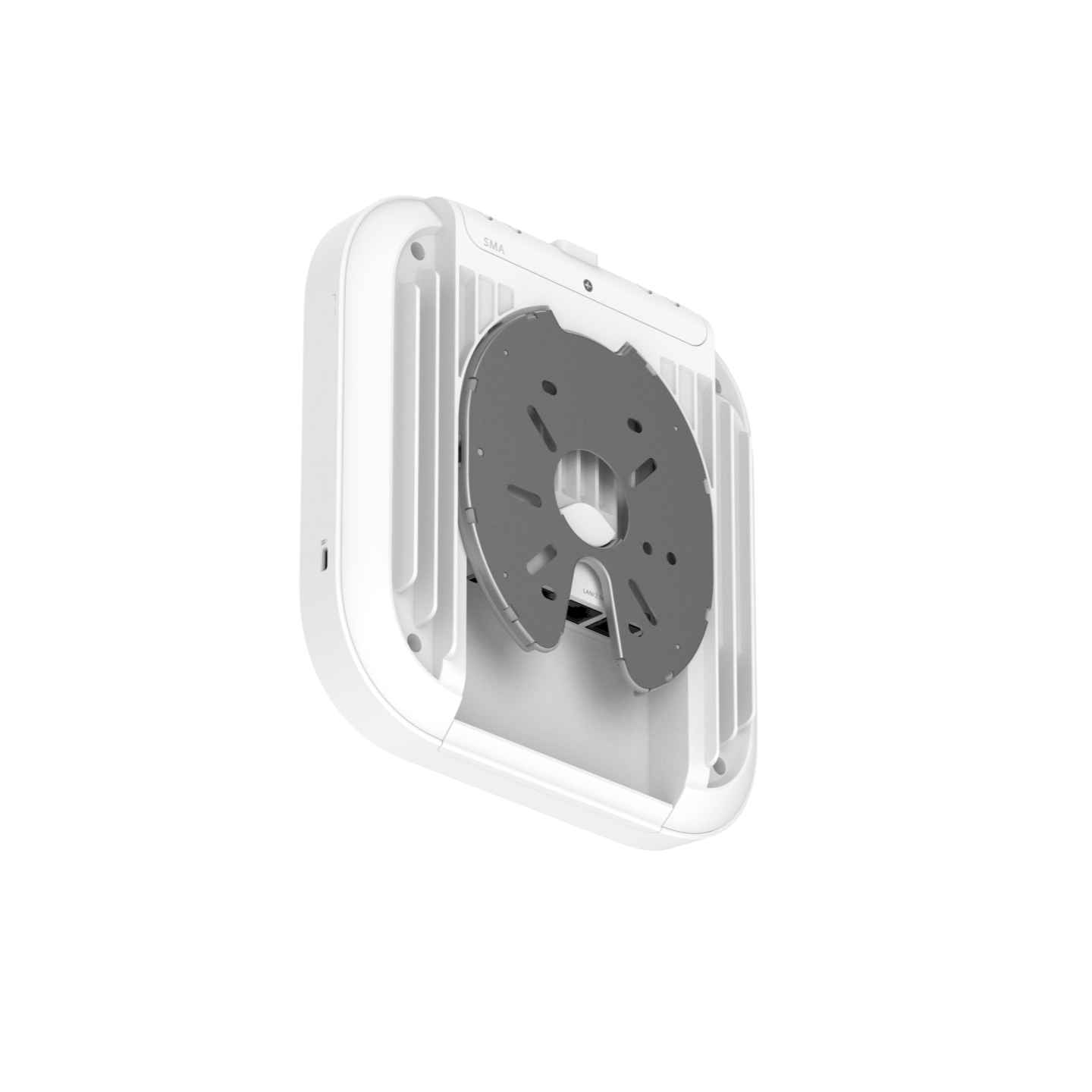

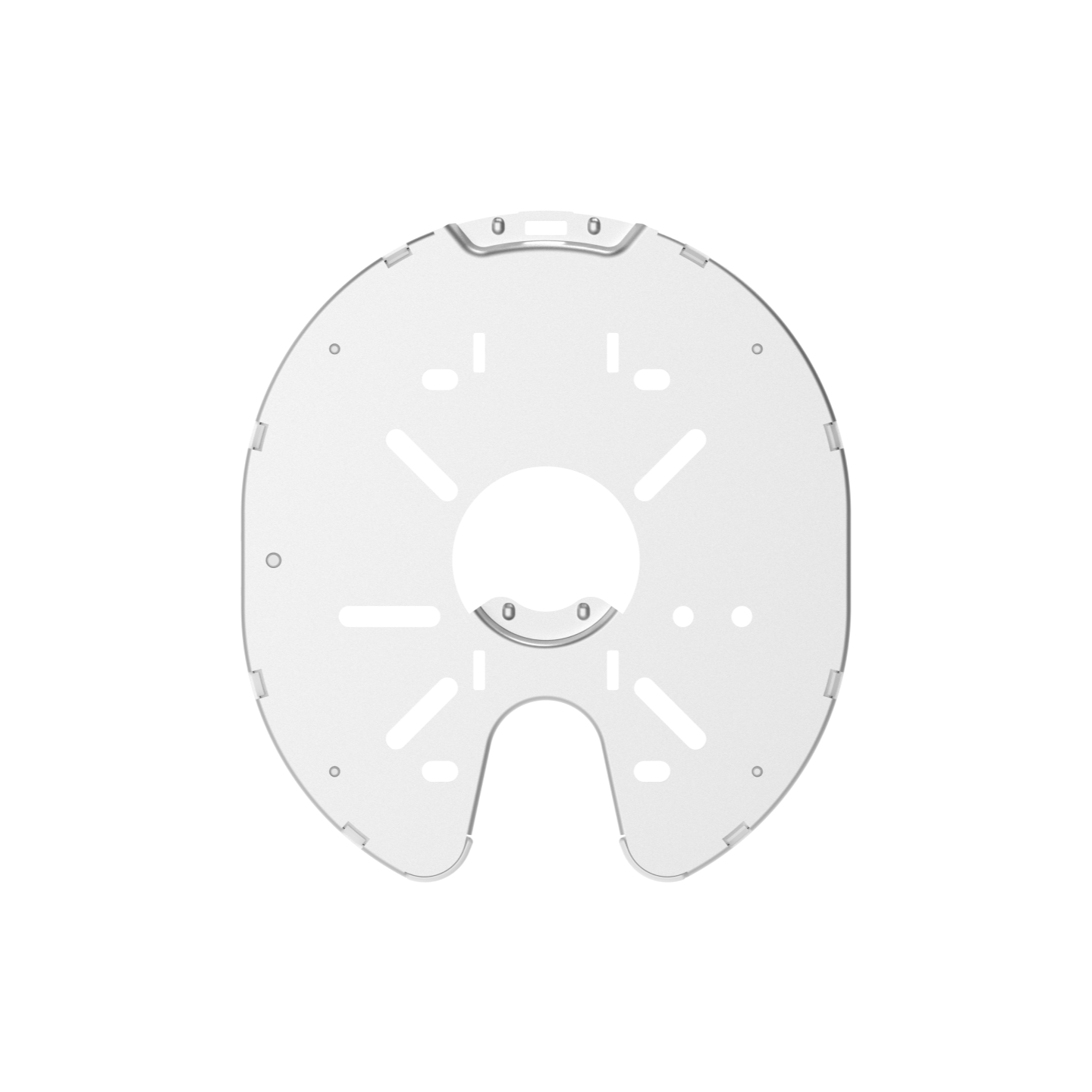

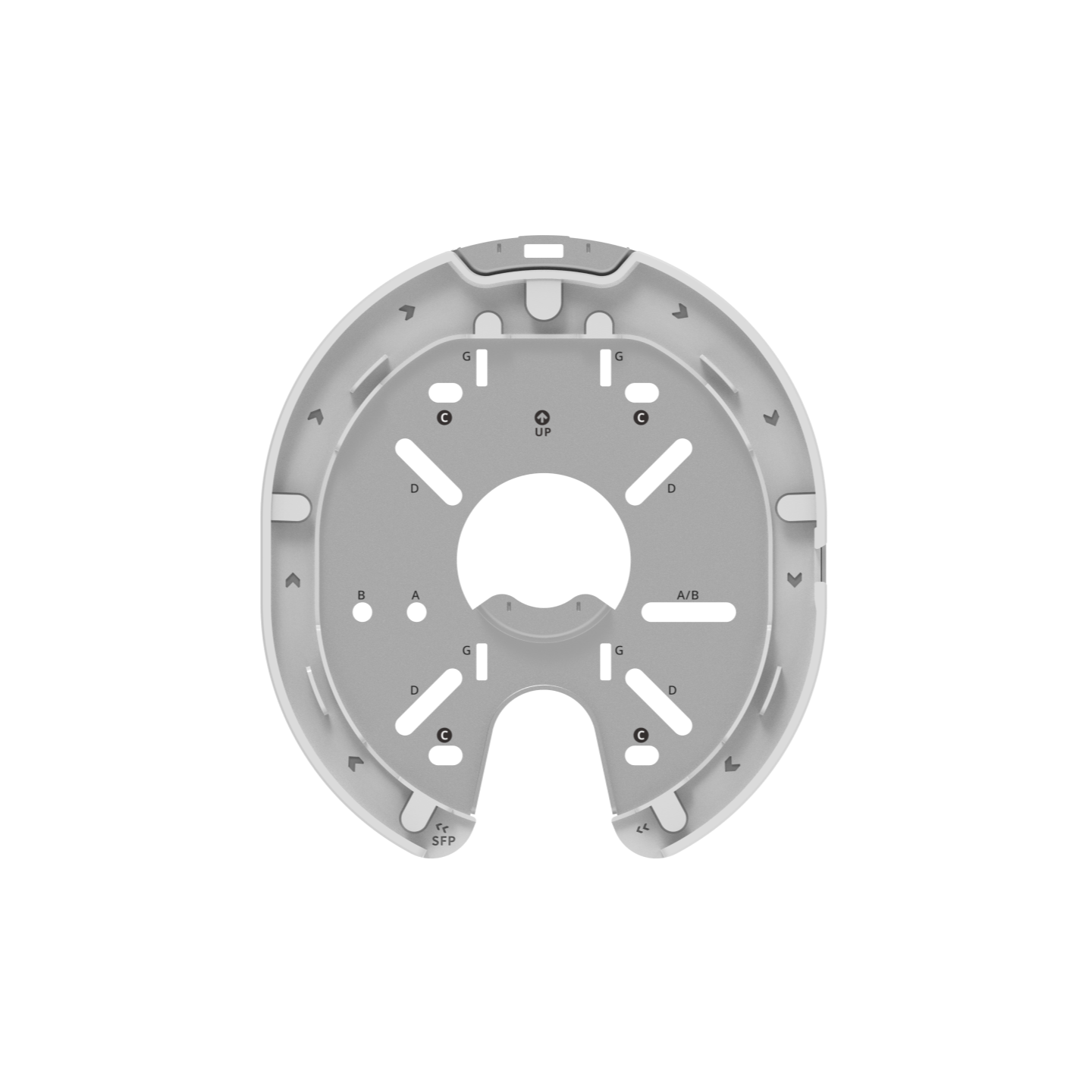

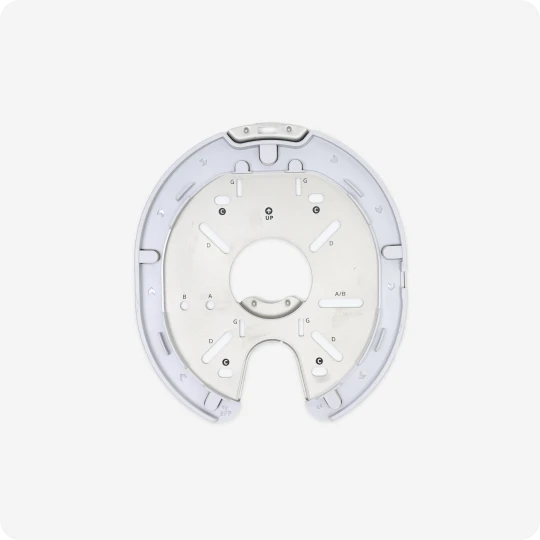

Mounting bracket
× 1
-
-
-
-

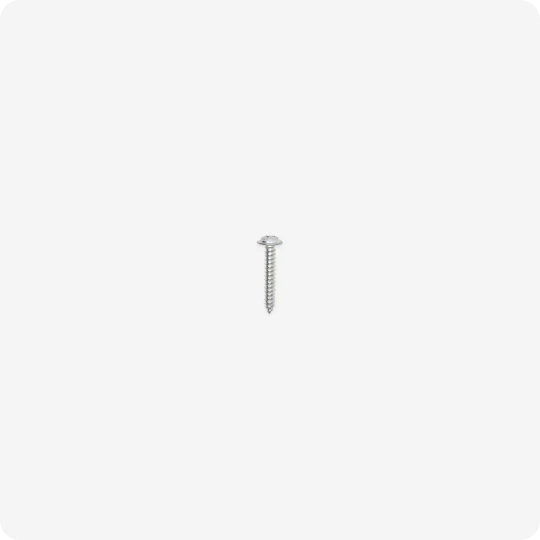

ST4.2 x 25 mm Phillips tapping screws
× 4
-
-
-
-

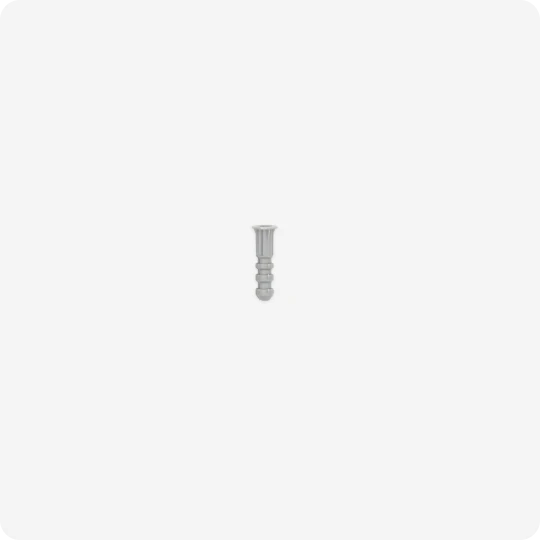

φ6.3 x 25 mm plastic expansion anchors
× 4
-
-
-
-

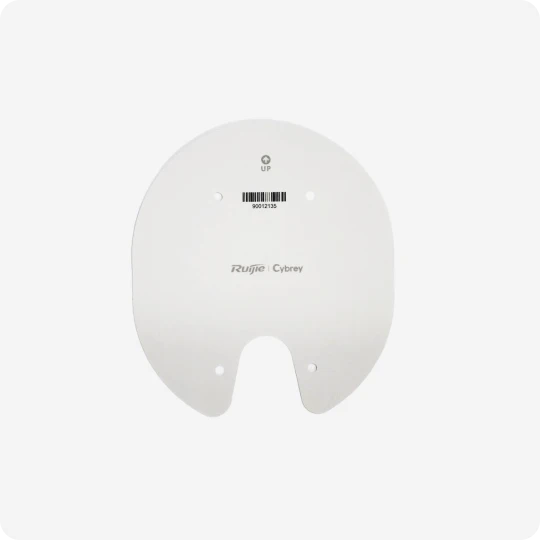

Alignment sticker
× 1
-
-
-
-

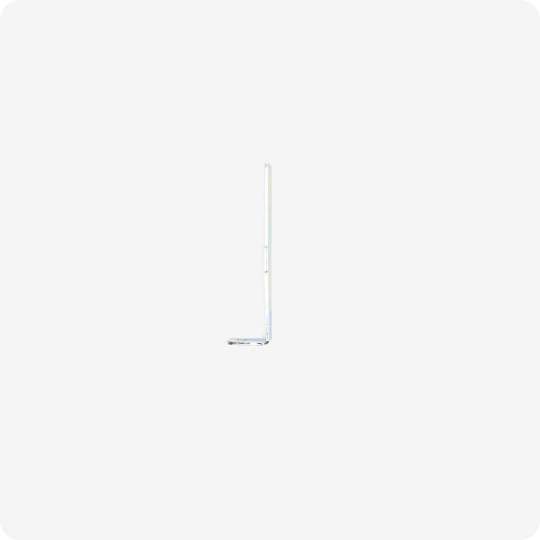

Key to security lock slot
× 1
-
* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.
Mount It Steady. Keep It Clean. — Suspended Ceiling Mounting Accessories
- Ceiling Tile Mounting
- T-bar/Grid Mounting
-

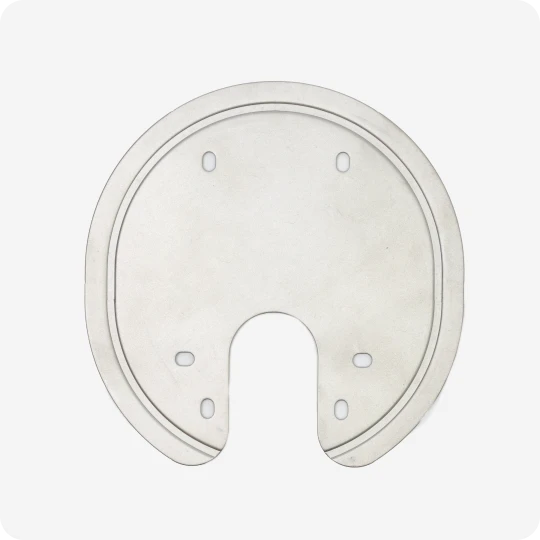

Ceiling Backing Plate
Standard mounting has its limits — APs can loosen and become unstable over time.With a Ceiling Backing Plate, you can deploy heavy APs with rock-solid stability — built to last.
Ceiling Backing Plate sold separately — not included with the product.
-

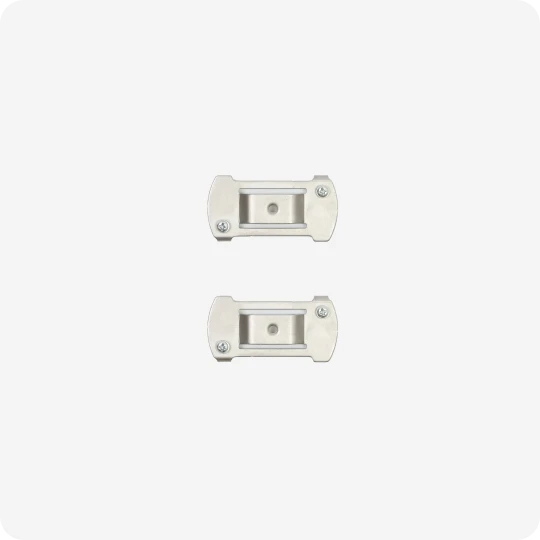

T-bar Clip
Wall mounting spoils a clean ceiling. Grid mounting looks better.With a T-bar Clip, the AP mounts directly onto the ceiling grid for a secure, stable installation — while keeping the ceiling clean and tidy.
T-bar Clip sold separately — not included with the product.

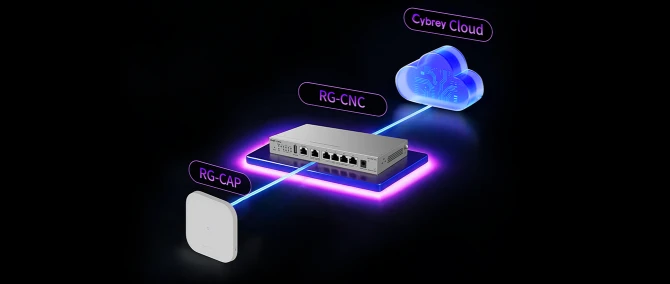

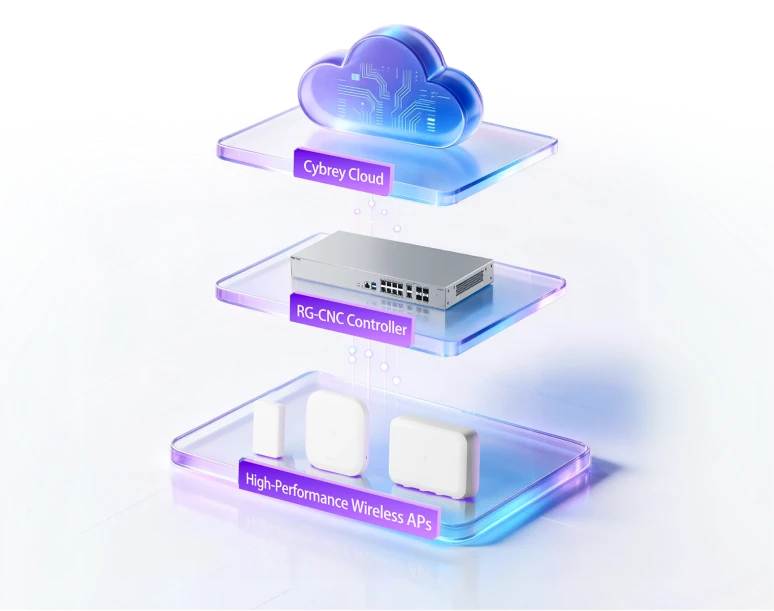

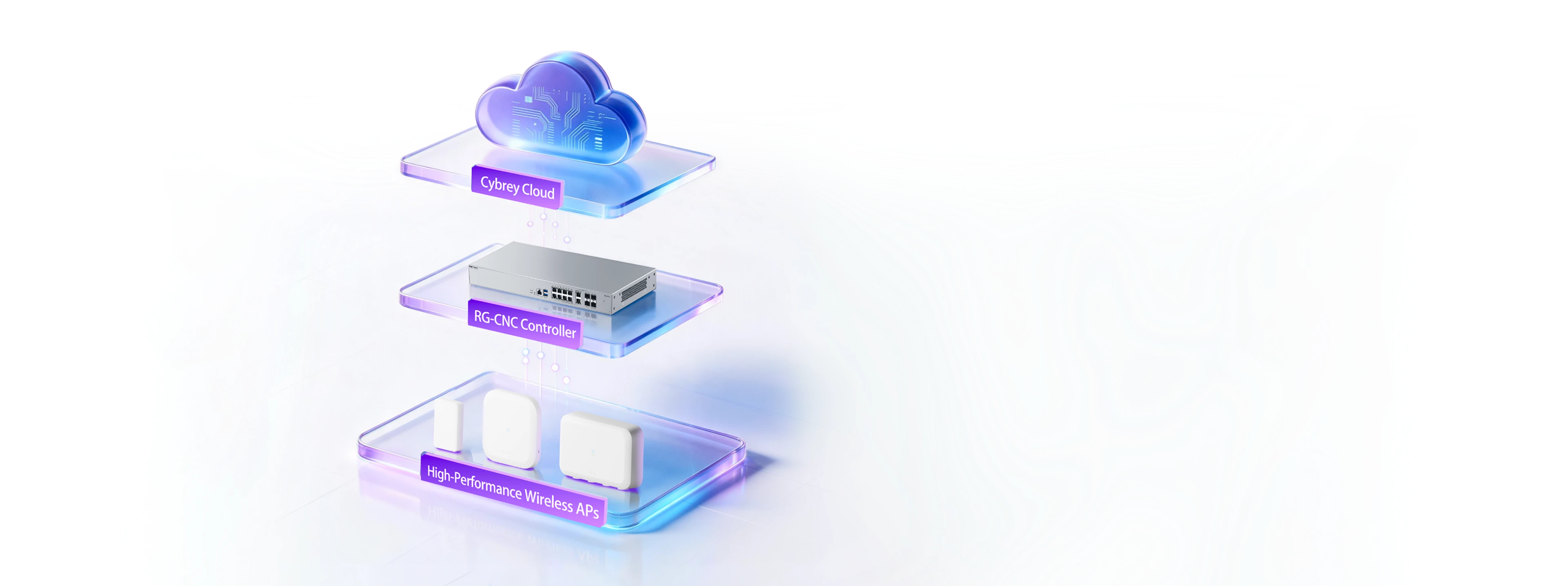

Ruijie Cybrey Cloud-Edge Collaborative Wireless Network
-
-
1
Cybrey Cloud
-
AI Intelligence Brain: Analyzes the Wi-Fi environment and recommends optimization policies. AI Network Tools: AI Heatmap, AI HawkEye, AI Optimization, AI Diagnosis
-
1
-
-
2
RG-CNC Controller
-
Local Command Center: Makes local decisions and directs AP actions for on-site Wi-Fi optimization.
-
2
-
-
3
High-Performance Wireless APs
-
Frontline Soldiers: Execute RF and client actions and report field feedback.
-
3
