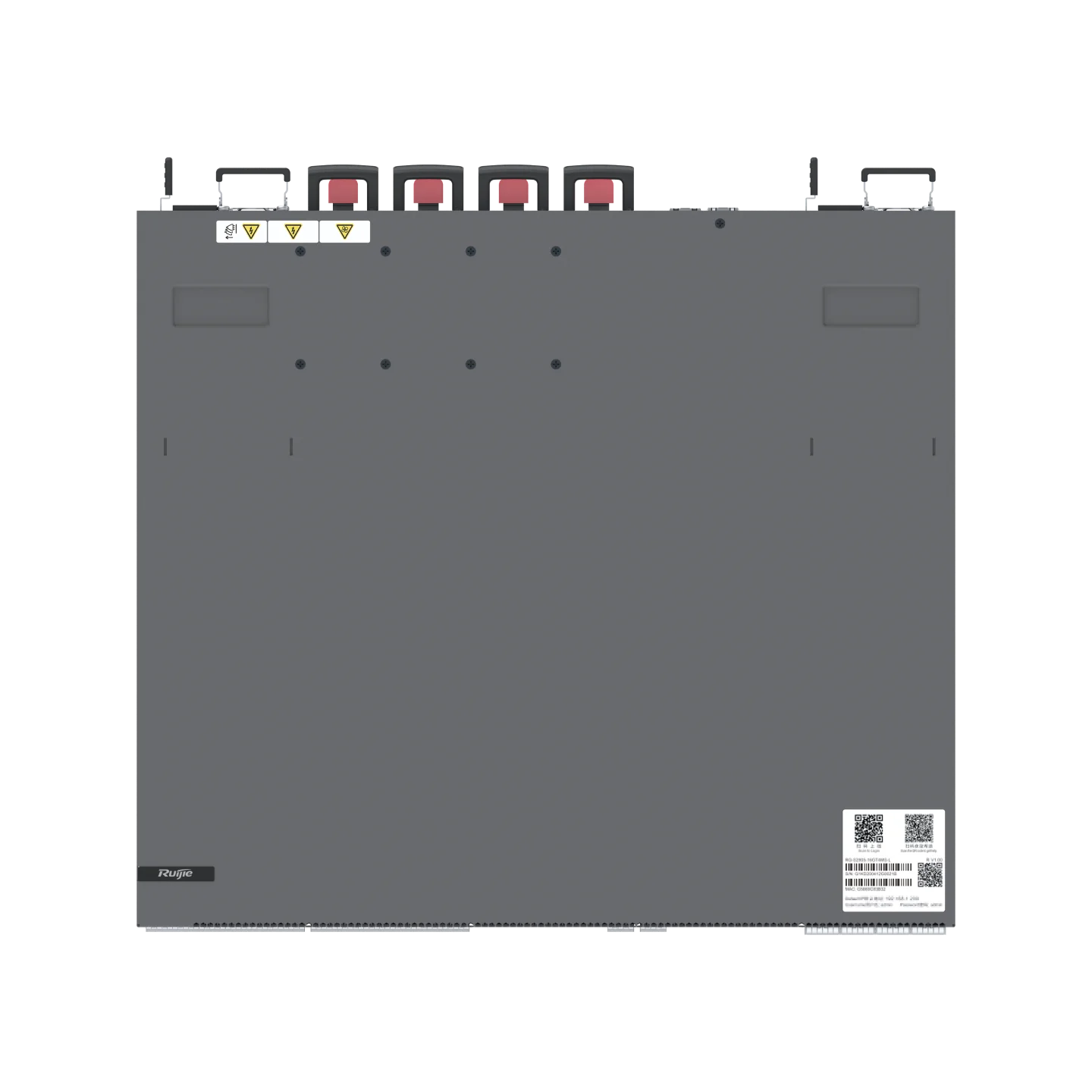

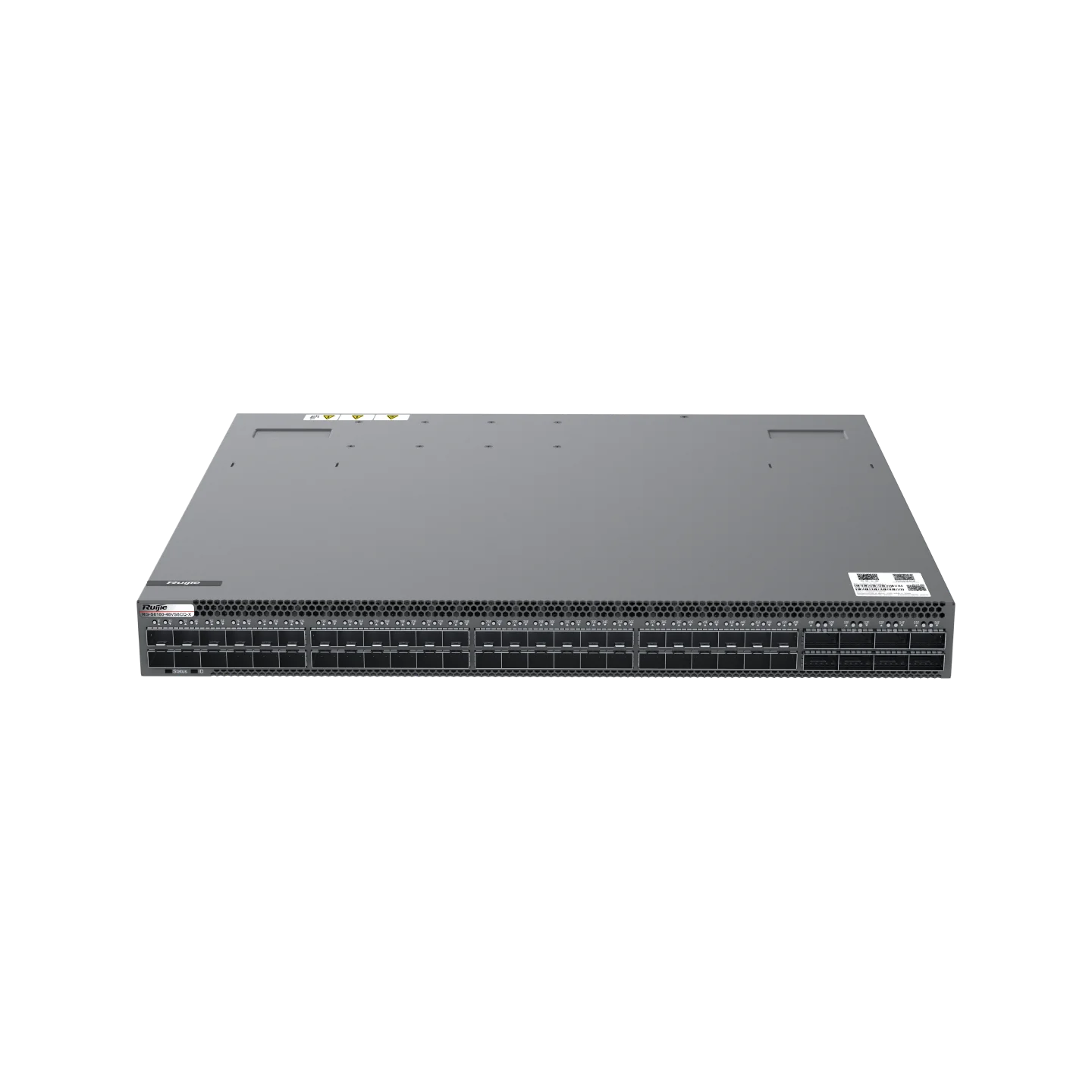

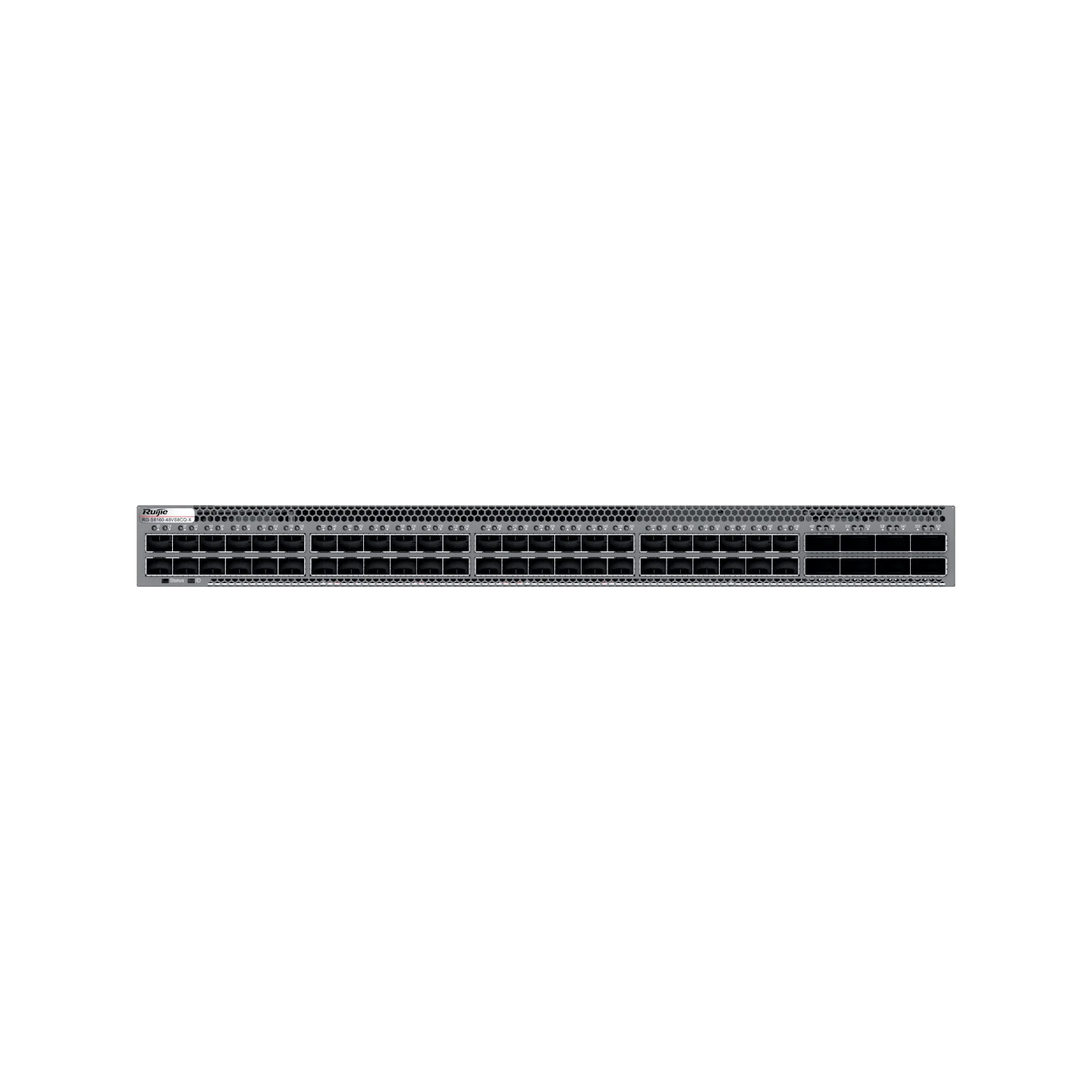

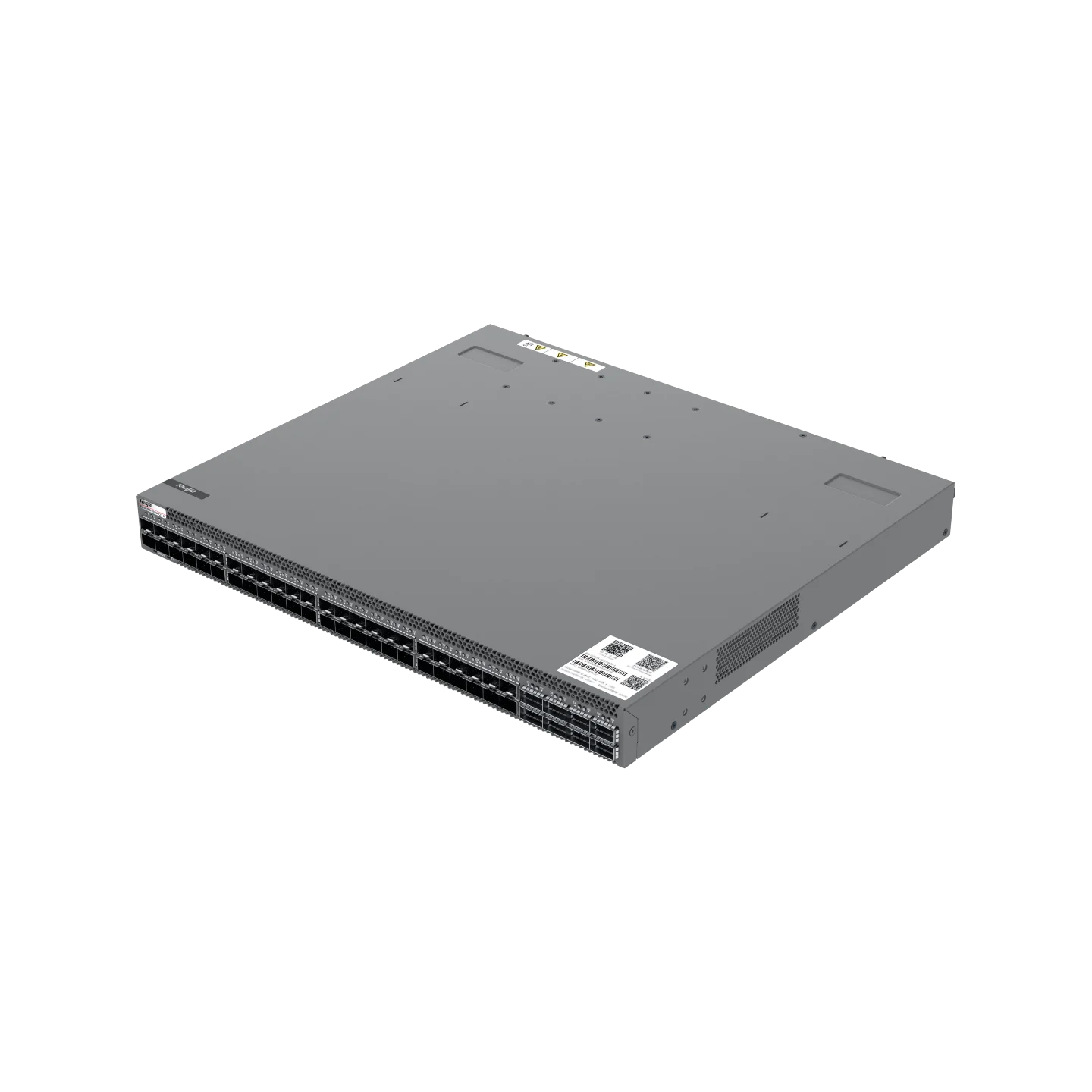

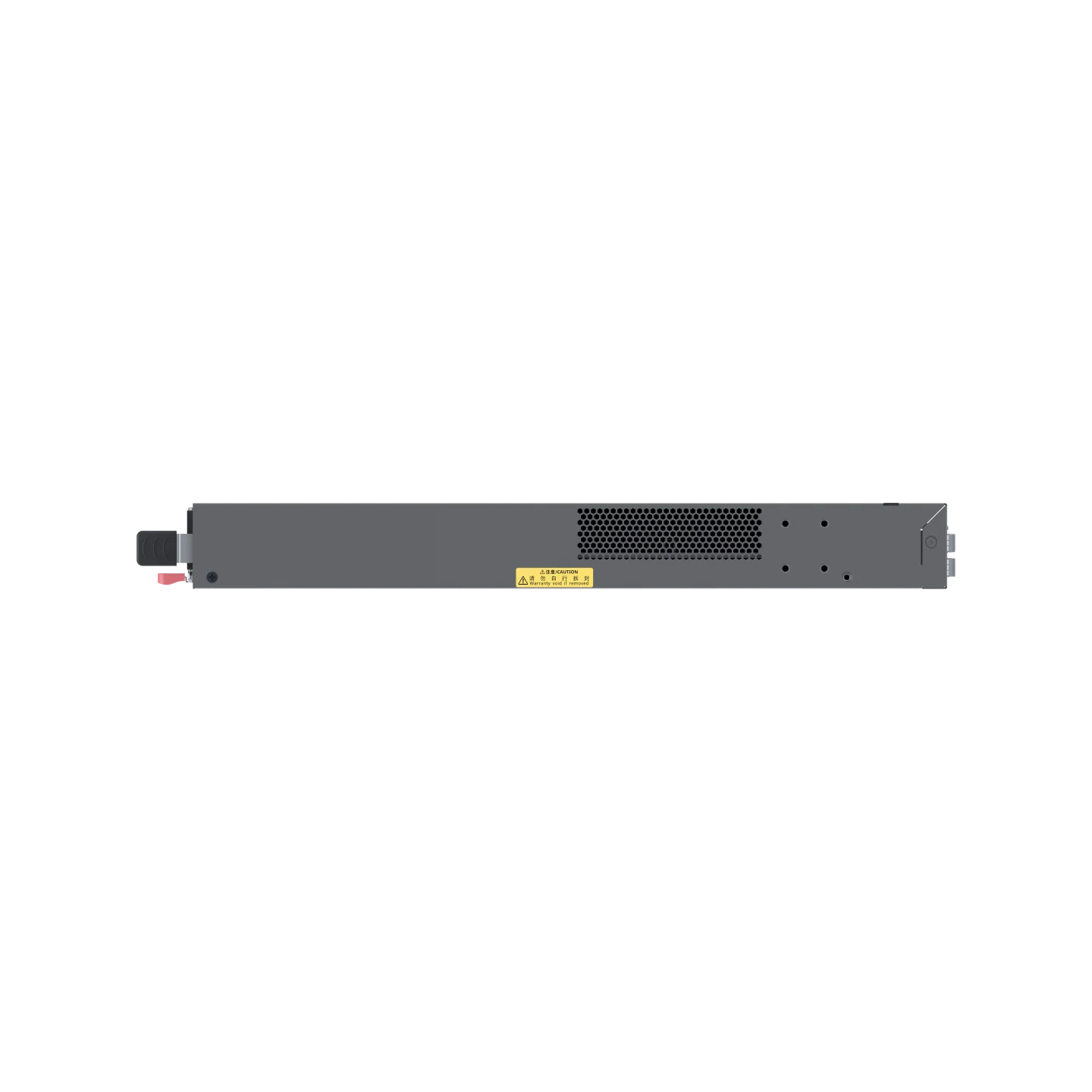

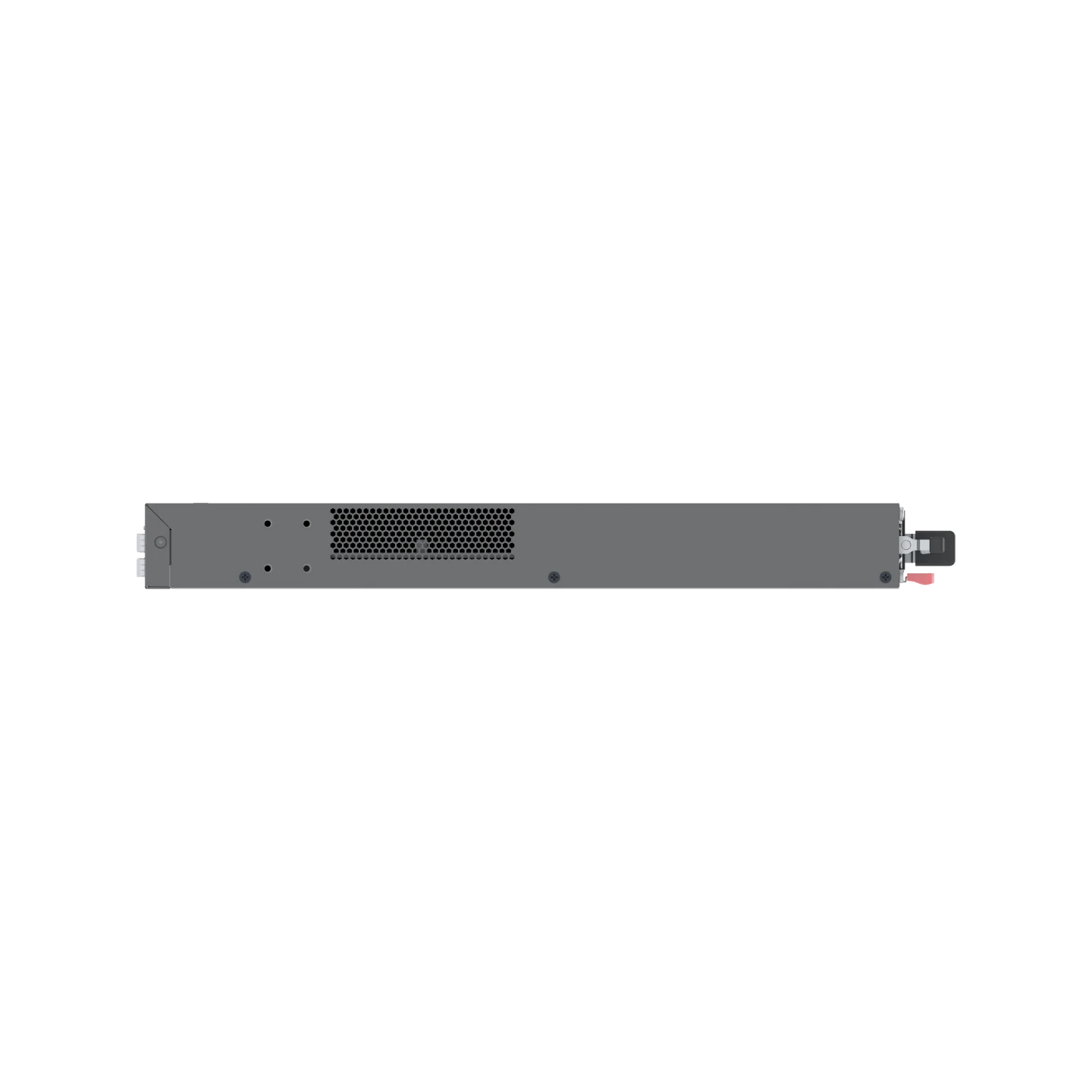

RG-S6160-48VS8CQ-X Series Next-Generation 48-Port 10GE All-Optical Layer 3 Core/Aggregation Switch with 100 Gbps Uplinks

Designed for the aggregation layer of large-sized networks, core layer of small and medium-sized networks, and data center server access, this switch delivers high performance, comprehensive end-to-end quality of service (QoS), and flexible security configurations to fully meet the needs of high-speed, secure, and intelligent enterprise networks.

Models

RG-S6160-48VS8CQ-X

48 x 1GE/2.5GE/10GE/25GE (enabled via license) ports and 8 x 40GE/100GE ports

RG-S6160-28VS8CQ-X

24 x 1GE/2.5GE/10GE/25GE (enabled via license) ports, 4 x 25GE ports, and 8 x 40GE/100GE ports

Series

RG-S6160-X Series

Sales Enquiry

Highlight Features

Rich port options, 48 x 1GE/2.5GE/10GE/25GE SFP28 ports and 8 x 40GE/100GE QSFP28 ports
Virtual Switch Unit (VSU) for flexible networking and high performance
Multiple hardware-level protections for continuous operation and stable connectivity
Layer 3 routing capabilities for diverse services and efficient and reliable transmission
Various network security policies and real-time monitoring, delivering enhanced network robustness
Paired with an SDN controller for simplified and efficient O&M

Features
Specifications
Order Information

Sales Enquiry

Features

Layer 3 10GE All-Optical Core/Aggregation Switch
RG-S6160-48VS8CQ-X

Recommended for the aggregation layer of large-sized networks and core layer of small and medium-sized networks, the RG-S6160-48VS8CQ-X supports 48 x 25GE service ports (enabled via license) and 8 x 100GE uplink ports, delivering flexible access capabilities to meet high-performance network requirements and enable a smooth migration to 10GE campus networks.

VSU for Flexible Networking and High Performance

Fault Recovery in Milliseconds

High Scalability

Simplified Networking

When the aggregate link between the VSU and peripheral devices fails, traffic can switch over in milliseconds, ensuring uninterrupted network services.

Multiple Hardware-Level Protections for Continuous Operation

Hot-Swappable Power Modules + Smart Fan Modules

Hardware-Level Dual Boot

Optical Port Fault Isolation

Power modules can be replaced without interrupting network services, while intelligent fan speed adjustment ensures efficient heat dissipation for enhanced system protection.

Layer 3 Routing Capabilities for Diverse Services and Efficient and Reliable Transmission

IPv4 and IPv6 Protocols

Rich Multicast Protocols

Static and Dynamic Routing

Hardware-based dual-stack forwarding supports high-speed traffic exchange and facilitates a smooth transition from IPv4 to IPv6 in campus networks, greatly improving address capacity and network security.

Various Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness

CPU Protection Policy (CPP)

Network Foundation Protection Policy (NFPP)

Large volumes of disordered traffic are processed by CPP before reaching the CPU, preventing direct attacks on the CPU, ensuring stability under high-load operation, and effectively improving device security.

Ruijie Unified Networking Central (RG-UNC)
Visualized Management, Automated and Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Specifications

Hardware Specifications

Port Specifications	RG-S6160-28VS8CQ-X	RG-S6160-48VS8CQ-X	RG-S6160-48XMG4VS2CQ-UP-X
Fixed service port	24 x 1G/2.5G/10G/25G (25G supported by the license) SFP28 ports 4 x 25G SFP28 ports 8 x 40G/100G QSFP28 ports (Each 40G port can be split into four 10G ports or each 100G port can be split into four 25G ports.)	48 x 1G/2.5G/10G/25G (25G supported by the license) SFP28 ports 8 x 40G/100G QSFP28 ports (Each 40G port can be split into four 10G ports or each 100G port can be split into four 25G ports.)	48 x 100M/1G/2.5G/5GE/10G RJ45 ports with auto-negotiation 4 x 10G/25G SFP28 ports 2 x 40G/100G QSFP28 ports
Module slot	4 x fan module slots 2 x power module slots	4 x fan module slots 2 x power module slots	3 x fan module slots 2 x power module slots
Power module	RG-PA550I II-F	RG-PA550I II-F	RG-PA600I-P-F RG-PA1000I-P-F
Fixed management port	1 x MGMT port 1 x console port
USB port	1 x USB 2.0 port
System Specifications
Switching capacity	3 Tbps	4 Tbps	1.56 Tbps
Packet forwarding rate	915 Mpps	915 Mpps	915 Mpps
Power Supply and Consumption
Power input	RG-PA550I II-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC ● Maximum input voltage: 90 V AC to 264 V AC ● Frequency: 50 Hz/60 Hz G-PA550I II-F (HVDC input): ● Rated input voltage: 240 V DC ● Maximum input voltage: 192 V DC to 288 V DC	RG-PA550I II-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC ● Maximum input voltage: 90 V AC to 264 V AC ● Frequency: 50 Hz/60 Hz G-PA550I II-F (HVDC input): ● Rated input voltage: 240 V DC ● Maximum input voltage: 192 V DC to 288 V DC	RG-PA600I-P-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC ● Maximum input voltage: 90 V AC to 264 V AC ● Frequency: 50 Hz/60 Hz ● Rated current per circuit: 8 A RG-PA1000I-P-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC ● Maximum input voltage: 90 V AC to 264 V AC ● Frequency: 50 Hz/60 Hz ● Rated current per circuit: 8 A
PoE	Not supported	Not supported	Ports 1 to 48 support PoE/PoE+ power supply. Ports 1 to 24 support PoE++ power supply. Maximum output power of a port: 90 W
Maximum Power Consumption	270 W	300 W	Without PoE load: 280 W Full PoE load: 1,480 W
Dimensions and Weight
Unit dimensions (W x D x H)	442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.)	442 mm x 387 mm x 44 mm (17.40 in. x 15.24 in. x 1.73 in.)	442 mm x 420 mm x 44 mm (17.40 in. x 16.54 in. x 1.73 in.)
Environment and Reliability
Fan module	Fan module redundancy, hot swapping, fan speed adjustment, and fan fault alarms
Temperature alarm	Supported
Temperature	Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: --40°C to +70°C (--40°F to +158°F)
Humidity	Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing)

Software Specifications

Feature	RG-S6160-X Series
VLAN	4K 802.1Q VLANs Port-based VLAN Private VLAN Voice VLAN GVRP
QinQ	Basic QinQ Selective QinQ
Link aggregation	LACP (802.3ad)
Spanning tree protocols	STP, RSTP, and MSTP
DHCP	DHCP server DHCP client DHCP snooping DHCP relay agent IPv6 DHCP server IPv6 DHCP snooping IPv6 DHCP client IPv6 DHCP relay
Basic IPv6 protocols	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, Stateless Auto Configuration, and Path MTU Discovery
IP routing	Static routing RIP and RIPng OSPFv2, OSPFv3, IS-ISv4, and IS-ISv6 BGP4 and BGP4+ Equal-Cost Multi-Path (ECMP) Packet-based and flow-based load balancing MCE
Multicast	IGMPv1/v2/v3 and IGMP proxy IGMPv1/v2/v3 snooping IGMP filtering and IGMP fast leave PIM-DM, PIM-SM, and PIM-SSM MLD snooping and MLD PIM for IPv6
MPLS	MPLS L3VPN
VXLAN	VXLAN Layer 2 bridge VXLAN Layer 3 gateway Ethernet Virtual Private Network (EVPN) VXLAN
ACL&QoS	Flexible and diversified hardware ACLs: Standard IP ACLs (hardware ACLs based on IP addresses) Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) Time range-based ACLs Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range) ACL 80 IPv6 ACL Port traffic identification Port traffic rate limiting 802.1p/DSCP/ToS traffic classification Eight queues on each port Queue scheduling: Strict Priority (SP), Deficit Round Robin (DRR), SP+DRR, and Random Early Detection (RED)/Weighted Random Early Detection (WRED)
Security	3-tuple binding (IP address, MAC address, and port) 3-tuple binding (IPv6 address, MAC address, and port) Filtering of invalid MAC addresses Port- and MAC address-based 802.1x authentication MAB Portal and Portal 2.0 authentication ARP check DAI ARP packet rate limiting Gateway ARP spoofing prevention Broadcast storm suppression Hierarchical management of administrators and password protection RADIUS and TACACS+ authentication AAA for device login management SSH BPDU guard IP source guard CPP and NFPP Port protection
Management features	SNMP, CLI (Telnet/console), RMON, SSH, syslog, NTP/SNTP, SNMP over IPv6, IPv6 MIB support for SNMP, SSHv6, Telnetv6, FTP/TFTP v6, DNSv6, NTP for v6, Traceroute v6 sFlow, which utilizes the random sampling technology to sample flow information of traffic on a switch Management via the public cloud platform and RG-UNC
High reliability	VSU (virtualizing multiple devices into one device) GR for RIP, OSPF, BGP, and other routing protocols BFD ERPS (G.8032) REUP RLDP 1+1 power redundancy Hot swapping of power modules
Zero-touch provisioning (ZTP)	CWMP (TR-069)

Order Information

Before ordering a power module or optical transceiver, contact the online customer service personnel for the latest support information about it.

Main Unit

Model	Description
RG-S6160-28VS8CQ-X	24 x 1G/2.5G/10G SFP28 ports (default rate of 10 Gbps, which can be upgraded to 25 Gbps through licensing), 4 x 25G SFP28 ports, 8 x 40G/100G QSFP28 ports (a 40G port can be split into four 10G ports or a 100G port can be split into four 25G ports), 4 x fan module slots, and 2 x power module slots, with at least one RG-PA550I II-F power module required
RG-S6160-48VS8CQ-X	48 x 1G/2.5G/10G/25G SFP28 ports (default rate of 10 Gbps, which can be upgraded to 25 Gbps through licensing), 8 x 40G/100G QSFP28 ports, 4 x fan module slots, and 2 x power module slots, with at least one RG-PA550I II-F power module required
RG-S6160-48XMG4VS2CQ-UP-X	48 x 100M/1G/2.5G/5G/10G RJ45 ports with auto-negotiation, 4 x 10G/25G SFP28 ports, 2 x 40G/100G QSFP28 ports, 3 x fan module slots, and 2 x power module slots, with at least one RG-PA600I-P-F or RG-PA1000I-P-F power module required

Power Module

Model	Description
RG-PA550I II-F	550 W AC power module
RG-PA600I-P-F	600 W AC power module
RG-PA1000I-P-F	1,000 W AC power module
\*RG-PA2200I-P-F	2,200 W AC power module

Models marked with asterisks (*) in the ordering information will be available in the future.

Fan Module

Model	Description
M2SFAN II-F	Fan module

License

Model	Description
RG-24VS-LIC	License for 25GE ports 1--24, one license per device, which is applicable to the RG-S6160-28VS8CQ-X and RG-S6150-24VS8CQ-X
RG-48VS-LIC	License for 25GE ports 1--48, one license per device, which is applicable to the RG-S6160-48VS8CQ-X and RG-S6150-48VS8CQ-X

Optical Transceivers

1GE Optical Transceivers

Model

Description

Mini-GBIC-GT

1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a

The port needs to be configured with auto-negotiation.

2.5GE Optical Transceivers

Model	Description
2.5G-SFP-LX03-SM1310-BIDI-I	2.5GBASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
2.5G-SFP-LX03-SM1550-BIDI-I	2.5GBASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

10GE Optical Transceivers

Model	Description
XG-SFP-SR-MM850	10GBASE-SR, SFP+ transceiver, 850 nm, Duplex LC, 300 m over MMF
XG-SFP-LR-SM1310	10GBASE-LR, SFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF
XG-SFP-ER-SM1550	10GBASE-ER, SFP+ transceiver, 1550 nm, Duplex LC, 40 km over SMF
XG-SFP-AOC1M	10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers
XG-SFP-AOC3M	10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M	10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers

25GE Optical Transceivers

Model	Description
VG-SFP-SR-MM850	25GBASE-SR, SFP28 transceiver, 850 nm, Duplex LC, 100 m over OM4 MMF, 70 m over OM3 MMF
VG-SFP-LR-SM1310	25GBASE-LR, SFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF
VG-SFP-AOC7M(M)	25GBASE, SFP28 active optical cable (AOC), 7 m, including one cable and two optical transceivers

40GE Optical Transceivers

Model	Description
40G-QSFP-SR-MM850	40GBASE-SR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 150 m over OM4 MMF, 100 m over OM3 MMF
40G-QSFP-LR4-SM1310	40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF
40G-AOC-5M	40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
40G-AOC-10M	40GBASE, QSFP+ active optical cable (AOC), 10 m, including one cable and two optical transceivers

100GE Optical Transceivers

Model	Description
100G-QSFP-SR-MM850	100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF
100G-QSFP-LR4-SM1310	100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF
100G-AOC-1M	100GBASE, QSFP28 active optical cable (AOC), 1 m, including one cable and two optical transceivers
100G-AOC-5M	100GBASE, QSFP28 active optical cable (AOC), 5 m, including one cable and two optical transceivers
100G-AOC-10M	100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers
