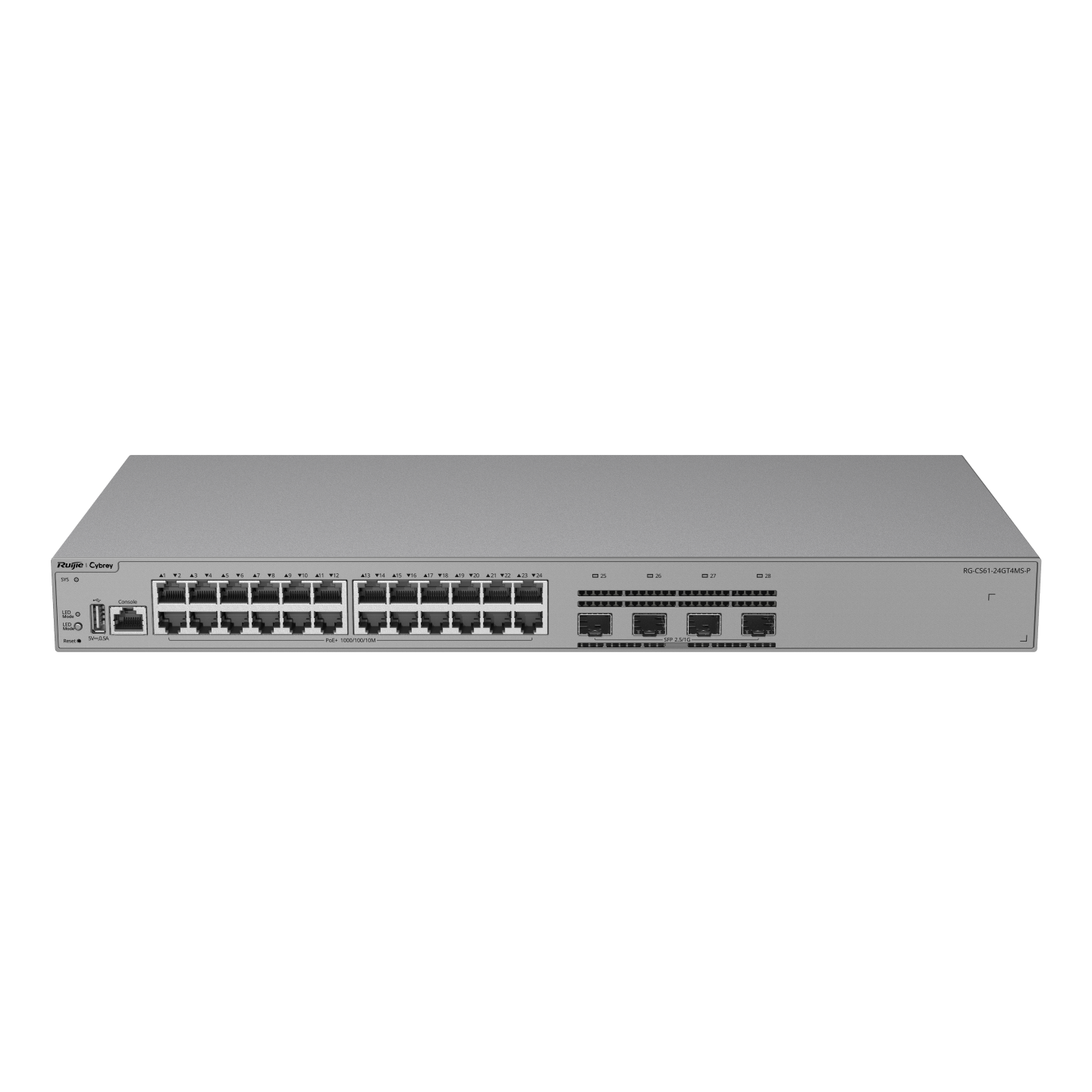

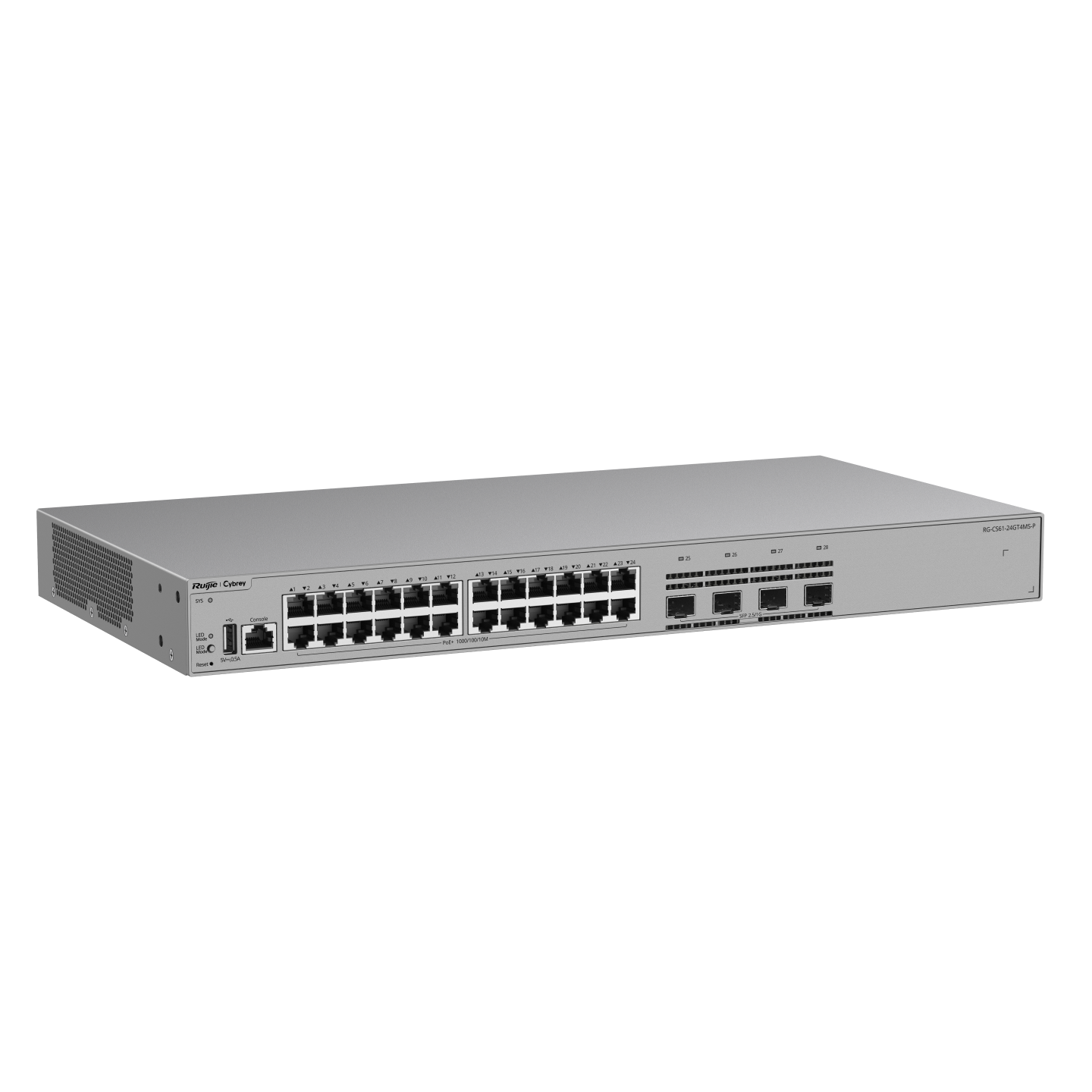

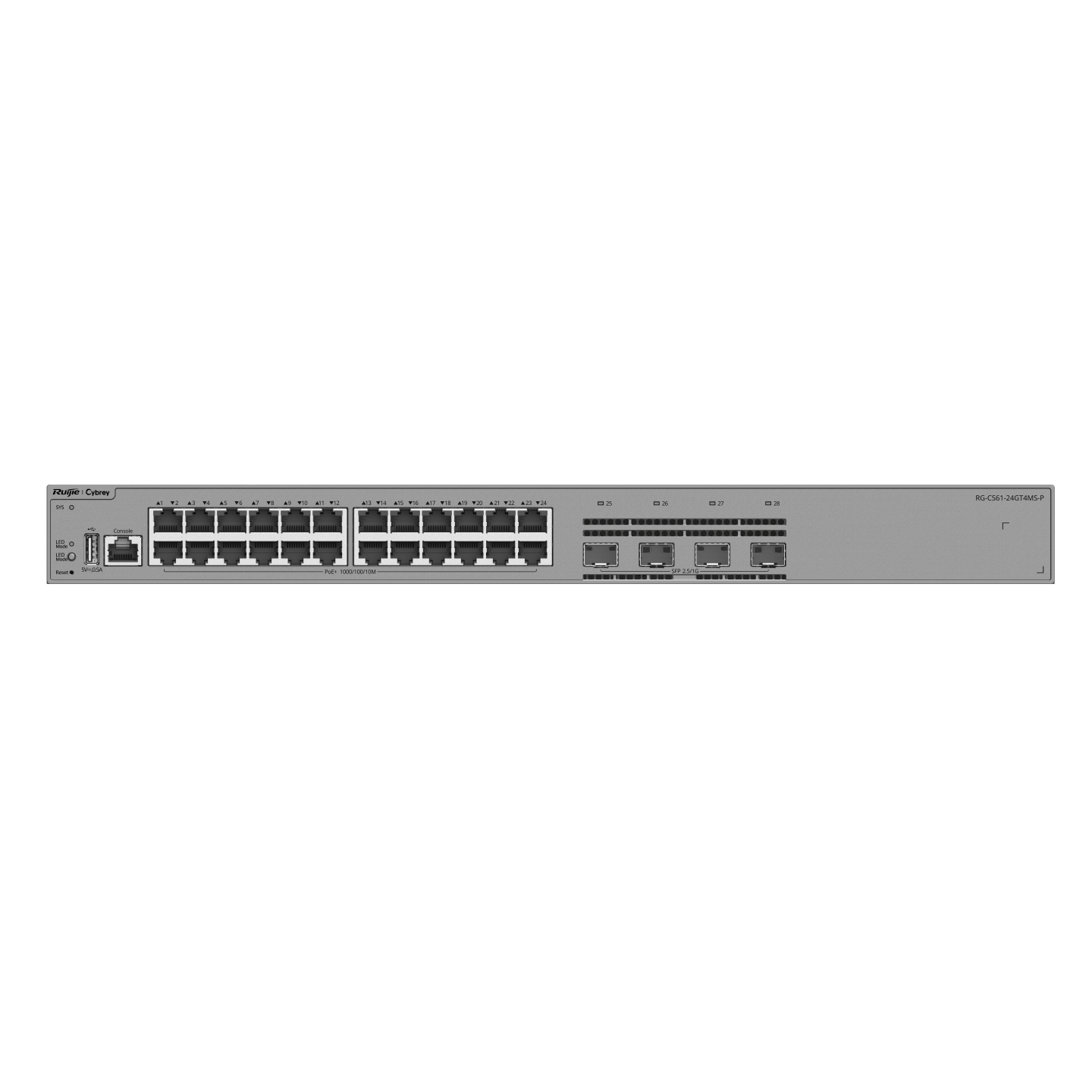

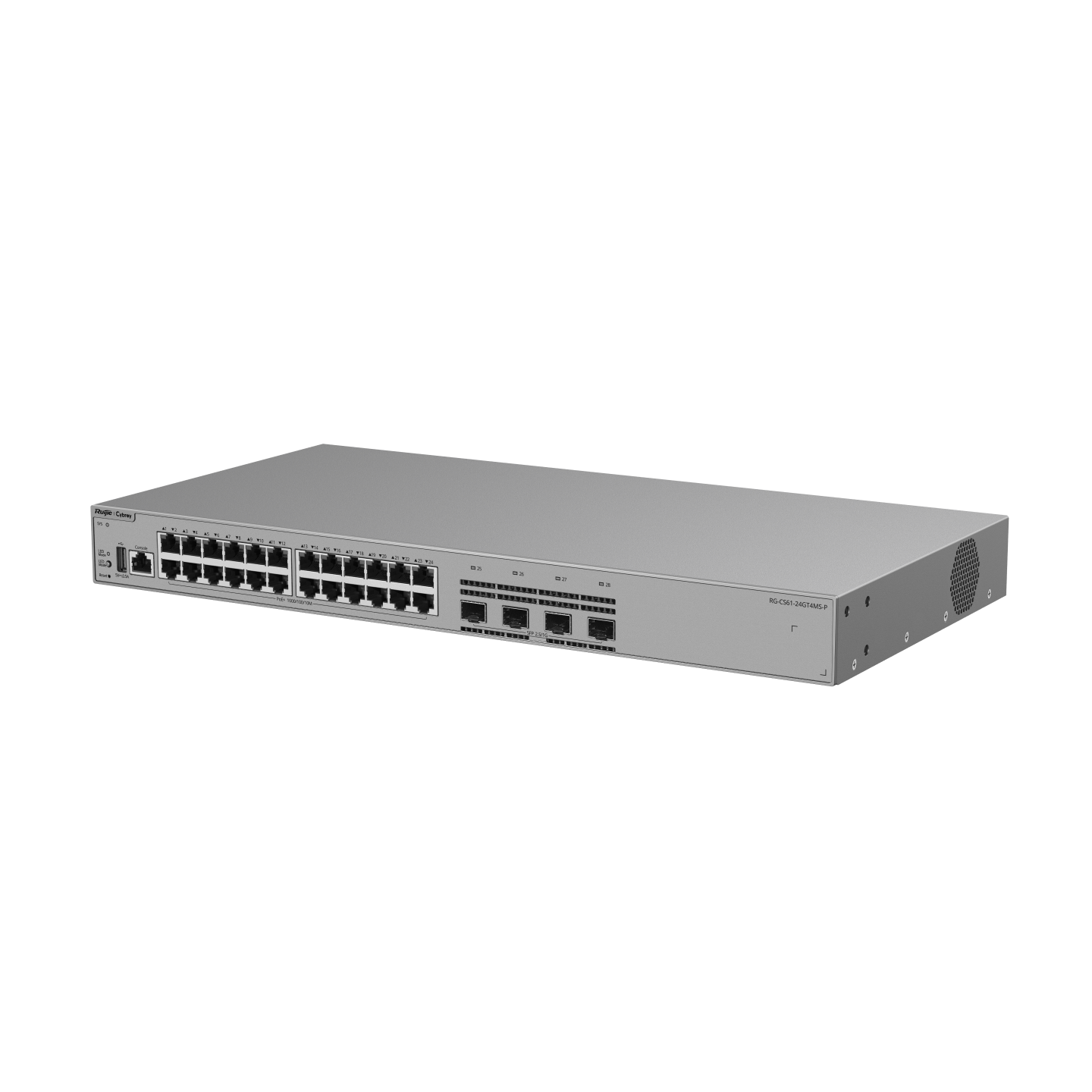

RG-CS61-24GT4MS-P, Layer 3 Access Switches with 2.5G Uplinks

Offices, hotels, warehouses, hospitals, and schools.

Models
RG-CS61-48GT4MS-P

48 x 10/100/1000BASE-T ports, supporting PoE/PoE+,4 x 1GE/2.5GE SFP ports

 RG-CS61-24GT4MS-P

24 x 10/100/1000BASE-T ports, supporting PoE/PoE+,4 x 1GE/2.5GE SFP ports

 RG-CS61-10GT2MS-P

10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+, 2 x 1GE/2.5GE SFP ports

 RG-CS61-24GT4MS

24 x 10/100/1000BASE-T ports, 4 x 1GE/2.5GE SFP ports
Series
RG-CS61 Series RG-CS62 Series RG-CS63 Series RG-CS65 Series
Sales Enquiry
Highlight Features
  • 2.5G uplinks
  • 10 kV port surge protection
  • Supports operating temperatures up to 50°C
  • Dual flash, dual boot, and dual bin
  • Circuit isolation protection based on optical ports
  • Supports up to 8 devices in a VSU
  • Layer 3 service features
Sales Enquiry

Key Specifications

View More
Current RG-CS61-24GT4MS-P RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P RG-CS61-10GT2MS-P
Fixed service port 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/2.5GE SFP ports		 10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+
2 x 1GE/2.5GE SFP ports
Console port 1 1
USB 1 1
Switching capacity 68 Gbps (Gbit/s) 30 Gbps (Gbit/s)
Forwarding rate 50.59 Mpps 22.32 Mpps
Unit dimensions (W x D x H) 442 mm x 222.8 mm x 43.6 mm (17.4 in. x 8.77 in. x 1.72 in.) 300 mm x 225.8 mm x 43.6 mm (11.81 in. x 8.89 in. x 1.72 in.)
Unit weight 2.90 kg (6.39 lbs) 2.10 kg (4.63 lbs)
Maximum power consumption Full-load:
110 V: 439.65 W
220 V: 428.56 W
No-load:
110 V: 34.179 W
220 V: 33.511 W		 Full-load:
110 V: 144.88 W
220 V: 142.3 W
No-load:
110 V: 14.2 W
220 V: 14.2 W
PoE Yes Yes
Operating temperature 0°C to 50°C (32°F to 122°F) 0°C to 50°C (32°F to 122°F)
Fan 1 x fixed fan Fanless design
Warranty 5 years 5 years
Aggregate interface LACP basics LACP basics

Features

RG-CS61-24GT4MS-P
Layer 3 Access Switches with 2.5G Uplinks

  • 1

    Access Switches with 2.5G Uplinks

    Access Switches with 2.5G Uplinks

    1

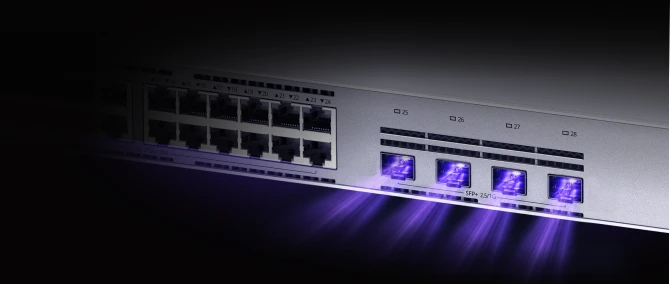

    Access Switches with 2.5G Uplinks

    Equipped with 2.5G uplinks, access switches provide higher bandwidth than traditional 1G uplinks while keeping cost under control.
  • 2

    8-Unit Stacking

    8-Unit Stacking

    2

    8-Unit Stacking

    8-unit stacking for flexible expansion helps maintain continuous service during device failures.
  • 3

    Dual-boot & Dual-bin

    Dual-boot & Dual-bin

    3

    Dual-boot & Dual-bin

    Dual-boot for reliable device startup and reboot, and dual-bin for redundant system partitions help maintain stable service operation.
  • 4

    Area-based Port Power Supply

    Area-based Port Power Supply

    4

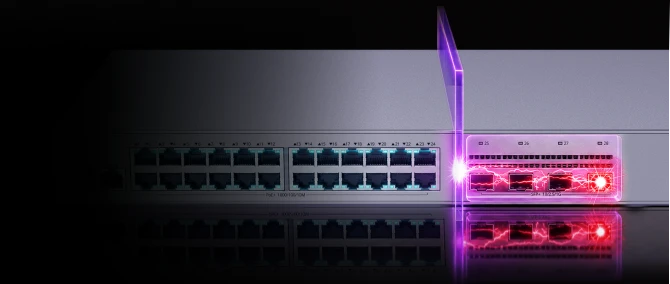

    Area-based Port Power Supply

    When an optical transceiver experiences a short-circuit fault, Cybrey switches support optical port isolation to help prevent broader system impact.
  • 5

    Layer 3 Capabilities

    Layer 3 Capabilities

    5

    Layer 3 Capabilities

    Access switches with Layer 3 capabilities, including OSPF and 6,000 route entries, help contain the impact of network failures and enable faster recovery than traditional Layer 2 access switches.
  • 6

    10 kV Surge Protection & 50°C Operation

    10 kV Surge Protection & 50°C Operation

    6

    10 kV Surge Protection & 50°C Operation

    Compared with typical switches that support 6–8 kV surge protection and operation up to 45°C, Cybrey switches deliver 10 kV surge protection and stable performance at temperatures up to 50°C, making them suitable for harsh environments.

In the Box

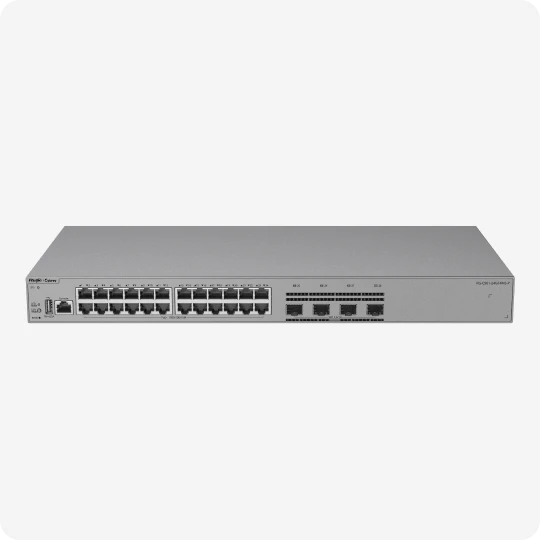

  • RG-CS61-24GT4MS-P

    × 1

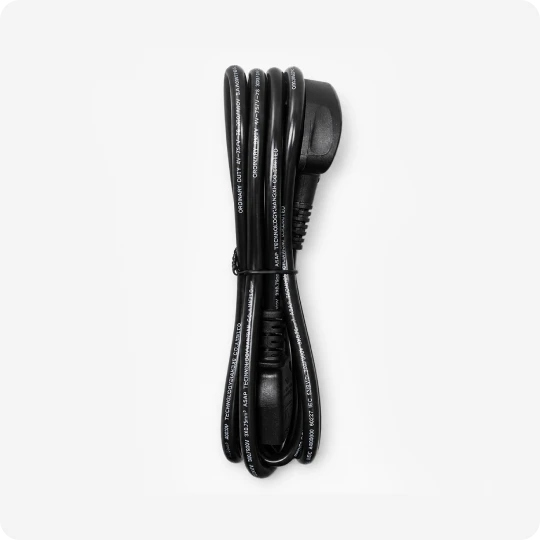

  • Power cord

    × 1

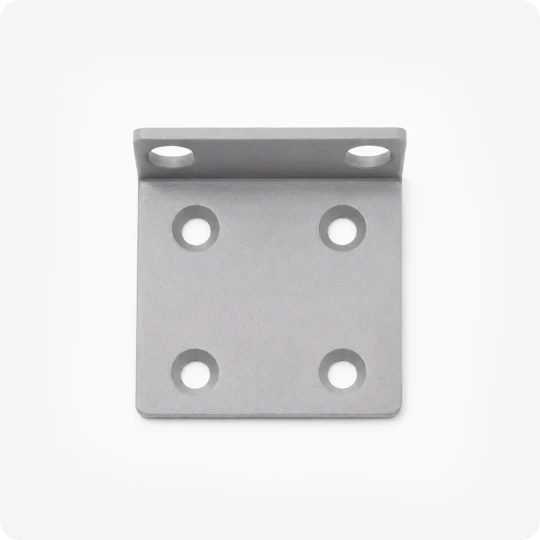

  • Rack-mount bracket

    × 2

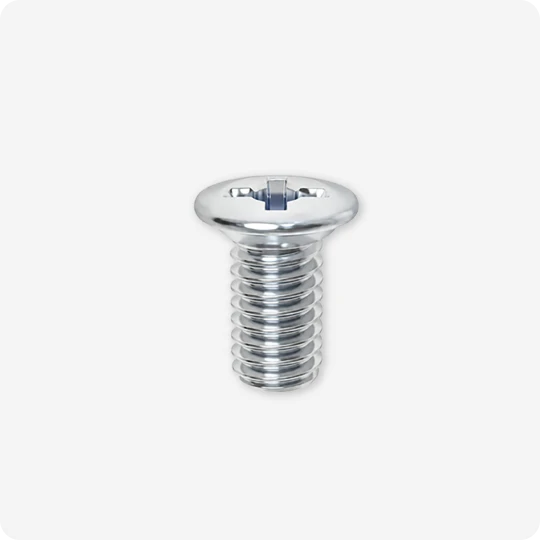

  • M4 x 8 mm screws

    × 6

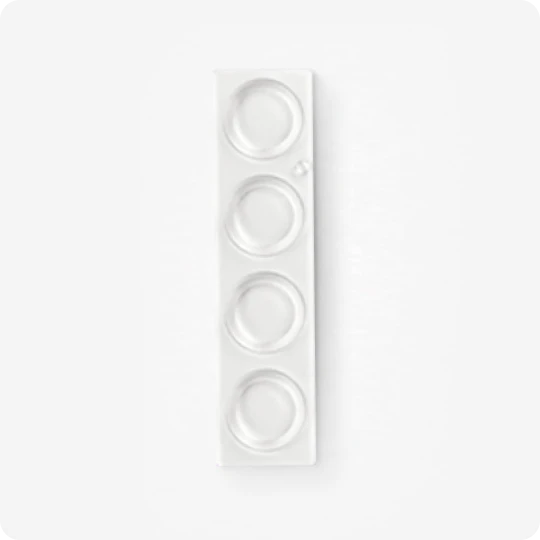

  • Rubber pad

    × 1

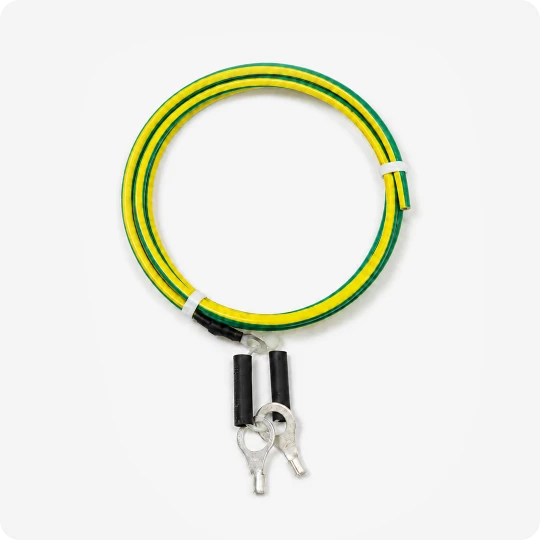

  • Grounding wire

    × 1

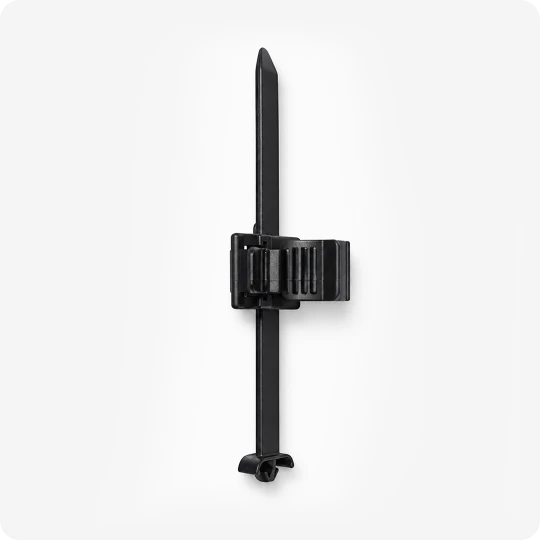

  • Power cord retention clip

    × 1

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

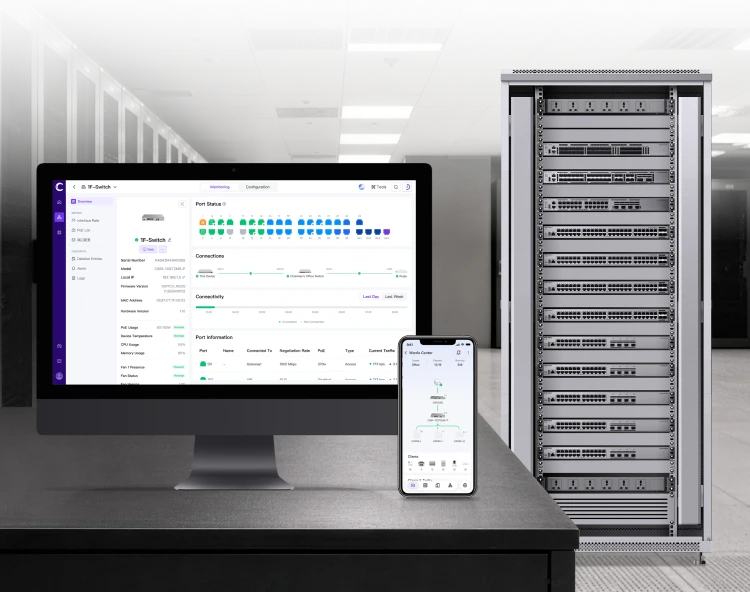

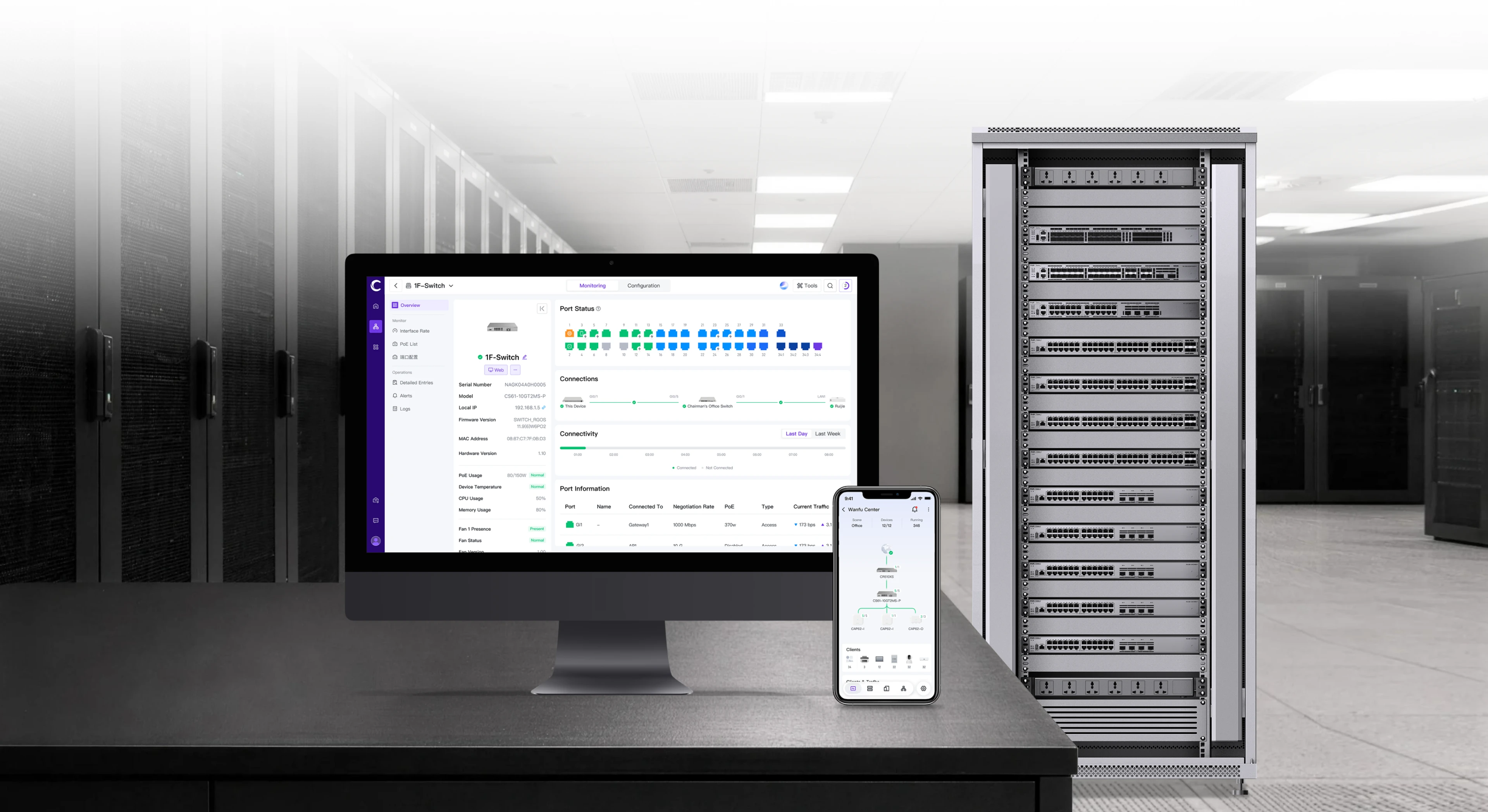

Cybrey Cloud, Make Your Business Easy

  • Interface Configuration

  • MAC Address Management

  • Vlan Configuration

  • 802.1X Authentication

Specifications

Hardware Specifications
Port Specifications RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Fixed service port 24 x 10/100/1000BASE-T ports, supporting PoE/PoE+
4 x 1GE/2.5GE SFP ports		 10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+
2 x 1GE/2.5GE SFP ports
Console port 1
USB 1
System Specifications RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Switching capacity 68 Gbps (Gbit/s) 30 Gbps (Gbit/s)
Forwarding rate 50.59 Mpps 22.32 Mpps
Packet buffer size 12 Mbit
CPU Dual-core ARM A55 CPU frequency up to 1.0 GHz
SDRAM 2 GB
Flash memory 512 MB
BootROM 16 MB
Real-time clock (RTC) Yes
Dimensions and Weight RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Unit dimensions (W x D x H) 442 mm x 222.8 mm x 43.6 mm (17.4 in. x 8.77 in. x 1.72 in.) 300 mm x 225.8 mm x 43.6 mm (11.81 in. x 8.89 in. x 1.72 in.)
Rack height 1 RU
Packaging dimensions (W x D x H) 540 mm x 340 mm x 153 mm (21.26 in. x 13.39 in. x 6.02 in.) 480 mm x 385 mm x 375 mm (18.9 in. x 15.16 in. x 14.76 in.)
Unit weight 2.90 kg (6.39 lbs) 2.10 kg (4.63 lbs)
Packaging weight 4.03 kg (8.88 lbs) 2.76 kg (6.08 lbs)
Power Supply and Consumption RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Power supply mode 1 x fixed power supply
Maximum power consumption Full-load:
110 V: 439.65 W
220 V: 428.56 W
No-load:
110 V: 34.179 W
220 V: 33.511 W		 Full-load:
110 V: 144.88 W
220 V: 142.3 W
No-load:
110 V: 14.2 W
220 V: 14.2 W
Power input AC input
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 6 A		 AC input
● Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
● Maximum input current: 3.5 A
PoE Yes
Number of PoE-out ports All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply ports 1 to 8 supporting PoE/PoE+ (IEEE802.3af/at) power supply
PoE budget 370 W 125 W
PoE budget per port 30 W
PoE power cable pairs Mode A (1-2, 3-6 pairs)
Environment and Reliability RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Operating temperature 0°C to 50°C (32°F to 122°F)
Storage temperature –40°C to +70°C (–40°F to +158°F)
Operating humidity 10% RH to 90% RH (non-condensing)
Storage humidity 5% RH to 95% RH (non-condensing)
Operating altitude 0 m to 5000 m (0 ft. to 16,404.20 ft.)
Cooling Air cooling, left-to-right airflow Natural cooling
Fan 1 x fixed fan Fanless design
Noise 27°C (80.6°F): 40 dB -
Fan speed adjustment Intelligent speed adjustment -
Hot swapping of cables Yes
USB hot swapping Yes
Surge protection Service port: ±10 kV for common mode
Power connector: ±6 kV for common mode and ±6 kV for differential mode
ESD prevention Contact discharge: 6 kV
Air discharge: 8 kV
Temperature monitoring and protection Temperature monitoring, temperature alarm, and over-temperature protection
Fan monitoring Fault alarm -
MTBF > 400,000 hours
Energy efficiency Yes
Certification and Regulatory Compliance RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Safety regulations IEC 62368-1 EN 62368-1
EMC regulations EN 300386, EN 55032 Class A, EN 55035,
EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN IEC 61000-4-3,
EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN IEC 61000-4-11
Product Information RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Warranty 5 years
Software Specifications
Layer 2 Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
VLAN IEEE 802.1Q
Port-based VLAN
MAC-based VLAN
Voice VLAN
IP/Subnet-based VLAN
Protocol-based VLAN
Private VLAN
Super VLAN
GVRP
Spanning tree IEEE802.1d STP
IEEE802.1w RSTP
Standard 802.1s MSTP
LLDP LLDP
LLDP-MED
Basic QinQ Basic QinQ
Transparent transmission of double-tagged packets
Selective QinQ Selective QinQ
REUP REUP
RLDP RLDP
ERPS(G.8032) ERPS(G.8032)
Layer 3 Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
ARP ARP
anyIP
ND Neighbor discovery
VRF IPv4 and IPv6 VRF
Routing Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Static routing IPv4 static routing
IPv6 static routing
OSPF OSPFv2 basics
OSPFv3 basics
RIP RIP
RIPv2
RIPng RIPng
PBR IPv4 PBR
IPv6 PBR
Multicast Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
IGMP snooping IGMP snooping v1/v2
IGMP snooping v3
IGMP IGMPv1/v2/v3
IGMP proxy
MLD snooping MLD snooping
MLD snooping v2
MLD MLDv1/v2
PIM-SMv4 PIM-SMv4
PIM-SSMv4
PIM-DMv4 PIM-DMv4
PIM-SMv6 PIM-SMv6
PIM-SSMv6
MSDP MSDP
ACL and QoS RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
ACL IP standard ACL
IP extended ACL
MAC extended ACL
IPv6 ACL
Expert ACL
Time-based ACL
ACL-based redirection
ACL80
QoS Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences
SP
WRR
SP+WRR
DRR
SP+DRR
WFQ
SP+WFQ
Congestion avoidance: tail drop
Traffic shaping (ingress/egress)
Security Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
802.1X Port-based authentication
MAC-based authentication
AAA AAA
Web-based authentication HTTP-based authentication
HTTPS-based authentication
IP source guard IP source guard
IPv6 source guard IPv6 source guard
SAVI SAVI
Global IP-MAC binding Configuring global IP-MAC binding entries
TACACS+ TACACS+
CPP Hardware CPP
Port isolation Port isolation
RADIUS RADIUS
Port Security Port Security
NFPP NFPP
High Availability RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
VSU Device virtualization
VRRP IPv4 VRRPv2
IPv4 VRRPv3
IPv6 VRRP
VRRP+ IPv4 VRRP+
IPv6 VRRP+
BFD BFD detection
DLDP DLDP
Interface Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Aggregate interface LACP basics
Mirroring SPAN
RSPAN
Management Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
SNMP SNMPv1/v2c/v3
RMON (1, 2, 3, 9)
SSH SSHv2
SSHv1
sFlow sFlow
gRPC gRPC framework
NETCONF NETCONF
SON SON
Cybrey Cloud Cybrey Cloud
OAM Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
PoE Uninterrupted power supply upon warm start
PoE port priority
IP Services RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
DHCP DHCPv4 client
DHCPv4 server
DHCPv4 relay
DHCPv4 snooping
DHCPv6 client
DHCPv6 relay
DHCPv6 snooping
ND snooping ND snooping
DNS DNS client
DNSv6 client
NTP NTP client
NTP server
SNTP SNTP client
SNTP
FTP FTP client
FTP server
TFTP TFTP client
TFTP server
System Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
USB USB 2.0
Capacity Specifications
Layer 2 Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Maximum number of global MAC addresses (The device must be able to learn the maximum number of MAC addresses in the full-mesh test model.) Default: 16000 (subject to the UFT capacity)
Maximum number of created VLANs 4094
Jumbo frame length / Port MTU 9216
Layer 2 traffic convergence time ≤ 200 ms
Layer 3 Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Maximum number of ARP entries 4000
Routing Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
IPv4 routing table size 6000
IPv6 routing table size 2000
Multicast Features RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Maximum number of IPv4 multicast routing table entries 1000
Number of multicast groups x Number of outbound interfaces ≤ 1000
Maximum number of IPv6 multicast routing table entries 900
ACL and QoS RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Maximum number of inbound ACE entries 1750
Maximum number of outbound ACE entries 800 (The capacity can reach 800 when only Layer 2 match fields, excluding inner tags, are used. If other match fields are added, the capacity may decrease to 350.)
Maximum number of QoS hardware queues 8 (shared by unicast and multicast traffic)
High Availability RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Maximum number of VSU members 8
Package Contents
Device RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Main unit 1
Accessories RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
Power cord 1
Rack-mount bracket 2
Screw 6 x M4 x 8 mm screws 6 x M3 x 6 mm screws
Rubber pad 4
Grounding wire 1
Power cord retention clip 1
Manual RG-CS61-24GT4MS-P RG-CS61-10GT2MS-P
User Manual 1
Warranty Card 1
Show More

Resources

All Resources
Installation
Software and Configuration
How would you rate your experience on this page?
Very disatisfying
Very satisfying
If you would like to offer more comment, please type in the textbox below, that would be helpful for the improvement of this page.
Submit
Thank you for your feedback!

Ruijie Networks websites use cookies to deliver and improve the website experience.

See our cookie policy for further details on how we use cookies and how to change your cookie settings.

Accept All

Manage Cookies

Cookie Manager

When you visit any website, the website will store or retrieve the information on your browser. This process is mostly in the form of cookies. Such information may involve your personal information, preferences or equipment, and is mainly used to enable the website to provide services in accordance with your expectations. Such information usually does not directly identify your personal information, but it can provide you with a more personalized network experience. We fully respect your privacy, so you can choose not to allow certain types of cookies. You only need to click on the names of different cookie categories to learn more and change the default settings. However, blocking certain types of cookies may affect your website experience and the services we can provide you.

  • Performance cookies

    Through this type of cookie, we can count website visits and traffic sources in order to evaluate and improve the performance of our website. This type of cookie can also help us understand the popularity of the page and the activity of visitors on the site. All information collected by such cookies will be aggregated to ensure the anonymity of the information. If you do not allow such cookies, we will have no way of knowing when you visited our website, and we will not be able to monitor website performance.

  • Essential cookies

    This type of cookie is necessary for the normal operation of the website and cannot be turned off in our system. Usually, they are only set for the actions you do, which are equivalent to service requests, such as setting your privacy preferences, logging in, or filling out forms. You can set your browser to block or remind you of such cookies, but certain functions of the website will not be available. Such cookies do not store any personally identifiable information.

Accept All

View Cookie Policy Details

Contact Us

Contact Us

How can we help you?

Contact Us

Get an Order help

Contact Us

Get a tech support
