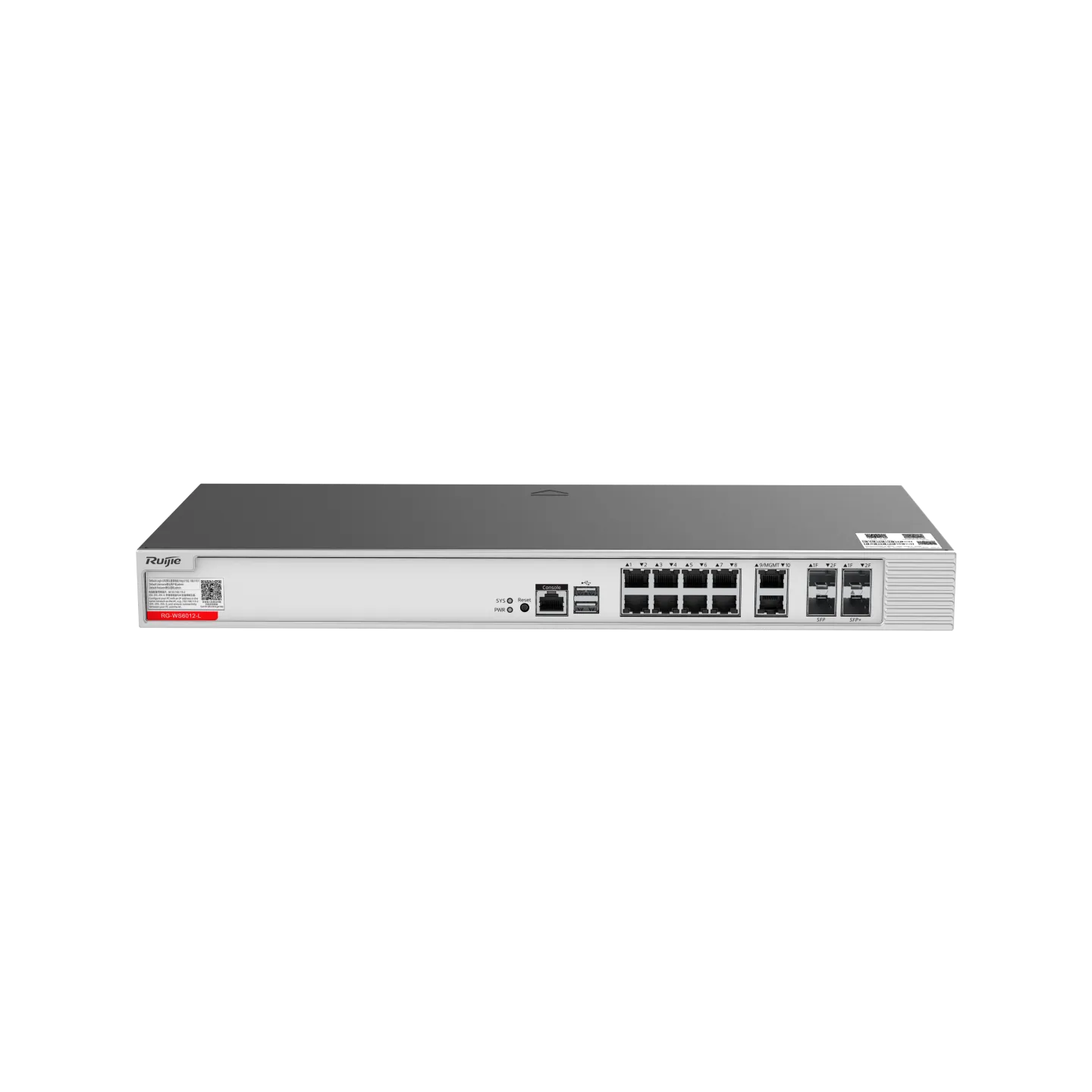

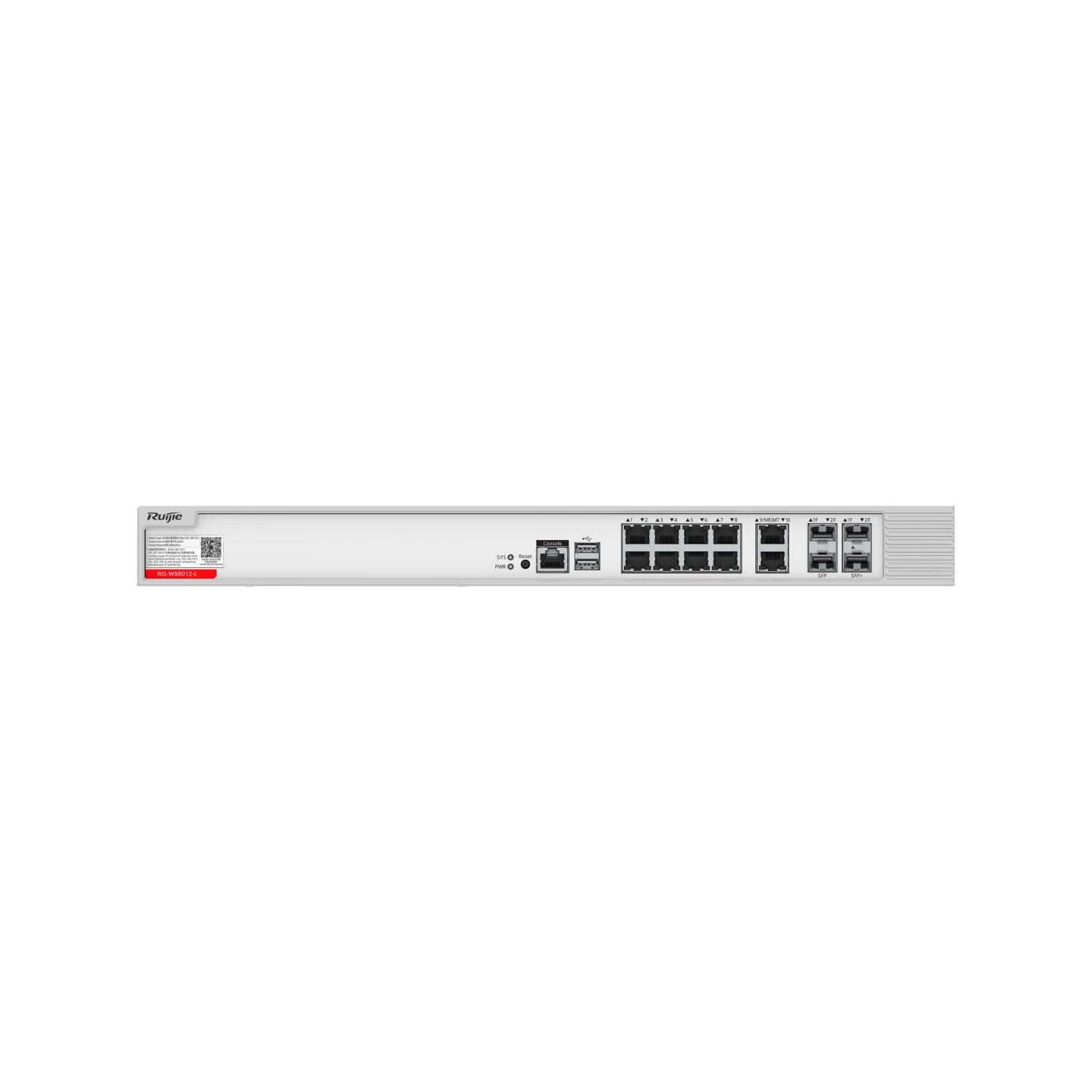

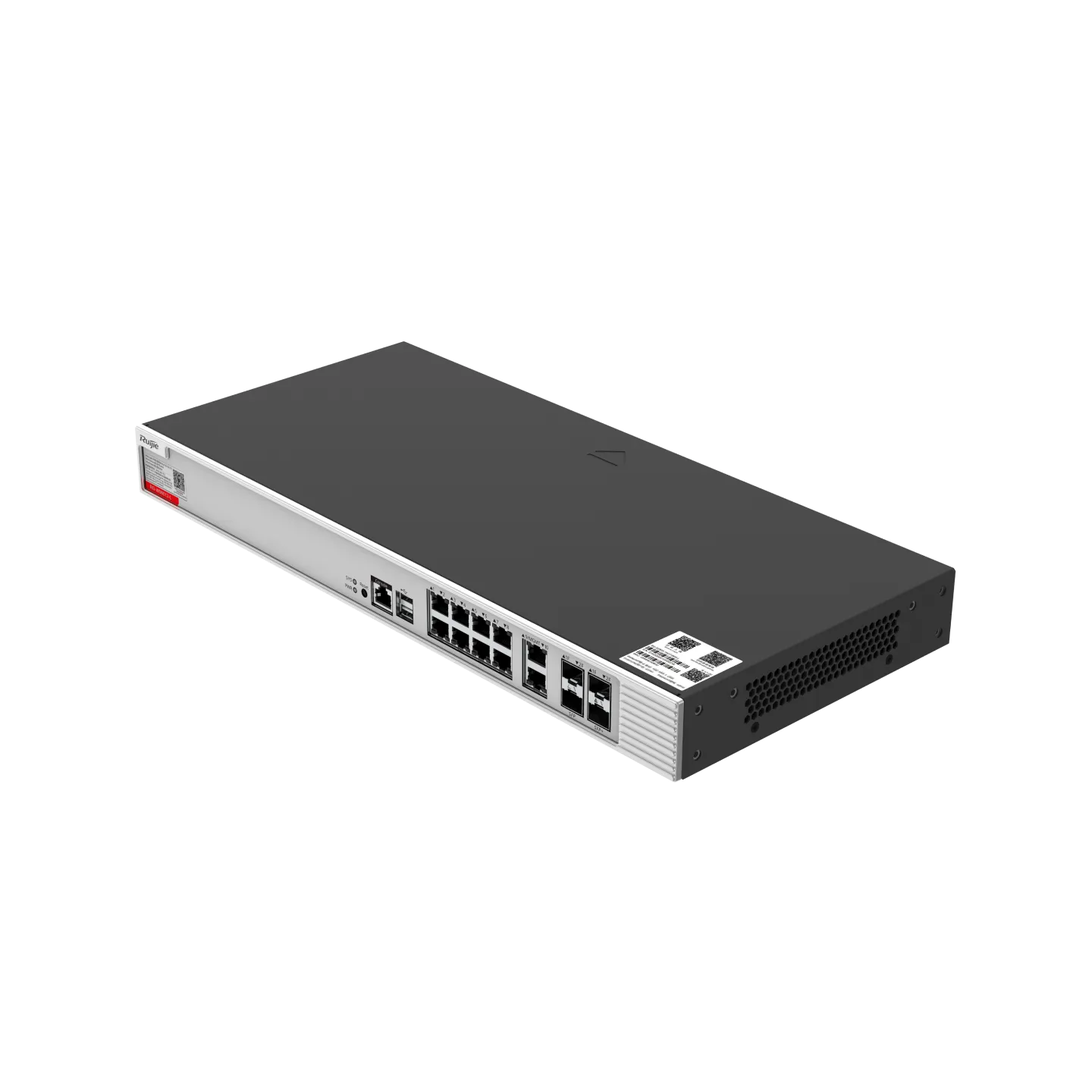

RG-WS6012-L High-Performance 10 Gbps Wireless Access Controller

The RG-WS6012-L access controller (AC) is designed for small- and medium-scale networks, delivering 10 Gbps forwarding capacity. It provides high scalability, enabling flexible configuration and management of access points (APs).

High Performance and High Capacity

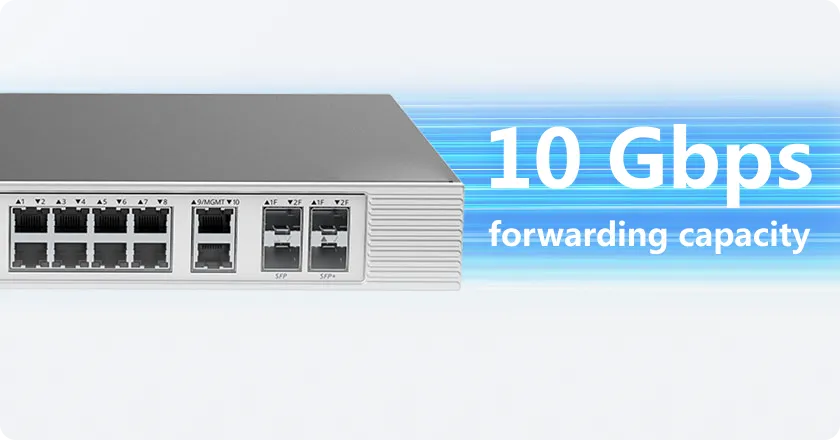

Multiple high-speed interfaces, delivering 10 Gbps forwarding capability
Management of 32 APs by default, which can be expanded to 896 APs to flexibly meet service expansion needs

Intelligent Load Balancing

User- and traffic-based load balancing used to allocate users to different APs, preventing AP overload

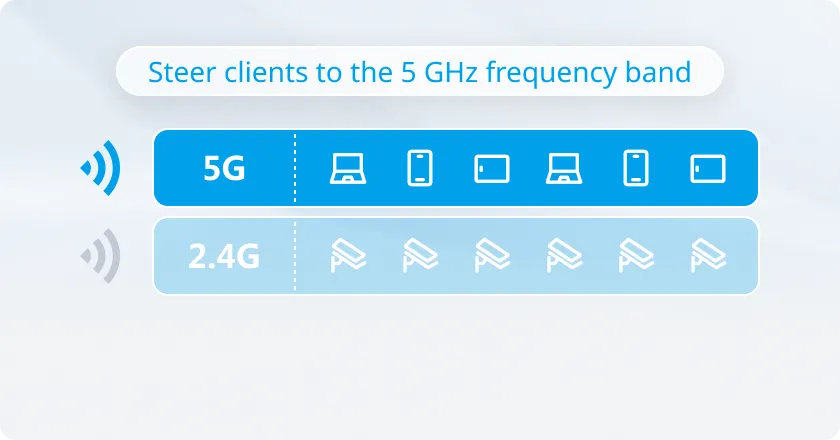

Frequency-based load balancing used to steers dual-band clients to the 5 GHz frequency band, enhancing bandwidth utilization

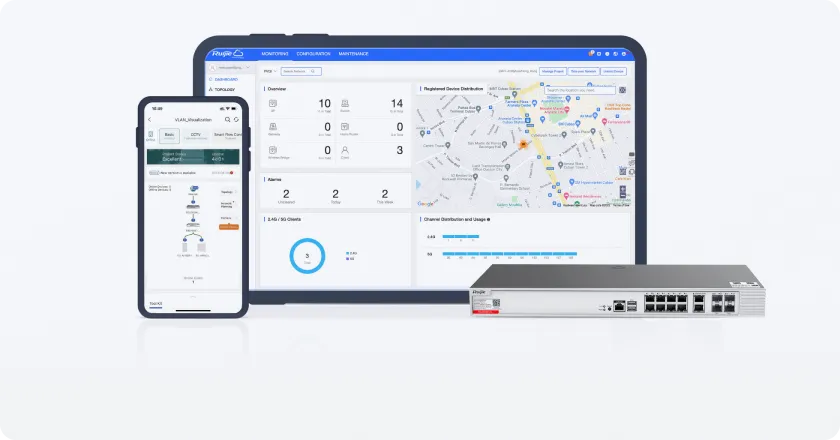

Cloud Unified Management, Efficient O&M

Unified management through Ruijie Cloud, eliminating the need for onsite provisioning
Real-time alarms and intelligent troubleshooting, improving O&M efficiency

Технические характеристики

Hardware Specifications

System specifications

System specifications	RG-WS6012-L
Memory	4 GB
Flash memory	16 MB

Dimensions and Weight

Dimensions and Weight	RG-WS6012-L
Unit dimensions (W x D x H)	440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets) 486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., including rack-mount brackets)
Shipping dimensions (W x D x H)	550 mm x 460 mm x 368 mm (21.65 in. x 18.11 in. x 14.49 in.)
Rack size	1 RU
Unit weight	2.7 kg (5.95 lbs)
Shipping weight	3.5 kg (7.72 lbs)
Mounting	Rack-mount

Port Specifications

Port Specifications	RG-WS6012-L
Fixed service port	8 x 10/100/1000BASE-T ports 2 x 1GE SFP/RJ45 combo ports ● RJ45 ports support 10/100/1000BASE-T. ● Port 9/MGMT can also be used as a management port. 2 x 10GE SFP+ ports
Fixed management port	1 x RJ45 console port 2 x USB 3.0 ports, compatibility with USB 2.0
Status LED	1 x system status LED 1 x power status LED 8 x 10/100/1000BASE-T port LEDs 2 x 1GE SFP/RJ45 combo port LEDs 2 x 10GE SFP+ port LEDs
Button	1 x Reset button ● Press the button for shorter than 3 seconds. Then the device restarts. ● Press the button for longer than 3 seconds. Then the device restores to factory settings.

Note

A combo port consists of an optical Ethernet port and an electrical Ethernet port on the panel and can be used as the optical or electrical port at one time. When either of the Ethernet ports is working, the other port is automatically shut down. You can select a port type as required.

Power Supply and Consumption

Power Supply and Consumption	RG-WS6012-L
Maximum power consumption	30 W
Input power supply	1 x 40 W built-in power module
Input voltage	100 V AC to 240 V AC, 50 Hz to 60 Hz
Input current	0.25 A (maximum RMS current)
Output voltage	12 V/3.33 A

Environment and Reliability

Environment and Reliability	RG-WS6012-L
Temperature	Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F).
Altitude	Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.)
Humidity	Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing)
Acoustic noise	< 78 dB
Mean Time Between Failure (MTBF)	200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Software Specifications

Performance and Capacity

Performance and Capacity	RG-WS6012-L
WLAN
Default number of manageable APs	32 Note: The default number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details.
Maximum number of configurable APs	2,048
Maximum number of manageable APs	896 Note: The maximum number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details.
Maximum number of manageable STAs	4,480 Note: The maximum number of STAs that can be managed by the RG-WS6012-L is subject to the network environment. Contact technical support team for details.
WLAN service	Maximum number of WLAN IDs: 2,048 Maximum number of associated STAs per WLAN: 4,480
Intra-AC roaming handoff time	< 50 ms
Maximum number of virtualized ACs	4
Number of concurrent CAPWAP data channels	896
Routing and Switching
Forwarding capacity	10 Gbps (subject to the wireless network environment)
Number of MAC address entries	32,768
Number of VLANs	4,096
Number of ARP entries	32,768
DHCP address pools	Number of IPv4 address pools: 2,000 Number of IPv4 addresses: 24,576 Number of IPv6 address pools: 256 Number of IPv6 addresses: 2,048
Number of routing entries	IPv4 routing entries: 8,192 IPv6 routing entries: 10,000
Security and Authentication
Maximum number of STAs supported by the built-in Portal server	1,500
Number of ACL entries	65,536

Applicable Software Version

Applicable Software Version	RG-WS6012-L
Applicable software version	AC_RGOS 11.9(6)W6B1 or later

WLAN

WLAN	RG-WS6012-L
IEEE 802.11 protocols	802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax
CAPWAP	Layer 2 and Layer 3 topology supported between an AP and an AC An AP can automatically discover the accessible AC. An AP can be automatically upgraded through the AC. An AP can automatically download the configuration file from the AC. CAPWAP through NAT
Roaming	Intra-AC Layer 2 or Layer 3 roaming Inter-AC Layer 2 or Layer 3 roaming Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode
Forwarding mode	Centralized forwarding Local forwarding Service-based flexible forwarding
Wireless QoS	AP/WLAN/STA-based bandwidth limiting (STA-based rate limit range: 8–261,120 in the unit of 8 kbps. For example, if you set the value to 8, the rate limit is 8 x 8 kbps = 64 kbps.) Static and intelligent rate limiting based on STA quantity Fair scheduling
User isolation	AC-based user isolation AP-based user isolation WLAN-based user isolation
Reliability	AC virtualization AC failover Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby) Multi-AC cluster (N-to-N) Remote intelligent perception technology (RIPT) Non-stop service during upgrade
STA management	Access control based on the number of STAs associated with the AP Access control based on the number of STAs associated with the SSID Balanced access control based on the number of STAs associated with the AP Balanced access control based on the AP traffic Band steering Configuration of the RSSI threshold in dBm (range: 0–100) Configuration of the STA idle timeout period in seconds (range: 60–86,400)
WLAN optimization	Adjustment of the transmit power for beacon or probe response frames
RF management	Country or region code setting Manual setting of the transmit power Automatic setting of the transmit power Manual setting of the operating channel Automatic setting of the operating channel Automatic adjustment of the data rate Coverage Hole Detection AP load balancing based on traffic and STA quantity Band selection Radio frequency interference (RFI) detection and mitigation

Security

Security	RG-WS6012-L
IPv4 security authentication	Web-based authentication 802.1X authentication MAB authentication
IPv6 security authentication	802.1X authentication Web-based authentication
IEEE 802.11 security and encryption	Multi-SSID mode SSID hiding IEEE 802.11i-compliant PSK authentication WPA and WPA2 WEP (WEP/WEP128) TKIP CCMP ARP anti-spoofing
CPP	Supported
NFPP	Supported
WIDS	Supported
AP virtualization	Supported

Protocols

Protocols	RG-WS6012-L
IPv4 protocols	Ping and traceroute DHCP server, DHCP client, DHCP relay, and DHCP snooping DNS client NTP Telnet TFTP server and TFTP client FTP server and FTP client
IPv6 protocols	DNSv6 client DHCPv6 relay and DHCPv6 server TFTPv6 client FTPv6 server and FTPv6 client IPv6 CAPWAP ICMPv6 IPv6 ping Manual tunnels, automatic tunnels, and ISATAP Manually configured IP addresses and automatically created local addresses IPv6 traceroute Neighbor discovery
IPv4 routing	Static routing, RIP, and OSPF
IPv6 routing	Static routing

Management

Management	RG-WS6012-L
Network management	SNMP v1/v2c/v3 RMON Syslog Remote probe
Network management platform	Eweb Wi-Fi heat map
User access management	Console port login, Telnet login, SSH login, and FTP upload

Regulatory Compliance

Regulatory Compliance	RG-WS6012-L
Safety regulation	IEC 62368-1, EN 62368-1
EMC regulation	EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and ETSI EN 300 386

Resources All Resources

Learn about Products or Solutions

Product Datasheet

Информация для заказа

Main Unit

Model

Description

RG-WS6012-L

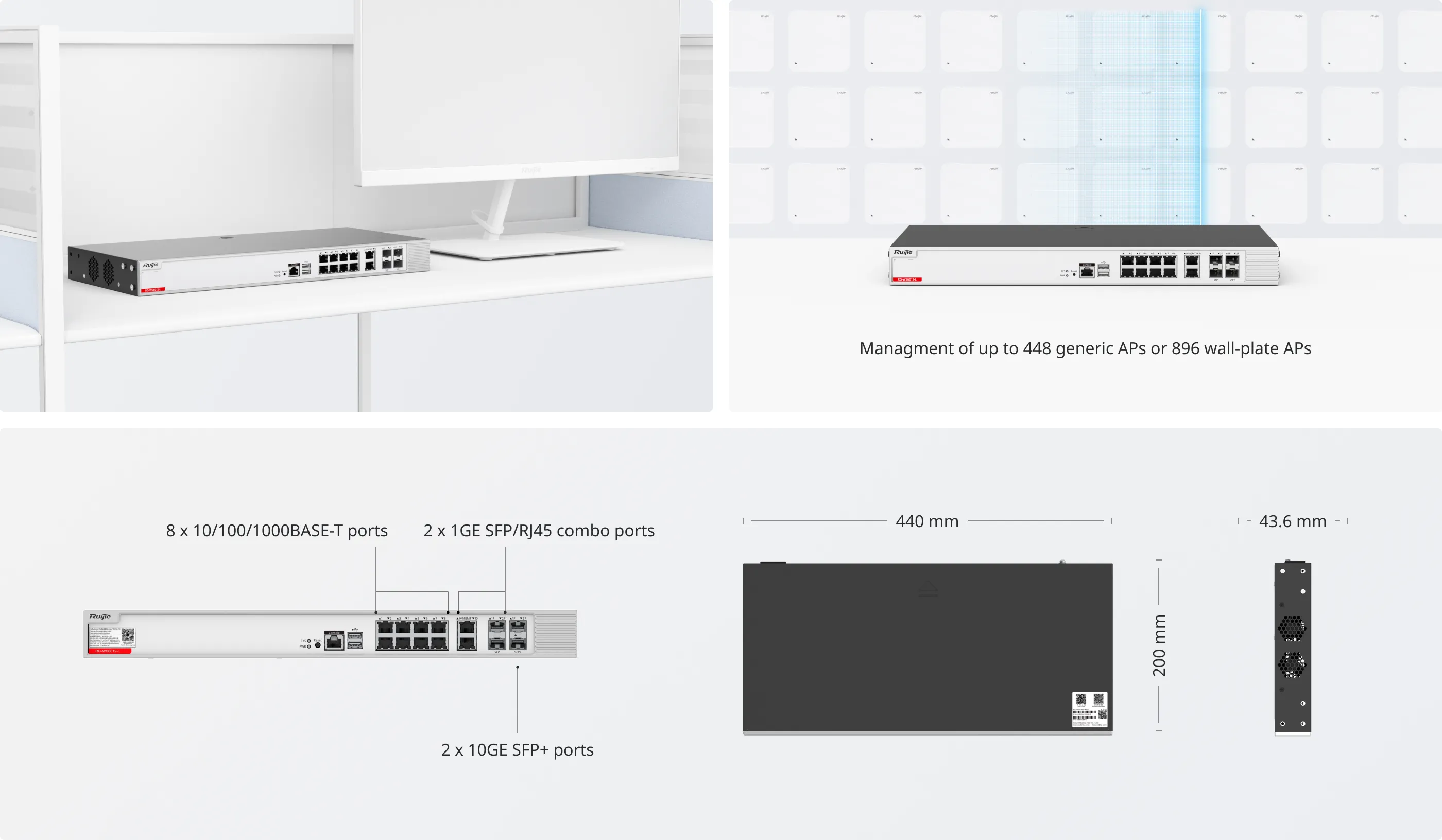

The next-generation wireless access controller provides 8 x 10/100/1000BASE-T ports, 2 x SFP/RJ45 combo ports, and 2 x 10GE SFP+ ports.

It supports 32 licenses by default.

The maximum number of APs that can be managed by the AC is subject to the AP model:

A generic AP occupies one license. The RG-WS6012-L can manage up to 448 generic APs.
A wall plate AP occupies half of the license. The RG-WS6012-L can manage up to 896 wall plate APs.

A power module is delivered with the main unit, which supports power redundancy

Optical Transceivers

1GE

Model	Description
MINI-GBIC-ZX80-SM1550	1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF
MINI-GBIC-LH40-SM1310	1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF
MINI-GBIC-SX-MM850	1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF
MINI-GBIC-LX-SM1310	1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF
GE-SFP-LX03-SM1310-BIDI-I	1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 3 km over SMF
GE-SFP-LX03-SM1550-BIDI-I	1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 3 km over SMF

Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.

10GE

Model	Description
XG-SFP-LR-SM1310	10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF
XG-SFP-SR-MM850	10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF
XG-SFP-AOC3M	10GBASE, SFP+ active optical cable (AOC), 3 m, including one cable and two optical transceivers
XG-SFP-AOC5M	10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers
XG-SFP-LR10-SM1270-BIDI-I	10GBASE-LR, SFP+ transceiver, TX1270/RX1330, BiDi LC, 10 km over SMF
XG-SFP-LR10-SM1330-BIDI-I	10GBASE-LR, SFP+ transceiver, TX1330/RX1270, BiDi LC, 10 km over SMF

License

Model	Product Description
RG-LIC-WS-16	The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 16. Each license supports one generic AP or two wall plate APs.
RG-LIC-WS-32	The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 32. Each license supports one generic AP or two wall plate APs.
RG-LIC-WS-128	The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 128. Each license supports one generic AP or two wall plate APs.
RG-LIC-WS-512	The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 512. Each license supports one generic AP or two wall plate APs.
RG-LIC-WS-1024	The number of capacity expansion licenses for the RG-WS series wireless controller can be expanded to 1,024. Each license supports one generic AP or two wall plate APs.
