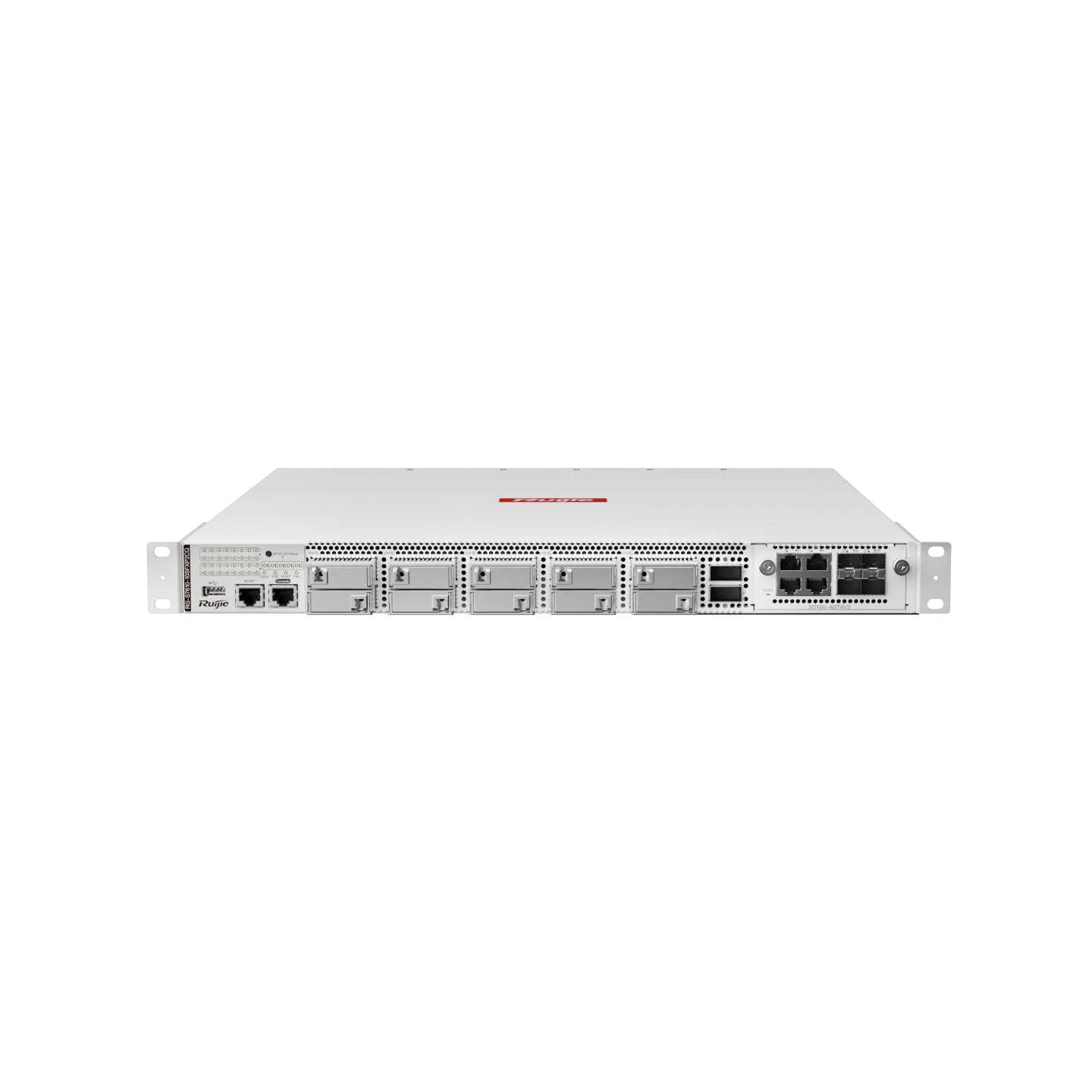

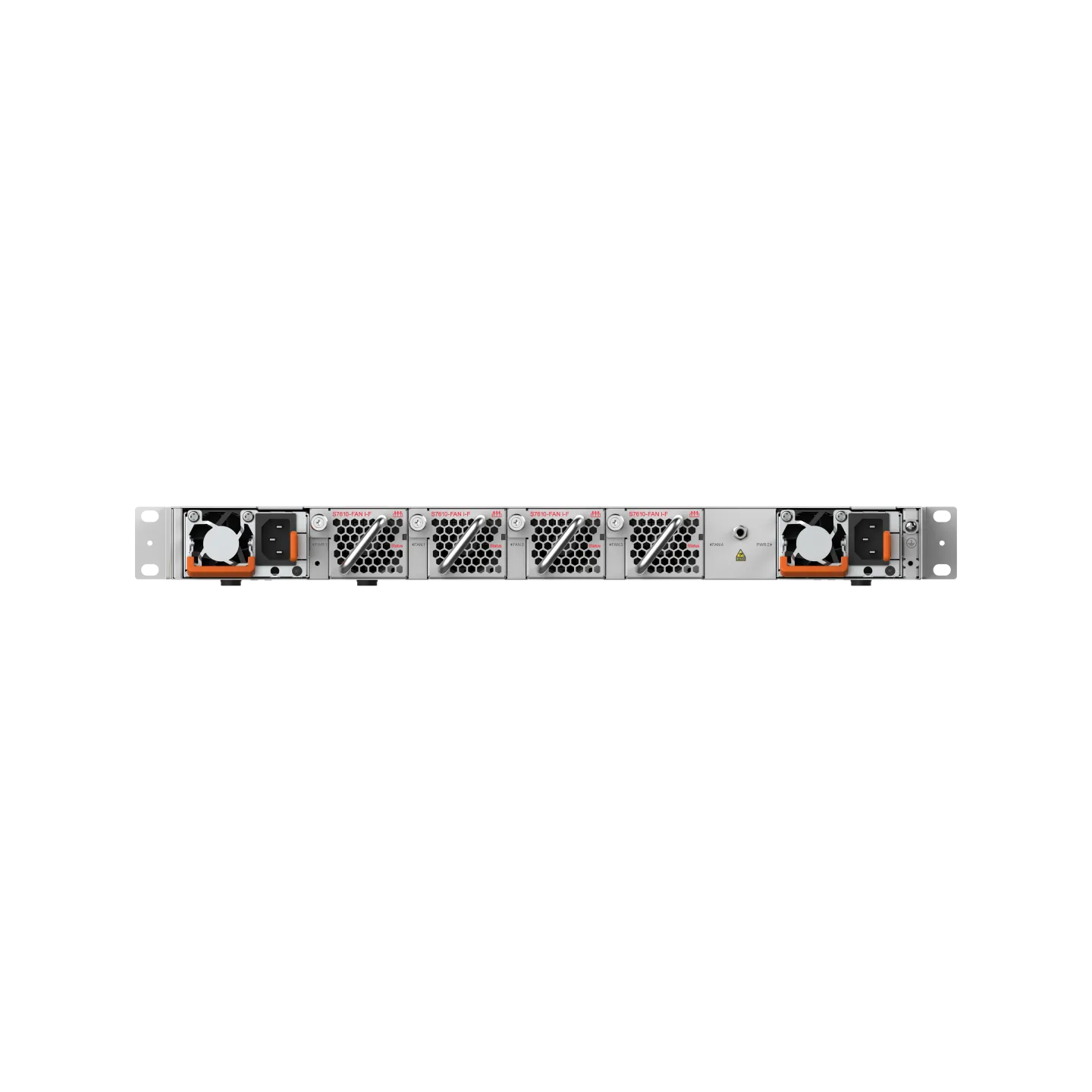

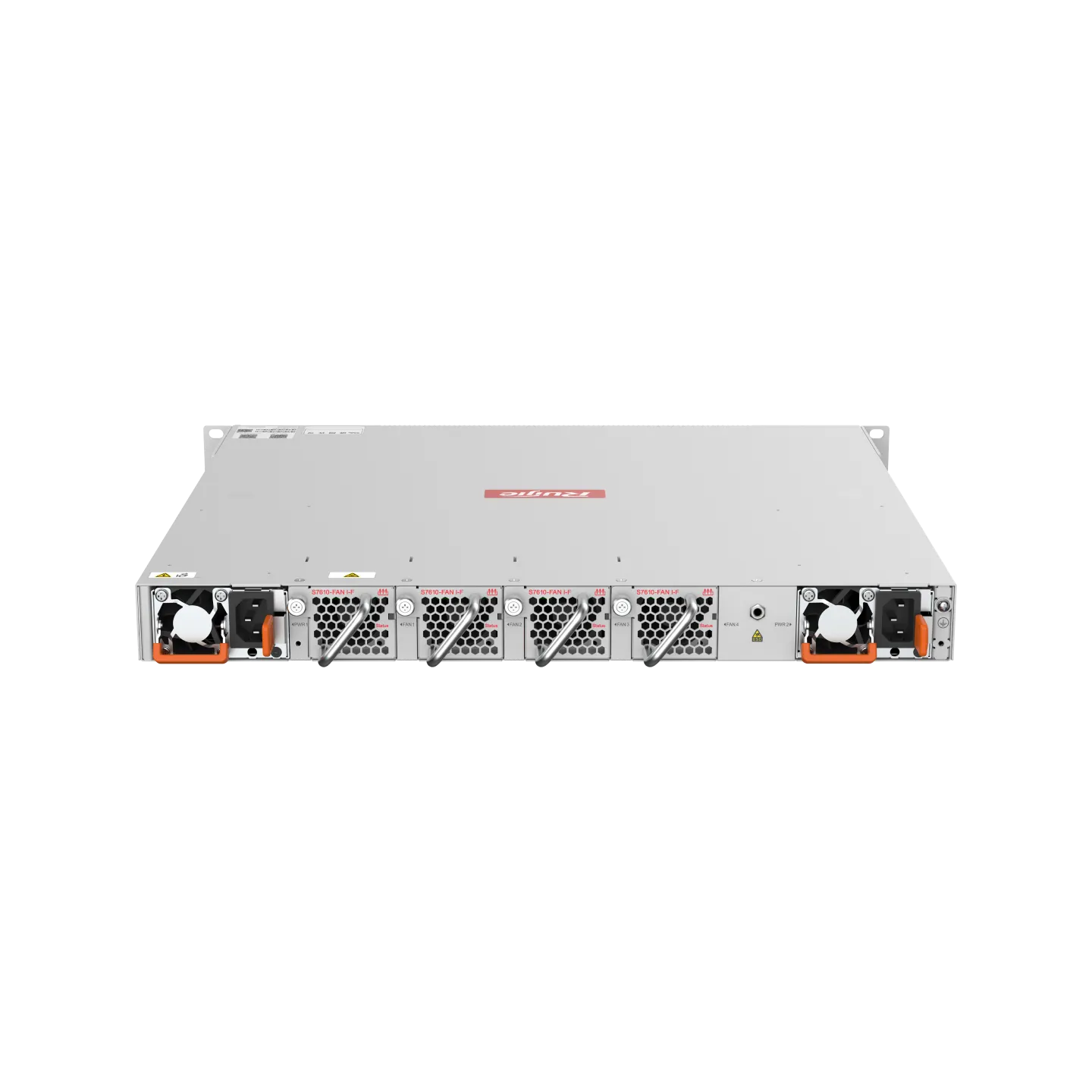

RG-S7610-10SFXP2CQ, 10-Port 1 RU SFXP 10GE Ultra-High-Density Fixed CWDM Core Switch
20 x SFG ports, 2 x 100GE QSFP28 ports
RG-S7620-20SFX2CQ20 x SFX ports, 2 x 100GE QSFP28 ports
RG-S7610-10SFG2CQ10 x SFG ports, 2 x 100GE QSFP28 ports
RG-S7610-10SFX2CQ10 x SFX ports, 2 x 100GE QSFP28 ports
RG-S7610-10SFXP2CQ10 x 10GE SFXP high-density CWDM ports (160 x 10GE optical ports),2 x 100GE optical ports
RG-S7610-10SFMP2CQ10 x 2.5GE SFMP high-density CWDM ports (160 x 2.5GE optical ports),2 x 100GE optical ports
- 10 x SFXP ports (160 x SFP+ ports) and 2 x 100GE uplink ports, backward compatible with 40GE, supporting flexible configuration
- Integration of traditional fixed switches and CWDM multiplexers for simplified management and easy deployment
- Virtual Switch Unit (VSU) for flexible networking and high performance
- Multiple hardware-level protection, ensuring continuous device operation without downtime
- Ruijie Unified Networking Central (RG-UNC) for unified, simplified, automated, and effortless network management
- Tính năng
- Thông số kỹ thuật
- Tài nguyên
- Thông tin đặt hàng
Tính năng
Thông số kỹ thuật
Hardware Specifications
Port Specifications
| Port specifications |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Fixed service port |
10 x SFG ports (80 x 1GE logical channels) 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
10 x SFX ports (80 x 10GE logical channels) 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
20 x SFG ports (160 x 1GE logical channels) 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
20 x SFX ports (160 x 10GE logical channels) 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
| Module service port |
M7600-4GT4VS: ● 4 x 10/100/1000BASE-T ports ● 4 x 1GE/10GE/25GE SFP28 ports M7600-2CQ: ● 2 x 40GE/100GE QSFP28 ports |
|||
| Module slot |
2 x power module slots 4 x fan module slots 1 x expansion module slot |
2 x power module slots 3 x fan module slots 1 x expansion module slot |
||
| Expansion module |
M7600-2CQ M7600-4GT4VS |
|||
| Power module |
RG-PA550I II-F |
|||
| Fan module |
S7610-FAN I-F |
S7620-FAN I-F |
||
| Fixed management port |
1 x RJ45 console port 1 x RJ45 MGMT port |
|||
| USB |
1 x USB 2.0 port |
|||
| Port specifications |
RG-S7610-10SFMP2CQ |
RG-S7610-10SFXP2CQ |
| Fixed service port |
10 x SFMP ports (160 x 1GE logical channels) 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
10 x SFXP ports (160 x 10GE/1GE logical channels) 2 x 40GE/100GE QSFP28 ports (supporting 4 x 10GE/4 x 25GE) |
| Module service port |
M7600-4GT4VS: ● 4 x 10/100/1000BASE-T ports ● 4 x 1GE/10GE/25GE SFP28 ports M7600-2CQ: ● 2 x 40GE/100GE QSFP28 ports |
|
| Module slot |
2 x power module slots 4 x fan module slots (3+1 redundancy, and at least three fan modules required) 1 x expansion module slot (1+1 redundancy) |
|
| Expansion module |
M7600-2CQ M7600-4GT4VS |
|
| Power module |
RG-PA550I II-F |
|
| Fan module |
S7610-FAN I-F |
|
| Fixed management port |
1 x RJ45 console port 1 x RJ45 MGMT port |
|
| USB |
1 x USB 2.0 port |
|
System Specifications
| System specifications |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Packet forwarding rate ^*1^ |
714 Mpps |
1786 Mpps |
833 Mpps |
2976 Mpps |
| System switching capacity ^*2^ |
960 Gbps |
2.4 Tbps |
1.12 Tbps |
4 Tbps |
| CPU |
Quad-core CPU, each core with the clock speed of 2.0 GHz |
|||
| BootROM |
16 MB |
|||
| Flash memory |
8 GB |
|||
| Memory |
4 GB DDR4 |
|||
| Switch buffer |
36 MB |
|||
| System specifications |
RG-S7610-10SFMP2CQ |
RG-S7610-10SFXP2CQ |
| Packet forwarding rate ^*1^ |
1190 Mpps |
2976 Mpps |
| System switching capacity ^*2^ |
1.6 Tbps |
4 Tbps |
| CPU |
Quad-core CPU, each core with the clock speed of 2.0 GHz |
|
| BootROM |
16 MB |
|
| Flash memory |
16 GB |
|
| Memory |
4 GB DDR4 |
|
| Switch buffer |
36 MB |
|
^*1^ means the system's packet forwarding rate. For the latest parameters, visit the Ruijie official website.
^*2^ means the system's switching capacity. For the latest parameters, visit the Ruijie official website.
Power Supply and Consumption
| Power supply and consumption |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Power supply |
2 x pluggable power modules |
|||
| Power input |
RG-PA550I II-F (AC input): - Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz - Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz - Rated input current: 3.5 A to 7.2 A - Maximum input current: 7.2 A |
|||
| Maximum output power |
RG-PA550I II-F: 550 W |
|||
| Module power consumption |
270 W |
450 W |
||
| Power supply and consumption |
RG-S7610-10SFMP2CQ |
RG-S7610-10SFXP2CQ |
| Power supply |
2 x pluggable power modules |
|
| Power input |
RG-PA550I II-F (AC input): ● Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz ● Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz ● Rated input current: 3.5 A to 7.2 A ● Maximum input current: 7.2 A |
|
| Maximum output power |
RG-PA550I II-F: 550 W |
|
| Module power consumption |
400 W |
|
Dimensions and Weight
| Dimensions and Weight |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Unit dimensions (W x D x H) |
442 mm x 388 mm x 44 mm (17.40 in. x 15.28 in. x 1.73 in.) |
442 mm x 388 mm x 88 mm (17.40 in. x 15.28 in. x 3.46 in.) |
||
| Shipping dimensions (W x D x H) |
590 mm x 543 mm x 196 mm (23.23 in. x 21.38 in. x 7.72 in.) |
590 mm x 543 mm x 259 mm (23.23 in. x 21.38 in. x 10.20 in.) |
||
| Rack height |
1 RU |
2 RU |
||
| Unit weight |
6.88 kg (15.17 lbs, with 4 fan modules) |
11.02 kg (24.29 lbs, with 3 fan modules) |
||
| Shipping weight |
9.73 kg (21.45 lbs) |
14.4 kg (31.75 lbs) |
||
| Dimensions and Weight |
RG-S7610-10SFMP2CQ |
RG-S7610-10SFXP2CQ |
| Unit dimensions (W x D x H) |
442 mm x 420 mm x 43.6 mm (17.40 in. X 16.54 in. X 1.72 in.) (excluding fan modules and power handles) 482.6 mm x 420 mm x 43.6 mm (19.00 in. X 16.54 in. X 1.72 in.) (including mounting brackets, and excluding fan modules and power handles) |
|
| Rack height |
1 RU |
|
| Unit weight |
7.0 kg (15.43 lbs) (fan modules included during delivery, excluding power modules, expansion modules, and packaging materials) |
|
Environment and Reliability
| Environment and reliability |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Temperature |
Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: --40°C to +70°C (--40°F to +158°F) Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|||
| Humidity |
Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
|||
| Altitude |
Operating altitude: 0 m to 5000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5000 m (0 ft. to 16,404.20 ft.) |
|||
| Mean time between failure (MTBF) |
683,104.8 hours (about 78 years) |
360,474 hours (about 41 years) |
||
| Fan |
4 x pluggable fan modules (pre-installed) |
3 x pluggable fan modules (pre-installed) |
||
| Heat dissipation |
Front-to-back airflow |
|||
| Acoustic noise |
27°C (80.6°F): 56 dB 45°C (113°F): 72 dB |
|||
| Power module redundancy |
1+1 redundancy |
|||
| Fan redundancy |
3+1 redundancy, and at least three fan modules required |
2+1 redundancy, and at least two fan modules required |
||
| Module hot swapping |
Supported |
|||
| Power module hot swapping |
Supported |
|||
| Fan module hot swapping |
Supported |
|||
| Cable hot swapping |
Supported |
|||
| Power supply monitoring |
Monitoring of the power supply model and status Power supply failure alarming |
|||
| Fan monitoring |
Fan speed adjustment: 256 levels (Only automatic adjustment is supported.) Fan failure alarm |
|||
| Temperature monitoring |
Temperature alarm and over-temperature protection |
|||
| ESD |
ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV |
|||
| Surge protection |
MGMT port: 4 kV Power port: 6 kV |
|||
| Environment and reliability |
RG-S7610-10SFMP2CQ |
RG-S7610-10SFXP2CQ |
| Temperature |
Operating temperature: 0°C to 45°C (32°F to 113°F) Storage temperature: --40°C to +70°C (--40°F to +158°F) Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|
| Humidity |
Operating humidity: 10% to 90% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) |
|
| Altitude |
Operating altitude: 0 m to 5000 m (0 ft. to 16,404.20 ft.) Storage altitude: 0 m to 5000 m (0 ft. to 16,404.20 ft.) |
|
| Mean time between failure (MTBF) |
302000 hours (about 34 years) |
|
| Fan |
4 x pluggable fan modules (pre-installed) |
|
| Heat dissipation |
Front-to-back airflow |
|
| Acoustic noise |
27°C (80.6°F): 56 dB 45°C (113°F): 72 dB |
|
| Power module redundancy |
1+1 redundancy |
|
| Fan redundancy |
3+1 redundancy, and at least three fan modules required |
|
| Module hot swapping |
Supported |
|
| Power module hot swapping |
Supported |
|
| Fan module hot swapping |
Supported |
|
| Cable hot swapping |
Supported |
|
| Power supply monitoring |
Monitoring of the power supply model and status Power supply failure alarming |
|
| Fan monitoring |
Fan speed adjustment: 256 levels (Only automatic adjustment is supported.) Fan failure alarm |
|
| Temperature monitoring |
Temperature alarm and over-temperature protection |
|
| ESD |
ESD contact/air discharge: 6 kV/8 kV ESD susceptibility contact/air discharge: 8 kV/15 kV |
|
| Surge protection |
Management port: 4 kV (management port) 4GT port of the M7600-4GT4VS expansion module: 6 kV |
|
Certifications and Regulatory Compliance
| Certifications and regulatory compliance |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Safety regulation |
IEC 62368-1: 2018 EN 62368-1: 2014+A11:2017 |
|||
| EMC regulation |
EN 55032:2015+A1:2020 EN 61000-3-2013+A1:2019+A2:2021 EN IEC 61000-3-2:2019+A1:2021 EN 55035:2017+A11:2020 EN 300386 V2.2.1 |
|||
| RoHS |
European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863 |
|||
Software Specifications
| Device Model |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Maximum number of VSU members |
4 |
|||
| VSU bandwidth |
400 Gbps |
|||
| Maximum number of SVIs |
4,094 |
|||
| Maximum number of MAC address entries |
128,000 |
|||
| Maximum number of ARP address entries |
96,000 |
|||
| Maximum number of ND entries |
80,000 |
|||
| Maximum number of IPv4 unicast routes |
350,000 (shared with IPv6 routes) |
|||
| Maximum number of IPv6 unicast routes |
65,000 |
|||
| Maximum number of IPv4 multicast routes |
4,000 |
|||
| Maximum number of IPv6 multicast routes |
2,000 |
|||
| Maximum number of IGMP groups |
4,000 |
|||
| Maximum number of MLD groups |
2,000 |
|||
| Maximum number of VRF instances |
1,024 |
|||
| Maximum number of ACEs |
In: 28,000, Out: 4,000 |
|||
| Device Model |
RG-S7610-10SFG2CQ |
RG-S7610-10SFX2CQ |
RG-S7620-20SFG2CQ |
RG-S7620-20SFX2CQ |
| Ethernet switching |
Jumbo frame (maximum length: 9,216 bytes) |
|||
| Maximum number of VLANs that can be created: 4,094 |
||||
| Voice VLAN |
||||
| Super-VLAN and private VLAN |
||||
| MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment |
||||
| GVRP |
||||
| Basic QinQ and selective QinQ |
||||
| STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) |
||||
| ERPS (G.8032) |
||||
| LLDP/LLDP-MED |
||||
| IP service |
Static ARP |
|||
| DHCP client |
||||
| DHCP relay |
||||
| DHCP server |
||||
| DHCP snooping |
||||
| DHCPv6 server, DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping |
||||
| Neighbor Discovery (ND) and ND snooping |
||||
| GRE tunnel |
||||
| IP routing |
IPv4/IPv6 static routing |
|||
| RIP and RIPng |
||||
| OSPFv2 and OSPFv3 Graceful restart (GR) |
||||
| IPv4 IS-IS IPv6 IS-IS |
||||
| BGP4 and BGP4+ |
||||
| IPv4/IPv6 VRF |
||||
| IPv4/IPv6 PBR |
||||
| Multicast |
IGMPv1/v2/v3 |
|||
| IGMPv1/v2/v3 snooping |
||||
| IGMP fast leave |
||||
| PIM-SM |
||||
| PIM-DM |
||||
| PIM-SSM for IPv4 and IPv6 |
||||
| MSDP to achieve inter-domain multicast |
||||
| MLDv1 and MLDv2 |
||||
| MLD snooping |
||||
| PIM-SMv6 |
||||
| Multicast source IP address check Multicast source port check |
||||
| Multicast querier |
||||
| MPLS |
6PE/6VPE model interconnection with the IPv4/IPv6 MPLS backbone network |
|||
| MPLS MIB (RFC 1273, RFC 4265, and RFC 4382) (MPLS MIB, MPLS L3VPN STD MIB, MPLS LSR STD MIB, and MPLS VPN MIB) |
||||
| ACL and QoS |
Standard IP ACLs (hardware ACLs based on IP addresses) |
|||
| Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers) |
||||
| Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type) |
||||
| Expert-level ACLs (hardware ACLs based on the source and destination IP addresses and ports, and protocol type) |
||||
| IPv6 ACL |
||||
| ACL 80 |
||||
| Expert-level ACLs (hardware ACLs based on |
||||
| ACL redirection |
||||
| Port-based rate limiting |
||||
| Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences |
||||
| Congestion management: SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ |
||||
| Congestion avoidance: tail drop, RED, and WRED |
||||
| Eight queues on each port |
||||
| Security |
Multiple AAA modes |
|||
| RADIUS authentication and authorization |
||||
| TACACS+ |
||||
| IEEE 802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication |
||||
| Web authentication |
||||
| Hypertext Transfer Protocol Secure (HTTPS) |
||||
| SSHv1 and SSHv2 |
||||
| Global IP-MAC binding |
||||
| Port security |
||||
| IP source guard |
||||
| SAVI |
||||
| ARP spoofing prevention |
||||
| CPP and NFPP |
||||
| Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP attack defense, ND attack defense, IP scanning attack defense, and customizing attack defense packet types |
||||
| IPv4 uRPF and IPv6 uRPF Strict and loose uRPF Default route exclusion configuration during uRPF checks |
||||
| Reliability |
REUP |
|||
| Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control |
||||
| Data Link Detection Protocol (DLDP) |
||||
| IPv4 VRRP v2/v3 and IPv6 VRRP v3 |
||||
| BFD |
||||
| Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM) |
||||
| Hot swapping of power modules and fan modules |
||||
| Device Virtualization |
VSU |
|||
| NMS and Maintenance |
RSPAN and ERSPAN |
|||
| sFlow (network detection technology based on packet sampling, which is mainly used for traffic statistics and analysis in heavy-traffic scenarios) |
||||
| NTP and SNTP |
||||
| FTP and S TFTP |
||||
| SNMP v1/v2/v3 |
||||
| RMON (1, 2, 3, 9) Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as private alarm extension groups |
||||
| NETCONF |
||||
| CWMP |
||||
| gRPC |
||||
| OpenFlow Special 1.0/1.3 Flow table analysis defined by all protocols Transmission of specified packets to the controller Configuring the controller's IP address and port Notifying port status changes to the controller |
||||
| VXLAN |
EVPN VXLAN tunnel establishment VLAN access to VXLAN IPv4 over IPv4 Distributed gateway IPv6 over IPv4 Using an SVI to connect to the VXLAN network Using a routed interface to connect to the VXLAN network Proxy ARP (replying with the actual MAC address)) ND proxy (replying with the actual MAC address) ND reply (replying with the actual MAC address) VXLAN EVPN VXLAN static route Anycast gateway VXLAN bridging mode VXLAN routing mode Proxy ARP (replying with the gateway MAC address) Configuring the UDP port number in VXLAN packets Static VXLAN tunnel creation |
|||
Tài nguyên
All ResourcesThông tin đặt hàng
Chassis
| Model |
Description |
| RG-S7610-10SFG2CQ |
CWDM switch, 1 RU, 10 x SFG ports (80 x 1GE logical channels), 2 x 40GE/100GE QSFP28 ports, 2 x power module slots, 1 x expansion module slot. |
| RG-S7610-10SFX2CQ |
CWDM switch, 1 RU, 10 x SFX ports (80 x 10GE logical channels), 2 x 40GE/100GE QSFP28 ports, 2 x power module slots, 1 x expansion module slot. |
| RG-S7620-20SFG2CQ |
CWDM switch, 2 RU, 20 x SFG ports (160 x 1GE logical channels), 2 x 40GE/100GE QSFP28 ports, 2 x power module slots, 1 x expansion module slot. |
| RG-S7620-20SFX2CQ |
CWDM switch, 2 RU, 20 x SFX ports (160 x 10GE logical channels), 2 x 40GE/100GE QSFP28 ports, 2 x power module slots, 1 x expansion module slot. |
| RG-S7610-10SFMP2CQ |
CWDM switch, 1 RU, 10 x SFMP 40GE ports, 2 x fixed 100GE uplink ports, and 1 x expansion slot. Port speeds support backward compatibility. |
| RG-S7610-10SFXP2CQ |
CWDM switch, 1 RU, 10 x SFXP 160GE ports, 2 x fixed 100GE uplink ports, and 1 x expansion slot. Port speeds support backward compatibility. |
Expansion module
| Model |
Description |
| M7600-2CQ |
Expansion module, 2 x 40GE/100GE QSFP28 ports. |
| M7600-4GT4VS |
Expansion module, 4 x 10/100/1000BASE-T ports, 4 x 1GE/10GE/25GE SFP28 ports. |
Note:
-
10 x SFX ports and 20 x SFX ports support SFG-LR-SM and SFX-LR-SM.
-
4 x 1GE/10GE/25GE SFP28 ports support 1GE SFP transceivers, 10GE SFP+ transceivers and 25GE SFP28 transceivers.
-
2 x 40GE/100GE QSFP28 ports support 40GE QSFP+ transceivers and 100GE QSFP28 transceivers.
Power module
| Model |
Description |
| RG-PA550I II-F |
550 W AC power module, supporting redundancy, 10 A power cord |
Note: The power module is sold and shipped separately. The switch chassis packaging does not include the power module. The power module must be ordered to ensure the switch can work properly.
Optical Transceivers and Cables
1GE Optical Transceiver
| Model |
Description |
| Mini-GBIC-GT |
1000BASE-X to 1000BASE-T, copper SFP transceiver, RJ45, 100 m over Cat 5e/6/6a The port needs to be configured with auto-negotiation |
| MINI-GBIC-SX-MM850 |
1000BASE-SX, SFP transceiver, 850 nm, Duplex LC, 500 m over MMF |
| MINI-GBIC-LX-SM1310 |
1000BASE-LX, SFP transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| MINI-GBIC-LH40-SM1310 |
1000BASE-LH, SFP transceiver, 1310 nm, Duplex LC, 40 km over SMF |
| MINI-GBIC-ZX80-SM1550 |
1000BASE-ZX, SFP transceiver, 1550 nm, Duplex LC, 80 km over SMF |
| GE-SFP-LX20-SM1310-BIDI |
1000BASE-LX, SFP transceiver, TX1310/RX1550, BiDi LC, 20 km over SMF |
| GE-SFP-LX20-SM1550-BIDI |
1000BASE-LX, SFP transceiver, TX1550/RX1310, BiDi LC, 20 km over SMF |
Note: BiDi transceivers must be used in pairs. If one end uses GE-SFP-LX20-SM1310-BIDI, the other end must use GE-SFP-LX20-SM1550-BIDI.
10GE Optical Transceiver
| Model |
Description |
| XG-SFP-SR-MM850 |
10GBASE-SR, SFP+ transceiver, 850nm, Duplex LC, 300 m over MMF |
| XG-SFP-LR-SM1310 |
10GBASE-LR, SFP+ transceiver, 1310nm, Duplex LC, 10 km over SMF |
| XG-SFP-ER-SM1550 |
10GBASE-ER, SFP+ transceiver, 1550nm, Duplex LC, 40 km over SMF |
| XG-SFP-ZR-SM1550 |
10GBASE-ZR, SFP+ transceiver, 1550nm, Duplex LC, 80 km over SMF |
| XG-SFP-AOC1M |
10GBASE, SFP+ active optical cable (AOC), 1 m, including one cable and two optical transceivers |
| XG-SFP-AOC5M |
10GBASE, SFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
25GE Optical Transceiver
| Model |
Description |
| VG-SFP-SR-MM850 |
25GBASE-SR, SFP28 transceiver, 850 nm, Duplex LC, 100 m over OM4 MMF, 70 m over OM3 MMF |
| VG-SFP-LR-SM1310 |
25GBASE-LR, SFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| VG-SFP-AOC5M |
25GBASE, SFP28 active optical cable (AOC), 5 m, including one cable and two optical transceivers |
40GE Optical Transceiver
| Model |
Description |
| 40G-QSFP-LSR-MM850 |
40GBASE-LSR, QSFP+ transceiver, 850 nm, MPO 1 x 12, 400 m over OM4 MMF, 300 m over OM3 MMF |
| 40G-QSFP-LR4-SM1310 |
40GBASE-LR4, QSFP+ transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| 40G-QSFP-iLR4-SM1310 |
40GBASE-iLR4, QSFP+ transceiver, 1310 nm, Duplex LC, 2 km over SMF |
| 40G-QSFP-LX4-SM1310 |
40GBASE-LX4, QSFP+ transceiver, 1310 nm, Duplex LC, 150 m over OM3/OM4 MMF, 2 km over SMF |
| 40G-AOC-5M |
40GBASE, QSFP+ active optical cable (AOC), 5 m, including one cable and two optical transceivers |
100GE Optical Transceiver
| Model |
Description |
| 100G-QSFP-SR-MM850 |
100GBASE-SR, QSFP28 transceiver, 850 nm, MPO 1 x 12, 100 m over OM4 MMF, 70 m over OM3 MMF |
| 100G-QSFP-LR4-SM1310 |
100GBASE-LR4, QSFP28 transceiver, 1310 nm, Duplex LC, 10 km over SMF |
| 100G-AOC-10M |
100GBASE, QSFP28 active optical cable (AOC), 10 m, including one cable and two optical transceivers |
CWDM Transceiver
1:8 CWDM transceivers of SOE Solution 3.0
| Model |
Description |
| SFG-LR-SM |
1GBASE-LR, core switch-side SFG CWDM transceiver, integration of 8 different wavelengths, BiDi LC, 10 km over SMF |
| SFM-LR-SM |
2.5GBASE-LR, core switch-side SFM CWDM transceiver, integration of 8 different wavelengths, BiDi LC, 10 km over SMF |
| SFX-LR-SM |
10GBASE-LR, core switch-side SFX CWDM transceiver, integration of 8 different wavelengths, BiDi LC, 10 km over SMF |
| GE-SFP-LR(A1-8)-H |
A group of 8 high-power 1GE CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), dual-fiber LC/UPC connectors, supporting single-uplink and dual-uplink scenarios |
| MG-SFP-LR(A1-8)-H |
A group of 8 high-power 2.5GE CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), dual-fiber LC/UPC connectors, supporting single-uplink and dual-uplink scenarios |
| MG-SFP-LR(A1-4)-H |
A group of 4 high-power 2.5GE CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), dual-fiber LC/UPC connectors, supporting single-uplink and dual-uplink scenarios |
| XG-SFP-LR(A1-8)-H |
A group of 8 high-power 10GE CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), dual-fiber LC/UPC connectors, supporting single-uplink and dual-uplink scenarios |
| XG-SFP-LR(A1-8)-H-E |
A group of 8 high-power quasi-industrial temperature 10GE CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), dual-fiber LC/UPC connectors, supporting single-uplink and dual-uplink scenarios |
| MG-SFP-LR(A1-8)-H-E |
A group of 8 high-power quasi-industrial temperature 2.5GE BiDi CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), dual-fiber LC/UPC connectors, supporting single-uplink and dual-uplink scenarios |
| GE-SFP-LR(A1-8)-H-E |
A group of 8 high-power quasi-industrial temperature 1GE BiDi CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), dual-fiber LC/UPC connectors, supporting single-uplink and dual-uplink scenarios |
1:16 CWDM Transceivers of SOE Solution 4.0
| Model |
Description |
| SFGP-LR-SM |
Core-side high-density CWDM 16GE SFGP transceiver, supporting 16 distinct wavelengths (corresponding to 16 gigabit access devices), SMF, 10 km (6.21 miles), and single-fiber LC/APC connector |
| SFXP-LR-SM |
Core-side high-density CWDM 160GE SFXP transceiver, supporting 16 distinct wavelengths (corresponding to 16 10 GE access devices), SMF, 10 km (6.21 miles), and single-fiber LC/APC connector |
| XG-SFP-LR(A1-16)-H-BIDI |
A group of 16 high-power commercial-temperature 10GE BiDi CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), and single LC/UPC connector, designed to be used with single-uplink transparent distribution modules |
| GE-SFP-LR(A1-16)-H-BIDI |
A group of 16 high-power commercial-temperature 1GE BiDi CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), and single LC/UPC connector |
| XG-SFP-LR(A1-16)-P-BIDI |
A group of 16 ultra-high-power commercial-temperature 10GE BiDi CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), and single LC/UPC connector, designed to be used with dual-uplink transparent distribution modules |
| XG-SFP-LR(A1-16)-H-E-BIDI |
A group of 16 high-power quasi-industrial temperature 10GE BiDi CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), and single LC/UPC connector |
| GE-SFP-LR(A1-16)-H-E-BIDI |
A group of 16 high-power quasi-industrial temperature 1GE BiDi CWDM transceivers with different wavelengths for access-side deployment, SMF, 10 km (6.21 miles), and single LC/UPC connector |
Transparent Distribution Modules
1:8 Transparent Distribution Modules of SOE Solution 3.0
| Model |
Description |
| RG-MUX-8LC/LC-H |
Building-side 8-port transparent distribution module (high-end version with low insertion loss), 8 x 1GE/2.5GE/10GE demultiplexing ports, 1 x multiplexing port, supporting connection to a dual-uplink splitter |
| RG-MUX-8LC/LC |
Building-side 8-port transparent distribution module, 8 x 1GE/2.5GE/10GE demultiplexing ports, 1 x multiplexing port |
| RG-MUX-EXT |
Building-side transparent distribution module's expansion module, or optical dual-uplink splitter (delivered with short fiber jumpers), which connects to the transparent distribution module and provides 1-to-2 optical signal splitting to realize dual-uplink networking; 1 x multiplexing port, 2 x uplink ports for optical splitting |
| RG-MUX-BOX |
Building-side transparent distribution module subrack, 6 x transparent distribution module/dual-uplink splitter slots |
1:16 Transparent Distribution Modules of SOE Solution 4.0
| Chassis |
Description |
| RG-MUX-16LC/LC-H-BIDI |
Building-side 16-port transparent distribution module, single-fiber bidirectional BiDi downlink ports with LC/UPC connectors, and a single uplink COM port with an LC/APC connector, supporting standalone scenarios |
| RG-MUX-16LC/LC-V-BIDI |
Building-side 16-port transparent distribution module, single-fiber bidirectional BiDi downlink ports with LC/UPC connectors, and dual uplink COM ports with LC/APC connectors, supporting VSU scenarios |
| RG-MUX-BOX-H |
Subrack of the building-side transparent distribution module, providing three slots, which can accommodate 1:16 or 1:8 transparent distribution modules or dual-uplink splitters, supporting rack mounting and wall mounting |
