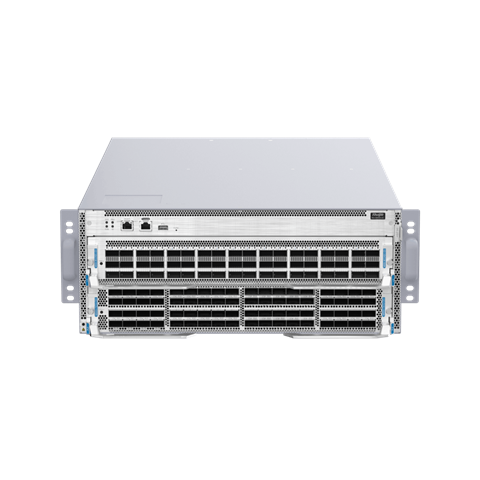

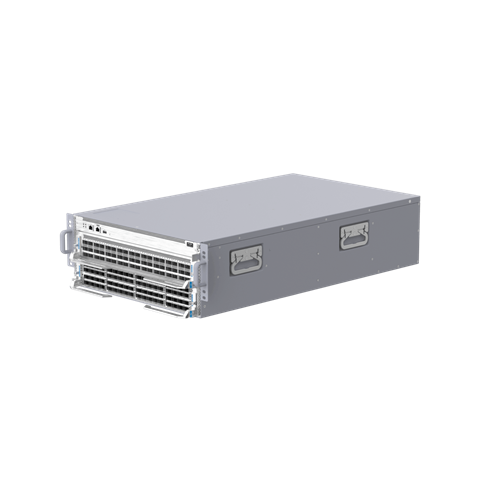

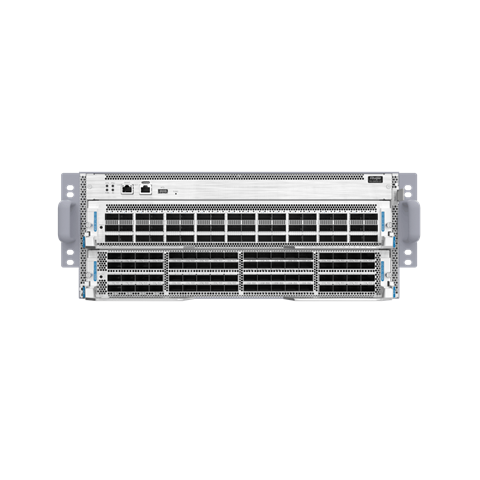

RG-S6930-2C – Next-Generation Data Center High-Density Centralized Modular Core Switch with 100GE/200GE Line Cards

Centralized modular core switch with large buffer and high-density ports in the 4-RU space, which is recommended for the data center gateway zone, MAN, and DCI

Models
Highlight Features
  • 100GE and 200GE line cards, and up to 144 x 100GE or 72 x 200GE ports
  • Hardware-level redundancy, ensuring nonstop services and data center network stability
  • MACsec data encryption and transmission, effectively protecting service data security
  • Telemetry-based network monitoring and automated O&M, making management simple and efficient
  • Straight front-to-rear airflow design, enhancing the cooling efficiency
Sales Enquiry
Ana Teknik Özellikler View More
Features

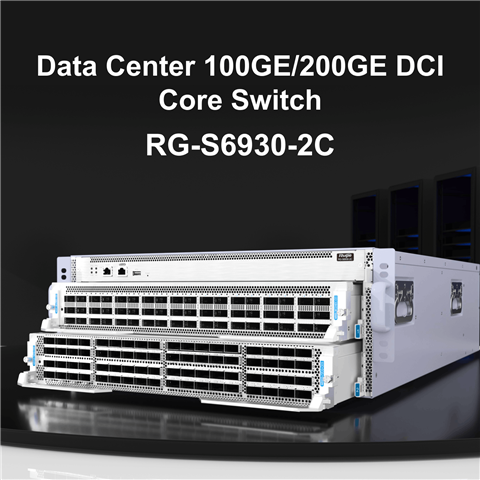

Data Center 100GE/200GE DCI Core Switch RG-S6930-2C

Data center high-density core switch that supports 100GE/200GE line cards and provides 144 x 100GE or 72 x 200GE ports, which can be flexibly configured
Buffer of 16 GB and millions of routing connections due to its high performance, adapting to future expansion requirements on a data center network

Ports

Dimensions

Power
<2900W



Consumption Buffer
16G

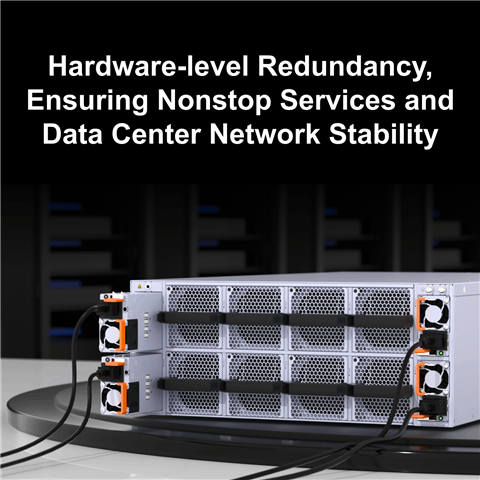

Hardware-level Redundancy,
Ensuring Nonstop Services and Data Center Network Stability

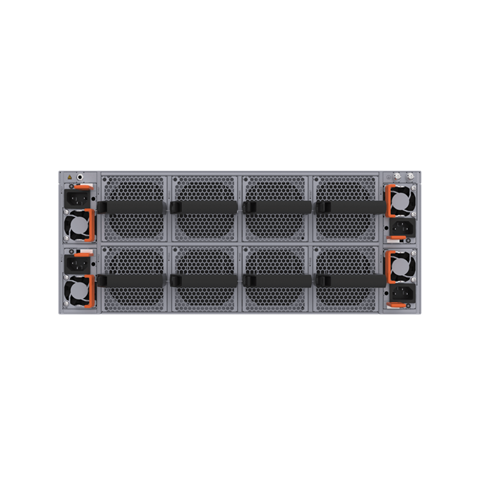

Hot-Swappable Redundant Power Modules

Hot-Swappable Redundant Fan Modules

Power modules in 2+2 redundancy mode, failover in seconds, and power module replacement without network interruption, providing double protection for links

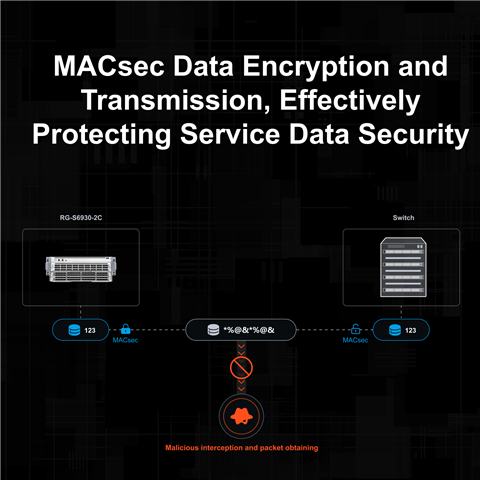

MACsec Data Encryption and Transmission,
Effectively Protecting Service Data Security

MACsec provides hardware-level data encryption. With MACsec and 802.1X configured, the switch can strictly identify and verify transmitted data.
With MACsec, the switch achieves interface-based secure line-rate transmission, effectively preventing data from being intercepted and obtained maliciously and
ensuring service data security.

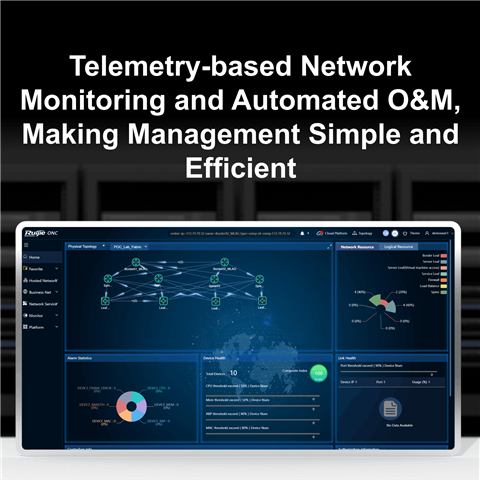

Telemetry-based Network Monitoring and Automated O&M,
Making Management Simple and Efficient

The switch enabled with telemetry provides clear data status and hierarchy.
The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time,
making network management more efficient and accurate.

Specifications

Hardware Specifications

Item

RG-S6930-2C

Dimensions (W × D × H)

442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in.)

Rack height

4 RU

Unit weight

23.4 kg (51.59 lbs., empty chassis)

33.6 kg (74.08 lbs., a chassis with four power modules and eight fan modules)

Switching capacity

28.8 Tbps

Packet forwarding rate

5400 Mpps

Management port

1 x RJ45 console port

1 x RJ45 MGMT port

USB port

1 x USB 2.0 port (Type A connector)

Module slot

2 x expansion module slots

4 x power module slots

8 x fan module slots

Power consumption

Maximum power consumption: 2934 W

Typical power consumption: 1338 W

Static power consumption: 600 W

Power input

RG-PA1600II-F (AC input):

Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz

Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz

Rated input current: 12 A (100 V to 127 V AC)

9.5 A (200 V AC to 240 V AC)

Power port type: C14



RG-PA1600II-F (HVDC input):

Rated input voltage: 240 V DC

Maximum input voltage: 180 V DC to 300 V DC

Rated input current: 9.5 A

Power port type: C14

Temperature

Operating temperature: 0°C to 40°C (32°F to 104°F)

Storage temperature: –40°C to +70°C (–40°F to +158°F)

Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.

Humidity

Operating humidity: 10% RH to 90% RH (non-condensing)

Storage humidity: 5% RH to 95% RH (non-condensing)

Altitude

Operating altitude: ≤ 5,000 m (16,404.20 ft.)

Storage altitude: ≤ 5000 m (16,404.20 ft.)

Cooling

Air cooling, front-to-rear airflow (port-side intake)



Software Specification

Item

RG-S6930-2C

802.1Q VLAN

4094

Layer 2 Protocols

IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (basic QinQ and *selective QinQ), and GVRP

Layer 3 Protocols

(IPv4)

BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Routing Policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, and Any-RP

Basic IPv6 Protocols

Neighbor Discovery, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, and IPv6 QoS

IPv6 Features

Static routing, ECMP, PBR, BGP4+, OSPFv3, IS-ISv6, RIPng, MLDv1/v2, PIM-SMv6, manual tunnel, *automatic tunnel, IPv4 over IPv6 tunnel, and * ISATAP tunnel

Visualization

gRPC

sFlow and IPFIX sampling

QoS

802.1p, DSCP, and ToS priority mapping

ACL-based traffic classification

Priority marking and remarking

Queue scheduling mechanisms, including SP, WFQ, and SP+WFQ

HA Design

GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching, RLDP unidirectional link detection, 2+2 power redundancy, fan redundancy, and hot swapping for all line cards and power supply modules

Security Features

MACSec, Network foundation protection policy (NFPP), CPU Protection Policy (CPP), DDoS attack defense, unauthorized data packet detection, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 authentication for OSPF, RIPv2, and BGPv4 packets, uRPF, broadcast packet suppression, Telnet login and password mechanisms for restricted IP addresses

Management Modes

SNMP v1/v2c/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN

Other Protocols

DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, ARP Proxy, and Syslog

Show More
Resources All Resources
Learn about Products or Solutions
Installation
Order Information

Chassis and Supervisor Engine

Model

Description

RG-S6930-2C

RG-S6930-2C chassis equipped with four RG-PA1600II-F power supply modules and eight M2EFAN II-F fan modules

Two expansion slots, four power supply module slots, and eight fan module slots



Power Supply Modules

Model

Description

RG-PA1600II-F

1600 W power supply module (AC and 240 V HVDC)



Fan Modules

Model

Description

M2EFAN II-F

Fan module (port-side intake)



Line Cards

Model

Description

M6900-36CQ18DC-CES

36 x 100GE QSFP28 ports and 18 x 200GE QSFP56 ports

M6900-72CQ-CES

72 x 100GE QSFP28 ports



40GE Optical Transceivers

Model

Description

40G-QSFP-iLR4-SM1310

40G iLR4 optical transceiver, QSFP+ form factor, Duplex LC, 2 km (6,561.68 ft.) over SMF

40G-QSFP-LR4-SM1310

40G LR4 optical transceiver, QSFP+ form factor, Duplex LC, 10 km (32,808.40 ft.) over SMF

40G-QSFP-LSR-MM850

40G LSR optical transceiver, QSFP+ form factor, MPO, 400 m (1,312.34 ft.) over MMF

40G-QSFP-SR-MM850

40G SR optical transceiver, QSFP+ form factor, MPO, 150 m (492.13 ft.) over MMF

40G-QSFP-LX4-SM1310

40G LX4 optical transceiver, QSFP+ form factor, Duplex LC connector, 150 m (492.13 ft.) over OM3/OM4 MMF, or 2 km (6,561.68 ft.) over SMF

40G-AOC-30M

40G QSFP+ AOC, 30 m (98.43 ft.)

40G-AOC-5M

40G QSFP+ AOC, 5 m (16.40 ft.)


100GE Optical Transceivers

Model

Description

100G-QSFP-LR4-SM1310

100G LR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 10 km (32,808.40 ft.) over SMF

100G-QSFP-iLR4-SM1310

100G iLR4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 2 km (6,561.68 ft.) over SMF

100G-QSFP-SR-MM850

100G SR optical transceiver, QSFP28 form factor, MPO, 850 nm, 100 m (328.08 ft.) over MMF

100G-QSFP-ER4-SM1310

100G ER4 optical transceiver, QSFP28 form factor, Duplex LC, 1310 nm, 40 km (131,233.59 ft.) over SMF

100G-AOC-10M

100G QSFP28 AOC cable, 10 m (32.81 ft.)

100G-AOC-5M

100G QSFP28 AOC cable, 5 m (16.40 ft.)



200GE Series Optical Transceivers

Model

Description

200G-Q56-SR4-MM850

200G SR4 optical transceiver, QSFP56 form factor, MPO-12 connector, 100 m (328.08 ft.) over OM4 MMF

Show More
